SAFETY AND OPERATING MANUAL

Original instructions

10.8V IMPACT DRIVER

Table of Contents

Need help?

Do you have a question about the TTP452IPD and is the answer not in the manual?

Questions and answers

Summary of Contents for Titan TTP452IPD

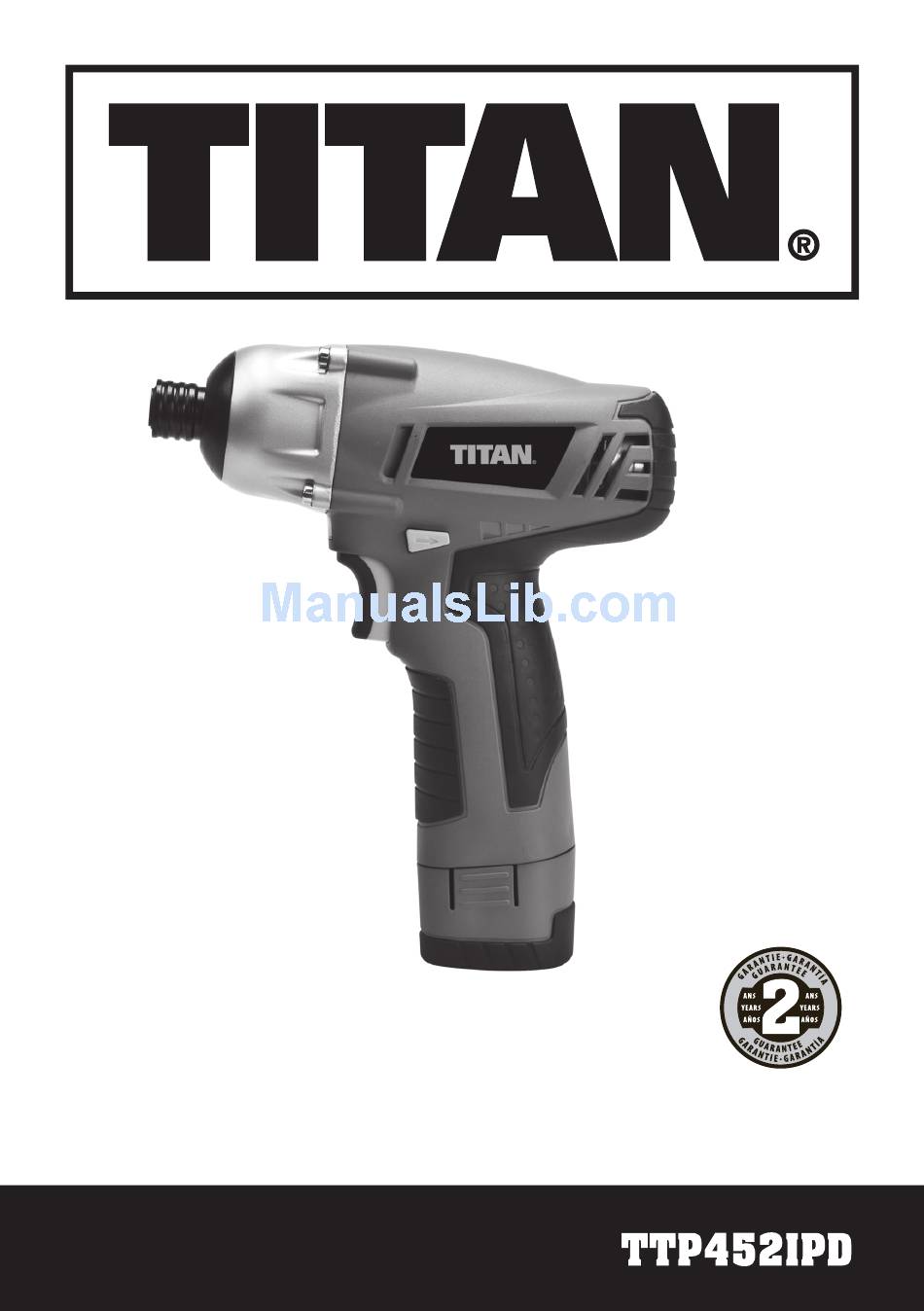

Page 1 SAFETY AND OPERATING MANUAL Original instructions 10.8V IMPACT DRIVER...
Page 2 Congratulations on your purchase of a power tool from Titan Power Tools (UK) Ltd. We want you to continue getting the best performance from it so this handbook includes information on safety, handling and care. Please retain this handbook in case you need to refer to any of the information in the future.
Page 3: General Safety Instructions
INSTRUCCIONES GENERALES DE SEGURIDAD AVERTISSEMENTS GENERAUX DE SECURITE GENERAL SAFETY INSTRUCTIONS ADVERTENCIA! Lea todas las advertencias de seguridad designadas por el AVERTISSEMENT! Lire tous les avertissements de sécurité signalés par le WARNING! Read all safety warnings designated by the symbol all instructions.
Page 4 chaussures de sécurité antidérapantes, les casques ou les protections auditives utilisés c. Evite un arranque accidental de la herramienta. Asegúrese de que el d. Remove any adjusting key or wrench before turning the power tool on. A pour les conditions appropriées réduiront les blessures de personnes. interruptor está...
Page 5 6. Service a. Have your power tool serviced by a qualiﬁed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR IMPACT DRIVER FOR IMPACT DRIVER 1.
Page 6 6. When the charger is in use it MUST be supervised , if there is any evidence of overheating then IMMEDIATELY disconnect the charger from the power supply. 7. If gas or smoke is emitted from the battery during charging switch off the power supply , and move to a well vented area to allow the fumes to vent to atmosphere.
Page 7 WARNING! Some dust particles created by power sanding, sawing, grinding, drilling and other construction jobs contain chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: Lead from lead-based paints. Crystalline silica from bricks and cement and other masonry products. Arsenic and chromium from chemically treated timber.
Page 8: Important Note
This tool may cause hand-arm vibration syndrome if its use is not adequately managed Warning: identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).Note The use of other tools will reduce the users’...
Page 9: Residual Risks
Health Surveillance All employees should be part of an employer’s health surveillance scheme to help identity any vibration related diseases at an early stage, prevent disease progression and help employees stay in work. Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain.
Page 10 Double insulation Conformity to CE directive Always charge the battery pack between temperatures 0°C to 50°C Indoor use only Do not expose to rain or water Do not burn 30 min charging time 30min Before charging, read the instructions This symbol indicates that this battery contains lithium. This battery shall be recycled.
Page 11 1 Collet locking sleeve 2 Forward /lock/ reverse rotation 3 ON/OFF switch with variable speed control 4 Battery pack 5 Battery pack release button 6 LED light 7 Charger 8 Charging indicator 10.8V IMPACT DRIVER...
Page 12: Technical Data
TECHNICAL DATA Voltage: 10.8V Speed: 0-2200/min Impact rate: 0-2800/min Chuck size: Hex 6.35mm Machine weight: 0.9 kg Charger: Charger model: TTB450CHR Input: 220-240V~ 50Hz 56W Output: Charging time: 30 min Charger weight: 0.5kg Battery: Battery model: TTP449BAT Battery weight: 0.2kg Li-Ion/10.8V/1300mAh 14Wh NOISE DATA A weighted sound pressure...
Page 13: Intended Use
OPERATIONS INSTRUCTIONS Note : Before using the tool, read the instruction book carefully. INTENDED USE This cordless impact driver shall be used for screw driving and tightening by impact. Other uses for the tool will lead to the damage of the tool and a series of dangers to the operator.
Page 14: Bit Replacement
OPERATIONS INSTRUCTIONS 1. ON/OFF SWITCH & VARIABLE SPEED CONTROL (Fig. 3) Depress to start and release to stop your tool. The on/off switch is fitted with a brake function which stops your chuck immediately when you quickly release the switch. This tool has a variable speed control built into the trigger.
Page 15: Troubleshooting
TROUBLESHOOTING 1. WHY DOES THE TOOL NOT TURN ON WHEN YOU PRESS THE SWITCH? The forward and reverse switch, which is on top of the trigger, is positioned in the lock function. Unlock the forward and reverse switch putting it into the required rotation position.
Page 16: Maintenance
MAINTENANCE Remove the battery from the tool and the plug from the socket before carrying out any adjustment, servicing or maintenance. Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool.
Page 17 UK PLUG REPLACEMENT The fuse in the main plug of your charger should always be replaced with one of identical rating. Check the voltage given on your charger matches the supply voltage. The charger is supplied with a fitted plug, however if you should need to fit a new plug follows the instruction below.
Page 18: Declaration Of Conformity
EN 60335-2-29:2004 + A2:2010 EN 62233:2008 Authorised Signatory and technical file holder Date : 27/02/2013 Signature:_____ ____________ Name / title: Peter Harries / Quality Manager Titan Power Tools (UK)Ltd. Trade House , Mead Avenue ,BA22 8RT 10.8V IMPACT DRIVER TTP452IPD...
