Summary of Contents for Wavelet Technology WAVESTORE TOPAZ

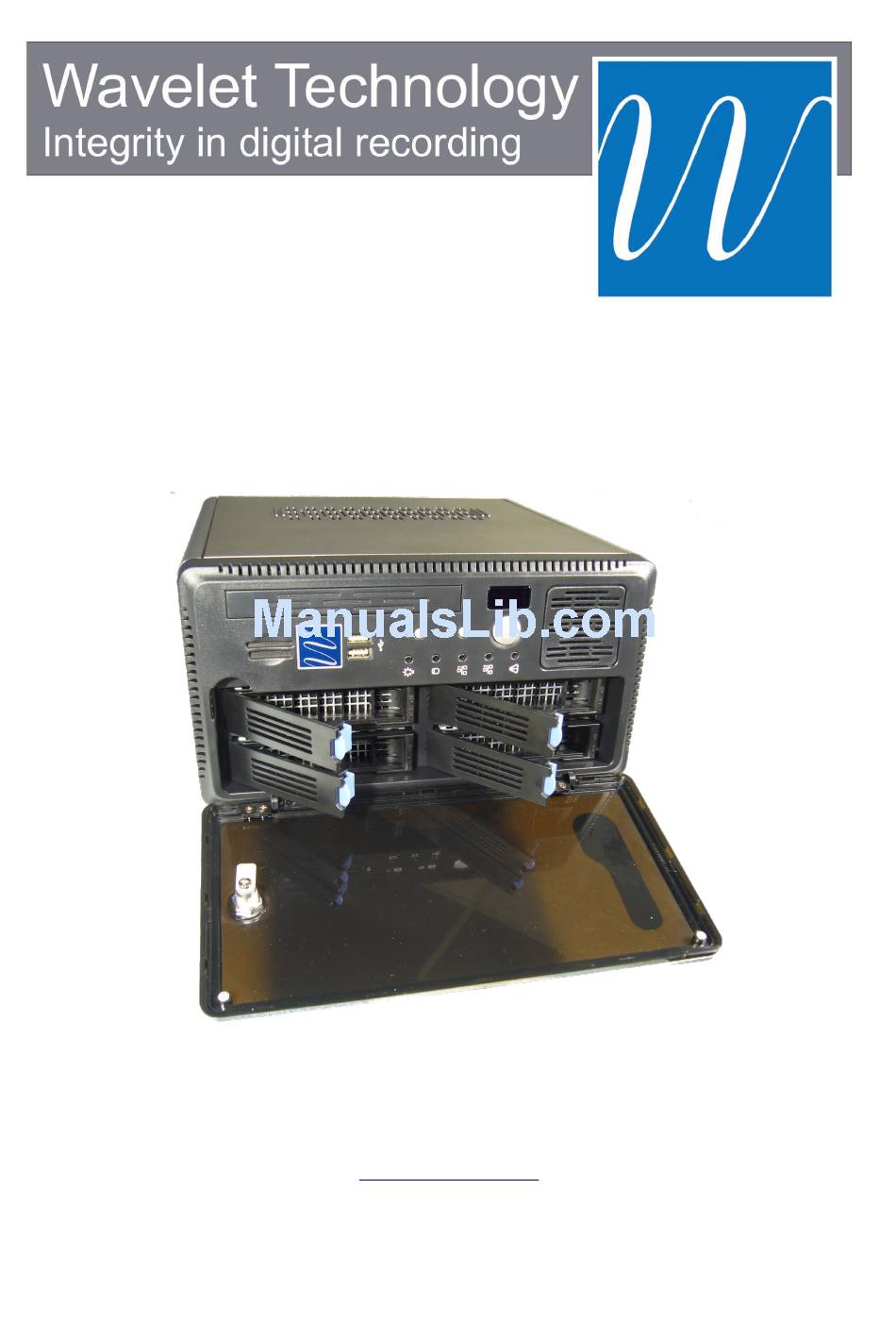

- Page 1 WAVESTORE TOPAZ – QUICKSTART GUIDE Wavelet Technology Limited Unit 1, Hayes Metro Centre, Springfield Road, Hayes, Middlesex UB4 0LE. ENGLAND www.wavestore.com Sales: sales@wavestore.com Tel: +44 (0)208 756 5480 Technical Support: support@wavestore.com Fax: +44 (0)870 139 3900...
-
Page 2: Table Of Contents
TECHNICAL SUPPORT.......................12 INTRODUCTION Congratulations on purchasing the Wavestore Topaz, a cutting-edge Digital Video Recorder and Management System. This Quickstart Guide aims to get you up and running quickly whilst also giving you a brief tour of the major sections of the software. -
Page 3: Connections
Congratulations! You’re ready to go. Press the Power Switch on the front of the Wavestore Topaz, wait while the system loads, and you should see a screen similar to that shown to the left. Wavestore Topaz Quickstart Guide - version 4.2 - issue 1... -
Page 4: Using The Pop-Up Virtual Keyboard
Simply press Enter to finish and close the virtual keyboard. LOGGING IN When you first start the Wavestore Topaz, you will be presented with the choice of two buttons, Quit in the top-right corner, and Login in the bottom-right corner. Click Login with the left mouse button to open the login dialogue box. -
Page 5: Configuring Ip Cameras
The login dialog box has 3 text boxes. The top one is labelled server. In here, you should type localhost although your Wavestore Topaz should have this in the box already. Now enter the username and password as specified above. Finally click Ok to login at which point you should see... - Page 6 Once it has been proven that the Wavestore Topaz can ping the camera, it is time to select the desired model. Normally this means selecting HTTP from the Type drop-down box and the camera make from the Camera drop-down box. The only exceptions to this are that for Mobotix cameras you can choose MxPEG from the Type menu and for Arecont cameras you can choose the Arecont type.
-
Page 7: The Main Screen
DIGITAL PAN/TILT is performed by clicking the left mouse button and dragging the • mouse once zoomed in. Play Controls The play controls operate as follows: Wavestore Topaz Quickstart Guide - version 4.2 - issue 1... -
Page 8: Camera Selection
Setup | Display screen are saved for the currently logged in operator only. Activity The activity button is for analogue cameras only and so does not function in the Wavestore Topaz. Wavestore Topaz Quickstart Guide - version 4.2 - issue 1... - Page 9 Status Indicator The status indicator shows the current status of the Wavestore Topaz, as well as the current license level. If a problem has occurred such as the disks are full or the machine is unlicensed, the status indicator will change into an icon representing that fault.
- Page 10 The dwell time is the time for which that camera will be shown before displaying the next in the sequence. PTZ (Pan / Tilt / Zoom) PTZ on IP / network cameras is not currently supported but is expected in Q4 2008. Wavestore Topaz Quickstart Guide - version 4.2 - issue 1...
-
Page 11: Find
Image clips can be copied to CD-R, DVD-R, or a remote client from the Find screen using the Copy and Multiple Copy buttons. Multiple Copy is detailed in the full Wavestore manual, Copy (single camera) is explained in the MAKING BACKUPS section below. Wavestore Topaz Quickstart Guide - version 4.2 - issue 1... -
Page 12: Making Backups
Burn to start burning the disc. When the burn is complete, it is possible to insert another CD/DVD and do another Burn – i.e. the Prepare stage does not have to be repeated. Wavestore Topaz Quickstart Guide - version 4.2 - issue 1... -
Page 13: Troubleshooting
If you require technical support, please email us at support@wavestore.com. Our support team operates Monday to Friday, 9am to 5.30pm, UK time. If you need urgent telephone support, please call +44 (0)20 8756 5456. Wavestore Topaz Quickstart Guide - version 4.2 - issue 1...
