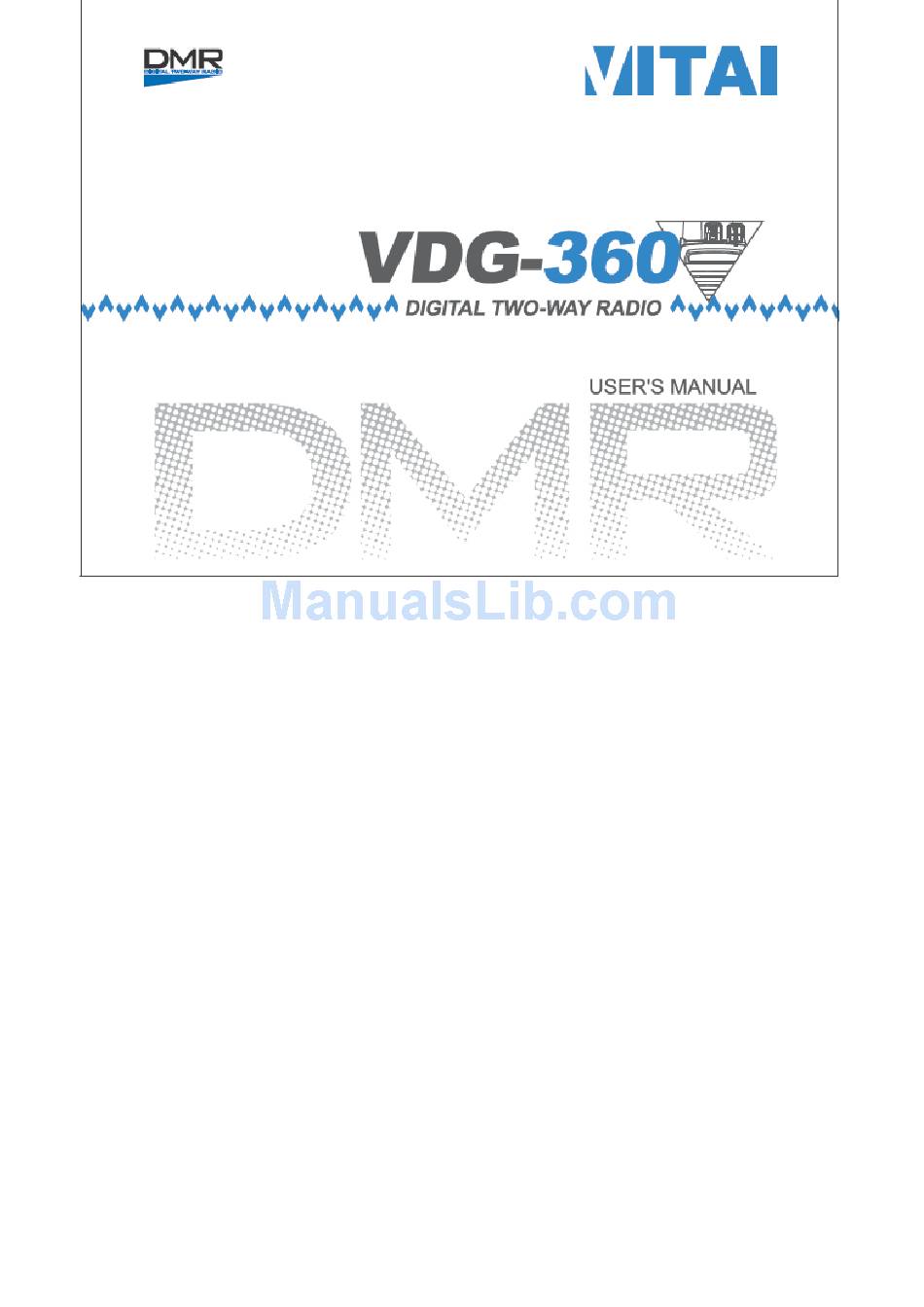

VITAI VDG-360 User Manual

VITAI VDG-360 User Manual

Digital two-way radio

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VDG-360 and is the answer not in the manual?

Questions and answers

James
March 5, 2025

What programing software can i use to copy the channels to a new radio

James
April 8, 2025

Is There a programing software for the VDG-360

1 comments:
Mr. Anderson
April 9, 2025

Yes, the VITAI VDG-360 supports programming through PC software, which allows users to download voice annunciation and zone alert tones based on actual needs.

This answer is automatically generated

Summary of Contents for VITAI VDG-360

  • Page 2 Electronics Co.,Ltd. We believe VITAI two-way radio, which always incorporates the latest technology, can bring great convenience to your life and work. We also believe that the quality and function of VITAI two-way radio can meet your demands for reliable communication.
  • Page 3 VITAI or its authorized parities. Due to the update or modification of the product, VITAI owns the right to change the specifications of software and hardware described in this manual without further notice. Specifications and information contained in this manual are for reference only.
  • Page 4 ◆ Using the designated accessories Use the antenna, battery, adapter or charger supplied or sold by VITAI only, or otherwise it causes damage to the product. If you want to purchase or replace the accessories, please contact your local dealer or VITAI.
  • Page 5 User Manual Digital Two-way Radio area. 3. Turn off the radio before entering any area with a potentially explosive atmosphere or blasting caps. 4. Do not operate the radio, disassemble or charge the battery in the potentially flammable and explosive atmosphere (such as gas station, coal gas station, etc.).
  • Page 6: Regulatory

    User Manual Digital Two-way Radio Regulatory Kirisun declares that this product is complaint with the essential requirements and other relevant provisions of the European Directive 2014/53/EU relating to radio and telecommunications terminal equipment and the mutual recognition of their conformity. This product is also compliant with directive 2011/65/EU having been designed and manufactured to the RoHS requirements.
  • Page 7 User Manual Digital Two-way Radio Max. transmit Country Frequency Range(MHz) power (W) Ireland (IE) 410 - 430,440 - 455, 456 - 459,460 - 470 Belgium(BE) 406.1-430 ,440-470 Croatia (HR) 406.1-430 ,440-470 Cyprus (CY) 406.1-430 ,440-470 Portugal (PT) 440-470 Malta(MT) 406.1-430 ,440-470 Luxembourg (LU) 410-430,440- 470 Bulgaria(BG)
  • Page 8 User Manual Digital Two-way Radio Max. transmit Country Frequency Range(MHz) power (W) Denmark(DK) 406.1-430,450 - 470 406.1 - 410,412.5 - 420, 422.5-430,440 - 442.5, Estonia(EE) 443 - 450,446 -446.2,450 -453,457.575 - 463,467.575 -470 406.1 - 410 , 413 - 418.6 ,423- 428.6 ,440 - 450 , Lithuania(LT) 450 - 452.9875 ,458.1125 - 462.9875 ,467.4875 - 467.5875 Hungary(HU)
  • Page 9 User Manual Digital Two-way Radio Max. transmit Country Frequency Range(MHz) power (W) Slovakia(SK) 441.025 - 451.31,455.73 - 461.31,465.73- 470 407.525 - 408.55,410.0125 - 410.8875,417.525 - 417.9, 419.15 - 419.525,419.55625 - 419.71875,420.0125 - 420.8875,426.35 - 427.5,427.525 - 427.9, 429.15 - 429.525,429.55625- 429.71875,440.0125 - 440.5875, 440.60625 - 440.89375,442.775 - 443, 443.025 - 444, Finland(FI) 444.025 - 444.525,444.55 - 444.975,445 - 446,...
  • Page 10: Restrictions Are Valid For The European Country

    User Manual Digital Two-way Radio Restrictions are valid for the European country Restrictions are valid for the following countries: France (FR), United Kingdom (UK), Italy(IT), Ireland (IE), Portugal (PT), Luxembourg (LU) , Bulgaria(BG) , Latvia (LV), Czech Republic (CZ) , Denmark(DK), Estonia(EE), Lithuania(LT) , Hungary(HU) , Netherlands(NL) , Austria(AT), Poland(PL), Romania (RO) , Slovakia(SK) , Finland(FI) , Sweden(SE) Waste Electrical and Electronic Equipment recycling This symbol on the product or its packaging indicates that this product must not be disposed of as...
  • Page 11: Fcc Radiation Exposure Statement

    User Manual Digital Two-way Radio US Markets FCC radiation exposure statement This radio is intended for use in occupational/controlled applications where users have been made aware of the potential risks for exposure and can exercise control over their exposure. This product is not authorised for general population, consumer or similar use.
  • Page 12: Table Of Contents

    User Manual Digital Two-way Radio Content REGULATORY ........................  V   RESTRICTIONS FREQUENCIES ARE VALID FOR THE EUROPEAN COUNTRY .......  V   RESTRICTIONS ARE VALID FOR THE EUROPEAN COUNTRY  ............. IX   Disposing of batteries  .......................  I X   FCC radiation exposure statement  ....................  X   1   UNPACKING AND CHECKING .................. 1   1.1   S  ........................  1   UPPLIED  CCESSORIES 2   BATTERY INFORMATION .................... 2  ...
  • Page 13 User Manual Digital Two-way Radio 4   INTRODUCTION ...................... 6   5   PROGRAMMABLE KEYS .................... 8   5.1   P   .........................  8   ROGRAMMABLE  5.2   LED   .........................  9     NDICATION 6   BASIC OPERATION...................... 10   6.1   P  ......................  1 0   OWER ON OFF THE ...
  • Page 14 User Manual Digital Two-way Radio 7.5   K   ........................  1 3   ILL AND  NKILL 7.6   E   ..........................  1 3   MERGENCY 7.7   E  ...................  1 4   NABLING  OLOR  ODE ON  IGITAL  7.8   T  ...
  • Page 16: Unpacking And Checking

    User Manual Digital Two-way Radio Unpacking and Checking Please carefully open the box, and check if the accessories listed below are contained in the package. For any missed or damaged item, please contact your local dealer for solution. Supplied Accessories Material Quantity Radio...
  • Page 17: Battery Information

    User Manual Digital Two-way Radio Battery Information Notice The battery is not charged before delivery, so please charge the battery for your first use. If the battery is not used for a long time or the battery is used up, please charge it before use. Charge/discharge for twice or three times alternately to achieve its optimal performance.
  • Page 18: Battery Charging

    User Manual Digital Two-way Radio Battery Charging (1) Plug the power adaptor in the proper socket of AC power. (2) Plug the cable of the power adaptor at the back of the socket, and the green indicator glows. (3) Plug the battery or radio in the charger. (4) Make sure that the battery is in proper contact with the charger terminal, and the red indicator glows.
  • Page 19: Attaching The Accessories

    User Manual Digital Two-way Radio Attaching the Accessories Attaching/Detaching the Battery ◆ Attaching the Battery ① (1) Slightly press the top of the belt clip as shown in ◆ Detaching the battery (1) For detaching the battery, please first turn off the radio.
  • Page 20: Attaching/Detaching The Belt Clip

    User Manual Digital Two-way Radio antenna port. Turn the antenna clockwise until it is fixed. For detaching the antenna, turn it counter-clockwise. Attaching/Detaching the Belt Clip Align the two screws on the belt clip with the screw holes at the back of the radio. Use two 2.5x6.5 machine screws.
  • Page 21: Introduction

    User Manual Digital Two-way Radio Introduction...
  • Page 22 User Manual Digital Two-way Radio Part Name Antenna PTT key Press this key to initiate a call and talk Side key (programmable key) This key can be set with different features by dealer. Please refer to “5 Programmable Keys” for further details Speaker Voice Output.
  • Page 23: Programmable Keys

    User Manual Digital Two-way Radio Programmable Keys Programmable Keys To suit the operation habits of customer, programmable keys (side keys) are available and can be set by dealer as shortcut key. Note: Short Press: press and release quickly. Long Press: press and hold for a while (press duration can be set by programming software) Programmable Feature Application None...
  • Page 24: Led Indication

    User Manual Digital Two-way Radio Enable/Disable squelch feature. Used for receiving the weak Squelch on/off signals on the analogue channel. Squelch Level Adjusts the signal strength required when receiving. Enable/Disable scan feature and listens to the communication Scan activities on other channels. Alert Tone on/off Enable/disable all the alert tones.
  • Page 25: Basic Operation

    User Manual Digital Two-way Radio Flashes red Low battery Flashes green Channels are being scanned Flashes orange Digital call hang time and it will exit when the hang time is up Glows orange Blank channel which is not available. Switch to other channel to exit. Flashes red quickly The programming software is reading the parameters available for configuration Flashes...
  • Page 26: Adjusting The Volume

    User Manual Digital Two-way Radio Adjusting the Volume When the radio is on, rotate the power/volume knob clockwise to increase the volume and counter-clockwise to decrease the volume. Initiating a Call Press PTT button to initiate a call to the default contact on the current channel when it is digital channel. The default contact on the current channel can be programmed by dealer.
  • Page 27: Features And Operation

    User Manual Digital Two-way Radio Features and Operation TOT (time-out-timer) TOT prevents the user from occupying the channel for too long. If the continuous transmission exceeds the duration set by dealer, the radio will stop transmitting and sound alarm. For stopping alarm, release PTT button. For transmission again, please press PTT button after a certain time interval (interval set by dealer).
  • Page 28: Kill And Unkill

    User Manual Digital Two-way Radio Kill and Unkill If the dealer enables and sets Kill and Unkill, the radio is able to receive and decode the Kill/Unkill signals from other radios. After being killed, the radio cannot transmit or receive any signals but activation signal. After being activated, the radio will be back to normal state.
  • Page 29: Enabling Color Code On Digital Mode

    User Manual Digital Two-way Radio from other members. Secret with Voice: after the radio enters alarm state, there will be no light or sound alert but it can receive response from other members. Note: Emergency Alarm: the radio transmits non-speech signal to trigger the alarm sent from other radios. Emergency Call: it is a call mode which is faster in occupying channel than common calls, which ensures smooth call in emergency.
  • Page 30: Trouble Shooting

    User Manual Digital Two-way Radio Trouble shooting Problem Cause and Solution A. The battery is used up –charge the battery or change to a new battery; Failed to power on B. Volume switch is faulty – repair at the specified service station;...
