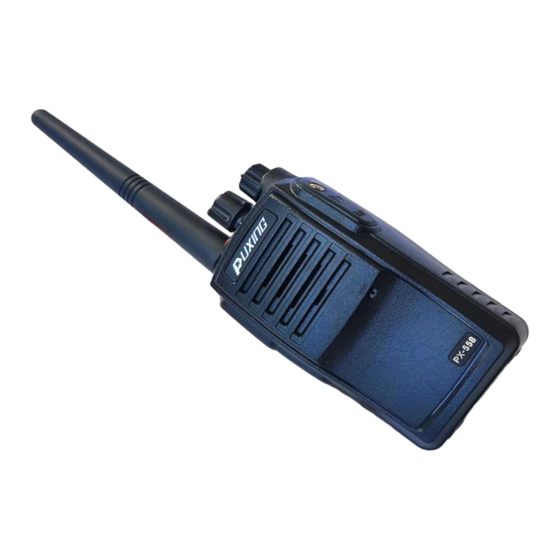

Puxing PX-558 Manual
  1. Manuals
  2. Brands
  3. Puxing Manuals
  4. Two-Way Radio
  5. PX-558
  6. Manual

Puxing PX-558 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Introduction
Thank you for purchasing PUXING Series Radio. The Series radios provide cost
effective communica- tions for businesses, they are the perfect communications
solution for all of todays fast-paced industries. Please read this guide carefully so
you know how to properly operate the radio before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PX-558 and is the answer not in the manual?

Questions and answers

Related Manuals for Puxing PX-558

Summary of Contents for Puxing PX-558

  • Page 1 Introduction Thank you for purchasing PUXING Series Radio. The Series radios provide cost effective communica- tions for businesses, they are the perfect communications solution for all of todays fast-paced industries. Please read this guide carefully so you know how to properly operate the radio before use.

  • Page 2: Table Of Contents

    1.CONTENTS Cautions…………………………………………. Beep setting………………………………… Check equipment………………………………… Channel annunciation……………………… Battery pack……………………………………… Time out timer……………………………… Charging…………………………………………... CTCSS / DCS…………………………………... Maintenance……………………………………… Wide/narrow band………………………….. Start……………………………………………….. Emergency call………………………………. Install/remove battery………………………… Battery save………………………………… Install antenna………………………………… End roger…………………………………….. Install belt clip……………………………….. Squelch tail elimination………………… Install speaker/microphone……………………. Low battery warning……………………… Install the cover over the speaker/microphone jacks Cable clone………………………………..

  • Page 3: Cautions

    02.CHECK EQUIPMENT CHECK EQUIPMENT Welcome to use our transceiver. Please check if any damage to the packing box before use. Carefully unpacks the transceiver. We recommend that you identify the items listed in the following table. If any items are missing or have been damaged during shipment, please inform the seller. SUPPLIED ACCESSORIES FULL...

  • Page 4: Charging

    04.CHARGING Charging Operation 04 CHARGING If the transceiver indicator displays , it means the battery pack is out of power , please charge it. Please always use the original charger. The charger’s indicator shows the charging status below. Please charge the battery pack as follow: ■Put the DC plug of the transformer into the DC socket of the charger unit.

  • Page 5: Start

    06.START INSTALL/REMOVE BATTERY The average use time of the battery pack is 10 hours. It calculated as 5% TX time, 5% RX time and 90% standby time. Don't short circuit the battery charger contacts or threw the battery into fire. Don't disassemble the case of the battery.

  • Page 6: Install Speaker/Microphone

    08. START INSTALL SPEAKER/MICROPHONE Insert speaker/microphone plugs into speaker/microphone jack. Note: The radio is not entirely waterproof when use the speaker/microphone INSTALL THE COVER OVER THE SPEAKER/MICROPHONE JACKS If not use a speaker/microphone, please use the screw to install the cover over the speaker/microphone jack. 09.

  • Page 7: Operations And Settings

    10.OPERATIONS AND SETTINGS BUSY CHANNEL LOCKOUT This function can prevent other two way radio from disturbing.There are two choices for customer to select in the programming software. CARRIER It is not allowed to transmit or make other operation while the radio is receiving. ◆...

  • Page 8: Battery Save

    12. OPERATIONS AND SETTINGS BATTERY SAVE This function can decrease power consumption when no signal is received. and no operation is perfo- rmed. You can use programming software to open or close this function. END ROGER It's prompting signal transmit finshed. You can use programming software to open or close this function.
  • Page 9 . OPERATIONS AND SETTINGS side key 2 and side key 3 can be programmable. 14 OPERATIONS AND SETTINGS 1) NONE ◆No function to be set 2) MONITOR ◆If press the monitor key, it can detect if the channel is busy, it can ignore all the interference codes temporarily and receive weak signal.
  • Page 10 . OPERATIONS AND SETTINGS Caution: 1) When use VOX by earpiece, press the PTT key to exit. 2) If use PTT/VOX earpiece, It is not allowed to switch to VOX directly during PTT call. Because it will transmit without ending. Please switch to PTT to return to normal.

  • Page 11: Main Techology Data

    Main technology data Main technology data Frequency Range 138-174MHz Operating Temperature -20ºC+ 55ºC Number Of Channel Analog:12.5kHz Channel Spacing 12.5kHz Digital:6.25kHz Operating Voltage 7.4V DC Size 110mmX50mmX35mm(without antenna) Weight About 226.7g(with battery) Output Power ＜5W Modulation Distortion <=5% Spurious Radiation <=7.5uW Sensitivity <=-120dBm...
  • Page 12 IC Waring This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
  • Page 13 RF exposures decrease with distance from the antenna. Antenna should be kept away from eyes. When worn on the body, always place the radio in a Xiamen Puxing Electronics Science& Technology Co., Ltd approved clip, holder, holster, case, or body harness for this product.
