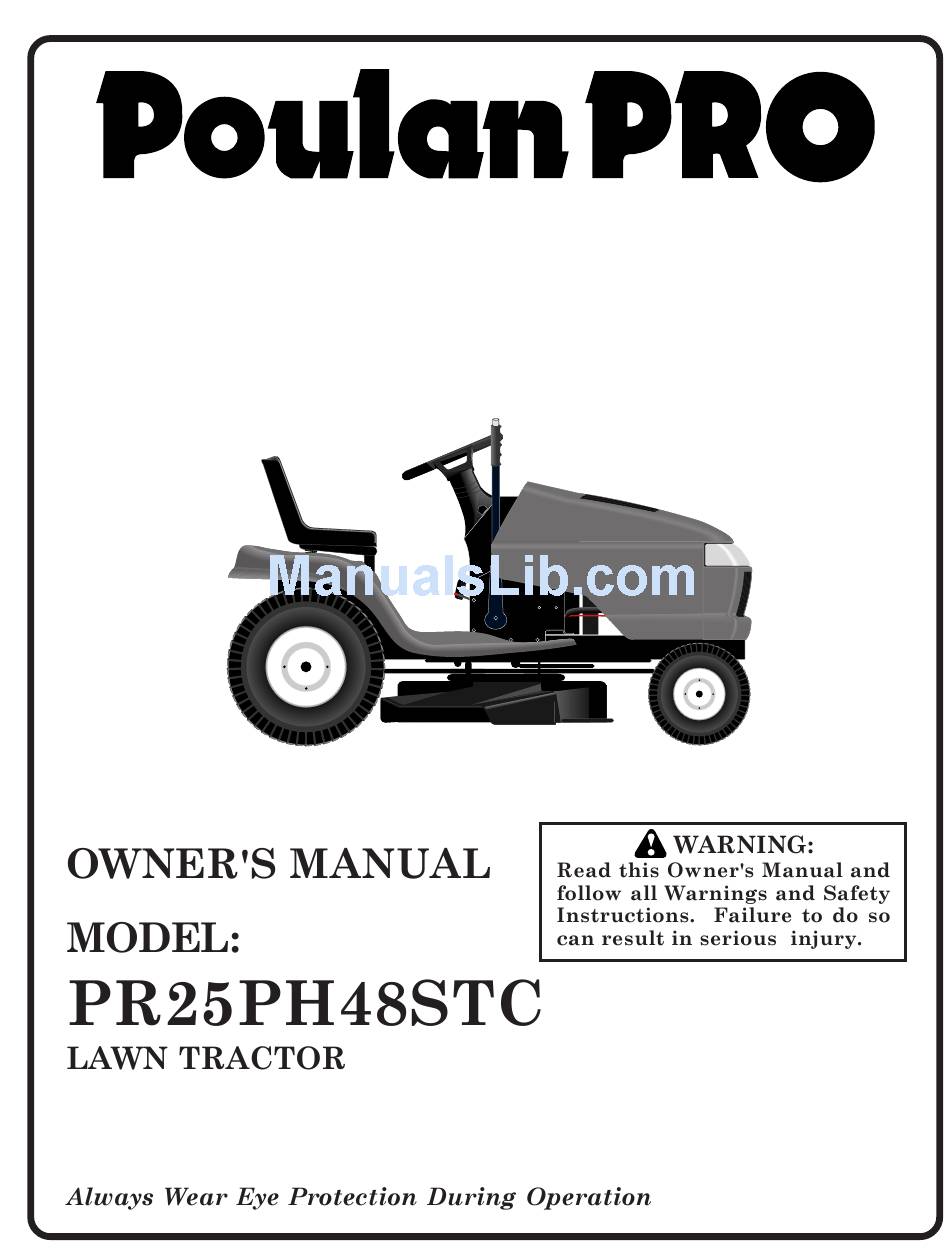

  • Page 1 IMPORTANT MANUAL Do Not Throw Away 184314 Rev. 1 08.13.02 TR Printed in U.S.A.

  • Page 2: General Operation

    Safe Operation Practices for Ride-On Mowers IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. I. GENERAL OPERATION • Read, understand, and follow all instructions in the manual and on the machine before starting.
  • Page 3 Safe Operation Practices for Ride-On Mowers • Be sure the area is clear of other people before mowing. Stop machine if anyone enters the area. • Never carry passengers or children even with the blades off. • Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing.

  • Page 4: Table Of Contents

    PRODUCT SPECIFICATIONS GASOLINE CAPACITY 3.5 GALLONS AND TYPE: UNLEADED REGULAR OIL TYPE (API-SF-SJ): SAE 30 (above 32°F) SAE 5W-30 (below 32°F) OIL CAPACITY: W/ FILTER: W/O FILTER: 3.75 PINTS SPARK PLUG: CHAMPION RC12YC (GAP: .040") GROUND SPEED (MPH): FORWARD: 0 – 5.5 REVERSE: 0 –...

  • Page 5: Unassembled Parts

    UNASSEMBLED PARTS Steering Wheel Steering Steering Wheel Adapter Wheel Insert Seat (1) Washer 17/32 x 1-3/16 x 12 Gauge (1) Knob Mower (2) Flanged Pins (1) Front Plate Assembly (2) Retainer Springs (single loop) (5) Retainer Springs (4) Adjusting Bars Steering Sleeve Steering Sleeve Extension...

  • Page 6: Tools Required For Assembly

    Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.
  • Page 7 INSTALL SEAT (See Fig. 3) Adjust seat before tightening adjustment knob. • Remove adjustment knob and flat washer securing seat to cardboard packing and set aside for assembly of seat to tractor. • Pivot seat upward and remove from the cardboard packing.
  • Page 8 TO ATTACH NOSE ROLLER (See Fig. 5) • Assemble brackets "A" and "B" to the inside of mower mounting brackets as shown. Tighten securely. NOTE: Be sure bracket tabs are positioned in tab holes in mower brackets. • Position nose roller between brackets and install rod and retainer spring.

  • Page 9: Assembly

    CHECK TIRE PRESSURE The tires on your tractor were overinflated at the factory for shipping purposes. Correct tire pressure is important for best cutting performance. • Reduce tire pressure to PSI shown in “PRODUCT SPECIFICATIONS” section of this manual. CHECK MOWER LEVELNESS For best cutting results, mower should be properly leveled.

  • Page 10: Operation

    These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. REVERSE NEUTRAL LIGHTS ON ENGINE ON ENGINE OFF OIL PRESSURE OVER TEMP FUEL LIGHT ATTACHMENT ATTACHMENT CLUTCH ENGAGED CLUTCH DISENGAGED FREE WHEEL (Automatic Models only) Failure to follow instructions could result in serious injury or...

  • Page 11: Know Your Tractor

    KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. THROTTLE CONTROL BRAKE PEDAL HEIGHT ADJUSTMENT...
  • Page 12 The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your tractor or performing any adjustments or repairs. We recommend a wide vision safety mask over spectacles or standard safety glasses.

  • Page 13: To Operate On Hills

    • The average lawn should be cut to approximately 2-1/2 inches during the cool season and to over 3 inches during hot months. For healthier and better looking lawns, mow often and after moderate growth. • For best cutting performance, grass over 6 inches in height should be mowed twice.

  • Page 14: Before Starting The Engine

    FIG. 11 TOWING CARTS AND OTHER ATTACH- MENTS Tow only the attachments that are recommended by and comply with specifications of the manufacturer of your tractor. Use common sense when towing. Too heavy of a load, while on a slope, is dangerous. Tires can lose traction with the ground and cause you to lose control of your tractor.

  • Page 15: Operation

    AUTOMATIC TRANSMISSION WARM UP • Before driving the unit in cold weather, the transmission should be warmed up as follows: • Be sure the tractor is on level ground. • Release the parking brake and let the brake slowly return to operating position. •...

  • Page 16: Maintenance

    MAINTENANCE SCHEDULE FILL IN DATES AS YOU COMPLETE REGULAR SERVICE Check Brake Operation Check Tire Pressure Check Operator Presence and Interlock Systems Check for Loose Fasteners Sharpen/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling Check V-Belts Check Engine Oil Level Change Engine Oil (with oil filter)

  • Page 17: Operator Presence System

    TRACTOR Always observe safety rules when performing any mainte- nance. BRAKE OPERATION If tractor requires more than six (6) feet stopping distance at high speed in highest gear, then brake must be adjusted. (See “TO ADJUST BRAKE” in the Service and Adjust- ments section of this manual).

  • Page 18: Clean Air Screen

    V-BELTS Check V-belts for deterioration and wear after 100 hours of operation and replace if necessary. The belts are not adjustable. Replace belts if they begin to slip from wear. TRANSAXLE COOLING The transmission fan and cooling fins should be kept clean to assure proper cooling.
  • Page 19 AIR FILTER (See Fig. 17) Your engine will not run properly using a dirty air filter. Clean the foam pre-cleaner after every 25 hours of operation or every season. Service paper cartridge every 100 hours of operation or every season, whichever occurs first. Service air cleaner more often under dusty conditions.

  • Page 20: Service And Adjustments

    SERVICE AND ADJUSTMENTS WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS: • Depress clutch/brake pedal fully and set parking brake. • Place motion control lever in neutral (N) position. • Place attachment clutch in “DISENGAGED” position. • Turn ignition key to “STOP”...

  • Page 21: To Level Mower Housing

    SERVICE AND ADJUSTMENTS NOTE: To assist in locating hole in flanged pin, the hole in pin is inline with notch on head of pin. If necessary, move mower side-to-side to give space between plate and mower brackets. IMPORTANT: CHECK BELT FOR PROPER ROUTING IN ALL MOWER PULLEY GROOVES.

  • Page 22: To Replace Mower Blade Drive Belt

    SERVICE AND ADJUSTMENTS TO REPLACE MOWER DRIVE BELT MOWER DRIVE BELT REMOVAL (See Fig. 24) • Park tractor on a level surface. Engage parking brake. • Lower mower to its lowest position. • Disengage belt tention rod from lock bracket. CAUTION: Rod is spring loaded.
  • Page 23 SERVICE AND ADJUSTMENTS The rear wheels must lock and skid when you try to manually push the tractor forward. If the rear wheels rotate, the brake needs to be adjusted or the pads need to be replaced. TO ADJUST BRAKE •...

  • Page 24: Interlocks And Relays

    SERVICE AND ADJUSTMENTS WASHERS RETAINING RING AXLE COVER SQUARE KEY (REAR WHEEL ONLY) FIG. 28 TO START ENGINE WITH A WEAK BATTERY (See Fig. 29) WARNING: Lead-acid batteries generate explosive gases. Keep sparks, flame and smoking materials away from bat- teries.
  • Page 25 SERVICE AND ADJUSTMENTS TO REMOVE HOOD AND GRILL ASSEMBLY (See Fig. 31) • Raise hood. • Unsnap headlight wire connector. • Stand in front of tractor. Grasp hood at sides, tilt toward engine and lift off of tractor. • To replace, reverse above procedures. HOOD FIG.

  • Page 26: Storage

    Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. WARNING: Never store the tractor with gasoline in the tank inside a building where fumes may reach an open flame or spark.

  • Page 27: Troubleshooting

    TROUBLESHOOTING POINTS PROBLEM CAUSE Will not start Out of fuel. Engine not “CHOKED” properly. Engine flooded. Bad spark plug. Dirty air filter. Dirty fuel filter. Water in fuel. Loose or damaged wiring. Carburetor out of adjustment. Engine valves out of adjustment. Hard to start Dirty air filter.
  • Page 28 TROUBLESHOOTING POINTS PROBLEM CAUSE Engine continues to run Faulty operator-safety presence control system. when operator leaves seat with attachment clutch engaged Poor cut - uneven Worn, bent or loose blade. Mower deck not level. Buildup of grass, leaves, and trash under mower. Bent blade mandrel.
  • Page 29 TRACTOR - MODEL NUMBER PR25PH48STC SCHEMATIC AMMETER (OPTIONAL) WHITE IGNITION SWITCH BLUE IGNITION SWITCH POSITION CIRCUIT “MAKE” M+G+A1 NONE RUN/LIGHT B+A1 A2+L B+A1 NONE START B + S + A1 NONE BATTERY FUSE CLUTCH / BRAKE (PEDAL UP) SEAT SWITCH NOT OCCUPIED) PTO (DISENGAGED) FUEL...

  • Page 30: Repair Parts - Tractor

    REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STC ELECTRICAL D .C...

  • Page 31: Repair Parts

    REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STC ELECTRICAL PART DESCRIPTION 144927 Battery 74760412 Bolt Hex Hd 1/4-20 UNC X 3/4 7603J Tray, Battery 145211 Bolt, BTR FRT 1/4-20 x 7.5 150109 Hold Down Battery, Front 145769 Nut, Push, Nylon 176138 Switch Interlock Push-In 175688 Harness Asm Light W/Bulbs...

  • Page 32: Chassis And Enclosures

    REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STC CHASSIS AND ENCLOSURES...
  • Page 33 REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STC CHASSIS AND ENCLOSURES PART DESCRIPTION 174619 Chassis 176554 Drawbar 17060612 Screw 3/8-16x3/4 163976X428 Dash 72140608 Bolt 3/8-16 x 1 167203 Panel Dash Lh 178298 Panel Dash Rh 17490608 Screw Thdrol 3/8-16 x 1/2 175260X428 Hood 162026 Plate Battery...
  • Page 34 REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STC DRIVE 227 218...
  • Page 35 REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STC DRIVE PART DESCRIPTION - - - - - - Transaxle (Order parts from transaxle manufacturer) Hydro gear Model 336-0510 17060512 Screw 5/16-18 x 3/4 174367 Clutch Elec 74490544 Bolt Hex Flghd 5/16-18 Gr. 5 73800500 Nut Lock Hex W/Ins.

  • Page 36: Steering Assembly

    REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STC STEERING ASSEMBLY...
  • Page 37 REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STC STEERING ASSEMBLY PART DESCRIPTION 180656 Wheel Steering 172393 Axle Cast Lt Machined 169840 Spindle Asm LH 169839 Spindle Asm RH 6266H Bearing Race Thrust Harden 121748X Washer 25/32 X 1-5/8 X 16 Ga 12000029 Ring Klip #t5304-75 175121...
  • Page 38 REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STC ENGINE OPTIONAL EQUIPMENT Spark Arrester PART DESCRIPTION 175437X428 Control Throttle 171875 Screw HwHd Hi-Lo #13-16 x 3/4 - - - - - - - - Engine, Briggs Model 445777 (Order parts from engine mfg.) 149723 Muffler Asm Twin Lo-Tone 159955...

  • Page 39: Seat Assembly

    REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STC SEAT ASSEMBLY PART DESCRIPTION 171684 Seat 140551 Bracket Pivot Seat 8 720 71110616 Bolt Fin Hex 3/8-16 Unc x 1 19131610 Washer Flat 13/32 x 1 x 10 Ga. 145006 Clip Push-In 73800600 Nut Hex w/Ins.

  • Page 40: Wheels And Tires

    WHEELS & TIRES 4,10 PART 177982 178502 175291 180894 176272 145005 169210 174998X428 Pad Footrest Lh 138311 175542X428 Pad Footrest Rh 184314 184315 PART 59192 65139 170455 59904 106732X421 Rim Asm 6"front Service 278H 9040H 106108X421 Rim Asm 8"rear Service 170456 7152J...

  • Page 41: Mower Lift

    REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STC MOWER LIFT PART DESCRIPTION 159461 Wire Asm Inner/Sprg W/plunger 159476 Shaft Asm Lift RH w/Inf 138284 Pin Groove 12000002 E Ring #5133-62 19211621 Washer 21/32 X 1 X 21 Ga 120183X Bearing Nylon Blk 629 Id 125631X Grip Handle 170770...

  • Page 42: Mower Deck

    REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STC MOWER DECK...
  • Page 43 REPAIR PARTS TRACTOR - MODEL NUMBER PR25PH48STC MOWER DECK PART DESCRIPTION 180358X421 Deck Weldment Mower 48 138017 Bracket Asm., Sway Bar 4939M Retainer Spring 178024 Arm, Suspension, Rear Sway Bar Deck 174365 Bolt 7/16 Asm. Blade 180054 Blade 174360 Shaft Asm. w/Lower Bearing 174358 Mandrel Asm.

  • Page 44: Warranty

    The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materials and workmanship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective due to materials or workmanship.

  • Page 45: Suggested Guide For Sighting Slopes For Safe Operation

    SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION WARNING: To avoid serious injury, operate your tractor up and down the face of slopes, never across the face. Do not mow slopes greater than 15 degrees. Make turns gradually to prevent tipping or loss of control.

  • Page 46: Service Notes

    SERVICE NOTES...
  • Page 47 SERVICE NOTES...
