G. Loaded Blackbox data

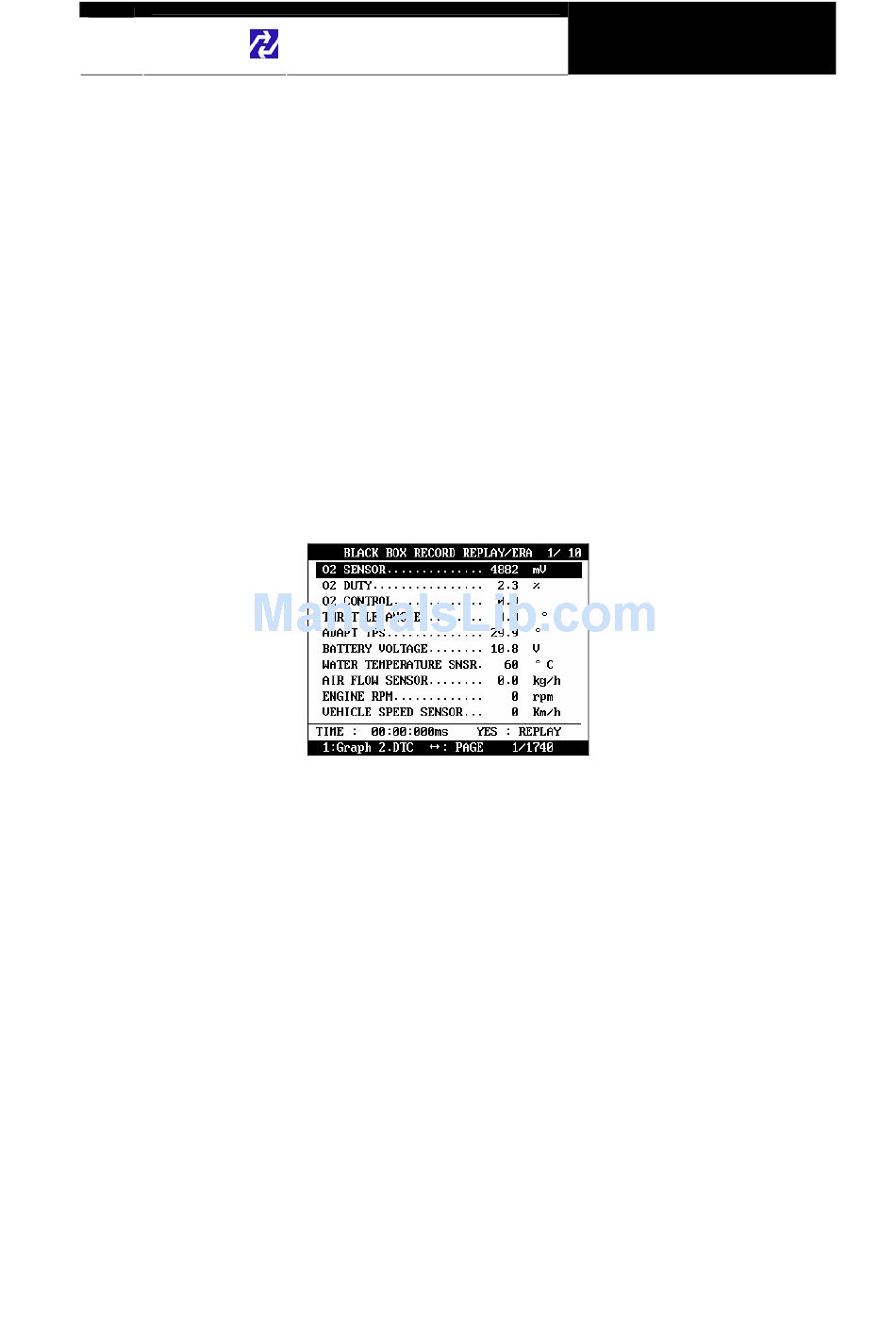

Loaded black box data has basically the same format as the [Service
Data (Live Data Stream)]. See the illustration below.

1. Data format

In the lower part of the display, the total number of recorded frames, frame
number before and after the DTC(Diagnostic Trouble Code), and the number
of DTC detected is displayed. In the example below, you can see that a
total of 458 frames were recorded, and data stream currently shown in the
main window is of the 336th frame from the beginning. It also tells you that
the current frame is the 80th after 2 trouble codes were detected.
The live data values may not be realistic as the screen was
captured while the scan tool was linked to a simulator.

2. Data Replay

a.
Press the [YES] key then the saved black box data will start
replaying. MULTISCAN plus preserves the refresh time intervals of
Black Box data. Therefore, Black Box data is replayed at the same
speed as when it was originally recorded.
