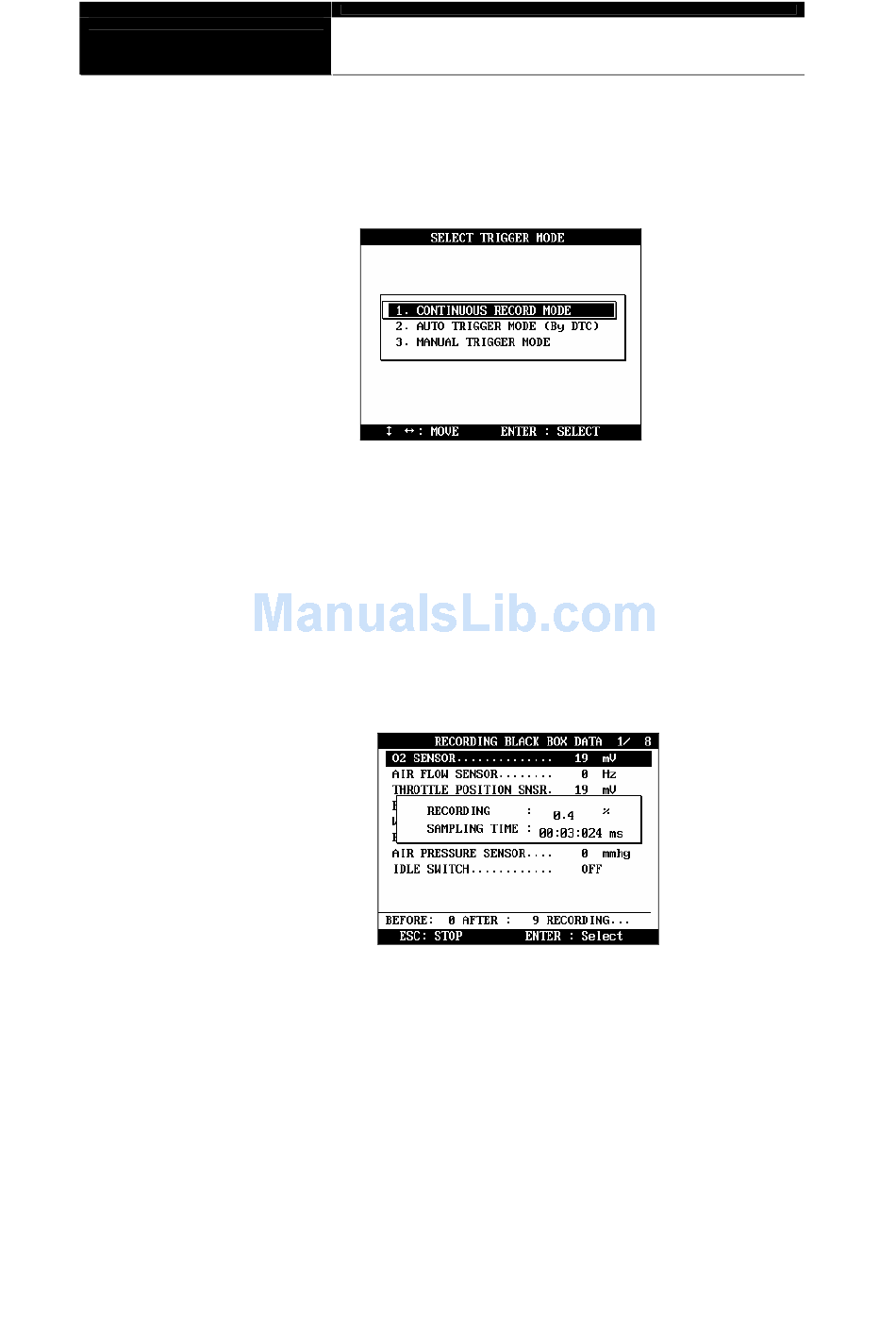

D. Trigger Modes
There are three trigger modes in the black box function.
a Continuous Record Mode (No trigger mode)
MULTISCAN plus will record live data of selected parameters up to
-
2040 frames or until you press the [ESC] key.
- Percentile memory usage and sampling time(frequency) will appear
in the center of the screen while recording data, and the actual live
data values will remain unchanged.
Since no DTC trigger is applied in this mode, number of "Before
-
DTC" frames will remain 0, and the "After DTC" will keep increasing
as the more frames are recorded.
