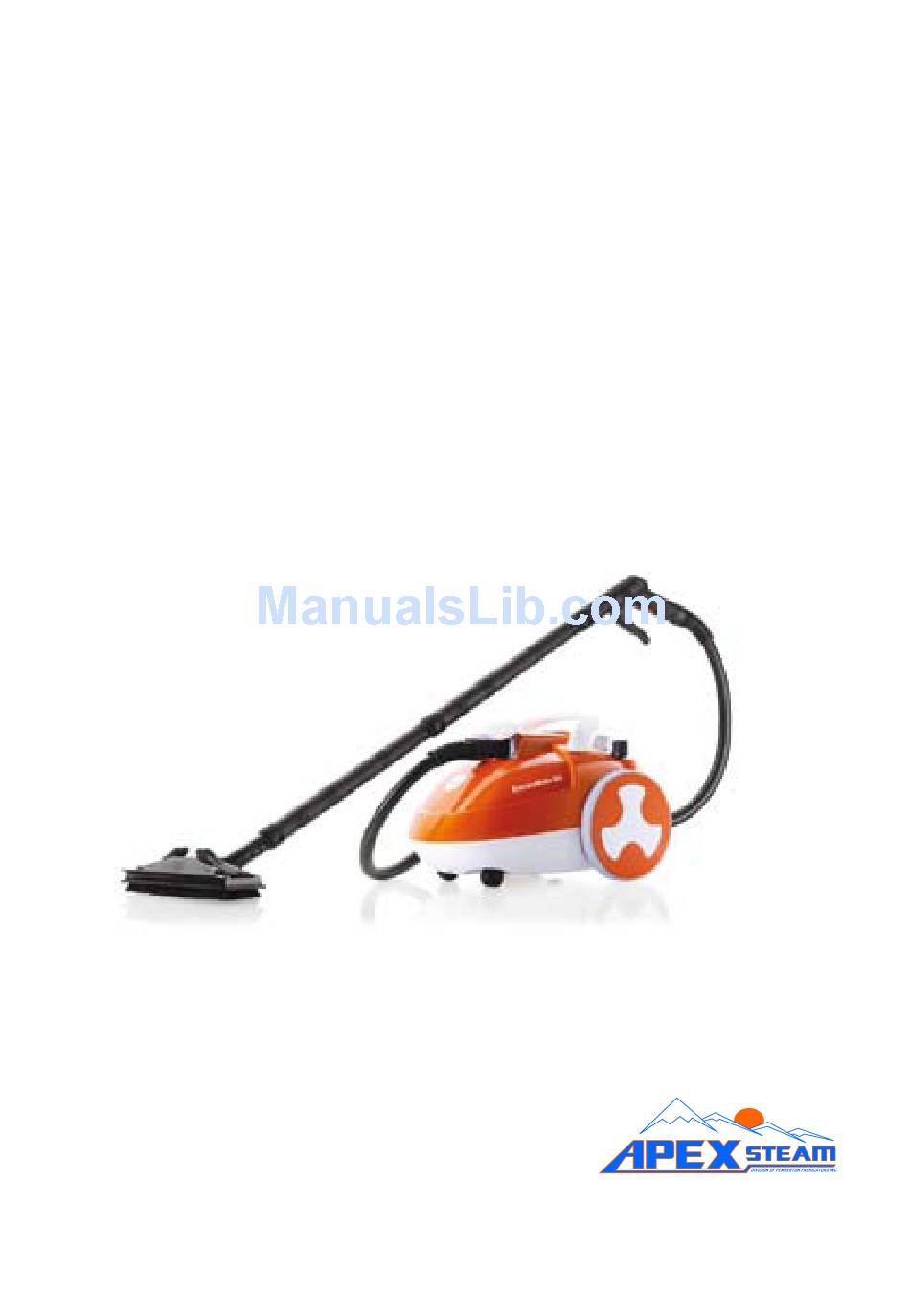

- Page 1 APX750 MULTI-PURPOSE STEAM CLEANING SYSTEM SYSTÈME DE NETTOYAGE A VAPEUR MULTIFONCTION LIMPIADOR A VAPOR MULTI - USO APEX STEAM TECHNOLOGIES 30 INDEL AVENUE RANCOCAS, NJ 08073 A DIVISION OF PEMBERTON FABRICATORS INC. Phone: 678-392-3699 INSTRUCTION MANUAL www.apexsteam.com GUIDE D’UTILISATION sales@apexsteam.com...
-
Page 2: Table Of Contents
SAFETY INSTRUCTIONS ........2-3 MAINTENANCE • End of use ............24 GENERAL INFORMATION ........3-5 • Maintenance ............24 • Machine description ..........5 • Cleaning the boiler ..........24 • Model ..............5 • Troubleshooting ............ 25 • Technical data ............6 • Technical assistance ..........25 • Dimensions and weights ........ -
Page 3: Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Do not put any object into openings. Do READ ALL INSTRUCTIONS BEFORE not use with any opening blocked; keep USING THIS APPLIANCE free of dust, lint, hair, and anything that may reduce air flow. When using an electrical appliance, basic 10. Keep hair, loose clothing, fingers, and precautions should always be followed. all parts of body away from openings and moving parts. - Page 4 GROUNDING INSTRUCTIONS This appliance must be electrically grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord with- grounding conductor and a grounding plug.
-
Page 5: Safety Instructions
We would like to thank you, and Carefully read this manual in order to prevent improper use. congratulate you for purchasing the ultimate steam from APEX STEAM TECHNOLOGIES The Manufacturer accepts no responsibility for damage to people or Dry vapor steam cleaning can deep... -
Page 6: General Information
ATTENTION directed towards the surface to be cleaned. ATTENTION MOD E L APX750 Alerts of situations or troubles which can The machine is supplied with the basic affect the machine efficiency. accessories as specified on page 8. -
Page 7: Technical Data
TECHNICAL DATA All components are built with high-quality materials to ensure maximum safety and reliability over time. MODEL APX 750 BOILER STAINLESS STEEL bOILER WITH AUTOMATIC FILLING Max. volume Capacity Max. steam pressure 72.5 Cleaning autonomy unlimited Ironing autonomy unlimited TANK Clean water tank capacity POWER SUPPLY Voltage Frequency... -
Page 8: Dimensions And Weights
DIMENSIONS AND WEIGHTS The machine and the accessories it is equipped with are supplied in a practical and sturdy cardboard package that may differ from model to model. APX750 What's in the Box: Steam generator Flexible hose with gun handle Extension wands... -
Page 9: Symbols On The Machine Or Accessorie S
42 Cotton cloth with your machine may differ. Please 43 Filling bottle refer to page 7 for included items with 46 Nylon brush 1" the APX750. 47 Bronze brush 1" IMPORTANT 48 Steel brush 1" 49 Black small brush with bristles 2.5"... - Page 10 APX750** 8 41 14 9 CAUTION ATTENTION IMPORTANT Any accessory or part not supplied with the machine can be purchased separately at: WWW.APEXSTEAM.COM Fig. 2 **Some items not shown GENERAL INFORMATION...
-
Page 11: Other Safety Instructions
GENERAL SAFETY INSTRUCTIONS • Do not cover the machine when it • Thoroughly read and understand these is running. instructions before turning on the machine. • Do not reduce the steam passage in the • Do not connect the machine to the tubes with obstructions or kinks power source with wet or damp hands or in the hose. -
Page 12: Use Of The Machine
USE OF THE MACHINE STEAM HOSE WITH qUICk-FIT COUPLING The machine has been designed and built exclusively to steam-clean/sanitize Connecting the hose household surfaces; This operation is necessary to connect the Room temperature must be between cleaning accessories to the machine. CAUTION +5° and +40°. 1) Take the quick-fit coupling 13 at the CAUTION end of the steam hose and check that... -
Page 13: Using The Accessories
Disconnecting the hose USING THE ACCESSORIES 1) With one hand lift up flap 9 (fig. 4) ATTENTION 2) With the other hand seize the quick- fit coupling 13 and with your thumb Do not carry out the following operations press on the safety catch 14 and pull if the accessories have just been used as outwards to remove it. they may be hot. CAUTION ASSEMBLY Do not carry out this operation if you have... -
Page 14: Assembling And Removing The Swivel Joint For The Brushes
ASSEMBLING AND REMOVING THE SWIVEL jOINT FOR THE BRUSHES Fit the square brush (21) and the triangle brush (26) to the handle of the flexible hose or the wands following the steps described in the previous chapter. The square brush (21) has a small lever C which lets you turn the handle as shown in fig. 6: • lever in locked position : handle locked; • lever in unlocked position : handle unlocked and free to rotate right or left. -
Page 15: Mounting The Clothes On The Brushes
MOUNTING THE CLEANING CLOTHS ON THE BRUSHES The rectangular brush 21 and the triangular brush 26 (if any) are fitted with a holding device for the attachment of a cleaning cloth. 1) Lay a cloth on the ground and set the brush right in the middle. 2) Press the upper part of the spring- Fig. 7 fitted cloth holders D to lift them up. With the other hand, position the front and rear edges of the cloth under the holders. -
Page 16: Mounting The Small Brushes
To remove the brushes, grasp and pull them out. FILLING THE TANk WITH WATER APX750 Fig. 10 ATTENTION Before filling the water tank, disconnect the machine from the power source. before filling the water tank, make sure that: 1) plug 10 is unplugged 2) the machine is on a flat surface. -
Page 17: Connecting To The Power Source
CONNECTION TO THE POWER SOURCE Before connecting the machine to the power source ensure that: 1) the voltage and power ratings of the machine stated on the data plate are compatible with the electrical system. 2) the electrical system to which the machine will be plugged complies with the local regulations and has a safety switch for a fault current that does not exceed a value of 30 mA. -
Page 18: Turning On And Using The Machine
TURNING ON AND USING THE MACHINE CAUTION After the connection to the power source, attach the cleaning accessory of choice. Press the main switch (7). After a few minutes, the green light (5) comes on to indicate that the machine is ready for use. Press the steam control trigger (16) on the handle to release and use steam. -
Page 19: Cleaning
CAUTION CAUTION CLEANING ATTENTION The Manufacturer claims no responsibility for ATTENTION any direct or indirect damage to persons or things deriving from misuse or abuse of the These instructions provide basic information machine and from not adhering to principles on the regulation of the steam flow. These of basic common sense. -
Page 20: Cleaning Pieces Of Furniture
Run the cloth evenly on the surface without ATTENTION pushing down on it. Repeat on heavily soiled areas. In case of ceramic floor, use the When cleaning delicate surfaces or hand- brush without cloth to remove persistent painted tiles, always mount the cloth on the dirt. -
Page 21: Cleaning Glasses And Windows
CLEANING GLASS AND WINDOWS Recommended accessories: CAUTION 25 Window cleaning tool Fix the window cleaning tool directly on the gun handle or the wand (depending on the height to be reached), then set the steam knob to the minimum position. Spray the steam over the whole surface by keeping the nozzle at 3-4". Wipe the glass using the sponge element of the cleaning tool. ATTENTION During the colder months, increase the distance to 8-10"... -
Page 22: Brushes, Accessories And Uses
RECOMMENDED ACCESSORIES 32 Curved steam nozzle 46 Nylon small brush 1" 47 Bronze small brush 1" 48 Steel small brush 2.5" 49 Brush with bristles 2.5" These accessories let you treat difficult/ hard to reach surfaces. They allow the Fig. 15 cleaning of: Grout between tiles or floor-tiles, skirting- boards and areas close to furniture and radiators. -
Page 23: Hints For A Better Cleaning
HINTS FOR BETTER CLEANING CLEANING FABRICS/UPHOLSTERY As steam dissolved dirt tends to run Recommended accessories: downward, start cleaning from the top and 26 Triangular brush use steam to direct the dirt to a lower point, then wipe with a clean dry cloth. ATTENTION When treating points which, due to their inaccessibility, have been seldom cleaned,... -
Page 24: Low Water
REFILLING THE TANK ATTENTION Do not leave the boiler without water for a long time: this could result in damage to the Before refilling your APX750 machine. Disconnect the machine from the When the red indicator light (8) comes on and an intermittent beep sounds, the tank power source. -
Page 25: Maintenance
MAINTENANCE AFTER USE The machine is built with extremely reliable ATTENTION technology and components; therefore it does not require any special maintenance. Disconnect the machine from the power Careful use and strict compliance with source before doing the following operations. these instructions are the best way to achieve the best possible results and high- Once finished using the machine, do... -
Page 26: Troubleshooting
The red light (8 ) lights & this symbol Add water, if necessary. If the defect persists, • appears on the APX750 display. address concerns to your Dealer or authorized • Consult paragraph “Refilling the tank with water.” • Extension wands or accessories are hard to fit.
