Summary of Contents for Rextron Toughbook Arbitrator HD S9-900TX
-

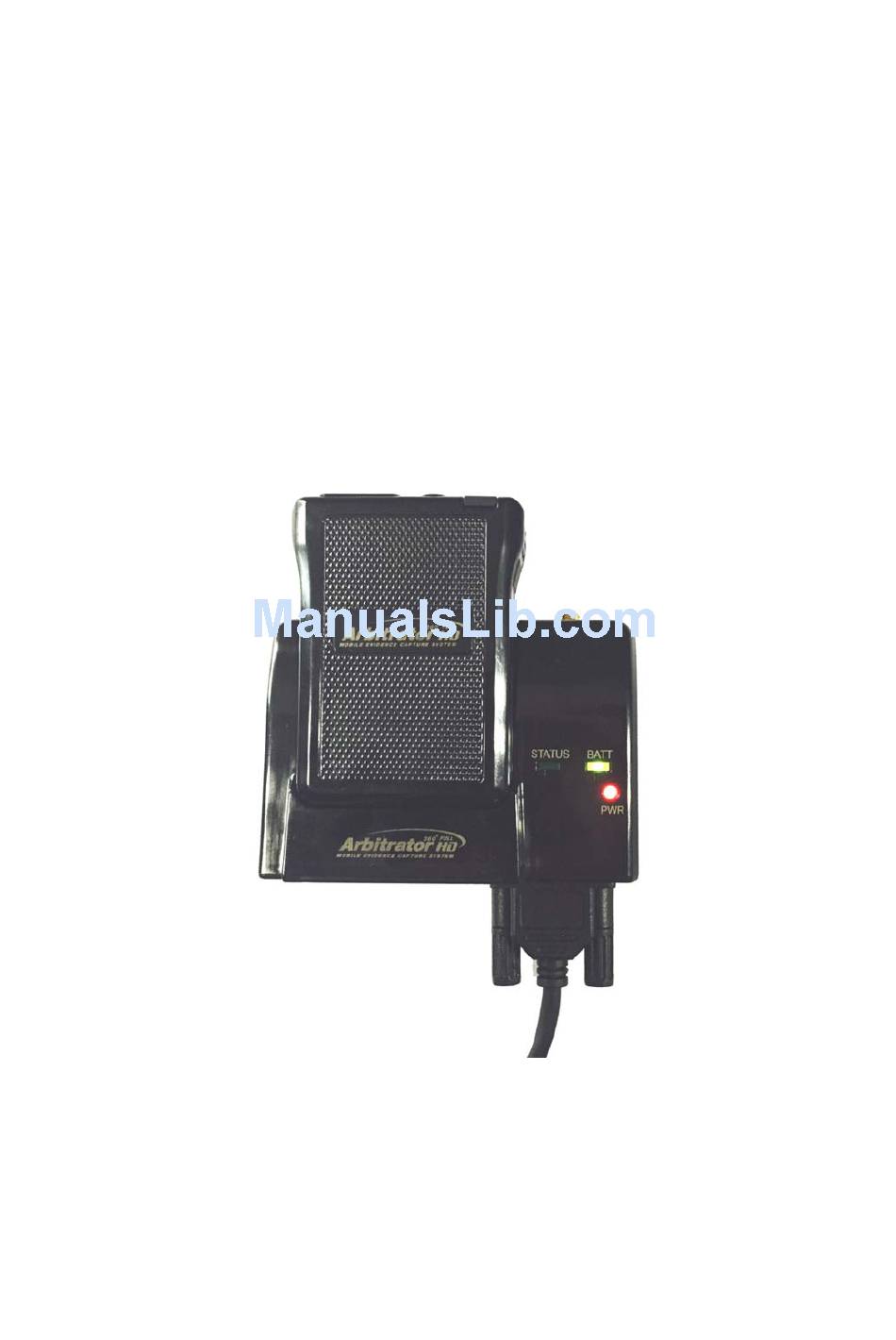

Page 1: User Guide
Toughbook Arbitrator HD WIRELESS TRANSCEIVER SYSTEM S9-900TX (Transmitter) & S9-900RX (Receiver) User Guide version 1.0 Read this user guide carefully for safe operation and proper use of the product Features and specifications are subject to change without notification... - Page 2 1. CAUTION When Using the Battery Danger ① Misusing the battery may cause the battery to get hot, explode, or ignite and cause serious injury. Be sure to follow the safety rules listed below: Do not place the battery in fire or heat the battery. Do not install the battery backwards so that the polarity is reversed.
- Page 3 breaking, or ignition of the battery. Caution ⑥ If the device is to be used by small children, an adult should explain the contents of the user’s manual to the children. The person should provide adequate supervision to insure that the device is being used as explained in the user’s manual.
-
Page 4: Package Contents
battery’s life expectancy. When Discharging the Battery Danger ① Do not discharge the battery using any device except for the specified device. When the battery is used in devices aside from the specified device it may damage the performance of the battery or reduce its life expectancy, and if the device causes an abnormal current to flow, it may cause the battery to become hot, explode, or ignite and cause serious injury. - Page 5 ⑨ LCD Indicator ⑩ Status LED Indicator ⑪ Battery LED Indicator ⑫ Battery Cover ⑬ Micro USB Connector Receiver ① Status LED Indicator ② Charging LED Indicator ③ Power LED Indicator ④ External antenna connection...
- Page 6 ⑤ Main Cable Connection Cable : D-Sub 9Pin male ① Power In+ : DC 12V ~ 24V ② Power In- : GND ③ Audio Out: Connect to “Audio In” port in the back of the recorder ④ Audio Out GND: Connect to “Audio In” port in the back of the recorder ⑤...
-
Page 7: Battery Gauge
Low battery “LOW BATTERY” RED On AUX Mode “Auxilary” Docked Receiver “CRADLE ON” Connected PC “USB CONNECTED” ② ICONS: Top of LCD ANTENNA GAUGE Level of RF sensitivity Record On or Not MUTE Mute On or Not MODE ALL(LCD & LED & Vibration) / LCD & LED / Vibration / None BATTERY GAUGE Level of Battery Receiver... -
Page 8: Installation
③ Won’t be able to stop recording before the receiver received stop command from VPU ④ The transmitter should be maintained in the range of the receiver for transmission Out of Range ① The transmitter will alert user by message on LCD and RED LED and vibration when the transmitter get into the out of range ②... -
Page 9: Troubleshooting
8. TROUBLESHOOTING Problem Check Point No reception - Check the battery status - Check the connection and cables - Check the communication range Poor reception, static, noise - Change the location of the receiver - Check the communication range - Check to see if unit is placed near TV, speakers, or other electronic devices Unit does not respond - Check the battery status... - Page 10 FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 11 Specific Absorption Rate (SAR) information: This Microphone meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health.
