Summary of Contents for Foxton OM-370-027

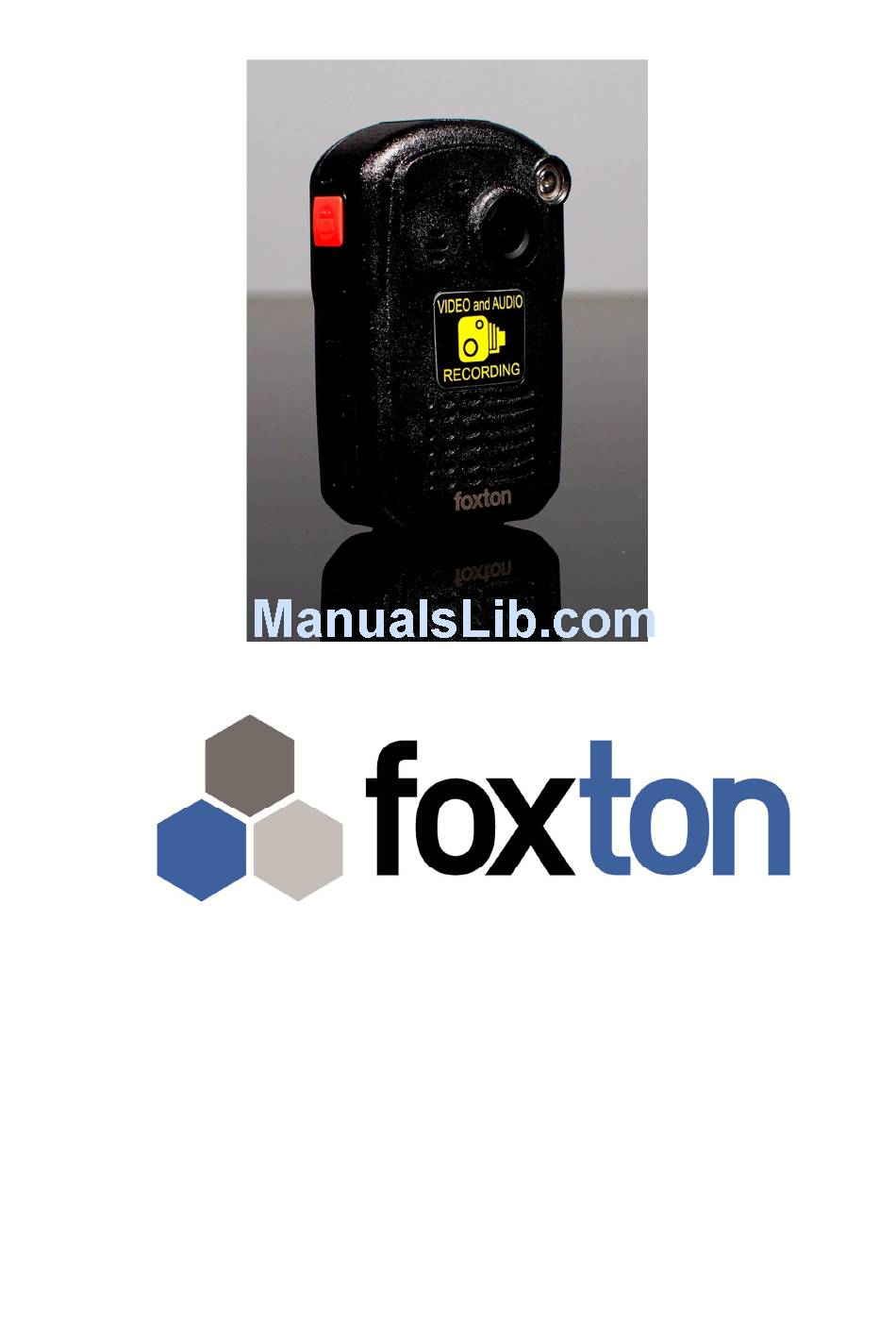

- Page 1 BODY WORN VIDEO CAMERA OPERATOR’S MANUAL OM-370-027 V 1.1...
- Page 2 BODY WORN VIDEO CAMERA OPERATOR’S MANUAL...
-
Page 3: Table Of Contents
Night Vision Recording Still Photographs Sound Recording Playback of Video and Audio or Viewing Photographs Configuration Menu File Management Connecting to a Personal Computer Global Positioning System (GPS) Receiver Radio Connection Specifications Fig(s) 1 Foxcam Accessories 2 Foxcam Parts OM-370-027 V1.2... - Page 4 BODY WORN VIDEO CAMERA OPERATOR’S MANUAL...
-
Page 5: Version History
V 1.0 Initial Issue. 24/7/15 C Davies R Matthews V 1.1 Addition of password management warning. 04/08/15 P Morris W Vogler 1. New Company Logo V 1.2 03/02/16 P Morris R Matthews 2. Audible Recording Alert feature added OM-370-027 V1.2... - Page 6 BODY WORN VIDEO CAMERA OPERATOR’S MANUAL...
-
Page 7: Package Contents
Universal Serial Bus Charging Lead* 240V Charging Adapter Plug* Rotating Pocket Clip Rotating Epaulette Clip Universal Serial Bus Vehicle Charging Adapter* KlikFast Mounting *NOTE Accessories marked with an asterisk are under continual development and accessories supplied may may differ from those illustrated. OM-370-027 V1.1... -
Page 8: Precautions And Care For Use
When used in extremely cold environments (≤ 0° C), the Liquid Crystal Display (LCD) may exhibit some colour abnormality. This is not a fault and the LCD display will return to normal in ambient temperatures (≥ 15° C) Take care not to damage the LCD display or the camera lens. OM-370-027 V1.1... -
Page 9: Foxcam Parts
Radio Connections (Behind flaps) Front view; Speaker Infra-Red Selector Button Microphone Camera Lens IR Source for Night Vision Snapshot Button High Definition Media Interface (HDMI) Out / Micro USB Charging Socket (Behind flaps) Audio Recording Button File Marker Button OM-370-027 V1.2... -
Page 10: Charging The Camera Battery
If a change of password is created using ‘CamManager’ it must be securely stored in a safe location. If this user generated password is subsequently misplaced, Foxton have no method of retrieving the lost password from the camera or any other database. -
Page 11: Operating The Camera
To record audio, switch the camera on to the Video Preview state and press the audio recording button (see page 3) to commence recording. The LCD Display will ‘Blue-Out’ during recording, this is normal. Once complete press the audio recording button again to cease recording. Continued over page → OM-370-027 V1.2... -
Page 12: Playback Of Video And Audio Or Viewing Photographs
Connect the HDMI lead to the camera and then to the TV. The LCD display of the camera will switch off and the TV will replace this function. Navigate as you would using the camera LCD display. To return to the Point Preview state, press the playback button again. OM-370-027 V1.1... -
Page 13: Configuration Menu
Off (Default) Extend Record Off (Default) 3 sec 5 secs 10 secs 15 secs Indicator On (Default) Auto LCD Off 30 secs 60 secs (Default) Auto Power Off 1 min 3 mins (Default) 5 mins Continued over page → OM-370-027 V1.2... -
Page 14: File Management
Once the camera is switched on, it may take up to 5 minutes for the GPS receiver to establish a connection and for GPS location information to be available. Once a GPS connection is established, the satellite icon in the top corner of the LCD display will turn green. OM-370-027 V1.1... -
Page 15: Radio Connection
As the Body Worn Video Camera is under continual development and improvement, actual specifications may differ very slightly from those stated. When used in accordance with these instructions the Body Worn Video Camera is unlikely to present any hazard. OM-370-027 V1.2... - Page 16 BODY WORN VIDEO (BWV) from Intelligent Monitoring Systems a division of STS Defence Limited Mumby Road Gosport Hampshire PO12 Tele: +44 (0) 2392 584222 Mob: +44 (0) 7826 912283 web: www.foxton.uk.com...
