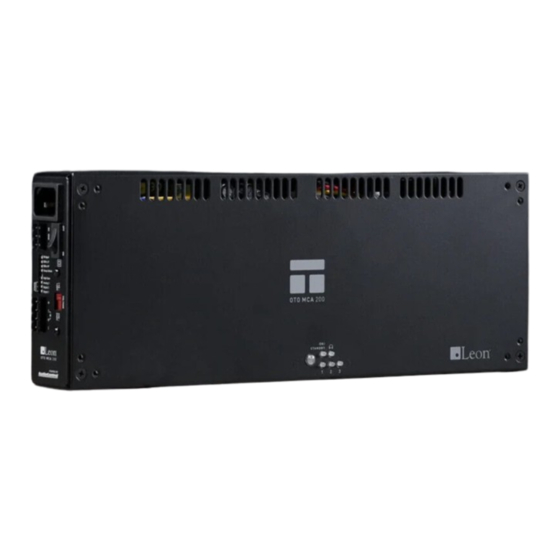

OTO MCA 200
U S E R G U I D E
715 W. Ellsworth Road Ann Arbor, Michigan 48108 | 1.888.213.5015 | www.leonspeakers.com

Advertisement

Table of Contents
loading

Summary of Contents for Leon OTO MCA 200

  • Page 1 OTO MCA 200 U S E R G U I D E 715 W. Ellsworth Road Ann Arbor, Michigan 48108 | 1.888.213.5015 | www.leonspeakers.com...
  • Page 2 Only use attachments/accessories specified by the manufacturer. Do not ‘Hot Plug’. When changing inputs or outputs, switch the Leon OTO MCA 200 off before making changes. Once changes have been made, then switch the Leon OTO MCA 200 back.
  • Page 3 Unplug this product during lightning storms or when unused for long periods of time. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power- supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
  • Page 4 OTO MCA 200 USER GUIDE...
  • Page 5: Table Of Contents

    WELCOME INTRODUCTION UNPACKING IR REMOTE CONTROL TOUR AMPLIFIER TOUR (FRONT PANEL) AMPLIFIER TOUR (LEFT PANEL) AMPLIFIER TOUR (RIGHT PANEL) 11-12 AMPLIFIER DIP SWITCH CONTROL INSTALLATION CONNECTIONS QUICK START 2.0/STEREO SET UP 15-16 17-18 BRIDGED MONO 2.0 LINKED SETUP 19-20 STEREO SETUP WITH A PASSIVE SUBWOOFER STEREO SETUP WITH A POWERED SUBWOOFER BRIDGED MONO 2.0 WITH POWERED SUB ADJUSTING THE ACCUBASS...
  • Page 6: Introduction

    If possible, save the carton and internal packaging. It is the best possible protection for your OTO MCA 200 if you need to move it or return it for service. Keep your sales receipt in a secure place. It helps establish the duration of your warranty and is good for insurance purposes in case anything happens to your equipment.
  • Page 7: Ir Remote Control Tour

    IR REMOTE CONTROL TOUR A. Power On/Standby: Press this to awake the OTO MCA 200, or put it into standby mode. In standby, the OTO MCA 200 will use minimal electricity. During normal operation, the OTO MCA 200 will enter standby if no input signal is sensed for about 8 minutes.
  • Page 8: Amplifier Tour (Front Panel)

    • Dim Red – standby mode • Bright Red – channel mute on power up • Bright Red 2 – amplifier in protection (see TROUBLESHOOTING, Page 26) • Flashing Red – speaker fault (see TROUBLESHOOTING, Page 26) OTO MCA 200 USER GUIDE...
  • Page 9 Inputs 1 and 2 are digital inputs, and input 3 is analog. When the OTO MCA 200 is muted, all input LEDs will be off. When the OTO MCA 200 receives a command from the IR remote or via RS232, the input LED will flash.
  • Page 10: Amplifier Tour (Left Panel)

    AMPLIFIER TOUR (LEFT PANEL) 5. AC Input 6. Power On/Off Switch: This is the master power switch for the OTO MCA 200 amplifier. Keep the amplifier off while making connections or disconnections from the amplifier. Use this switch to turn the amplifier off if it will not be used for long periods of time.
  • Page 11: Amplifier Tour (Right Panel)

    16. Analog Input 3 L/R: These RCAs are the left and right inputs for Analog Input 3. If the OTO MCA 200 is used in bridged-mono mode, use the left input only. 17. +12V Trigger Input: This 1/8” TS jack allows the amplifier to be triggered on by a 12VDC control system.
  • Page 12: Amplifier Dip Switch Control

    (Off) position and the OTO MCA 200 will detect signal on any of the three inputs and turn on automatically. If no signal is present, the unit will go into standby after 8 minutes. OTO MCA 200 USER GUIDE...
  • Page 13 Volume Defeat Defeat *Note: For an OTO MCA 200 to be used as a Link unit, set the 3 volume defeat switches and the bridged switch all ON. In this way, the Link unit is not affected by the remote control. It will only affect the Master unit.
  • Page 14: Installation

    Intake and exhaust vents are supplied on the top and bottom of the unit, and the OTO MCA 200 should not be mounted in a way which blocks these vents. The OTO MCA 200 may run warm during operation; this is normal and does not represent a faulty unit.
  • Page 15: Connections

    CONNECTIONS SPEAKERS AND CONNECTIONS As a stereo amplifier, the Leon OTO MCA 200 is designed to work with 8 ohm and 4 ohm speakers, or combinations of speakers that appear as 8 ohms or 4 ohms to the amplifier. In bridged mode, the minimum impedance is 8 ohms.
  • Page 16: Quick Start 2.0/Stereo Set Up

    Using the provided terminal blocks, connect your speakers to the Speaker Outputs, noting correct polarity. Plug the OTO MCA 200 into the AC outlet with the included AC power cord. Turn on the OTO MCA 200 power switch.
  • Page 17 RIGHT PANEL LEFT PANEL FOR ASSISTANCE CALL: 1 (888) 213-5015 | MON-FRI 8AM-6PM EST...
  • Page 18: Bridged Mono 2.0 Linked Setup

    The Leon OTO MCA 200 can operate in bridged mono mode in which it can produce up to 400 watts into 8 ohms. A pair of OTO MCA 200 amplifiers used as monoblocks can therefore supply a total system power of 800 watts, enough to drive even the most power-hungry HIFI speakers.
  • Page 19 LINKED AMPLIFIER (RIGHT) RIGHT PANEL LEFT PANEL Sleep Volume Defeat Defeat RIGHT SPEAKER FOR ASSISTANCE CALL: 1 (888) 213-5015 | MON-FRI 8AM-6PM EST...
  • Page 20: Stereo Setup With A Passive Subwoofer

    STEREO SETUP WITH A PASSIVE SUBWOOFER In bridged mode, the the Leon OTO MCA 200 can provide 400 watts at 8 ohms which is plenty of power to drive most passive subwoofers. Two OTO MCA 200 amplifiers can be utilized, one as a ‘master’, powering a stereo pair of speakers, and the other ‘linked’...
  • Page 21 LINKED AMPLIFIER (RIGHT) RIGHT PANEL LEFT PANEL Sleep Volume Defeat Defeat FOR ASSISTANCE CALL: 1 (888) 213-5015 | MON-FRI 8AM-6PM EST...
  • Page 22: Stereo Setup With A Powered Subwoofer

    STEREO SETUP WITH A POWERED SUBWOOFER The Leon OTO MCA 200 can be set up to drive a subwoofer in many different configurations. If you are using a powered subwoofer, you can use the internal 80Hz crossover to pass bass below 80Hz to the subwoofer. This effectively takes strain off of your main speakers if they cannot handle or reproduce the low frequencies, and increases the overall fidelity of the system.
  • Page 23: Bridged Mono 2.0 With Powered Sub

    80Hz. Follow the Bridged Mono setup, but enable the 80Hz LP and 80Hz HP on the ‘master’ OTO MCA 200 to send frequencies below 80Hz out the Sub/Mono Output.
  • Page 24: Default Volume Bypass Procedure

    DEFAULT VOLUME BYPASS PROCEDURE Turn on the OTO MCA 200, and point the IR remote at the unit. Enter the following number sequence using the remote’s 1, 2, and 3 buttons: 2 3 1 2 2 3 3 While entering this sequence, please keep a steady slow pace that matches the front input LEDs, making sure they switch correctly with each button press.
  • Page 25 Otherwise there may be remote conflicts. For example, if you use the codes from your current TV, you will end up controlling both the TV and the OTO MCA 200 at the same time.
  • Page 26: Additional Features & Support

    A full set of IR codes for installers and programmers are available via the Leon Speakers website. IR Out/In The IR Out & IR In connectors allow the Leon OTO MCA 200 to be integrated with a third-party control system, or to be installed out of the line of sight. Sleep Mode The OTO MCA 200 will go into standby if an audio signal is not detected after approximately 8 minutes.
  • Page 27: Troubleshooting

    Make sure there is plenty of ventilation available. Signal Sensing If the OTO MCA 200 does not sense an input signal, it will switch to standby mode after approximately 8 minutes. It will turn back on again as soon as an input signal is detected.
  • Page 28: Specifications

    Limited Warranty ........2 Years Please note that technical specifications are subject to change without notice. OTO MCA 200 USER GUIDE...
  • Page 29: Specifications

    All trademarks (TM), registered trademarks (®), and copyrights (©), are the property of their respective owners. This amplifier was handcrafted in the USA by AudioControl for Leon Speakers. Additional copies of this installation manual are available on the Leon Speakers’ website. For additional specifications, technical details, and downloads, please visit www.leonspeakers.com.
  • Page 30: Warranty

    The warranty stated above is the sole and exclusive remedy and Leon’s performance shall constitute full and final satisfaction of all obligations, liabilities and claims with respect to the Product. In any event, Leon shall not be liable for consequential, incidental, economic, property, bodily injury, or personal injury damages arising from the product, any breach of this warranty or otherwise.
  • Page 31 Product to excessive heat or cold or humidity, direct water spray or immersion), commercial use, abuse, negligence, or normal wear and tear, or from service or repair which has not been authorized by Leon. This warranty also excludes products that have had their housings opened or tampered with,...
  • Page 32 715 W. Ellsworth Road Ann Arbor, Michigan 48108 | 1.888.213.5015 | www.leonspeakers.com...
