Installation Guide
This Installation Guide provides basic installation and configuration procedures
for the ScreenBeam Touch90 Interactive Whiteboard.
Mounting the Whiteboard
To mount the Whiteboard on a wall:
Wall Mounting Instructions

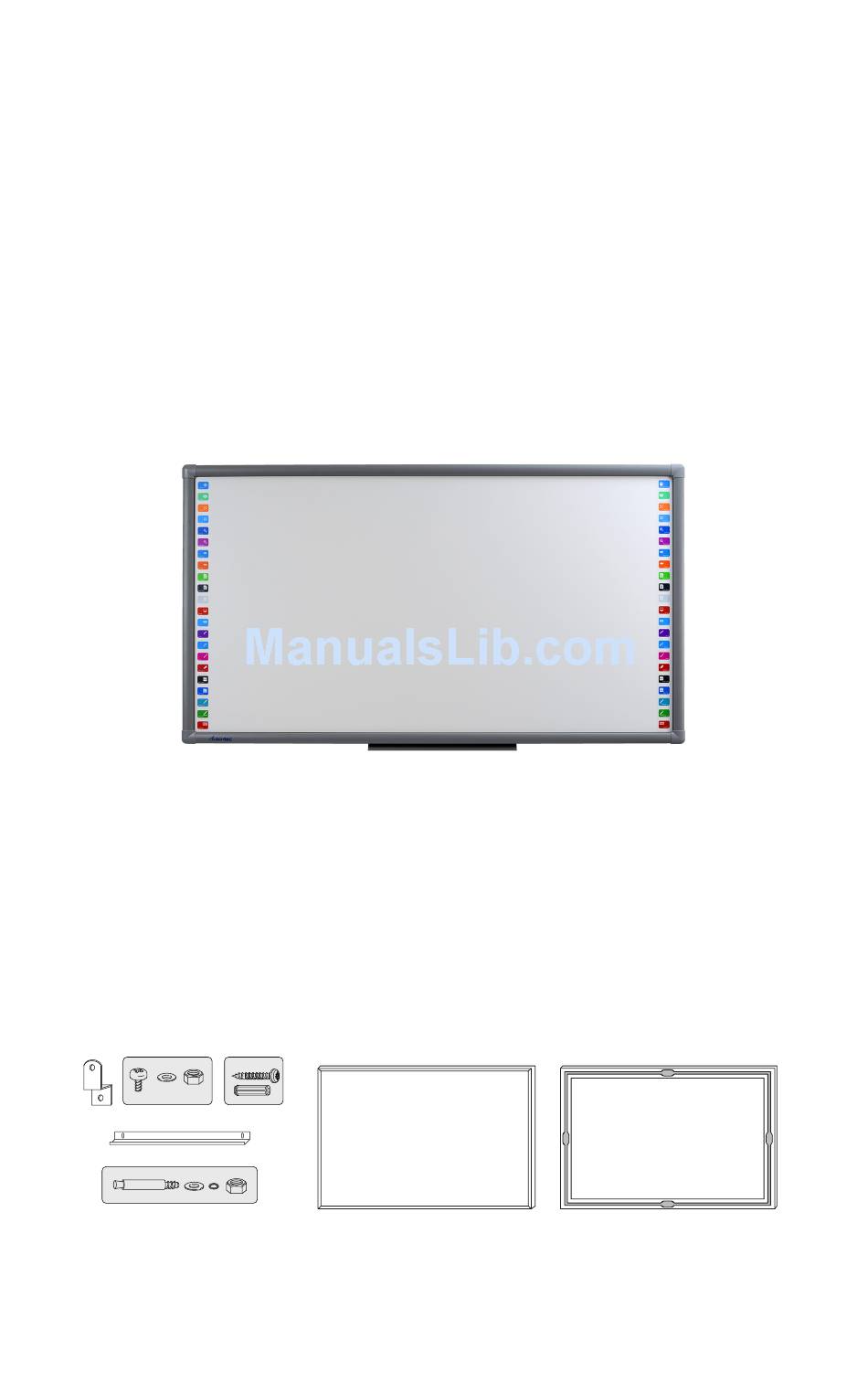

1. Locate the hardware and installation tools included in the package. Note the
differences between the front and back of the Whiteboard.
Prepare the Installation Tools
x4
x6
x4 (optional)
FRONT
BACK
Penholder x1
x4
4x
1
BACK
Advertisement
Summary of Contents for ScreenBeam Touch90
- Page 1 Installation Guide This Installation Guide provides basic installation and configuration procedures for the ScreenBeam Touch90 Interactive Whiteboard. Mounting the Whiteboard To mount the Whiteboard on a wall: Wall Mounting Instructions 1. Locate the hardware and installation tools included in the package. Note the differences between the front and back of the Whiteboard.
- Page 2 Installation Guide x4 (optional) x4 (optional) FRONT BACK Penholder x1 FRONT BACK Penholder x1 2. Install the four wall-mount brackets. BACK BACK 3. Install the penholder. Install the Penholder Install the Penholder BACK BACK Bottom side Bottom side Penholder Penholder 4.
- Page 3 Whiteboard, and do not pull on cables connected to the Whiteboard. Warning © 2015 Actiontec Electronics, Inc. ScreenBeam and the Actiontec logo are registered trademarks or trademarks of Actiontec Electronics, Inc., in the U.S. or other countries. All other names are properties of their respective owners.
- Page 4 Installation Guide Connecting the Whiteboard There are two ways to connect the Whiteboard: using a ScreenBeam Receiver, or directly to the laptop. The advantage of connecting via a ScreenBeam Receiver is that the user will be able to move around with the laptop, since it is connected wire- lessly, instead of having it physically coupled to the Whiteboard using a USB cable.
- Page 5 ScreenBeam Touch90 Interactive Whiteboard Connecting the Laptop and ScreenBeam Receiver After the Receiver is connected to the Whiteboard, the laptop and Receiver must be connected. The procedures to do this differ, depending on the operating system running on the laptop (either Windows 10, or Windows 7/8/8.1).
- Page 6 ScreenBeamTouch.exe file. 3. Follow the onscreen instructions to complete the installation. Calibrate Use th a. Make sure your laptop/tablet has connected to the ScreenBeam Receiver, a. Doub Calibration and the projector projects the screen onto the whiteboard.
- Page 7 ScreenBeam Touch90 Interactive Whiteboard No additional crosshairs appear. The Whiteboard is calibrated. Recalibrating the Whiteboard The Whiteboard will lose calibration if one or more of the following is changed: • The location of the Whiteboard • The location of the projector •...
- Page 8 After connecting the laptop, install the ScreenBeam Touch Software on the laptop. To do this: 1. On the laptop, go to https://actiontec.zendesk.com From the website, select ScreenBeam Touch90, and in the Software section, download the software. 2. Once the software is downloaded on the laptop, locate and dou- ble-click on the ScreenBeamTouch.exe file.
- Page 9 ScreenBeam Touch90 Interactive Whiteboard 2. From the window that appears, click Calibration. 3. A red target appears. Touch the center of the target with a finger or other pointing device for a few seconds. Make sure your finger or device is per- pendicular to the surface of the Whiteboard.
-
Page 10: Using The Whiteboard
If any of the above changes occur, calibrate the Whiteboard again. Using the Whiteboard The ScreenBeam Touch software, used in conjucntion with the Whiteboard, is a powerful and interactive tool, ideal for education and business applications. With ScreenBeam Touch, users can perform many whiteboard functions, including handwriting, erasing, adding pages, inserting objects, recording, etc. - Page 11 This following sections gives a brief description of the Whiteboard’s board icons. Note: The Whiteboard’s icons are operational only after launching the ScreenBeam Touch application on the laptop. Also, the icons are the same on both the left and right edge of the Whiteboard, with the exception of Calibration (top left side only) and Disable Right Click (top right side only).
- Page 12 Installation Guide Page Down Tapping the Page Down icon on the Whiteboard allows the user to move down to the next screen. Page Up Tapping the Page Up icon on the Whiteboard allows the user to move to the previous screen. Green Board Tapping the Green Board icon on the Whiteboard causes the board color to change to green.
- Page 13 ScreenBeam Touch90 Interactive Whiteboard Soft Pen Tapping the Soft Pen icon on the Whiteboard allows the user to draw on the board using a soft pen (similar to a calligraphy pen). Brush Tapping the Erasers icon on the Whiteboard allows the user to draw on the board using a brush.
-
Page 14: Troubleshooting
• Make sure all the cables are securely connected. • Make sure the calibration process was completed properly. My laptop/tablet could not connect to the ScreenBeam Receiver. • Make sure the name of the Receiver matches the Receiver name shown on the Whiteboard. -
Page 15: Technical Support
2.4GHz network. If this solves the problem, set up the device to use the 5GHz network as its default network. How do I configure the settings for the ScreenBeam Receiver? All changes to the Receiver’s settings are done through the local management console or Actiontec’s CMS. -
Page 16: Warranty
Installation Guide Warranty This product has a 1-year Limited Hardware Warranty from date of purchase. Local Law This Limited Warranty Statement gives the customer specific legal rights. The cus- tomer may also have other rights which vary from state to state in the United States, from province to province in Canada, and from country to country elsewhere in the world.
