CyberData 011433 Operation Manual

Secure access control keypad
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
The IP Endpoint Company
Secure Access Control
Keypad

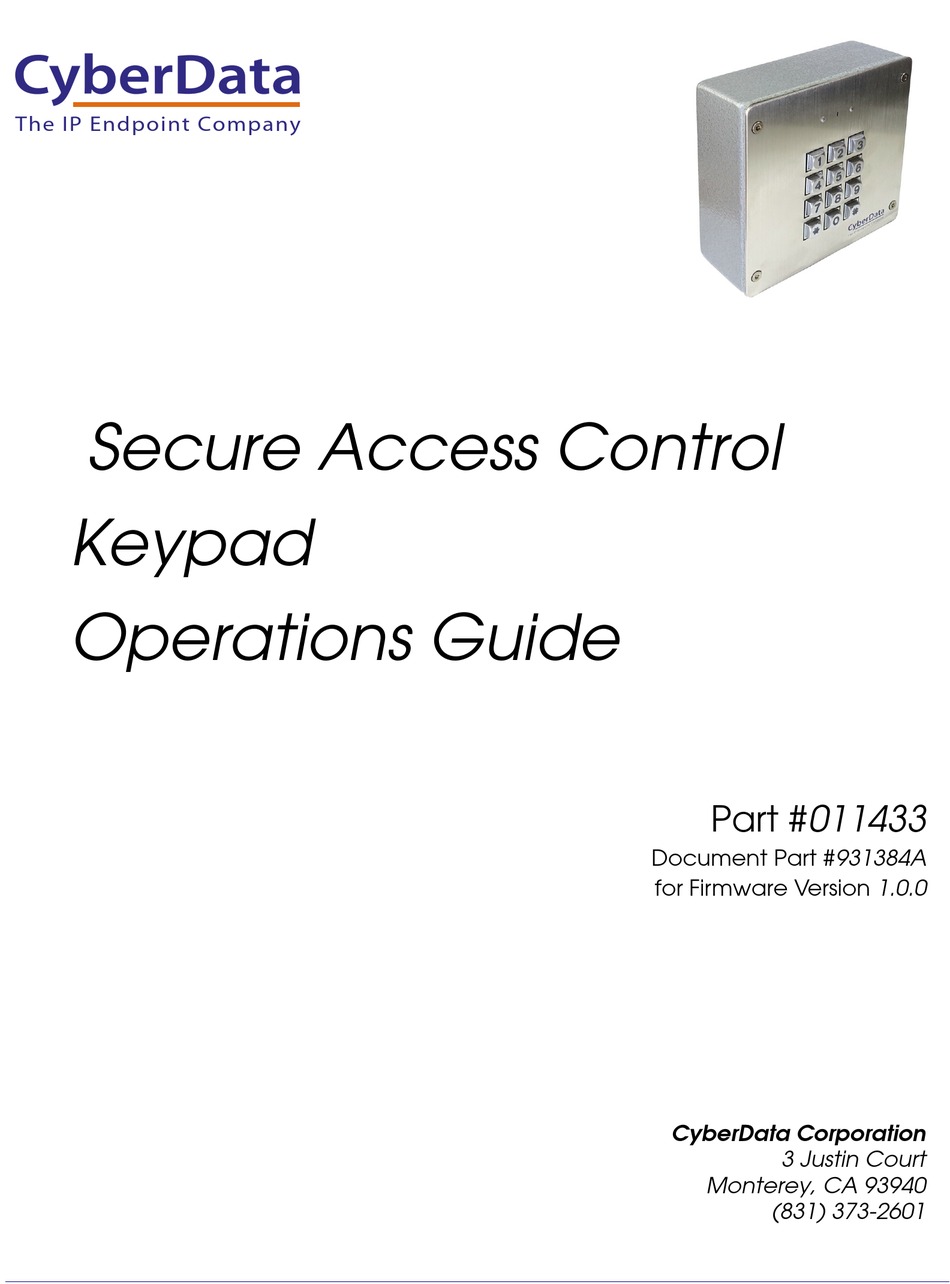

Operations Guide
Part #011433
Document Part #931384A
for Firmware Version 1.0.0
CyberData Corporation
3 Justin Court
Monterey, CA 93940
(831) 373-2601

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 011433 and is the answer not in the manual?

Questions and answers

Summary of Contents for CyberData 011433

  • Page 1 The IP Endpoint Company Secure Access Control  Keypad  Operations Guide Part #011433 Document Part #931384A for Firmware Version 1.0.0 CyberData Corporation 3 Justin Court Monterey, CA 93940 (831) 373-2601...
  • Page 2 CyberData Corporation. This manual, and the products, software, firmware, and/or hardware described in this manual are the property of CyberData Corporation, provided under the terms of an agreement between CyberData Corporation and recipient of this manual, and their use is subject to that agreement and its terms.
  • Page 3 Revision 931384A, which corresponds to firmware version 1.0.0, was released on September 19, 2017. Browsers Supported The following browsers have been tested against firmware version 1.0.0: • Chrome (version 570.02987.98) • Firefox: (version 55.0.2) • Internet Explorer (version 11.0.9600.18314) Operations Guide 931384A CyberData Corporation...
  • Page 4 Potential safety hazards are identified in this manual through the use of words Danger, Warning, and Caution, the specific hazard type, and pictorial alert icons. CyberData Corporation 931384A Operations Guide...
  • Page 5 To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. GENERAL ALERT Warning The PoE connector is intended for intra-building connections only and does not route to the outside plant. GENERAL ALERT CyberData Corporation 931384A Operations Guide...

  • Page 6: Table Of Contents

    B.1.1 In a LINUX Environment ....................85 B.1.2 In a Windows Environment ..................85 Appendix C Troubleshooting/Technical Support C.1 Frequently Asked Questions (FAQ) ..................86 C.2 Documentation ........................86 C.3 Contact Information ........................87 C.4 Warranty and RMA Information ....................87 Operations Guide 931384A CyberData Corporation...
  • Page 7 Index Operations Guide 931384A CyberData Corporation...

  • Page 8: Chapter 1 Product Overview

    To identify the Secure Access Control Keypad, look for a model number label similar to the one shown in  Figure 1-1. Confirm the following: • The model number on the label should be 011433. • The serial number on the label should begin with 433. Figure 1-1. Model Number Label www.cyberdata.net...

  • Page 9: Typical System Installation

    802.3af Compliant Ethernet Switch Endpoint 011269 Door Strike Relay Door Strike IP Phone IP PBX Server Module (sold separately)* *See the Quick-Reference Placemat or Operations Guide of the relevant door strike relay for connection specifics. Operations Guide 931384A CyberData Corporation...
  • Page 10 Door Strike Endpoint Door Strike 011375 Network Dual IP Phone IP PBX Server Door Strike Relay  (sold separately)* *See the Quick-Reference Placemat or Operations Guide of the relevant door strike relay for connection specifics. Operations Guide 931384A CyberData Corporation...

  • Page 11: Product Features

    Dry contact relay to trigger door lock or unlock gates • Door closure and tamper alert signal • Support for CyberData’s Networked Dual Door Strike Relay (part# 011375) and Intermediate Door Strike Relay (part# 011269) • Security Torx screws with driver kit included...

  • Page 12: Supported Protocols

    • Audio Encodings PCMU (G.711 mu-law) PCMA (G.711 A-law) G.722 Packet Time 20 ms 1.5 Supported SIP Servers The following link contains information on how to configure the device for the supported SIP servers: http://www.cyberdata.net/connecting-to-ip-pbx-servers/ Operations Guide 931384A CyberData Corporation...

  • Page 13: Specifications

    Compliant, FCC; Part 15 Class A, Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant Part Number 011433 011188 Weather Shroud (sold separately) a. Contacts 1 and 2 on the J3 terminal block are only for powering the device from a non-PoE 12VDC power source as an alternative to Network PoE power.

  • Page 14: Chapter 2 Installing The Secure Access Control Keypad

    Table 2-1 illustrates the SIP Outdoor Intercom parts. Note Appendix A, "Mounting the Intercom" for physical mounting information. Table 2-1. Parts List Quantity Part Name Illustration Intercom Assembly Installation Quick Reference Guide Intercom Mounting Accessory Kit Operations Guide 931384A CyberData Corporation...

  • Page 15: Intercom Components

    • Remains when the door is locked. • Flashes GREEN when a valid code is entered. • Flashes when an invalid or blacklisted code is entered. Buzzer Settings Table 2-12, "Security Configuration Parameters". Green LED Keypad Operations Guide 931384A CyberData Corporation...

  • Page 16: Secure Access Control Keypad Setup

    12VDC power source as an alternative to Network PoE power. Use of these contacts for any other purpose will damage the Terminal Block device and void the product warranty. can accept 16 AWG wire Operations Guide 931384A CyberData Corporation...

  • Page 17: Using The On-Board Relay

    This relay interface also has a general purpose input port that can be used to monitor an external switch and generate an event. For more information on the sensor options, see the Sensor Configuration Page on the web interface. Operations Guide 931384A CyberData Corporation...

  • Page 18: Wiring The Circuit

    Pin 4 - Relay Normally Open Contact Pin 5 - Sense Input Pin 6 - Sense Ground LED Strobe Light DC Source Sense Input 1 A @ 30 VDC Terminal Block of the CyberData Device Operations Guide 931384A CyberData Corporation...
  • Page 19 Section 2.4.12, "Configure the Door Strike Relay" for configuration options. *Caution Equipment Hazard: The door strike must have an internal or external mov or diode (for over voltage protection) when connecting directly to the module. GENERAL ALERT Operations Guide 931384A CyberData Corporation...
  • Page 20 (for over voltage protection) when connecting directly to the module. GENERAL ALERT If you have questions about connecting door strikes or setting up the web configurable options, please contact our support department at the following website: http://support.cyberdata.net/ Operations Guide 931384A CyberData Corporation...
  • Page 21 AC Source DC Source Door Lock Sense Input If you have questions about connecting door strikes or setting up the web configurable options, please contact our support department at the following website: http://support.cyberdata.net/ Operations Guide 931384A CyberData Corporation...

  • Page 22: Connectors And Functions

    See the following figures and tables to identify the connectors and functions. Figure 2-7. Connector Locations Table 2-2. Connector Functions Connector Function Call Button LED Interface Microphone Interface Speaker Interface Keypad Interface (Not Used) I²C 5V Peripheral Bus JP10 Disables the intrusion sensor when installed. Operations Guide 931384A CyberData Corporation...
  • Page 23 JTAG (Factory Use Only) Buzzer/LED Board Interface Section 2.3.6, "Restoring the Factory Default Settings" Intrusion Sensor a.Do not install a jumper. Momentary short to reset. Permanent installation of a jumper would prevent the board from running all together. Operations Guide 931384A CyberData Corporation...

  • Page 24: Activity And Link Leds

    Link/Activity LED blinks when there is network activity (see Figure 2-9). • The square, GREEN 100Mb Link LED above the Ethernet port indicates that the network connection has been established (see Figure 2-9). Figure 2-9. Activity and Link LED Link Activity Operations Guide 931384A CyberData Corporation...

  • Page 25: Restoring The Factory Default Settings

    3. The keypad lights blink during the boot process, turn off briefly, and then remain on and solid. Note THE device will use DHCP to obtain the new IP address (DHCP-assigned address or default to 10.10.10.10 if a DHCP server is not present). Figure 2-10. RTFM Button RTFM button (SW1) Operations Guide 931384A CyberData Corporation...

  • Page 26: Configure The Intercom Parameters

    Table 2-4. Factory Default Settings Parameter Factory Default Setting IP Addressing DHCP IP Address 10.10.10.10 Web Access Username admin Web Access Password admin Subnet Mask 255.0.0.0 Default Gateway 10.0.0.1 a. Default if there is not a DHCP server present. Operations Guide 931384A CyberData Corporation...

  • Page 27: Intercom Web

    Link to go to the SIP page. Link to the Sensor page. Link to the Audiofiles page. Link to the Events page. Link to the Door Strike Relay page. Link to the Autoprovisioning page. Link to the Firmware page. Operations Guide 931384A CyberData Corporation...

  • Page 28: Using The Toggle Help Button

    2. You will see a question mark ( ) appear next to each web page item that has been provided with a short description by the Help feature. See Figure 2-12. Figure 2-12. Toggle Help Button and Question Marks Question mark  appears next to the web page items Toggle Help button Operations Guide 931384A CyberData Corporation...
  • Page 29 3. Move the mouse pointer to hover over the question mark ( ), and a short description of the web page item will appear. See Figure 2-13. Figure 2-13. Short Description Provided by the Help Feature A short description of the  Question mark web page item will appear Operations Guide 931384A CyberData Corporation...

  • Page 30: Log In To The Configuration Home Page

    Note You may also download CyberData’s VoIP Discovery Utility program which allows you to easily find and configure the default web address of the CyberData VoIP products.   CyberData’s VoIP Discovery Utility program is available at the following website address: http://www.cyberdata.net/assets/common/discovery.zip...
  • Page 31 Installing the Secure Access Control Keypad Secure Access Control Keypad Setup Figure 2-14. Home Page CyberData Security Keypad 433100001 v1.0.0 Operations Guide 931384A CyberData Corporation...
  • Page 32 Click Export to export the current configuration to a file. Click the Save button to save your configuration settings. Note: You need to reboot for changes to take effect. Click on the Reboot button to reboot the system. Operations Guide 931384A CyberData Corporation...
  • Page 33 The user name and password will be saved immediately, but the user will not be prompted to enter them until there is a reboot. It is advisable to restart the web browser after this change. Operations Guide 931384A CyberData Corporation...

  • Page 34: Configure The Device

    Installing the Secure Access Control Keypad Secure Access Control Keypad Setup 2.4.5 Configure the Device 1. Click the Device menu button to open the Device page. See Figure 2-15. Figure 2-15. Device Configuration Page CyberData Security Keypad Operations Guide 931384A CyberData Corporation...
  • Page 35 Type the device name. Enter up to 25 characters. Keypad Brightness (0-255) The desired keypad brightness level. Acceptable values are 0-255, where 0 is the dimmest and 255 is the brightest. Enter up to three digits. Operations Guide 931384A CyberData Corporation...
  • Page 36 Note None of the Relay Settings require a reboot for the changes to take effect. Note Disable HTTPS (NOT recommended) setting requires a reboot for the changes to take effect. Operations Guide 931384A CyberData Corporation...
  • Page 37 Time of day to change M11.1.0/2:00:00 The date and time when daylight savings ends. The eleventh month (November) The 1st occurrence of the day (next item) in the month Sunday /2:00:00 Time of day to change Operations Guide 931384A CyberData Corporation...
  • Page 38 CST, Central US GMT-5 EST, Eastern US GMT-4 Atlantic, Canada GMT-3 Brazilia, Buenos Aries GMT-2 Mid-Atlantic GMT-1 Cape Verdes Greenwich Mean Time, Dublin GMT+1 Berlin, Rome GMT+2 Israel, Cairo GMT+3 Moscow, Kuwait GMT+4 Abu Dhabi, Muscat Operations Guide 931384A CyberData Corporation...
  • Page 39 Time Zone City or Area Zone Crosses GMT+5 Islamabad, Karachi GMT+6 Almaty, Dhaka GMT+7 Bangkok, Jakarta GMT+8 Hong Kong, Beijing GMT+9 Tokyo, Osaka GMT+10 Sydney, Melbourne, Guam GMT+11 Magadan, Soloman Is. GMT+12 Fiji, Wellington, Auckland Operations Guide 931384A CyberData Corporation...

  • Page 40: Configure The Security

    Installing the Secure Access Control Keypad Secure Access Control Keypad Setup 2.4.6 Configure the Security 1. Click the Security menu button to open the Security page. See Figure 2-15. Figure 2-17. Security Configuration Page CyberData Security Keypad Operations Guide 931384A CyberData Corporation...
  • Page 41 When selected, an audible buzz will play to indicate that a button has been pressed. Sensor Settings Buzz on Door Open Timeout When selected, the buzzer will beep until the on board sensor is deactivated. Operations Guide 931384A CyberData Corporation...
  • Page 42 Note You must click on the Save button and then the Reboot button for the changes to take effect. Operations Guide 931384A CyberData Corporation...
  • Page 43 Secure Access Control Keypad Setup Note The device must set time with an NTP Server (see the Device Configuration Page). If an NTP server is not used, all Valid From Valid To fields must be set to All. Operations Guide 931384A CyberData Corporation...
  • Page 44 Installing the Secure Access Control Keypad Secure Access Control Keypad Setup 2.4.6.1 Configure the Security Code Page 1. Click the Edit button to open the Configure Security Code page. See Figure 2-18. Figure 2-18. Configure Security Code Page Operations Guide 931384A CyberData Corporation...
  • Page 45 Entering a blacklisted code will trigger the buzzer, and can trigger a call to an extension or a multicast of a pre-recorded message. Saves the changes of the security configuration. Cancels the changes of the security configuration. Operations Guide 931384A CyberData Corporation...
  • Page 46 <ValidTo0>Mon12:00</ValidTo0> times are inclusive - this code is only valid on monday at 12:00 <ValidFrom0>Wdy9:00</ValidFrom0> <ValidTo0>Wdy17:00</ValidTo0> Weekdays from 9am to 5pm Note The identifiers in to and from must match (for example, named day/named day, Wdy/ Wdy, Wnd/Wnd, All/All). Operations Guide 931384A CyberData Corporation...

  • Page 47: Configure The Network Parameters

    Installing the Secure Access Control Keypad Secure Access Control Keypad Setup 2.4.7 Configure the Network Parameters 1. Click the Network menu button to open the Network page (Figure 2-19). Figure 2-19. Network Configuration Page CyberData Outdoor Intercom CyberData Security Keypad Operations Guide 931384A CyberData Corporation...
  • Page 48 Subnet Mask Shows the current Subnet Mask address. Default Gateway Shows the current Default Gateway address. DNS Server 1 Shows the current DNS Server 1 address. DNS Server 2 Shows the current DNS Server 2 address. Operations Guide 931384A CyberData Corporation...
  • Page 49 Move the mouse pointer to hover over a question mark to see a short description of a specific web page item. Note You must click on the Save button and then the Reboot button for the changes to take effect. Operations Guide 931384A CyberData Corporation...

  • Page 50: Configure The Sip (Session Initiation Protocol) Parameters

    Secure Access Control Keypad Setup 2.4.8 Configure the SIP (Session Initiation Protocol) Parameters 1. Click on the SIP menu button to open the SIP page (Figure 2-20). Figure 2-20. SIP Configuration Page CyberData Security Keypad Operations Guide 931384A CyberData Corporation...
  • Page 51 SIP registration authentication. Enter up to 64 alphanumeric characters. Backup SIP Auth Password 2 Specify the Authenticate Password for the second backup SIP server. This parameter is required for SIP registration authentication. Enter up to 64 alphanumeric characters. Operations Guide 931384A CyberData Corporation...
  • Page 52 Specify the size of the jitter buffer (in milliseconds) used for SIP calls. Valid values are 50-1000. Click the Save button to save your configuration settings. Note: You need to reboot for changes to take effect. Click on the Reboot button to reboot the system. Operations Guide 931384A CyberData Corporation...
  • Page 53 You must click on the Save button and then the Reboot button for the changes to take effect. Note Terminate Call After Delay setting does not require a reboot for the changes to take effect. Note For specific server configurations, go to the following website address: http://www.cyberdata.net/connecting-to-ip-pbx-servers/ Operations Guide 931384A CyberData Corporation...

  • Page 54: Configure The Sensor Configuration Parameters

    Each sensor can activate the relay, or make a call to an extension and play a pre-recorded audio file. 1. Click Sensor menu button to open the Sensor page (Figure 2-21). Figure 2-21. Sensor Configuration Page CyberData Security Keypad Operations Guide 931384A CyberData Corporation...
  • Page 55 A value of 0 will repeat forever. Enter a value from 0-65536. Click the Test Door Sensor button to test the door sensor. Click the Test Intrusion Sensor button to test the Intrusion sensor. Operations Guide 931384A CyberData Corporation...
  • Page 56 Note You must click on the Save button for the changes to take effect. Note None of the Sensor Configuration Page settings require a reboot for the changes to take effect. Operations Guide 931384A CyberData Corporation...

  • Page 57: Configure The Audio Configuration Parameters

    1. Click on the Audiofiles menu button to open the Audiofiles page (Figure 2-22). Figure 2-22. Audiofiles Configuration Page CyberData Security Keypad 2. On the Audiofiles page, enter values for the parameters indicated in Table 2-17. Note...
  • Page 58 RIFF (little-endian) data, WAVE audio, Microsoft PCM, 16 bit, mono 8000 Hz You can use the free utility Audacity to convert audio files into this format. See Figure 2-23 through Figure 2-25. Figure 2-23. Audacity 1 Figure 2-24. Audacity 2 Operations Guide 931384A CyberData Corporation...
  • Page 59 Secure Access Control Keypad Setup When you export an audio file with Audacity, save the output as: • WAV (Microsoft) signed 16 bit PCM. Figure 2-25. WAV (Microsoft) signed 16 bit PCM WAV (Microsoft) signed 16 bit PCM Operations Guide 931384A CyberData Corporation...

  • Page 60: Configure The Events Parameters

    1. Click on the Events menu button to open the Events page (Figure 2-26). Figure 2-26. Event Configuration Page CyberData Security Keypad 2. On the Events page, enter values for the parameters indicated in Table 2-18. Note...
  • Page 61 Enabling Event Generation or changing an Event Server setting requires a reboot for the changes to take effect. Note Selecting particular events, Check All, or Uncheck All does not require a reboot for the changes to take effect. Operations Guide 931384A CyberData Corporation...
  • Page 62 Here are example packets for every event: POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 197 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>POWERON</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 199 Content-Type: application/x-www-form-urlencoded <?xml version="1.0"...
  • Page 63 Installing the Secure Access Control Keypad Secure Access Control Keypad Setup User-Agent: CyberData/1.0.0 Content-Length: 205 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>CALL_TERMINATED</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 197 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?>...
  • Page 64 Installing the Secure Access Control Keypad Secure Access Control Keypad Setup User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>RELAY_DEACTIVATED</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?>...

  • Page 65: Configure The Door Strike Relay

    Windows application. This section describes operations for running firmware version 4.8 or later of the Dual Door Strike Relay. If you have an older version of the firmware, then please contact CyberData Technical Support. The version number appears in the...
  • Page 66 You must click on the Save button and then the Reboot button for the changes to take effect. Note Associating a DSR does not require a reboot. However, you should reboot the device after disassociating a DSR. Operations Guide 931384A CyberData Corporation...

  • Page 67: Configure The Autoprovisioning Parameters

    Note By default, the device will try to set up its configuration with autoprovisioning. 1. Click the Autoprov menu button to open the Autoprovisioning page. See Figure 2-28. Figure 2-28. Autoprovisioning Page CyberData Security Keypad Operations Guide 931384A CyberData Corporation...
  • Page 68 Set Time with NTP Server on boot setting on the Device Configuration Page page (see Table 2-7). Click the Save button to save your configuration settings. Note: You need to reboot for changes to take effect. Operations Guide 931384A CyberData Corporation...
  • Page 69 3. Option 150 - an IP address to a tftp server 4. Option 66 - an IP address to a tftp server or if the entry starts with 'http', a FQDN to a http server. Operations Guide 931384A CyberData Corporation...
  • Page 70 2.4.13.1 Autoprovisioning files can contain the whole configuration or a subset of this file, but the order must not be changed. The first autoprovisioning file can also contain links to other autoprovisioning files. The <MiscSettings> section contains some examples of additional autoprovisioning files: <MiscSettings> <DeviceName>CyberData SIP Device</DeviceName> <!-- <AutoprovFile>common.xml</AutoprovFile>--> <!-- <AutoprovFile>sip_reg[macaddress].xml</AutoprovFile>-->...
  • Page 71 When one of these options is set, the Files after Boot device will download its autoprovisioning files again, and if it finds any differences from the files it downloaded on boot, it will force a reboot and reconfigure. Operations Guide 931384A CyberData Corporation...
  • Page 72 The autoprovisioning filename is set to “cyberdata/” On boot, the device will try to download: https://www.example.com/cyberdata/0020f7123456.xml ...and if this fails: https://www.example.com/cyberdata/000000cd.xml Audio files and firmware files will also add “cyberdata” to the URL before downloading. Operations Guide 931384A CyberData Corporation...
  • Page 73 In this way, a generic autoprovisioning file can specify unique firmware for a range of products. The list of valid product strings: <ProductString>CallButton31</ProductString> <ProductString>EmergencyIntercom31</ProductString> <ProductString>EmergencyIntercom31SW</ProductString> <ProductString>IndoorIntercom31</ProductString> <ProductString>IndoorIntercom31SW</ProductString> <ProductString>IndoorKeypad31</ProductString> <ProductString>IndoorKeypad31SW</ProductString> <ProductString>OfficeRinger31</ProductString> <ProductString>OfficeRinger31SW</ProductString> <ProductString>OutdoorIntercom31</ProductString> <ProductString>OutdoorIntercom31SW</ProductString> <ProductString>OutdoorKeypad31</ProductString> <ProductString>OutdoorKeypad31SW</ProductString> <ProductString>Strobe31</ProductString> <ProductString>Strobe31SW</ProductString> Operations Guide 931384A CyberData Corporation...
  • Page 74 000000cd.xml. This file exists, and Device1 parses the three elements. 1. Device1 changes its device name to CyberData Autoprovisioned. 2. Device1 finds an AutoprovFile element containing the filename sip_common.xml. The device downloads sip_common.xml from “https://autoprovtest.server.net,”...
  • Page 75 TFTP server at 10.0.1.3. and imports these settings. The device name is set to CyberData Autoprovisioned, the SIP server is set to 10.0.0.253, and the port is set to 5060. Device2 does the same except it downloads 0020f7020002.xml on boot and imports these values instead.
  • Page 76 You can force a change to the audio files on the board by clicking Restore Default on the Audio Configuration page or by changing the autoprovisioning file with “default” set as the file name. Operations Guide 931384A CyberData Corporation...
  • Page 77 "http://test.cyberdata.net"; # OPTION 66 option option-150 10.0.0.252; # OPTION 150 # These two lines are needed for option 43 vendor-option-space VendorInfo; # OPTION 43 option VendorInfo.text "http://test.cyberdata.net"; # OPTION 43 range 10.10.0.1 10.10.2.1; } Operations Guide 931384A CyberData Corporation...
  • Page 78 Save this file as the mac address of your device .xml to use DHCP autoprovisioning options. 4. You can then upload the autoprovisioning file to a TFTP or HTTP server where the file can be loaded onto other devices. Operations Guide 931384A CyberData Corporation...

  • Page 79: Upgrade The Firmware And Reboot The Intercom

    2.5.1 Downloading the Firmware To download the firmware to your computer: 1. Download the latest firmware file from the Downloads tab at the following webpage: http://www.cyberdata.net/voip/011433/ 2. Unzip the firmware version file. This file may contain the following: • Firmware file •...
  • Page 80 4. Click on the Firmware menu button to open the Firmware page. See Figure 2-30. Caution Equipment Hazard: CyberData strongly recommends that you first reboot the device before attempting to upgrade the firmware of the device. See Section 2.5.2, "Reboot the Device".
  • Page 81 Installing the Secure Access Control Keypad Secure Access Control Keypad Setup Table 2-22. Firmware Parameters (continued) Web Page Item Description Click on the Upload button to automatically upload the selected firmware and reboot the system. Operations Guide 931384A CyberData Corporation...

  • Page 82: Reboot The Device

    Section 2.4.4, "Log in to the Configuration Home Page". 1. Click on the Reboot button on the Home page (Figure 2-31). A normal restart will occur. Figure 2-31. Home Page CyberData Security Keypad 433100001 v1.0.0 Reboot Operations Guide 931384A CyberData Corporation...

  • Page 83: Command Interface

    Trigger the Intrusion Sensor Test (Sensor Config page) wget --user admin --password admin --auth-no-challenge --no- check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/ sensor.cgi" --post-data "intrusiontest=yes" a.Type and enter all of each http POST command on one line. Operations Guide 931384A CyberData Corporation...

  • Page 84: Appendix A Mounting The Intercom

    Table A-2. Optional Accessories (for gooseneck mounting) Quantity Part Name Illustration Carriage bolt nuts Carriage bolts Carriage bolt washers Table A-3. Optional Accessories Quantity Part Name Illustration Spacer for half-inch set conduit connector 531085B hole plug assembly Operations Guide 931384A CyberData Corporation...

  • Page 85: Dimensions

    5.1 [130] 4.6 [116] 4.0 [102] #6-32 Threaded ø0.3 [ø7] Ground (4 Places) Lug & Nut Conduit Conduit Hole Hole ø0.9 [ø22] ø0.9 [ø22] 3.4 [86] 0.7 [19] DIMENSIONS ARE IN INCHES [MILLIMETER] PROJECTION: THIRD ANGLE Operations Guide 931384A CyberData Corporation...
  • Page 86 Mounting the Intercom Dimensions Figure A-3. Shroud Dimensions—Front and Side View with Mounting Hole Locations 5.276 [134.00] 3.434 [87.23] ø0.280 [ø7.11] (4 PLACES) ø0.854 [ø21.69] 1.690 [42.93] 3.380 [85.85] 0.948 [24.07] Dimensions are in Inches [Millimeter] Operations Guide 931384A CyberData Corporation...

  • Page 87: Overview Of Installation Types

    An overview of the installation types and the required components are provided in Table A-4. Table A-4. Overview of Installation Types Installation Type What You Need Outdoor, on surface 011433 Device only Outdoor, on surface with shroud (increased resistance) 011433 Device 011188 Weather Shroud (sold separately) Operations Guide 931384A CyberData Corporation...

  • Page 88: Service Loop Cable Routing

    Mounting Screws Flat Head Phillips or Security Torx Gang Box Faceplate Assembly Figure A-5. Network Cable Service Loop Routing Service Loop Network Cable Faceplate Mounting Screws Flat Head Phillips or Security Torx Gang Box Faceplate Assembly Operations Guide 931384A CyberData Corporation...

  • Page 89: Securing The Enclosure

    PCB assembly to the gang box. To prevent over-torque damage to the gasket, do not apply more than 10 inch-pounds force. Over-torquing will cause GENERAL ALERT the gasket to tear, risk moisture intrusion, and effectively void the manufacturer's warranty. Operations Guide 931384A CyberData Corporation...

  • Page 90: Additional Mounting Options

    Exit Direction Hole Plug 1/2" Set Screw Assembly Connector Nut [Hole Plug] 1/2" Set Screw Connector 1/2" Conduit 1/2" Conduit Fiber Washer Fiber Washer (As Spacer) (As Spacer) 1/2" Set Screw Gang Box Side View Connector Operations Guide 931384A CyberData Corporation...

  • Page 91: Goose Neck Mounting Option (Not Provided)

    Assembly [Hole Plug] (REMOVE HOLE PLUG ASSEMBLY FROM 2-GANG BOX Gang Box BEFORE FASTEN IT TO SHROUD AND/OR GOOSENECK) Nut for 1/4" Washer (4x) Ground Lug 1/4" Nut (4x) Faceplate Assembly NETWORK & GROUND CABLE Operations Guide 931384A CyberData Corporation...

  • Page 92: Appendix B Setting Up A Tftp Server

    1. Install and start the software. 2. Select File Configure Security tab Transmit Only. 3. Make a note of the default directory name, and then move the firmware files to be uploaded to that directory. Operations Guide 931384A CyberData Corporation...

  • Page 93: Appendix C Troubleshooting/Technical Support

    To see a list of frequently asked questions for your product, click on the FAQs tab at the following webpage: http://www.cyberdata.net/voip/011433/ C.2 Documentation The documentation for this product is released in an English language version only. To download PDF copies of CyberData product documentation, click on the Downloads tab at the following webpage: http://www.cyberdata.net/voip/011433/ Operations Guide 931384A...

  • Page 94: Contact Information

    Support form at the following website: http://support.cyberdata.net/ The Support Form initiates a ticket which CyberData uses for tracking customer requests. Most importantly, the Support Form tells us which PBX system and software version that you are using, the make and model of the switch, and other important information. This information is essential for troubleshooting.
  • Page 95 23 16 AWG gauge wire 9 configuration page configurable parameters 28, 41 contact information 87 contact information for CyberData 87 current network settings 41 CyberData contact information 87 activate relay (door sensor) 48 activate relay (intrusion sensor) 48...
  • Page 96 2 NTP server 28 intrusion sensor 47, 48 activate relay 48 dial out extension 48 IP address 19, 41 IP addressing default on-board relay 6, 10 IP addressing setting 19 overview of installation types 80 Operations Guide 931384A CyberData Corporation...
  • Page 97 23 sales 87 restoring the default 19 securing the device 82 sensor setup page 47, 58 sensor setup parameters 47 sensors 48 server address, SIP 44 service 87 VLAN ID 41 Operations Guide 931384A CyberData Corporation...
  • Page 98 Index VLAN Priority 41 VLAN tagging support 41 VLAN tags 41 warranty policy at CyberData 87 web access password 19 web access username 19 web configuration log in address 23 web page navigation 20 web page navigation 20 wget, free unix utility 76...
