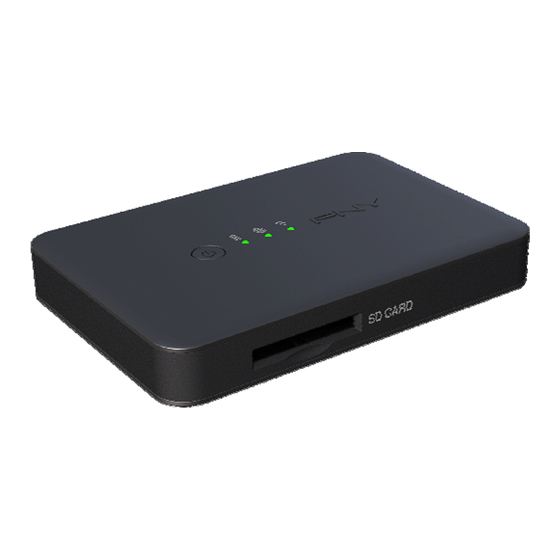

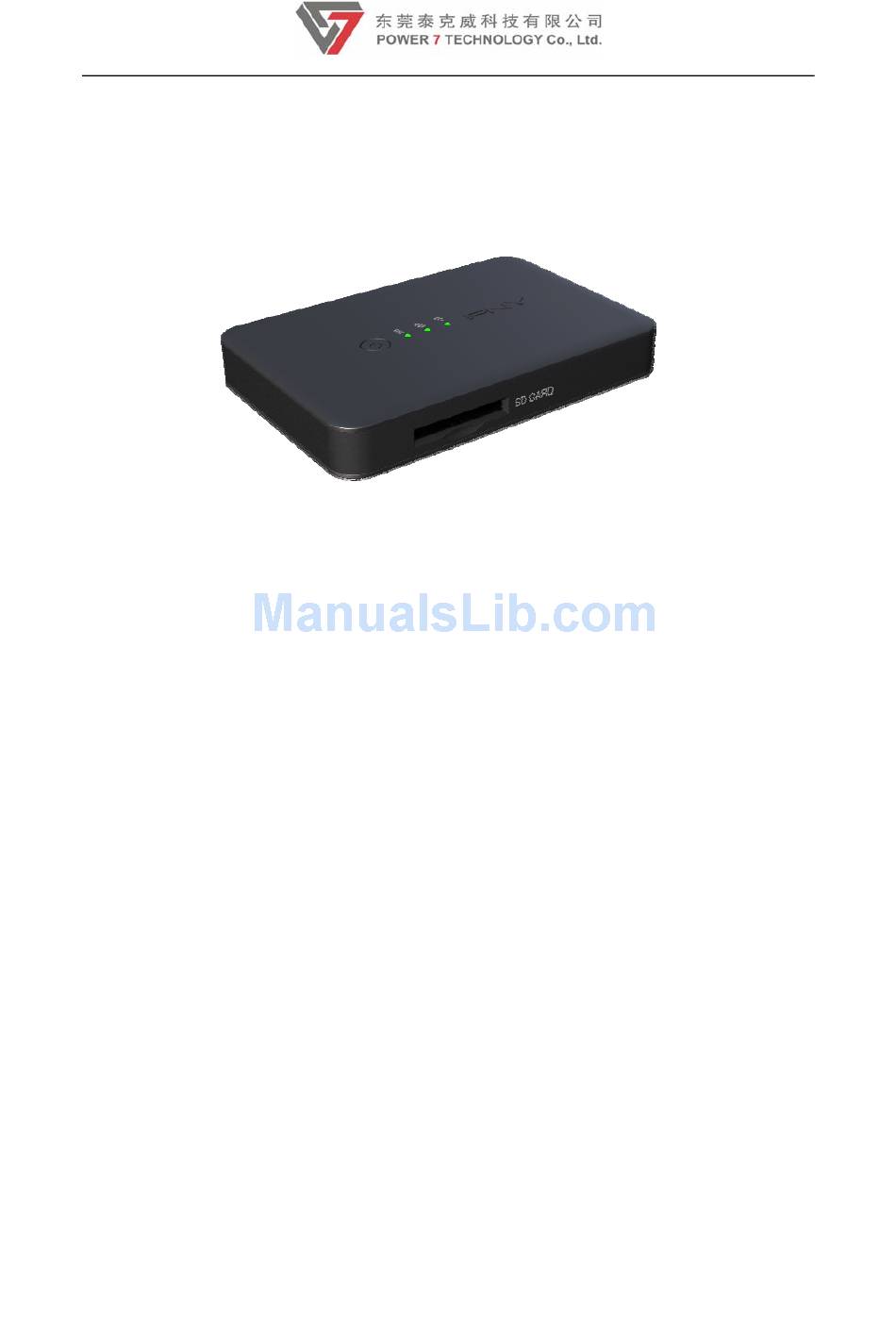

Power 7 WiFi Card Reader(PNY)
Datasheet
All product picture are for reference only
Table of Content
Introduction ......................................................................................................................... 2
Target Users/Markets .......................................................................................................... 2
Features .............................................................................................................................. 3
Applications ......................................................................................................................... 3
Hardware Specifications ..................................................................................................... 5
Interface Illustration ............................................................................................................. 6
Software Specifications ....................................................................................................... 7
File & System Manager App ............................................................................................... 9
System Requirements ......................................................................................................... 9
Client Tools ......................................................................................................................... 9
Version 0.1
Last Updated: August 20, 2013
Author: Power 7 PM Department
pm@power7tech.com.cn
1
Advertisement
Table of Contents
Summary of Contents for Power 7 P-R2000-1AMKK01-RB
-
Page 1: Table Of Contents
Power 7 WiFi Card Reader(PNY) Datasheet All product picture are for reference only Table of Content Introduction ......................... 2 Target Users/Markets ......................2 Features ..........................3 Applications ......................... 3 Hardware Specifications ..................... 5 Interface Illustration ......................6 Software Specifications ....................... 7 File &... -
Page 2: Introduction
Introduction Power 7 WiFi Card Reader (Project Name: PNY) is a portable wireless storage device with one SD slot and one USB 2.0 host. PNY allows you to convert any SD memory card and USB external storage devices into a WiFi accessible media. Simply insert your SD memory card into the SD slot or connect your USB external storage into the built-in USB port. -
Page 3: Features
Home Mobile NAS With PNY at home, you do not need to always turn on your notebook or PC in order to share data with your family. Moreover, PNY can be your portable entertainment centre while your family go out for vacation. - Page 4 Wirelessly Bridge to Internet Access Connect to the USB Port Scenario 1 - Press power switch button off and then connect to the USB port of notebook, PNY works solely as an SD reader with power charge to extend usage time PNY works as a SD reader only Scenario 2 - Press power switch button on and then connect to USB port of notebook, PNY works solely as a WiFi SD or USB external HDD/Flash with power charge to extend...
-
Page 5: Hardware Specifications
Hardware Specifications Project name Model name P-R2000-1AMKK01-RB，P-R2000-1AMKK01-FR Model Ralink RT5350 Frequency MIPS24KEc 360MHZ Model EN25Q64-104WIP Flash Capacity 8MByte SPI flash Model M12L2561616A-6TG (SDRAM) SDRAM Capacity 32MB (256Mbit) standard 802.11 b/g/n Frequency 2.4GHz WiFi 72Mbps for 20MHz Speed 150Mbps for 40MHz... -
Page 6: Interface Illustration
Capacity 2000mAh Li-ion Polymer battery Battery Charging current Max 1000mA Max power dissipation (tested with SD read/write without USB storage activity) Power dissipation * It will vary slightly with different type of SD Standby power (tested with TOSHIBA 1TB 1.5W HDD,HDD slept during the test) -
Page 7: Software Specifications
Software Specifications System setting Language selection To select your native languages Firmware upgrade To upgrade firmware by web browser Configuration setting To backup and retrieve system configuration setting Factory default To restore default system setting setting restore originated in factory production File system FAT16/FAT32 A) Support Microsoft Windows... - Page 8 A) Available wireless networks display side setting A) PNY IP setting B) Subnet mask setting C) DHCP server setting D) Default gateway setting E) Default DNS setting Application software Client A) Windows XP/2003/Vista/7, Linux, Unix, Mac® B) Android: tablet, smartphone C) iOS: iPad , iPhone ®...
-
Page 9: File & System Manager App
File & System Manager App Support the keyword search function from the current folder Support the file list/thumbnail view, support thumbnail images show and MP3 artwork shows; Support gravity sensor switch direction Support checkmark/delete function and support local/WiFi Storage data transmission in between ... - Page 10 FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
