Summary of Contents for Fuzik PKE-100 (V3)
-

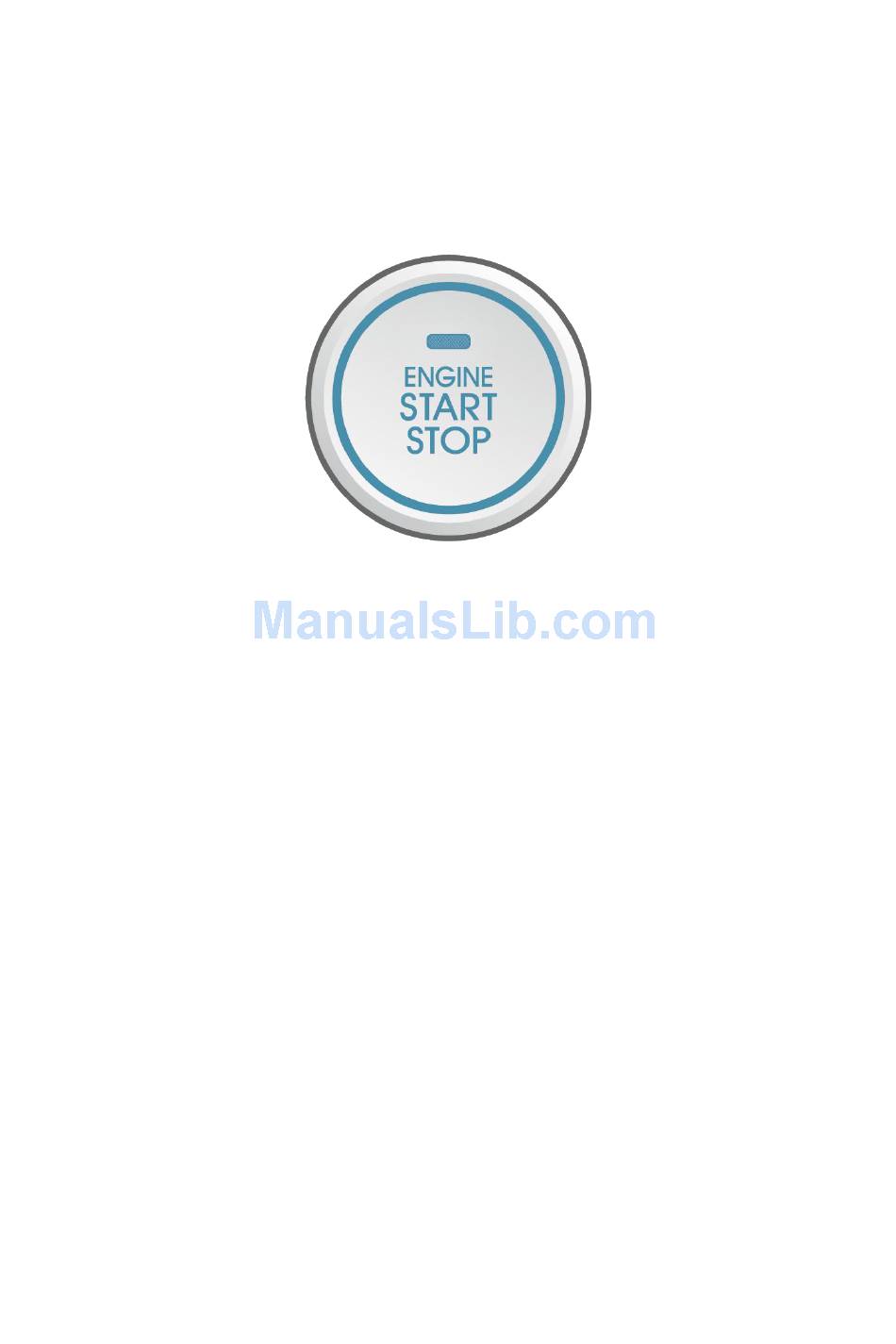

Page 1: User Manual
Smart Key Keyless Entry & Push Start & Remote Start User Manual Product Model: PKE-100 (V3) -
Page 2: Table Of Contents
Contents 1. Introduction ......................3 2. Parameter & Feature .....................4 3. Packing List ......................5 4. Function & Application ..................6 4.1. Passive Lock/Unlock .................6 4.2. Remote Lock/Unlock .................6 4.3. Push Button Start & Stop Engine ..............6 4.4. Remote Start & Stop Engine ..............7 4.5. -
Page 3: Introduction
1. Introduction PKE-100 Push Start & Remote Start System is adopted with world advanced RFID system. With the leading miniaturization and super low-power design, this series of push start system successfully integrates Remote System, Keyless Entry System, Push Start System and Remote Start System. With assistance of the whole system, you just need to put the smart key inside your pocket, including entering, starting, stopping and leaving, all the procedures make you experience hand free life, realize “My vehicle Knows Me”... -
Page 4: Parameter & Feature
2. Parameter & Feature Main Unit Part(s) Electric Parameter Working voltage DC9V-16V Main unit static current < 10mA UHF frequency 442MHz - 446MHz LF frequency 125KHz Working temperature -40℃ - 105℃ Working humidity < 95% Smart Key Electric Parameter Working voltage DC2.1V-3.6V Remoter static current <... -
Page 5: Packing List
3. Packing List Kindly please check the components complete or not before installation: Component Main unit 1 unit Smart key 2 pieces LF Antenna 2 pieces Main cable 1 piece Start cable 1 piece Start button 1 piece HF Antenna 1 piece Morse decoder 1 piece... -
Page 6: Function & Application
4. Function & Application *All below functions may have changes according to different vehicles. 4.1. Passive Lock/Unlock 1. Walk close to the vehicle 1.5-2M, the door is unlocked and the vehicle is disarmed. (Action: Steering lamps flash twice) 2. Walk away from the vehicle 2-3 M for 3-4 seconds, the door is locked and the vehicle is armed. -
Page 7: Remote Start & Stop Engine
4.4. Remote Start & Stop Engine PKE-100 (V3) Remote Start Long press for 3 seconds, then press function button Remote Stop Press Flame out after Abnormal entry and step on brake; Remote Start Mechanical key or factory key unlock; After 15 minutes without any action. *Note: After engine remote started, if there’s door opening (by smart key) and stepping on brake action, Remote Stop is not available any more. -
Page 8: Switch Smart Key
4.11. Switch Smart Key The system only communicates with current activated smart key. If you want to use another, directly press its to switch. 4.12. Key Adaption The system can only contain two key’s code at max. If you want to adapt a new key, then at least one of the old keys must be kicked out. -
Page 9: Diagram
5. Diagram 5.1 Connection... -
Page 10: Description Of Pin
5.2 Description of Pin (port) Main Cable PIN 15 Window-up 3 PIN 4 12V-2 PIN 3 Reserved PIN 1 Door trigger (non-delay) PIN 16 Steering lamp 2 PIN 5 PIN 4 Door Lamp - PIN 2 Com+ Push Button Cable PIN 6 PIN 5 Reserved... - Page 11 CAPTIVA, old Civic, old CR-V, etc. The pack of PKE-100 supplies OBD port connection or single wire connection according to specific car. Can high wire, normally works together with Can low wire (twisted wire). Can high The pack of PKE-100 supplies OBD port connection or single wire connection according to specific car.
- Page 12 To car original 12V-2 (B2), red. 12V-2 To car original ACC, yellow. To car metal ground. This wire is extended out of Start Cable, black. Negative output, to original horn or external horn. This wire is extended out of Start Cable, yellow. Horn Horn To car original Start (ST), white.
-
Page 13: Dip Settings
5.3 DIP Settings... -
Page 14: Warm Suggestion
6. Warm Suggestion 1. Please do not use smart key and original remote key mixed. 2. Please do not put smart key inside vehicle for long time if you are not driving. 3. Please press to unlock the door if passive unlock action fails. 4. - Page 16 Manufacturer: Chongqing Fuzik Science & Technology Development Co., Ltd. Address: Fuzik Building, Jieshi, Banan, Chongqing, China - 401346 TEL: +86-23-63062367 FAX: +86-23-63062280...
Need help?
Do you have a question about the PKE-100 (V3) and is the answer not in the manual?
Questions and answers

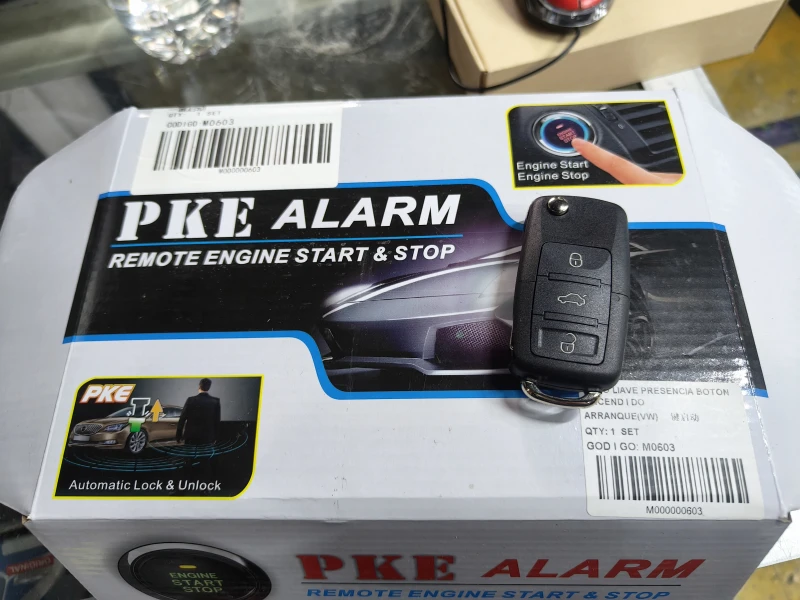

Buenas tardes como enciendo los controles de precencia se quedó estática la alarma sin ninguna función
