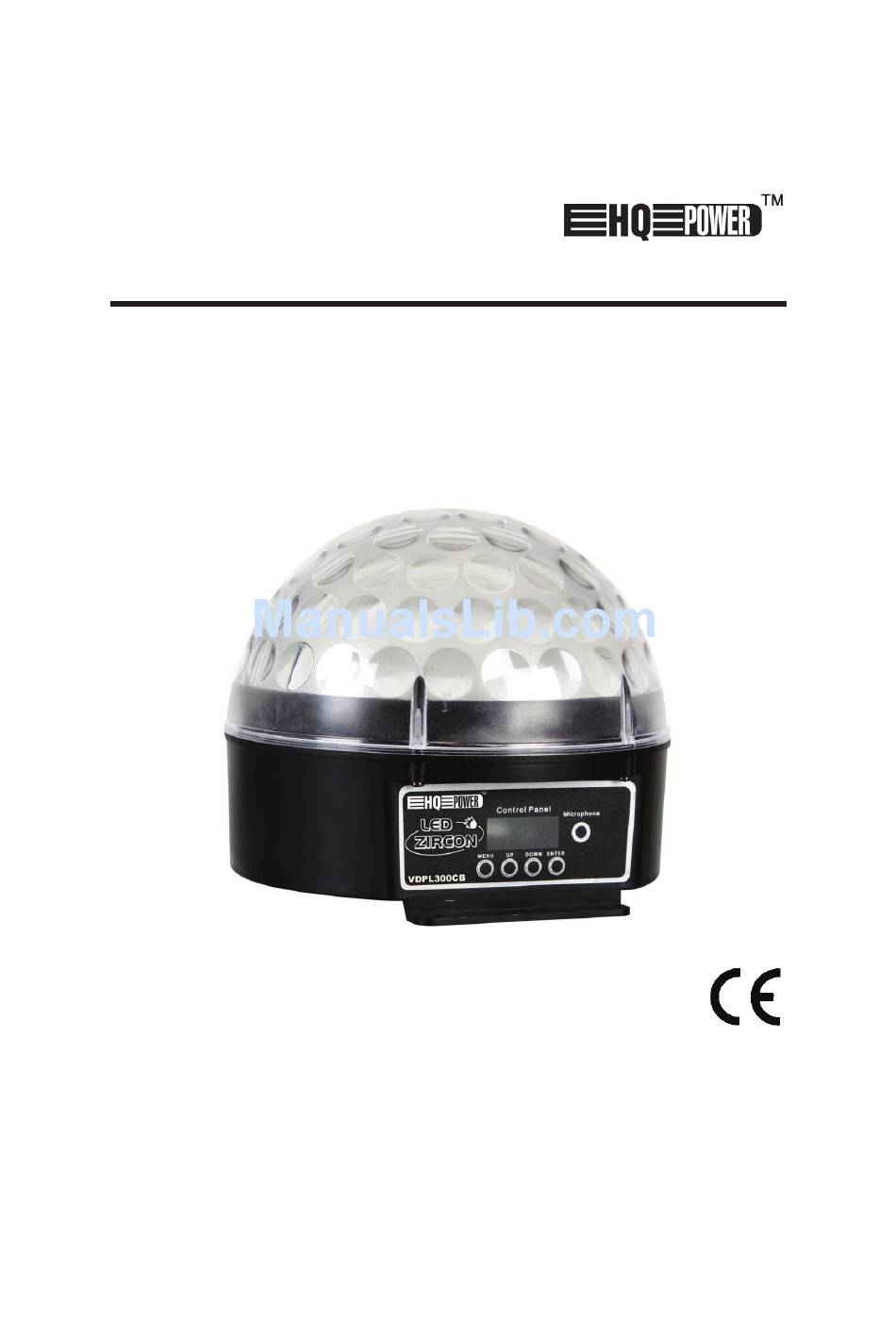

- Page 1 VDPL300CB LED ZIRCON – 6 X 3W LED EFFECT – DMX CONTROLLED LED ZIRCON – LED-EFFECT – 6 X 3W – DMX-GESTUURD LED ZIRCON – EFFET LED DE 6 X 3W – PILOTAGE DMX LED ZIRCON – 6 X 3W EFECTO LED – CONTROLADO POR DMX LED ZIRCON –...
- Page 2 VDPL300CB terminator – eindweerstand – résistance de terminaison – terminación – Terminierung - terminator How to turn the controller line from 3-pins into 5-pins (plug and socket). Controller line van 3-pin naar 5-pin aanpassen (stekker en contact). Modifier la ligne du contrôleur de 3 broches en 5 broches (fiche et contact).
-
Page 3: User Manual
Use an appropriate safety cable to fix the device (e.g. VDLSC7N or VDLSC8N). Install the VDPL300CB at a minimal distance of 0.5 m from flammable and explosive objects or substances. Only for operation with the transformer complying with EN 61347-2-13 and Annex I of the standard. - Page 4 Protect the device against damage by leaving it switched off until it has reached room temperature. This device is designed for professional use on stage, in discos, theatres, etc. The VDPL300CB should only be used indoors. Use only the included power adapter.
- Page 5 When applicable, connect an XLR cable to the female 3-pin XLR output of a controller (not incl.) and the other side to the male 3-pin XLR input [4] of the VDPL300CB. Multiple VDPL300CBs can be linked through serial linking. The linking cable should be a dual core, screened cable with XLR input and output connectors.
- Page 6 Changing the settings of one channel will only affect the device in question. In case of the 6-channel VDPL300CB, you will have to set the start address of the first unit to 1 (CH1~6), the second to 7 (1 + 6) (CH7~12), the third to 13 (7 + 6) (CH13~18), and so on.
- Page 7 VDPL300CB Cleaning and maintenance All screws should be tightened and free of corrosion. The housing, the lenses, the mounting supports and the installation location (e.g. ceiling, suspension, trussing) should not be deformed, modified or tampered with; e.g. do not drill extra holes in mounting supports, do not change the location of the connections…...
