Summary of Contents for Aleta S1

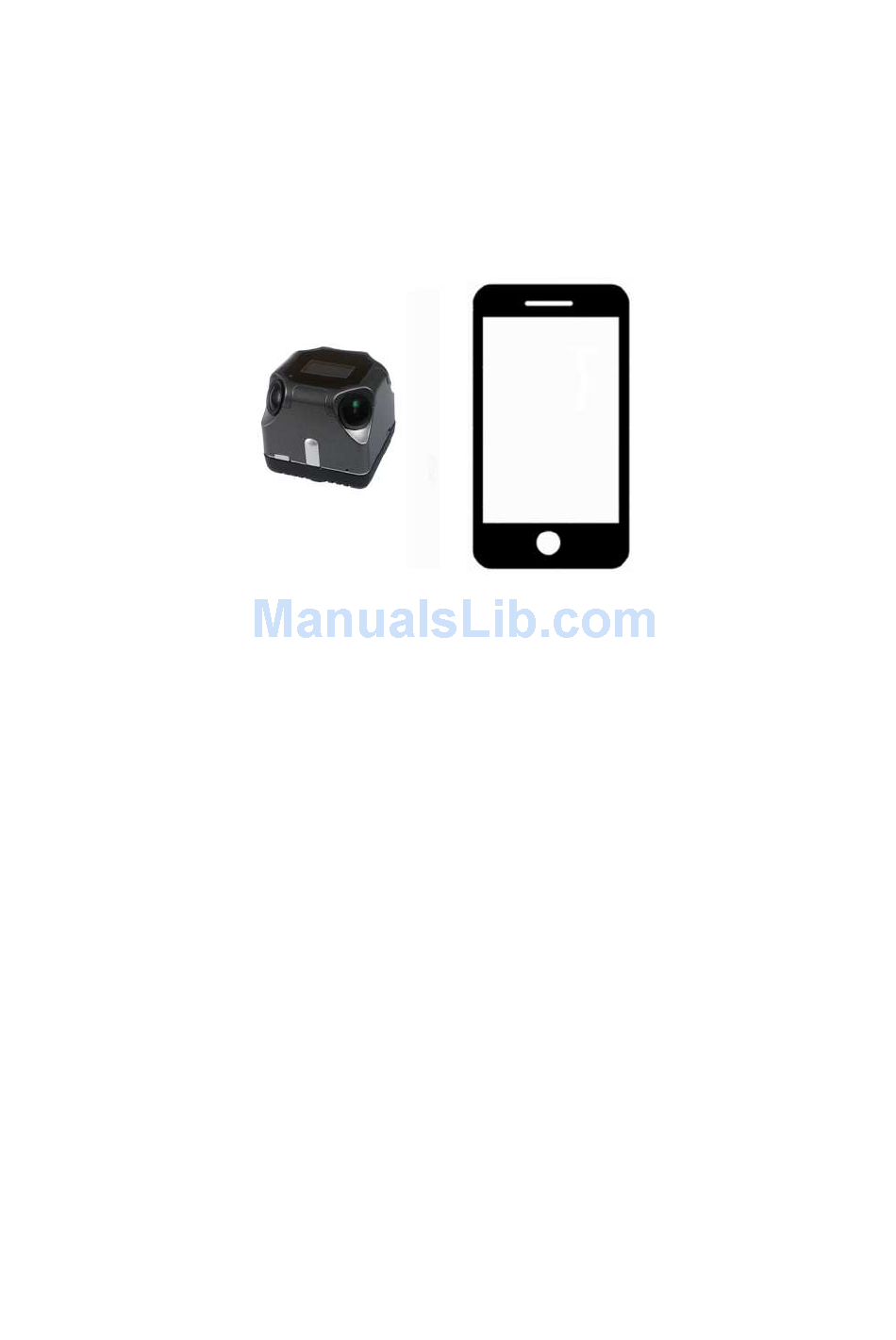

- Page 1 Aleta S1 User Guide Version 2.2...
-
Page 2: Table Of Contents
Introduction This manual is for the users who attempt to use Aleta S1 360 degree camera and the Aleta Viewer on mobile device. Table of Contents Chapter 1 Connectors and Buttons ............. 4 1.1 Power Button ....................4 1.2 Shot Button ......................4 1.3 OLED screen....................5... - Page 3 5.1 EV ........................12 5.2 Focus ......................13 5.3 ISO .........................13 5.4 Shutter Speed ....................13 5.5 Sharpness .......................13 5.6 White Balance ....................14 5.7 Setting ......................14 Chapter 6 Firmware Upgrade ..............16 Appendix 1:....................16...
-
Page 4: Chapter 1 Connectors And Buttons
Chapter 1 Connectors and Buttons OLED screen [Power Button] [Shot Button] [USB port] [SD Slot] [HDMI] [Power USB] 1.1 Power Button Press power button to power on the camera. Press power button to enter sleep mode when camera is on. Press power button again to exit sleep mode. -
Page 5: Oled Screen
Power USB: Connect to USB power to charge the battery. Chapter 2 Connect to Aleta S1 to Mobile Device 2.1 Install Aleta Viewer Install Aleta Viewer from APP Store or Google Play on your mobile device. The icon will show on your app list. 2.2 Power on Camera... -
Page 6: Connect To Wi-Fi
※If you missed the Wi-Fi SSID and password information, click power button to enter sleep mode, and click it again to wake up the camera. The Wi-Fi information will show up again. 2.4 Run Aleta Viewer Click the icon to run the Viewer. If the Wi-Fi is connected correctly it will... -
Page 7: Chapter 3 Live View Function
Chapter 3 Live View Function 3.1 Live View View angle mode Status Storage Position Shortcut Live display view Switch Shot Stitching Settings Display mode The live image should be displayed in Front mode while you first access to Viewer. There are 3 modes to control the view angle: Normal mode: Slide on the screen to change the view angel. -
Page 8: Position
is 1GB, and the maximum time is 30 minutes. Once one of the thresholds is reached, camera will save current file and start a new file automatically. 3.4 Position There are 3 position modes: Auto Flat Ceiling Select the mode according to the way you install your camera, or use Auto mode for auto position detection. -
Page 9: Shortcut
SD card status. “OK” means SD card is in slot and ready for image saving. “No” means there is no SD card in slot. “100%” means the SD card is full, and “ERR” means the card is broken or still in detection. Click this icon can view full SD card status. - Page 10 SD card will trigger download first. Files recorded in 360 or Global mode can be displayed in different formats. Click the button on lower-right to select the format. Normal 360: Display full 360 image. Front view: Display 90 degrees of image and the view angle can be changed. Tiny planet: Display 360 image in a circle.
-
Page 11: Stitching
3.9 Stitching Stitching is focus function to adjust the distance between lenses. Click the bottom-left button can change the stitching method: Manual: Manually change distance. (See 5.2 Focus for more information) One Time: Auto stitching one time and then keep the setting. Loop: Auto stitching continuously. -
Page 12: Front
HD (720p): 30fps Chapter 5 Setup Click the bottom-left button for Aleta S1 setup. 5.1 EV Change image target brightness by selecting the EV value. Note that the target is adjusted by ISO and shutter speed. If both ISO and shutter speed are set to fixed... -
Page 13: Focus
5.2 Focus The focus function changes the stitching gap between lenses. The button will work differently according to Live Stitching setting. One Time or Loop : This button will trigger auto stitching Manual: Manually change stitching gap by distance.. Just slide the bar to find the best stitching gap for the target. -
Page 14: White Balance
5.6 White Balance Change the white balance of the environment: Auto detection Lamp Fluorescent Daylight Cloudy 5.7 Setting Camera Photo Mode: It includes continuous shooting mode and selfie countdown. Set burst to capture 3 / 5 / 10 shots by one click and 2 / 10 seconds countdown time for self shooting. - Page 15 System Format SD: Format the SD card in camera (all files will be erased). Sleep: Set the idle time that triggers sleep mode. Click the power button can wake up the camera. Note if the camera is in sleep mode for over 10 minutes, it will shut down automatically.
-
Page 16: Chapter 6 Firmware Upgrade
If the zip file is not recognized successfully, the camera will stop upgrading and show “aborted” on the OLED screen. Please press power button to shut down the camera and check the file again. Appendix 1: Aleta S1 Network streaming display guide 1. IP setting... - Page 17 1-1. DHCP: No need setting. 1-2. Static IP: Connect to Aleta S1 by Aleta Viewer and go to Ethernet Settings. 1-3. Connect Aleta S1 to the Hub through a USB to RJ45 adaptor. 1-4. After connection, the OLED screen will show the IP.
- Page 18 Viewer. 3-2. Click the Wi-Fi icon on upper-right and select RTSP connection. (For iOS version, run the APP without connecting to a Aleta S1 Wi-Fi, the RTSP connection will show up.) 2-8. Input the IP and port to connect to the camera in the network.
