Summary of Contents for Elko Penbex

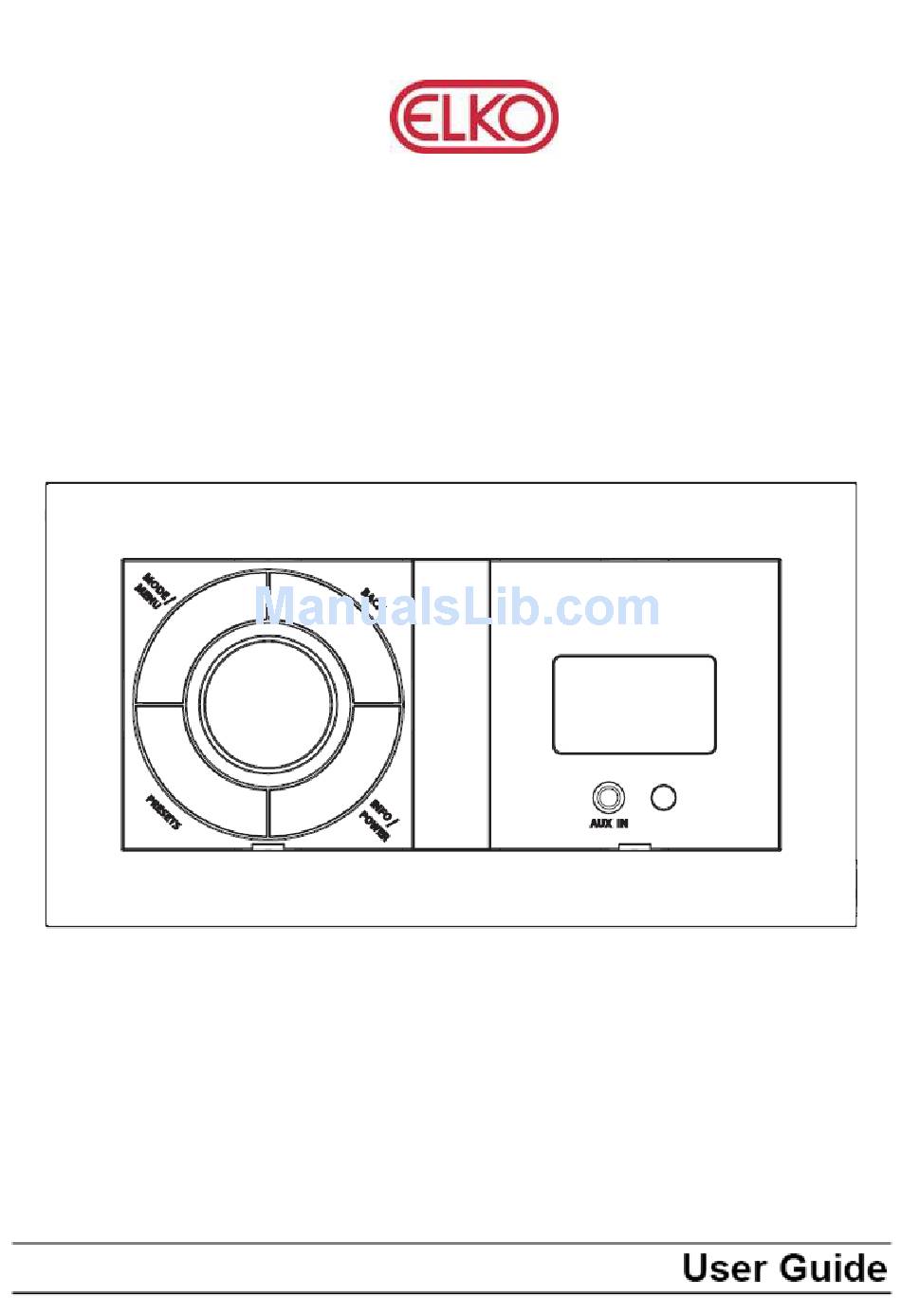

- Page 1 I n t e r n e t , D A B / D A B + a n d R a d i o...
-
Page 2: Safety Information
Safety Information 9. Do not defeat the safety purpose of the polarized or grounding - type plug. a polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. -
Page 3: Table Of Contents
Contents Safety Information ................................2 Contents ....................................3 Package Contents ................................5 Unit Overview .................................. 5 Remote Contorl overview ..............................6 Internet Radio Quick Start Guide ............................7 What you need before you can use your Internet Radio ....................7 Chapter 1 Internet Radio Mode ............................ - Page 4 6.5 Equaliser ................................23 6.6 Language ................................23 6.7 Factory Reset ................................ 23 6.8 Enter Setup Wizard ............................... 23 6.9 SW Version and Radio ID (or System Info) ......................23 6.10 Network Setup ..............................24 6.11 Software Update ..............................24 6.12 Backlight ................................
-
Page 5: Package Contents
Package Contents Carefully unpack and remove the package. You will find: User guide Main unit User manual Unit Overview Keys All mode Long press to turn on/off Radio. INFO/POWER When alarm is sounding, long press to turn off alarm. Internet, Media Player, DAB/DAB+ and FM mode: Press to browse station info. Press to change mode. -
Page 6: Remote Contorl Overview
Remote Contorl overview Control All mode Press to turn on/off radio. Press or to scroll right and left. Press or to scroll up and down. SELECT Press SELECT to confirm. Press to change mode. MODE MUTE Press to put radio into mute mode, press again to exit this order. -
Page 7: Internet Radio Quick Start Guide
Internet Radio Quick Start Guide What you need before you can use your Internet Radio Thanks for your buying! Before use it, you need to know followings: Wireless LAN Setting: A broadband Internet connection. A wireless access point (Wi-Fi) connected to your broadband Internet, preferably via a router. If your wireless network is configured to use Wired Equivalent Privacy (WEP) or Wi-Fi Protected Access (WPA) data encryption then you need to know the WEP or WPA code so you can get the Internet Radio to communicate with the network. -
Page 8: Chapter 1 Internet Radio Mode
Chapter 1 Internet Radio Mode 1.1 Turning on Long press INFO/POWER to switch on radio, for initial use, ‘Setup wizard’ is requested. 1.2 Setup Wizard 1. Continue the above step, press SELECT to confirm ‘YES’turn SELECT to your preferred ‘hour format’, press SELECT to confirm. -
Page 9: Access To Wireless Network
press SELECT to confirm. After select the final character of your password, turn SELECT to the setting is OK now! 5. Press SELECT again to exit, 1.3 Access to Wireless Network 1. After set the ‘setup wizard’, it will show you as below, and then press SELECT to enter ‘Internet radio’ mode. ... -
Page 10: Choose A Station
1.5 Choose a Station Note: ensure your radio connecting to network. 1. To access to this order, long press MODE/MENU < Station list > < Stations >, press SELECT to confirm. 2. There are five options available for you to choose a station as above photo. ‘LOCATION’... -
Page 11: Add Station To 'My Favourites
1.8 Add Station to ‘My Favourites’ 1. Visit website: http://www.wifiradio-frontier.com 2. Click on the register link. 3. Create account login, Access code is required. How to get this code? Please refer to previous page. Note: want to member login? Therefore save your registered ‘Email address’ and ‘Password’. 4. -
Page 12: Add Station To 'My Added Stations
1.9 Add Station to ‘My Added Stations’ Even though the Internet Radio portal contains thousands of stations, you may want to listen to stations not listed. You can add your own stations via the portal. 1. Visit website: http://www.wifiradio-frontier.com 2. Login as a member (at previous page, you registered). 3. -
Page 13: Connecting To Wired Network
1.10 Connecting to Wired Network Step 1 – Choose LAN Setting Note: make sure LAN cable connecting to LAN socket already. 1. Long press MODE/MENU < Main Menu >, press to confirm. Turn SELECT to SELECT Turn SELECT to <... -
Page 14: Chapter 2 Music Player Mode
Chapter 2 Music Player Mode 2.1 Setting up a Music Server In order for your radio play music files from a computer, the computer must be set up to share files or media. UPnP media sharing allows devices like this radio to play music from a shared media library, navigating through tag menus such as Artist, Album or Genre. - Page 15 2.3 Play Shared Media 1. Press MODE/MENU repeatedly until < Music player > is showing up. Note: Or, enter < Main menu >, and then turn SELECT to < Music player >, press SELECT to confirm. 2. While cursor point to < Shared media >, press SELECT to confirm, and then step by step to your selecting Music. Press to shift tracks.
-
Page 16: Chapter 3 Dab Mode
Chapter 3 DAB Mode 3.1 Getting Started Press MODE/MENU repeatedly until < DAB radio > is showing up. For initial use, it will make a full scan and store stations list in memory, Note: or long press MODE/MENU to enter < Main menu >, and then turn SELECT to < DAB >, press SELECT to confirm 2. -
Page 17: Drc (Dynamic Range Control) Value
3.6 DRC (Dynamic Range Control) Value You can set the level of the compression of stations to eliminate the differences in dynamic range or sound level between radio stations. Note: a. Set DRC to off indicates no compression. b. set DRC to low indicates little compression. c. -
Page 18: 4Chapter 4 Fm Mode
4Chapter 4 FM Mode 4.1 General Operation 1. Press MODE/MENU to shift to < FM Radio > from DAB mode. For initial use, it will start at the beginning of the FM frequency range (87.50MHz). Otherwise, the last listened FM station will be selected. ... -
Page 19: Station Presets (For Internet, Dab And Fm Mode)
4.4 Station Presets (for Internet, DAB and FM Mode) Note: Your radio can store 10 Internet, 10 DAB/DAB+ and 10 FM stations preset. This order only limit to Internet, DAB and FM mode. To store the current station: 1. Press and hold PRESETS until it shows :’Save Preset’ , and then turn SELECT to your selecting option 1-10. 2. -
Page 20: Chapter 5 Aux In Mode
Chapter 5 AUX IN Mode 1. Press MODE/MENU repeatedly until < Aux in > is showing up. Note: Or, enter ‘MAIN MENU’, and then turn SELECT to < Auxiliary Input >, press SELECT to confirm. 2. Through a 3.5mm cable connection, a high quality digital audio source can be automatically output through the radio. -
Page 21: Chapter 6 General Settings
Chapter 6 General Settings 6.1 Sleep Function 1. It can be activated from < Main menu > < Sleep >, press SELECT to confirm. 2. Turn SELECT to define the sleep period: off/15/30/45/60 minutes. 3. When your selecting period is appeared, simply stop turning, and it is done! Note: At this step, sleep icon shows up, as well as shows how long it will be expired. -
Page 22: Setting Alarm
6.4 Setting Alarm Note: Setting Alarm, make sure setting time at first. 1. Long press MODE/MENU < Main menu > < Alarms >, press SELECT turn SELECT to your selecting one, press this knob to confirm. 2. -
Page 23: Equaliser
6.5 Equaliser 1. It can be activated by long pressing MODE/MENU < Main menu > < Equaliser >, press SELECT to confirm. It will shows ‘My EQ profile setup’. Press SELECT to confirm Bass, turn SELECT to adjust, and then press SELECT to confirm. Setting Treble accordingly. -
Page 24: Network Setup
6.10 Network Setup Note: Users experiencing network issue may find these options useful for diagnosing and fixing network problems. 1. The path is: Long press MODE/MENU < Main menu > < Network >. 2. Turn SELECT to your selecting network setting option: Want to access to another Router? --------- Netwotk wizard Want to set up a WPS encrypted network? ---------PBC Wlan setup Want to get MAC address, Wlan region, IP address etc? ---------- View settings. -
Page 25: Chapter 7 Specification
Chapter 7 Specification Items Description Specifications: Internet, DAB/DAB+ and FM radio DAB/DAB+: 174 – 240MHz Frequency Ranges: FM: 87.5-108MHz LCD Display: High resolution display Requirements 100-240 Vac, 50-60 Hz Power Dimension: 157 x 49 x 86mm This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. -
Page 26: Chapter 10 Troubleshooting
Radio. ELKO AS, Eyving Lyches vei 10, 1338 Sandvika, Norway. Phone 0047 67215459. www.elko.no ELKO AB, Hammarby Kaj 14, 121 27 Johanneshov. Phone 0046 84992727.
