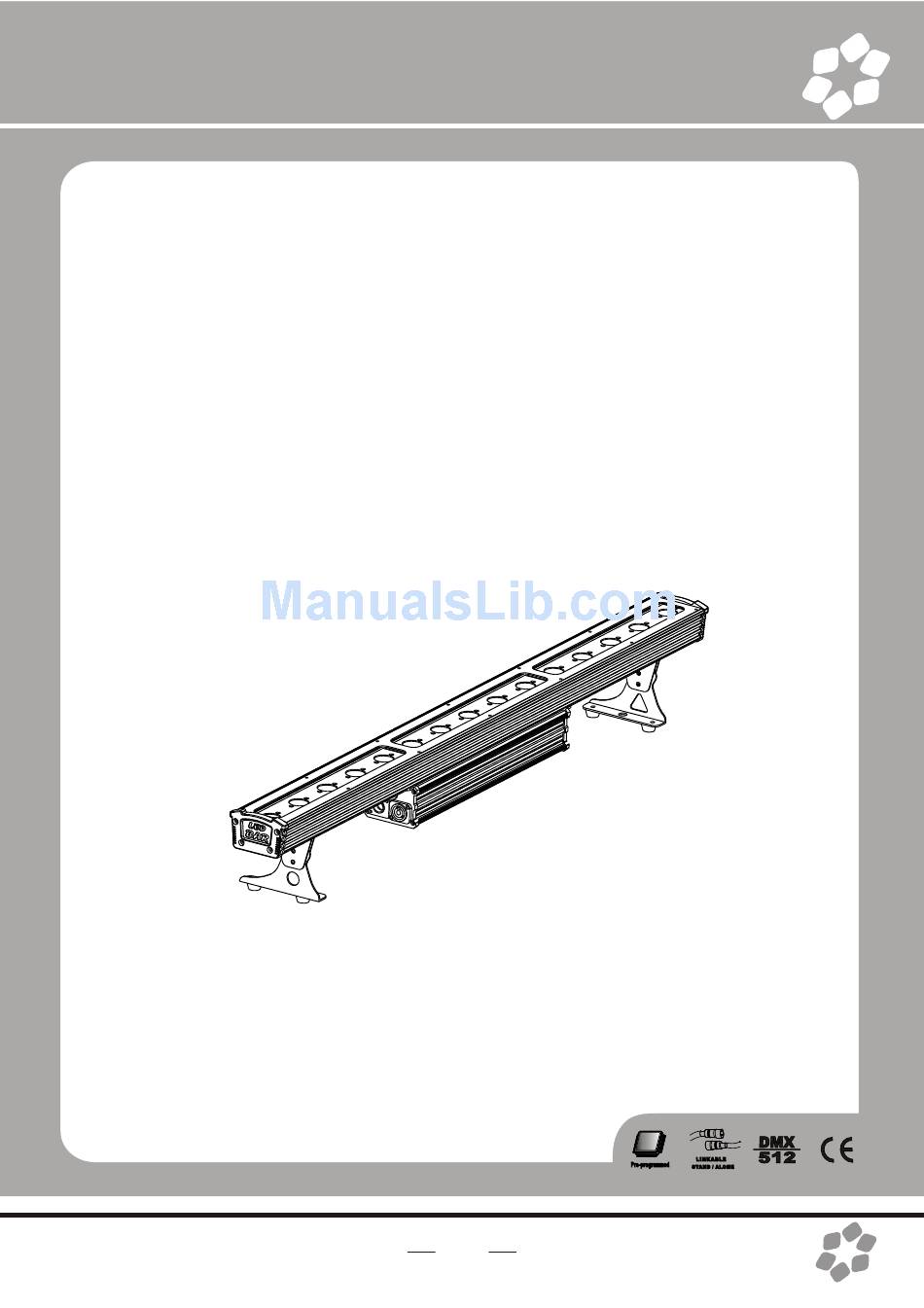

  • Page 1 LED BAR ( 4 in 1 ) USER MANUAL...

  • Page 2: Before You Begin

    1.BEFORE YOU BEGIN What is included Ø 1 x Fixture Ø 1 x Power cable with plug Ø 1 x User Manua Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton; check the contents to ensure that all parts are present, and have been received in good condition.

  • Page 3: Safety Instructions

    Safety Instructions WARNING! Please read these instructions carefully, which includes important information about the installation, usage and maintenance of this product.. The following symbols are used to identify important safety information on the product and in this manual: DANGER! DANGER! WARNING! WARNING! WARNING!

  • Page 4: Specifications

    2.INTRODUCTION Specifications l Voltage Rating: AC100V 240V 50-60Hz l Power Rating: 110W l LED Quantity: 15X4-in-1(RGBW) l LED: 380mA l Beam Angle: 20°/30° /40°(option) l Ingress Protection: IP65 /indoor(option) l Product Size: 990X120X145mm l Package Size:1070X160X170 mm l N/W:5.7Kg Features l RGBW color mixing with or without DMX controller l special effect (minimum 16psc one group) l 5 distinct dimming curves...

  • Page 5: Product Overview

    Product Overview DMX IN POWER IN INDOOR LED SIGNAL POWER OUT DMX OUT POOWER OUT POWER IN OUTDOOR LED SIGNAL DMX OUT DMX OUT Dimensions...

  • Page 6: Installation Requirement

    3.SETUP Installation Requirement l This product can be used in a variety of situations, can hang and put on the ground. l If hanging the fixture for over head use, then please follow the below steps. l Please choose the suitable location to put or hang the light when installing it. You must use the exclusive clamp hanger and screw when hanging it, and make sure the weight of the light is within limits of the hanger.
  • Page 7 Connection of DMX Signal Wire Please use the fixture controller wire specially when use the DMX512 Controller. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin connector of the first fixture. Connect the end of the cable coming from the first fixture which will have a (male) 3 pin connector to the input connector of the next fixture consisting of a (female) 3 pin connector.

  • Page 8: Control Panel Functions

    4.OPERATING INSTRUCTIONS Control Panel Functions BUTTON FUNCTION MODE Exits from the current menu or function Enables the currently displayed menu or sets the currently selected ENTER value in to the selected function Navigates upwards through the menu list and increases the numeric value when in a function Navigates downwards through the menu list and decreases the numeric DOWN...
  • Page 9 MAIN SUB- FUNCTION SELECTION INSTRUCTION FUNCTION Slaves 11CH 04CH 06CH Select 11/04/06/15/17/21/60 channel 15CH setting 17CH 21CH 60CH "Off" means select linear dimming, or choose dimmer 1-4 to control the dimming speed, dimming 1 of the fastest dimming DIM1/2/3/4 curves, 4 for the most slowly dimming curve 1.00 Version number ON~OFF...

  • Page 10: Dmx512 Controller Mode

    DMX512 Controller Mode 1 Setting DMX512 Address Ü 001--512 Access control panel function by pressing MODE until is displayed. Press ENTER, add or reduce channels by pressing UP/DOWN between 001 and 512. Press MODE to exit. 3 Setting Channels Ü 11CH/04CH /06CH /15 CH /17 CH /21 CH /60 CH Access control panel function by prekssing MODE until is displayed.
  • Page 11 15 channels Channel Value Description 000 ~015 No Function 1 LED 1 016 ~031 2 LED 2 032 ~047 3 LED 3 048 ~063 4 LED 4 064 ~079 5 LED 5 080 ~095 6 LED 6 096 ~111 7 LED 7 112 ~127 R+G+B 8 LED 8...
  • Page 12 17 channels Channel Value Description 000 ~015 No Function 1 LED 1 016 ~031 2 LED 2 032 ~047 3 LED 3 048 ~063 4 LED 4 064 ~079 5 LED 5 080 ~095 6 LED 6 096 ~111 7 LED 7 112 ~127 R+G+B 8 LED 8...
  • Page 13 11 channels Channel Value Description 1 Dimming 000~255 0-100% 2 RED 000~255 0-100% 3 Green 000~255 0-100% 4 Blue 000~255 0-100% 5 white 000~255 0-100% 6 Macro color 000~009 No Function control 010~255 Macro color control 7 Strobe 000~255 Strobe(00~20Hz) 000 004 #1=ON, #2=ON, #3=ON, 005 034...
  • Page 14 COLOR MACROS Channel 6 selects the required Color Macro. Channel 6 has priority over Channels 2, 3, 4 & 5. Channel 1 is used to control the intensity of the current Color Macro. STROBE Channel 7 controls the strobe of Channels 1 through 6. Channel 7 has priority over Channels 2, 3, 4,5 &...
  • Page 15 21 channels Channel Value Description 000 015 No Function 1 LED 1 2 LED 2 032 047 3 LED 3 048 063 4 LED 4 064 079 5 LED 5 080 095 6 LED 6 096 111 7 LED 7 112 127 R+G+B 8 LED 8...

  • Page 16: Master/Slave Control Mode

    60 channels Channel Value Description 1 LED1 000~255 RED(0~100%) 2 LED1 000~255 GREEN(0~100%) 3 LED1 000~255 BLUE(0~100%) 4 LED1 000~255 WHITE(0~100%) 5 LED2 000~255 RED(0~100%) … 57 LED15 000~255 RED(0~100%) 58 LED15 000~255 GREEN(0~100%) 59 LED15 000~255 BLUE(0~100%) 60 LED15 000~255 WHITE(0~100%) Master/Slave Control Mode...
  • Page 17 GROUP WORKING 10 11 12 13 14 15 16 1 Amount set of combined lights. Access control panel function by pressing MODE until COMP is displayed Press ENTER, select C.SUM by pressing UP/DOWN buttons. Press ENTER, Amount set of combined lights. by pressing UP/DOWN between 01 and 16 Press MODE to exit.
  • Page 18 GROUP WORKING (DMX512 MODE) 11CH-2 Channel Value Description 000 015 No Function 016 031 032 047 048 063 064 079 080 095 096 111 1 Module 1 112 127 R+G+B 2 Module 2 128 143 3 Module 3 144 159 160 175 192 207 R+G+W...
  • Page 19 AUTO PROGRAMS Chanel 5 selects the preset combine auto program (AP 1~50) Chanel 6 selects the preset combine cartoon effects(CP 1~25) Chanel 9 selects the preset Auto program (AT 1~50) When activating the Auto programs, then it is possible to control the auto speed by using Channels 10 Channel 9 has priority over channels 2-8.
  • Page 20 Symptom(s) Possible Solution(s) Breaker/Fuse keeps Check total load placed on the electrical circuit blowing Check for a short in the electrical wiring: internal and/or external Check for power on Mains -Note: In the event of autoswitching transformer failure, the unit Device has no power can be sent in for repair;...
