Stanfred SMPBC-BM3V Installation Instructions

Top Location
Top securing
straps
Installation instructions -
1. Remove Bike carrier from box.
2. Loosen adjustment knob allowing the locking teeth to spring
apart and the bike carrier to move freely
3. Locate bike carrier into a 90 degree position to begin
adjustment to suit your vehicle.
4. Place Bottom Location of bike carrier in an angled section of
vehicle such as where boot lid meets rear bumper to prevent
the bottom from sliding. Refer to picture 2 (more pictures
located on retail box and website www.stanfred.com.au)
5. Adjust the angle of the bike carrier allowing the top location to
position on your vehicle. Do not place on top of boot where it
can move or slide allowing bikes to touch vehicle.
6. Bike location bar should remain as close to horizontal as
possible. Ensure bikes will not touch vehicle once loaded.
7. Once position is suitable for your vehicle tighten the
Adjustment knobs to lock bike carrier in position.
8. Locate the six Securing straps to hold the bike carrier firmly in
place.
 Two straps located above the bike carrier
 Two straps located to the side of the bike carrier
 Two straps located below the bike carrier
Once all six straps are located tighten to ensure bike
carrier cannot move or come free from location
Adjustment Knob
Adjustment Knob
No Tools Required
Side securing
straps
Bike location bar
Bottom location
SMPBC-BM3V
(Boot Mount Bike Carrier)

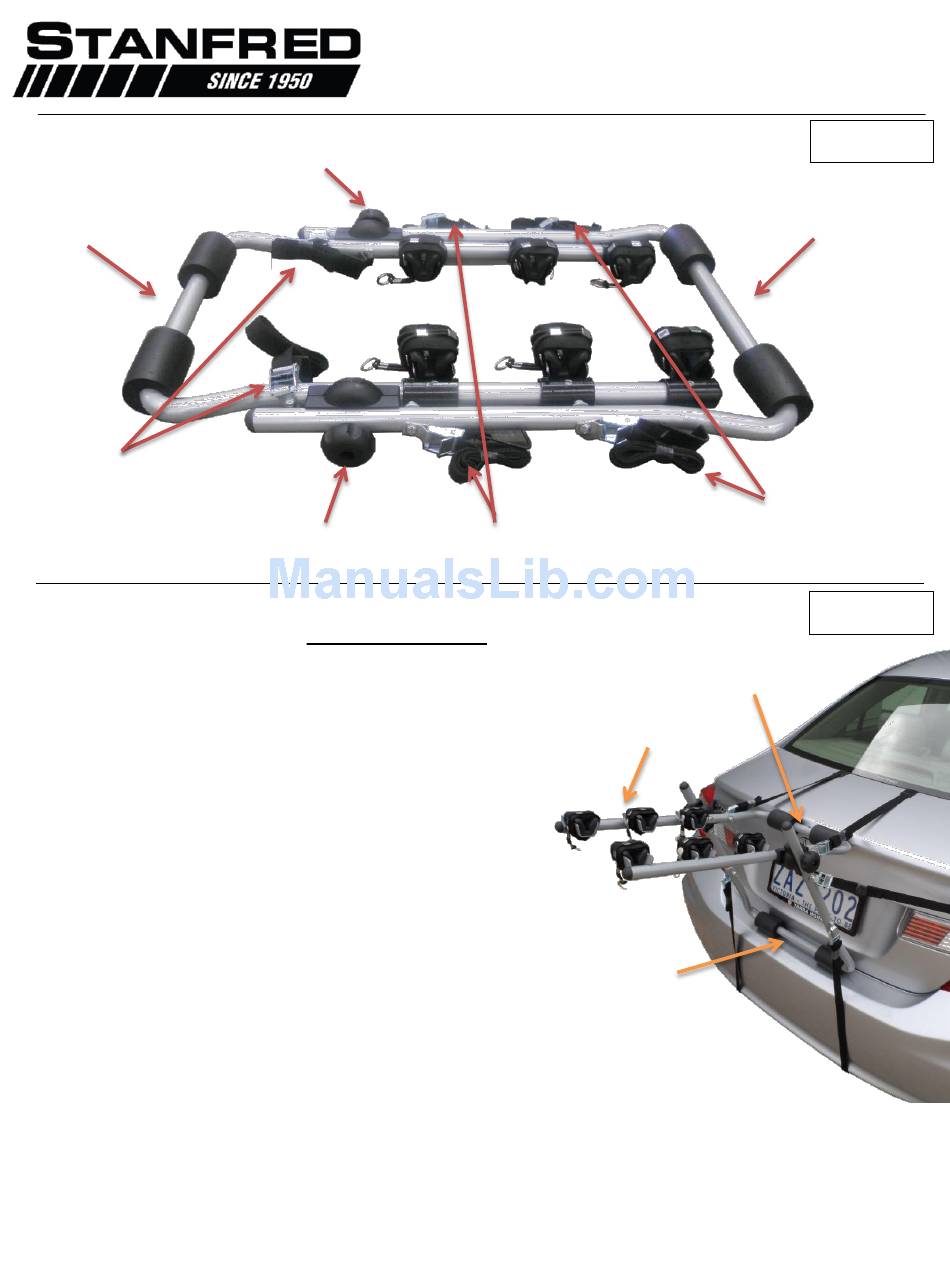

Picture 1
Bottom Location
Bottom securing
straps
Picture 2
Top location
