iFi iPhono User 4 Step Guide

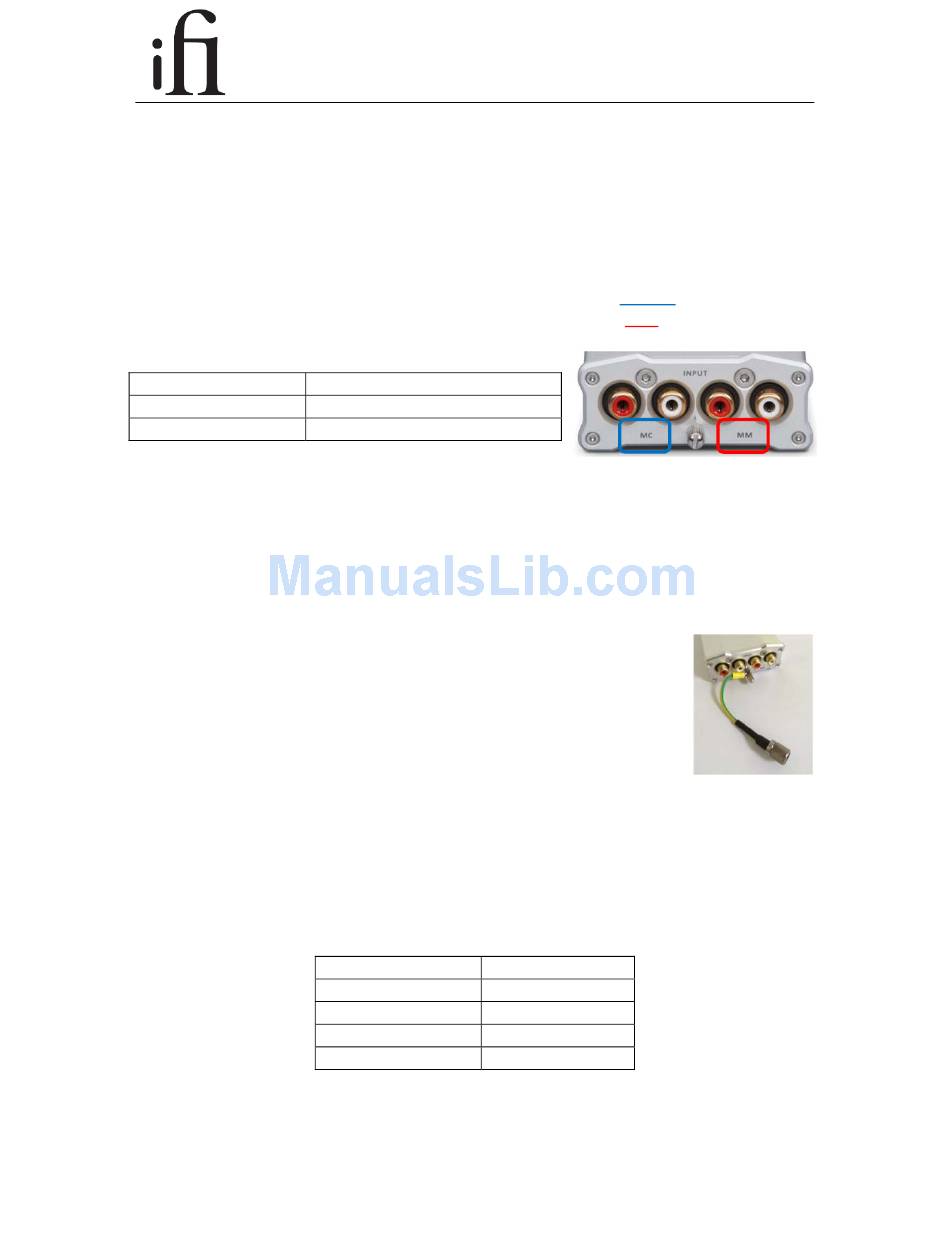

Step 1: Connect MM/MC Input.
Refer to the cartridge manual for the specified output voltage.
Eg:
The output voltage of the MC  cartridge Denon DL‐103R is 0.25mV;
The output voltage of a the MM  cartridge  Shure M97xE is 4mV.


Cartridge output
iPhono input connection
1mV
MC
>1mV
MM

e.g. Shure M97xE (4mV) should be connected to the MM input of the iPhono;
Denon DL‐103R (0.25mV) should be connected to the MC input of the iPhono.

Note: MM and MC inputs should NOT be connected simultaneously.

Tip:  For  rare  High  Output  MC  cartridges  like  the  Ortofon  MC‐3  Turbo
should  be  connected  to  the MM  input  of  the  iPhono.    The  actual  output  voltage  determinate  which

input should be used.

Tip: Remember to connect the ground wire from the turntable/arm to the iPhono.
Use the small extension lead included for ease of connection. So full vinyl system is
now fully grounded together.


Step 2: Set Gain.

All phono pre‐amplifiers have gain adjustment.  Different cartridges require different levels
of gain.

MM  cartridges  require  lower  gain  and  MC  cartridge  require  higher  gain.    Normally  gain  is
expressed in decibel (dB), 40dB means 100 times gain.


From  the  above  table,  Shure  M97xEshould  use  40dB  gain,  and  Denon  DL‐103R  should  use
66dB gain.

Cartridges Output
Gain Required
>3mV
40dB
1mV‐3mV
46dB
0.3‐1mV
60dB
<0.3mV
66dB
1

its  output  is  3.3mV
so  it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iPhono and is the answer not in the manual?

Questions and answers

Summary of Contents for ifi iPhono

  • Page 1 , , Tip:  For  rare  High  Output  MC  cartridges  like  the  Ortofon  MC‐3  Turbo its  output  is  3.3mV so  it  should  be  connected  to  the MM  input  of  the  iPhono.    The  actual  output  voltage  determinate  which    input should be used.   Tip: Remember to connect the ground wire from the turntable/arm to the iPhono.  ...
  • Page 2 As long as the right connection (MM/MC) is made as per “Step 1: Connect MM/MC Input”,  there is no need to distinguish MM/MC cartridge anymore for the following steps.    Please look at the output voltage of the cartridge;   (ii) Determinate the gain required (dB) from the above table;      (iii) Then  just  set  the  micro  switches  exactly  as  follows,  ignore  the  grayed  out  switches for now.    40dB                                     ...
  • Page 3 60dB                                                  66dB                               ...
  • Page 4 Step 3: Set Load.    Each and every cartridge requires the correct load to sound its best.  MM cartridges require  capacitive load (pF), MC cartridges require resistive load (Ω/Ohm).    The  correct  load  value  shall  be  stated  in  the  cartridge  manual  too,  however  not  ALL  cartridges state this value.     Many  people  have  misunderstood  this  load  value  as  the  same  as  the  cartridge  internal  impedance/resistance which is incorrect.    Cartridge  Impedance/Resistance Correct Load ...
  • Page 5 For example:  250Ω (MC)  47kΩ(MC)  If the required load value is 250Ω, then the  If the required load value is 47kΩ, all  4 micro switches 330 Ω and 1k Ω shall be  micro switches shall be in the “‐“(left)  in the “●” (right) position; other micro  position.  switches shall be in the  “‐“ (left) position.  400pF(MM)  100pF(MM)  If the required load value is 100pF, all micro  If the required load value is 400pF,then  switches shall be in the “‐“(left) position. the 4 micro switches 100pF and 200pF  shall be in the “●” (right) position; other  micro switches shall be in the  “‐“ (left)  position. Note: For high output cartridge, please use the MM cartridge (pF) settings.  Tip: Typically, MC cartridges offer the best sound, MM cartridges are most economical, High output  MC cartridges are somewhere in between. ...
  • Page 6 Step 4: Set EQ curve.  For the correct playback of each and every record, the correct EQ curve must be used.  There  are two small steps to set this correctly.    1:RIAA/eRIAA/IEC   (Under  normal  circumstance,  one  can  just  leave  this  unchanged  as  it  is  part of the factory Default settings)        Two eRIAA micro switches should be in “●“ (right) position; two IEC micro switches shall be  in “‐“ (left) position.    Description   Remarks  Enhanced RIAA EQ curve  Extended High Frequency  eRIAA (Default)  IEC  Subsonic filter For warped records  RIAA  Standard RIAA EQ curve  ‐  eRIAA + IEC  Enhanced  RIAA  EQ  curve  +  Extended ...
  • Page 7 However,  the  reality  is  that  only  after  1980s,  all records are actually using RIAA EQ curves (just think,  how easy is it to reach a single agreement on a global  scale? And implement it over the short space of 1‐2 years?).     If  the  wrong  EQ  curve  is  used,  the  record  will  not  sound  “right.”  For  example:  Deutsche  Grammophon’s classical records released before 1980 often sound dry and flat, the reason is  because those were manufactured using the DECCA EQ curve, not the RIAA EQ curve.    Record released before 1980:  Record Labels   iPhono front EQ switch      COLUMBIA(Up)          RIAA(Middle)     ...
