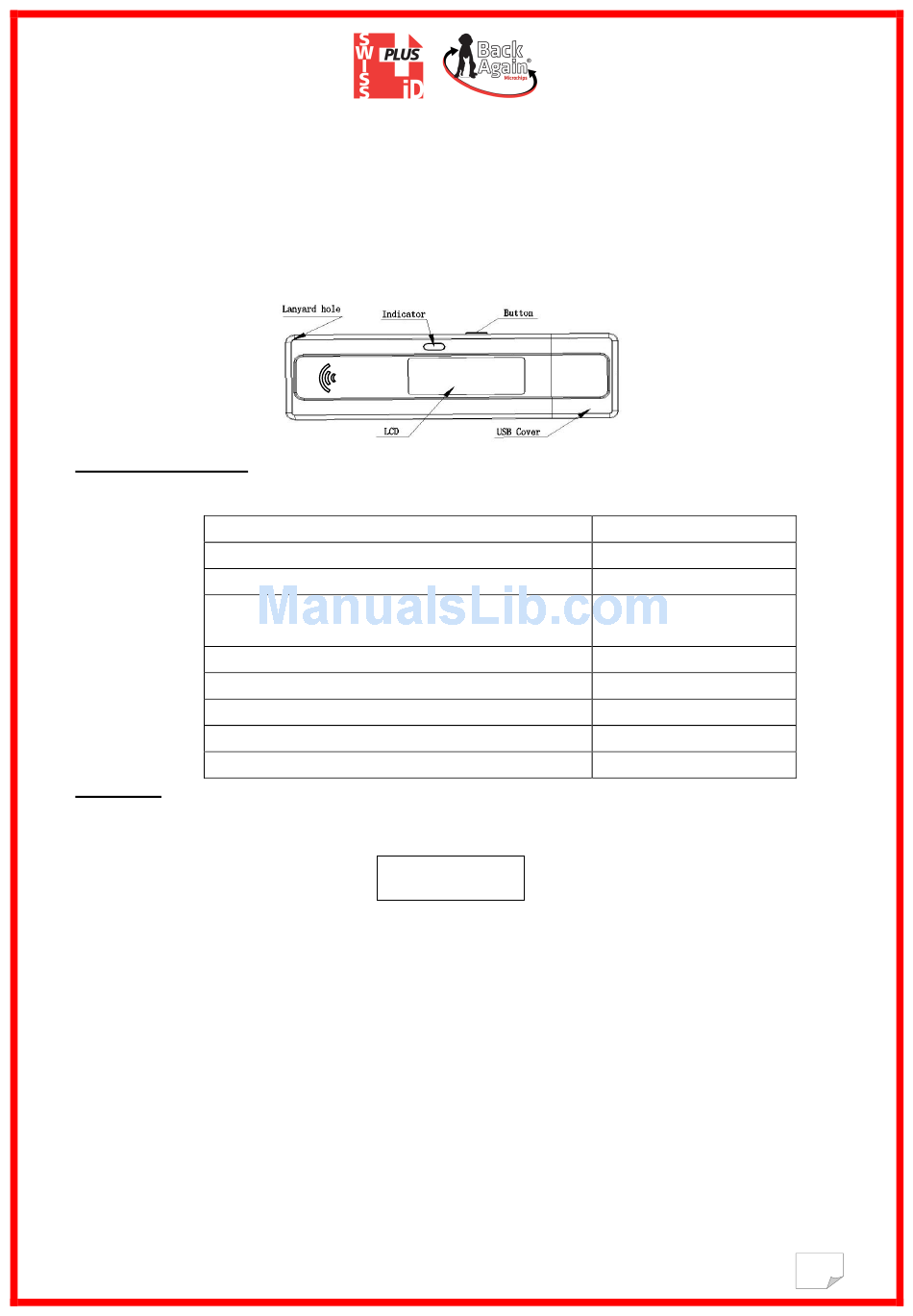

The "Mini Reader" is the smallest RFID reader known today. In spite of its very small size the reading range is equal or
even greater than other bigger models and more expensive.
This product is mainly used for animal tag ID microhip. It can read any work based on ISO 11784 / 85 protocol animals
tags especially the FDX B.
Technical parameter
Frequency
Battery
Charging current
Charging indication
Read Range
Read indication
Dimensions
Operating temperature: (while battery under charge)
Memory
Operation
Power on
Push the button, the "Mini Reader" power on. The LCD display shows :
Power off
The "Mini Reader" will auto power off in the absence of any action after 15 seconds except if it is connected to a PC
USB port directly or by a cable line.
Set language
When the "Mini Reader" is power down, push the button brevemente until to hear a "beep", in order to enter to setting
"LANGUAGE" or "MEMORY" mode. Stop to push the button when the display shows "LANGUAGE" The different
languages will scroll on the display. Each language will remains 2 seconds. When the language you want to setting, just
push the button. Then the reader will use the setting when next power on.
Remarks: when the battery LI-Ion is low powered, the key reader may not read any tag or can read in a very short
distance. If the temperature is lower than 10° the reading range will be decreasing
"Mini Reader RT10M"
Mini Reader
134.2KHz
Li-ion，3.7VDC,170mAH
5VDC on USB connector
Red LED in charging.
Green LED when complete.
≥ 60/70mm
Beep、 Blue LED、LCD indication
109×34×14mm
+5° /40°
128 ID numbers
1
Advertisement
Table of Contents
Summary of Contents for SwissPlusID Mini Reader RT10M
-
Page 1: Technical Parameter
“Mini Reader RT10M” The “Mini Reader” is the smallest RFID reader known today. In spite of its very small size the reading range is equal or even greater than other bigger models and more expensive. This product is mainly used for animal tag ID microhip. It can read any work based on ISO 11784 / 85 protocol animals tags especially the FDX B. -
Page 2: Charging The Battery
Scanning for an animal tag Push the button. Scan slowly the area where a microchip is expected to be found while keeping the reader for a few centimeter's distance from the animal's skin. The reader will be scanning for about 20 seconds. The blue light flash, the display is black. -
Page 3: Reading Range
Reading range hasta 7,5cm Bobina Glasstag FDX B 2 x 12mm FDX B... - Page 4 Without these software you cannot recover the data sent by the reader to the PC. If so still check that you have the latest version of these tools. The latest driver is available at the following link: http://swissplusid.com/downloads/RTDriver.zip The latest version of the Realtrace Terminal is available at the link below: http://swissplusid.com/downloads/RealtraceTerminal.exe How to activate and desactivate the memory? Activation of the function of Memory.
-
Page 5: Options Menu
How to transfer the contents of the memory to a PC? To transfer the contents of the memory you must connect the reader switched off to the USB port of the PC directly or via an USB cable. Run the Realtrace Terminal software. Make sure in the Menu “Options”... -
Page 6: "Connection" Menu
"File" menu "Save", "Delete" "Exit" functions are classic. "Linking an application" function when selected allows you to link the data sent by the reader to the PC to a Windows application (Word, Excel, etc.) and simultaneously displayed in the "RealTrace Terminal" window. You then have five seconds to open your application, Word, Excel, etc. - Page 7 Communication Port Selection Linking an application Selecting application after the 5-second delay...
- Page 8 Application open within 5 seconds: Excel Connect! Simple view: only ISO number...
- Page 9 Questions? Contact your nearest SwissPlus ID distributor or visit; www.swissplusid.com...
