Poulan Pro 545137224 Instruction Manual

Poulan gas chain saw instruction manual.
Hide thumbs

Advertisement

Please do not return unit to retailer.
Por favor, no devuelva el aparato al lugar de compra.
Veuillez ne pas retourner l'outil au détaillant.
1- -800- -554- -6723

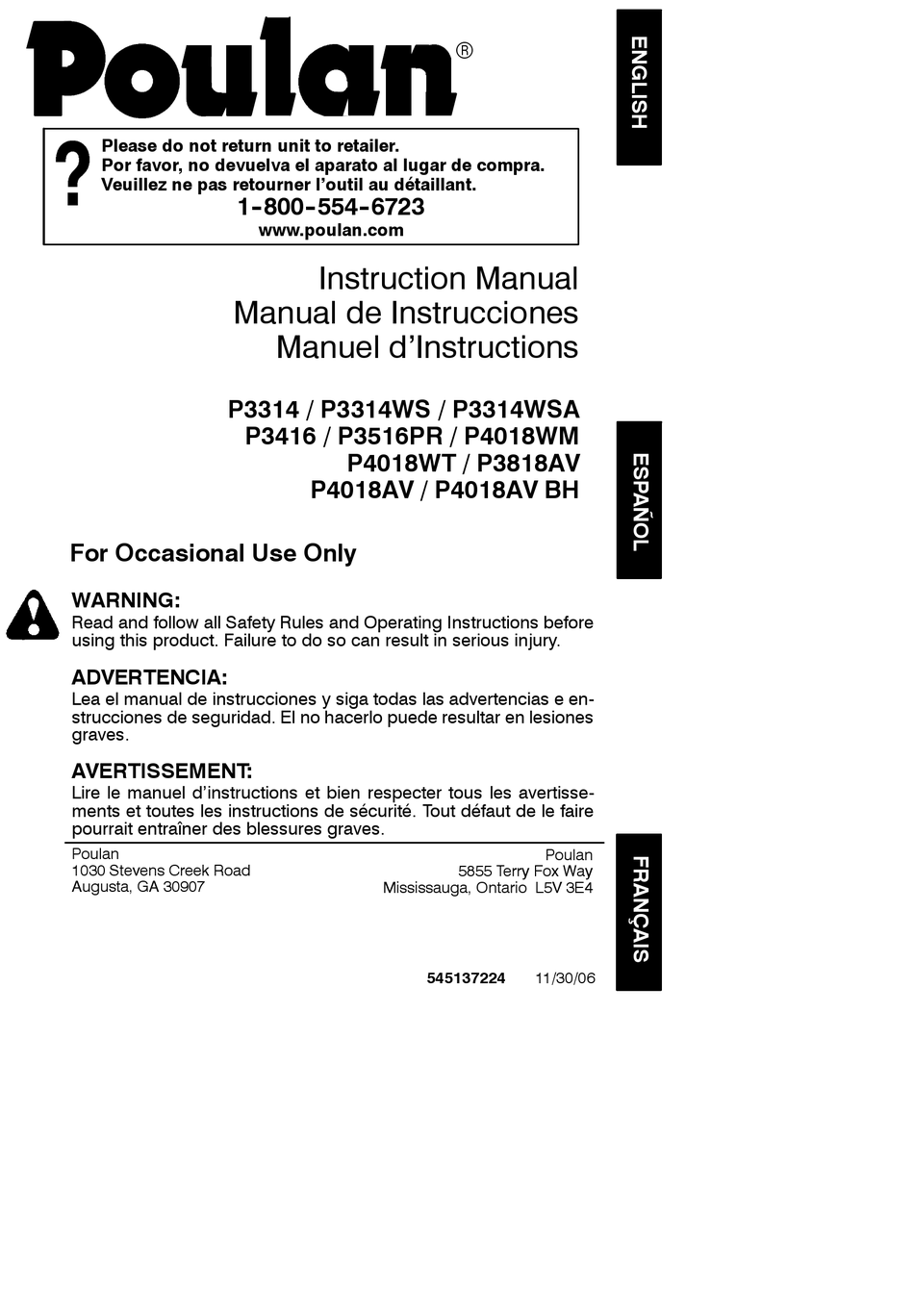

Manual de Instrucciones
P3314 / P3314WS / P3314WSA
For Occasional Use Only
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e en-
strucciones de seguridad. El no hacerlo puede resultar en lesiones
graves.
AVERTISSEMENT:
Lire le manuel d'instructions et bien respecter tous les avertisse-
ments et toutes les instructions de sécurité. Tout défaut de le faire
pourrait entraîner des blessures graves.
Poulan
1030 Stevens Creek Road
Augusta, GA 30907
www.poulan.com

Instruction Manual

Manuel d'Instructions
P3416 / P3516PR / P4018WM
P4018WT / P3818AV
P4018AV / P4018AV BH
Mississauga, Ontario L5V 3E4
R
Poulan
5855 Terry Fox Way
545137224
11/30/06

Advertisement

   Related Manuals for Poulan Pro 545137224

   Summary of Contents for Poulan Pro 545137224

  • Page 1: Instruction Manual

    Tout défaut de le faire pourrait entraîner des blessures graves. Poulan 1030 Stevens Creek Road Augusta, GA 30907 Instruction Manual P4018WT / P3818AV P4018AV / P4018AV BH Poulan 5855 Terry Fox Way Mississauga, Ontario L5V 3E4 545137224 11/30/06...
  • Page 2 IDENTIFICATION OF SYMBOLS WARNING! This chain saw can be dangerous! Care- less or improper use can cause serious or even fatal injury. Always wear appropriate ear protection, eye protection and head protection. Always use two hands when operating the chain saw. WARNING! should be avoided;...
  • Page 3 S Keep the handles dry, clean, and free of oil or fuel mixture. S Keep fuel and oil caps, screws, and fas- teners securely tightened. S Use only Poulan accessories and replace- ment parts as recommended. HANDLE FUEL WITH CAUTION S Do not smoke while handling fuel or while operating the saw.
  • Page 4 wood closes in and pinches the moving saw chain in the cut along the top of the guide bar and the saw chain is suddenly stopped. This sudden stopping of the chain results in a reversal of the chain force used to cut wood and causes the saw to move in the opposite direction of the chain rotation.
  • Page 5 WARNING: The following features are included on your saw to help reduce the hazard of kickback; however, such features will not totally eliminate this danger. As a chain saw user, do not rely only on safety de- vices. You must follow all safety precau- tions, instructions, and maintenance in this manual to help avoid kickback and other forces which can result in serious injury.
  • Page 6: Assembly

    MODEL P3314 / P3314WS 952044368 P3314WSA P3416 / P3516PR 952044370 P4018WM / P4018WT P3818AV / P4018AV 952044418 P4018AV BH NOTE: If this saw is to be used for com- mercial logging, a chain brake is required and shall not be removed or otherwise dis- abled to comply with Federal OSHA Regula- tions for Commercial Logging.
  • Page 7 Inside view of clutch cover Adjustment located on clutch cover 4. Turn the adjusting screw by hand coun- terclockwise until the adjusting pin just touches the stop. This should allow the pin to be near the correct position. 5. Slide guide bar on bar bolts until guide bar stops against clutch drum sprocket.
  • Page 8 to ensure all links are in bar groove. 4. Lift up tip of guide bar to check for sag. Release tip of guide bar, then turn ad- justing screw turn clockwise. Repeat until sag does not exist. Adjusting Screw - - Turn 5.
  • Page 9: Fueling Engine

    Poulan oil resists high temperature thinning. If Poulan bar and chain oil is not available, use a good grade SAE 30 oil. S Never use waste oil for bar and chain lubri- cation.
  • Page 10 Use only 15″ - - 18″ (40 - - 45 cm) of rope per pull. Hold saw firmly while pulling starter rope. Starter Rope Handle Left Hand on Front Handle Right Foot Through Rear Handle IMPORTANT POINTS TO REMEMBER When pulling the starter rope, do not use the full extent of the rope as this can cause the rope to break.
  • Page 11 disengaged by pulling the front hand guard back toward the front handle as far as possible. S When cutting with the saw, the chain brake must be disengaged. Disengaged Engaged Braking function control CAUTION: The chain brake must be checked several times daily. The engine must be running when performing this proce- dure.
  • Page 12 (6 inches (15 cm) in diameter or larger) The notch method is used to fell large trees. A notch is cut on the side of the tree in the de- sired direction of fall. After a felling cut is made on the opposite side of tree, the tree will tend to fall into the notch.
  • Page 13 WARNING: Never turn saw upside down to undercut. The saw cannot be con- trolled in this position. Always make your first cut on the compres- sion side of the log. The compression side of the log is where the pressure of the log’s weight is concentrated.
  • Page 14: Maintenance Schedule

    If any dealer other than an authorized service dealer performs work on the product, Poulan may not pay for repairs under warranty. It is your responsibility to maintain and perform general mainte- nance.
  • Page 15: Cleaning Spark Arresting Screen

    each 5 hours of operation. Remove Sawdust From Guide Bar Groove Oil Holes S Burring of guide bar rails is a normal process of rail wear. Remove these burrs with a flat file. S When rail top is uneven, use a flat file to re- store square edges and sides.
  • Page 16: Replace Spark Plug

    Follow the mix instructions found on stabiliz- er containers. Run engine at least 5 minutes after adding stabilizer. Poulan/WEED EATER 40:1, 2-cycle engine oil (air cooled) is blended with fuel stabilizer. If you do not use this oil, you can add a fuel...
  • Page 17: Troubleshooting

    HELPFUL TIP During storage of your gas/ oil mixture, the oil will sepa- rate from the gas. We recommend that you shake the gas can weekly to insure proper blending of the gas and oil. ENGINE S Remove spark plug and pour 1 teaspoon of 40:1, 2-cycle engine oil (air cooled) through the spark plug opening.
  • Page 18 You are responsible for pres- enting your small off- -road engine to a Poulan authorized repair center as soon as a prob- lem exists. Warranty repairs should be com- pleted in a reasonable amount of time, not to exceed 30 days.
  • Page 19 Poulan at 1- -800- -554- -6723. WAR- RANTY PERIOD: Any warranted part which is not scheduled for replacement as required maintenance, or which is scheduled only for regular inspection to the effect of “repair or...
