Summary of Contents for Sea Pro 248

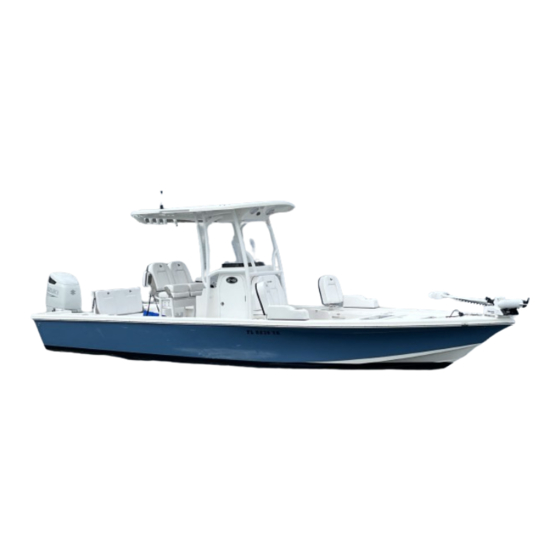

- Page 1 248 BAY SERIES Owner’s Manual and Quick-Reference Guide 2017 WWW.SEAPROMFG.COM...
-
Page 2: Table Of Contents
Trolling Motor Power Panel Wiring Diagram Helm Switch Panel Hard Top (Optional) Switch Panel Diagram Compass Hard Top (Optional) Wiring Diagram Bilge Pump Wiring Color Codes Livewells & Sea Cocks Warranty Navigation / Anchor Lighting Contact Information Trim tab Control 248 BAY SERIES... -
Page 3: Introduction
THE RETURN OF A LEGEND... We want to Personally welcome you to the SEA PRO team and are excited that you are part of The Next Wave! Lorem Ipsome epsilom, place holder wording, letter from Jimmy and Preston to the new SEA PRO BOAT owners thanking them for their purchase and for being part of the Team. -
Page 4: Model Information
NOTE: This manual is being provided as a reference and informational tool. SEA PRO BOATS suggests that you maintain a copy of this manual on board for future use and reference. The information contained is subject to change. When your SEA PRO boat requires Service, Maintenance or Warranty Work, it should be taken to an Authorized and Approved SEA PRO BOATS dealer. -
Page 5: Key Information
ENGINE INFORMATION ENGINE MAKE: MODEL #: SERIAL #: PROPELLER INFORMATION MAKE: # OF BLADES: DIAMETER: PITCH: PART # OPTIONAL EQUIPMENT MAKE: MODEL #: SERIAL #: DEALER INFORMATION NAME: PHONE #: STREET ADDRESS: CITY: STATE: ZIP CODE: SALES PERSON: 248 BAY SERIES... -
Page 6: Specifications
24’ 8” Beam 8’ 9” Fuel Capacity 70 Gal Max Horse Power 300 H.P. Live Well (2 EA.) 30 Gal Deadrise @ Transom 15 Degrees Draft 15” Fish Box 150 Quarts Dry Weight (No Motor) 3000 LBS. 248 BAY SERIES... -
Page 7: Standard Features
Bow Lockable Rod Storage (2) with LED Lighting • Dual Battery Switch • Large Insulated Fish Box • • Static (Manual) Jack Plate Custom Anchor Locker • • Under Gunwale Rod Storage with Reel Pads Under Gunwale LED Lighting • 248 BAY SERIES... -
Page 8: Optional Features & Hull Color Options
Bow & Stern Casting Chairs • Flip-Up Leaning Post Bolsters • Deluxe Café (Brown) Upholstery • Bow Cushion SEA CREATURE WHITE • Helm Pad • Mister Cooling System • Turbo Swing Ski Tow SHARK GREY • Optional Hull Colors 248 BAY SERIES... -
Page 9: Hull Identification Number
Hull Identification Number and SEA PRO Model Number on hand. This information can also be found on your copy of the SEA PRO Warranty Certificate. Federal and State Laws require a power boat to be registered in the state of primary use. Registration numbers and validation stickers must be displayed according the local and state regulations. -
Page 10: Boating Safety
Your Personal Safety, the Safety of Your activities nearby, and when in close proximity to Passengers , and the Safety of Other Boaters. SEA PRO structures and other boats BOATS suggests taking a Boating Safety Course in order •... -
Page 11: Minimum Required Equipment
Horn or whistle recommended to signal intentions or in working condition at all times while your boat is in position. Your SEA PRO boat comes standard with an operation. SEA PRO BOATS also recommends that you electric horn. SEA PRO BOATS recommends maintaining a... -
Page 12: Carbon Monoxide Warning
Inspect the exhaust systems regularly. Loss of consciousness Operate any fuel burning appliances in areas with good • ventilation and where fresh air can circulate. Do not confuse carbon monoxide poisoning with seasickness or intoxication. If the vessel operator or a 248 BAY SERIES... -
Page 13: Boating Navigation Rules
When two vessels meet head-on, neither has the right-of-way. It is preferred that both vessels decrease speed and turn to the right in order to pass port-to-port. Each vessel may sound the horn or other sound producing device with one short blast signaling a port-to-port pass. 248 BAY SERIES... - Page 14 If passing on the Port If passing on the Star- side, each vessel may board side, each vessel sound the horn with two may sound the horn with short blasts one short blast 248 BAY SERIES...
-
Page 15: Safety Labels
BOATING SAFETY Safety Labels SEA PRO BOATS wants you and your passengers to have a Safe and Enjoyable boating experience. Warning and informational labels are located on your SEA PRO boat calling attention to important information and potential safety concerns. SEA PRO BOATS encourages you to become familiar with these labels and their location. -
Page 16: Pollution Regulations
The U.S. Coast Guard regulations strictly prohibit dumping of plastic refuse or other garbage mixed with plastic upon or into the waters anywhere. Plastic refuse kills fish, birds, and marine wildlife, can interfere with vessel propellers and can clog water and cooling intakes, and litters the shore and beaches. 248 BAY SERIES... -
Page 17: Systems And Components
Located at the lower part of the Helm is a compartment current from the engine. which contains the Battery Selector Switch. 248 BAY SERIES... -
Page 18: Engine Shutdown Safety Switch
SYSTEMS & COMPONENTS Engine Shutdown Safety Switch: When the switch clip is pulled/removed from the Your SEA PRO boat is Equipped with an Engine Shutdown Shutdown Switch, the engine will immediately be shut Safety Switch. The Safety Switch is located below the down. -
Page 19: Engine Controls
Operation and Specifications. the binnacle lever. This control module allows the operator to control the Shift/Throttle Control: Your Sea Pro boat comes with a position of the outboard binnacle style lever that controls the forward, reverse motor while at the helm. -
Page 20: Steering Controls
Stainless Steel Steering Wheel and Hydraulic Steering System. The helm If your SEA PRO boat has been equipped with a steering unit includes a reservoir system other than hydraulic, please refer to the Engine and pump that pumps Owner’s Manual for Operation, Maintenance and... -
Page 21: Helm Switch Panel
The 12-Volt Power Accessory Port maintains power as long as the Battery Selector Switch is in an “on” position. Compass: Your SEA PRO boat comes standard with a Explorer PUMPS - BILGE: Activates the bilge pump located in the •... -
Page 22: Bilge Pump
Bilge Pump: NOTE: The bilge pump is wired to have a constant power The Bilge of your SEA PRO boat can be accessed through supply from the batteries, even when the Battery Selector the Bilge Door located just forward of the transom. -
Page 23: Livewells & Sea Cocks
Located under the rear Live Wells: bench seat are the drain Your SEA PRO 248 BAY BOAT is equipped with two (2) 30- valves for each of the gallon pressurized Full-Fill livewells, one located on the livewells. The port valve forward deck, and one located on the stern deck. - Page 24 Switch panel to turn the pump off, close the seacock, and position the drain valve to a Horizontal position in order to open the valve. Refer to the Pump Owner’s Manual for further instructions, maintenance, and specification information. 248 BAY SERIES...
-
Page 25: Navigation / Anchor Lighting
SYSTEMS & COMPONENTS Navigation / Anchor Lighting: For vessels without a T-Top: Your SEA PRO boat has been equipped with navigation lights that are required by the U.S. Coast Guard. The use The mounting receptacle is located at the stern, on the of navigation lights are required during the time starboard side of the vessel. -
Page 26: Trim Tab Control
Improve handling in choppy or rough water • Has 5” of vertical adjustment. • The control panel for the Trim tabs is located on the Made from Aircraft Grade Aluminum. • Helm. 248 BAY SERIES... -
Page 27: Hydraulic Jack Plate
SYSTEMS & COMPONENTS Hydraulic Jack Plate: Power-Pole®: A hydraulically controlled Jack Your SEA PRO boat may have a Power-Pole® Plate is and optional feature that shallow water anchor system installed as may have been added as an an optional equipment upgrade. The equipment upgrade. -
Page 28: Raw Water Washdown
SYSTEMS & COMPONENTS Raw Water Washdown: The outlet connection includes a tethered Your SEA PRO 248 is equipped with a Raw Water cap that should remain in place on the washdown feature. The ability to rinse down the deck outlet when the system is not in use. -
Page 29: Fresh Water System
Fresh Water System: Turn the pump on to pressurize and use the system by Your SEA PRO 248 may be equipped with an optional Fresh flipping the switch on the Helm Switch Panel labeled Water Tank and Shower system. A freshwater pump “PUMPS - FRESH WATER”... -
Page 30: Fuel System
Diurnal Vapor. of a diurnal cycle, a tank that has been Your SEA PRO boat has been built with a Hybrid Fuel manufactured using a permeable (permitting system comprised of BOTH of these. -
Page 31: Fuel System Diagram
Deck Fill / Vent Com- Fuel Vapor bination Cap P-Trap & Thru Hull Exit Carbon Canister Deck Fill Inlet Fuel Inlet Control Valve (In-Line or On-tank) Grade Valve Fuel Limit Vent Valve Fuel Tank Anti Siphon Valve 248 BAY SERIES... -
Page 32: Fuel System Performance
Valve will allow the emissions to escape through the system. Once the cause is corrected, the system will Carbon Canister, which scrubs and cleans the fuel vapor return to the normal venting operation. 248 BAY SERIES... -
Page 33: Fuel / Water Separator
Fuel / Water Separator: water particles into larger droplets. Being that water is Every SEA PRO boat is fitted with a Fuel / heavier than fuel, these droplets fall by gravity, to the Water Separator. This filter is located in... -
Page 34: Maintenance
MAINTENANCE dirt / debris, ensure your SEA PRO boat has been Routine Care & Maintenance: thoroughly washed and rinsed prior to waxing. NOTE: Refer to the individual Manufacturer Owner’s Use a high quality was designed for marine gel Manuals for detailed information related to Service, coats. - Page 35 (Negative (-) first) and remove the stains can be removed with a solvent solution. battery from the boat for proper recharging Refer to your SEA PRO BOATS authorized dealer according to the Battery Owner’s Manual. for assistance and suggestions. To prevent •...
- Page 36 Mix a few tablespoons of baking soda in a gallon of water. Use the solution with a rag or soft bristle brush to scrub the surfaces of each compartment. • Completely rinse and drain each compartment using a hose and fresh water. 248 BAY SERIES...
-
Page 37: Storage
Run the pump until the antifreeze solution is running out of all connections It is always a good idea to consult your SEA PRO BOATS and outlets. approved dealer or a certified marine technician before performing Winterization and Storage procedures. -
Page 38: Recommissioning
• Let stand for three hours. It is always a good idea to consult your SEA PRO BOATS Turn on the pump and completely drain the • approved dealer or a certified marine technician before fresh water tank and all connections and putting your vessel back into service. -
Page 39: Schematics & Wiring Diagrams
SCHEMATICS & WIRING DIAGRAMS 248 Bay - Deck Wiring Harness Diagram: 248 BAY SERIES... -
Page 40: Hull Wiring Diagram
SCHEMATICS & WIRING DIAGRAMS 248 Bay - Hull Wiring Harness Diagram: 248 BAY SERIES... -
Page 41: Battery Wiring Diagram
SCHEMATICS & WIRING DIAGRAMS 248 Bay - Battery Wiring Harness Diagram: 248 BAY SERIES... -
Page 42: Amp Power Wiring Diagram
SCHEMATICS & WIRING DIAGRAMS 248 Bay - Amp Power Wiring Diagram: 248 BAY SERIES... -
Page 43: Dash & Helm Switch Panel Diagram
SCHEMATICS & WIRING DIAGRAMS 248 Bay - Dash & Helm Switch Panel Diagram: 248 BAY SERIES... -
Page 44: Inside Helm Console Wiring Diagram
SCHEMATICS & WIRING DIAGRAMS 248 Bay - Inside Helm Console Wiring Diagram: 248 BAY SERIES... -
Page 45: Trolling Motor Power Panel Wiring Diagram
SCHEMATICS & WIRING DIAGRAMS 248 Bay - Trolling Motor & Trim Control Panel Wiring Diagram: 248 BAY SERIES... -
Page 46: Hard Top (Optional) Switch Panel Diagram
SCHEMATICS & WIRING DIAGRAMS 248 Bay - Hard Top (Optional) Switch Panel Diagram: 248 BAY SERIES... -
Page 47: Hard Top (Optional) Wiring Diagram
SCHEMATICS & WIRING DIAGRAMS 248 Bay - Hard Top (Optional) Wiring Harness Diagram: 248 BAY SERIES... -
Page 48: Wiring Color Codes
PORT REAR SPKR - GREEN/BLACK PORT REAR SPKR + GREEN RAW WATER BROWN/BLACK STBD FRONT SPKR - GRAY/BLACK STBD FRONT SPKR + GRAY STBD REAR SPKR - PURPLE/BLACK STBD REAR SPKR + PURPLE UNDER WATER LTS BLUE/RED BATT POSITIVE 248 BAY SERIES... -
Page 49: Warranty
Limited Sea Pro Warranty Registration is a condition precedent to warranty coverage. It is the sole responsibility of the original purchaser to require the dealer to fill out and submit the warranty registration form on the home page of the Sea Pro website (seapromfg.com) within 10 days of the date of sale. -
Page 50: Contact Information
SEA PRO BOATS 25214 HWY 121 WHITMIRE, SOUTH CAROLINA 29178 (803) 694-2644 EMAIL WEBSITE XXXXXXX@SEAPROMFG.COM WWW.SEAPROMFG.COM...
