Summary of Contents for Hoyt H286SVD

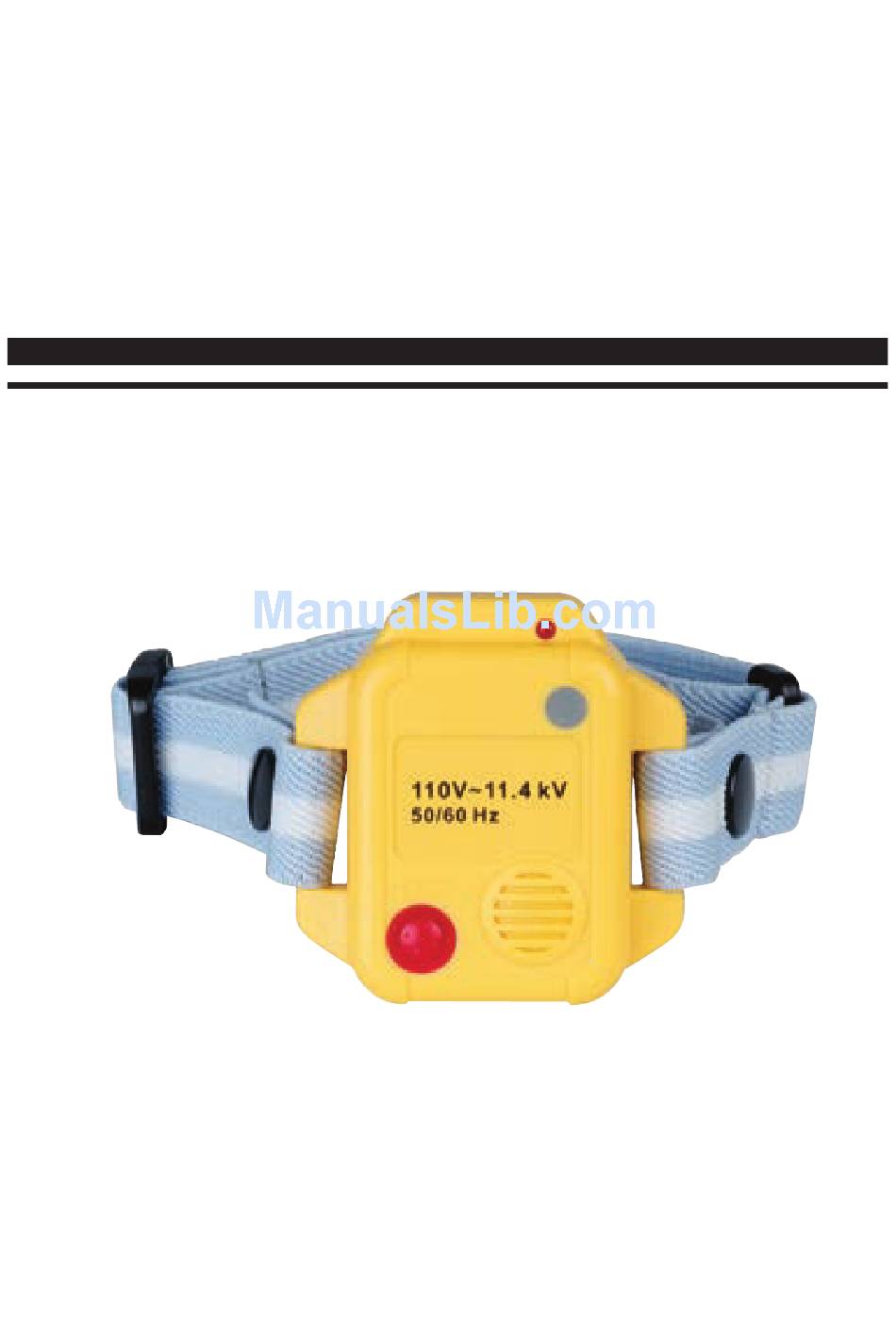

- Page 1 PERSONAL SAFETY H.V. DETECTOR INSTRUCTION MANUAL...
- Page 2 INTRODUCTION The Personal Safety H.V. Detector is a sensor for sensing AC High Voltage. It provides electric engineering personnel, power engineering personnel, firefighting personnel and instrument equipment workers with prominent warning when approaching high voltage and for taking necessary safety action, preventing illusion and misjudgment which could lead to electric shock to person.
- Page 3 FEATURES Waterproof design, protection class: IP65 ●Compact, easy to wear and convenient in use. ●Usable both indoor and outdoor. ●Water-proof design. (IP65) ●Equipped with self-testing functions ●Sound and flash light warning on different frequencies varied positively with sensed voltages. ●Able to sense all kinds of AC High Voltage System.
-
Page 4: Specification
SPECIFICATION ●Distance of starting warning : for 11.4kV ●Applicable frequency : 50 / 60 Hz ●Volume : > 65dB at 1 meter distance ●Operating Temp & Humidity : 5°C - 45°C 80% R.H. Max. ●Outside dimensions : (L) x (W) x ●Weight : (incl battery) -
Page 5: Method Of Use
METHOD OF USE 1. Inspection before use (1) Check the appearance and structure for any abnormality. (2) Press Self-Test switch(about 10 seconds) to confirm all functions are working normally. (3) To be careful and to avoid misjudgment, test the unit by contacting AC 110V insulated wire with its front side to see if it sounds and flashes. - Page 6 (2) Wear the unit at the pocket in front of your shirt (chest). (3) Wear the unit to the outer side of fore arm with the sensing side faces outwardly. The effect is best when the sensing side is facing high voltage in right angle (90 Deg.). When it is worn at the inner side of arm or is covered by cloth, the sensitivity is poor.
- Page 7 3. Combination for attachment to chest pocket CLEANING & REPLACING BATTERY 1. Sensing side shall maintain clean. The case may be cleaned with soft fabric and mild detergent. No solvent or corrosive agent may be used. 2. Replacing battery (1) When the sound become weak, the battery shall be replaced.
- Page 8 CAUTIONS 1. This instrument is an auxiliary testing unit and is only for obtaining warning as additional protection. Never use this instrument as substitution for Tester. Electrical Test shall be the prime electric testing instrument. 2. Other than affected by now you wear, the sensing and warning distance may be influenced by direction of electric article, ambient environment, shielding objects and...
- Page 9 This warranty shall be limited to defective materials and workmanship. Hoyt will repair all warranty items at no charge. Hoyt will not cover those products that have been damaged due to removal of warranty stickers, improper handling, storage, installation or operation by the purchaser or any third party.
