Summary of Contents for PURDIO MX840

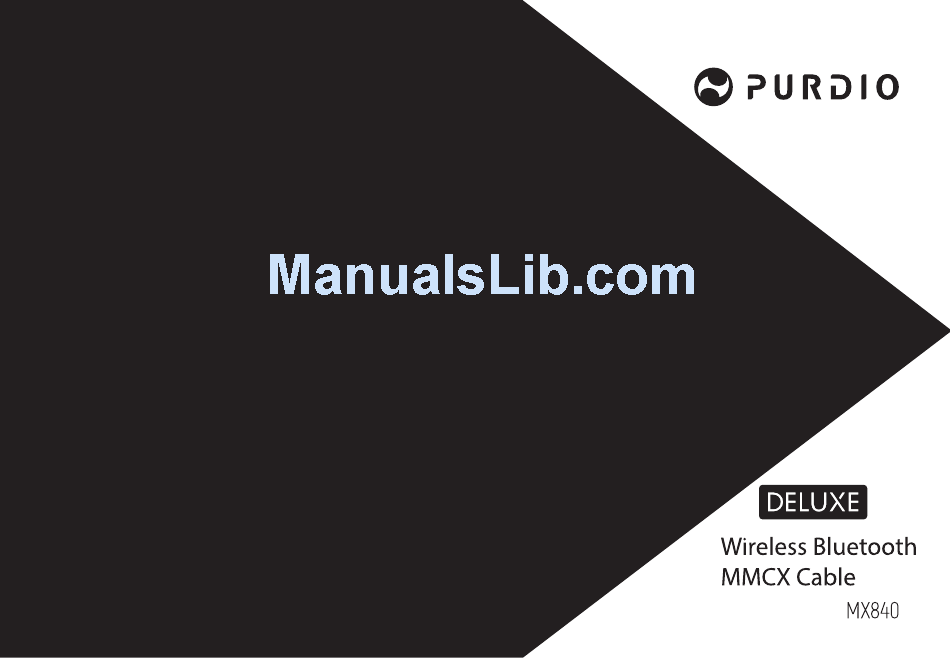

- Page 1 USER GUIDE...
-
Page 2: Table Of Contents
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Checking The Package Contents PURDIO MMCX Bluetooth Cable MX840 Overview Powering ON / OFF CHARGING THE BATTERY •... -
Page 3: Getting Started
GETTING STARTED CHECKING THE PACKAGE CONTENTS After opening the package, check all items in the list are included in the package. If items are missing, please contact your dealer. 1. PURDIO MMCX Bluetooth Cable MX840 (“PURDIO MX840”) × 1 2. Micro-USB Charging Cable × 1 3. Cable Management Clip × 1 4. Carrying Pouch × 1 5. User Guide × 1 For other language versions of Quick User Guide, please visit our website www.odoyo.com/purdio Другие языковые версии Краткого руководства пользователя можно найти на нашем веб-сайте www.odoyo.com/purdio. Para versiones de la Guía rápida del usuario en otros idiomas, visite nuestro sitio web en www.odoyo.com/purdio Verschiedene Sprachversionen der Kurzanleitung finden Sie auf unserer Website www.odoyo.com/purdio... -
Page 4: Purdio Mmcx Bluetooth Cable Mx840 Overview
GETTING STARTED GETTING STARTED PURDIO MMCX BLUETOOTH CABLE MX840 OVERVIEW POWERING ON / OFF 1. (R) Right Unit Turning On 2. (L) Left Unit When turning on PURDIO MX840 by pressing and holding the 3. Microphone button for about 2 seconds when the PURDIO MX840 is turned off. Picks up the sound of your voice when talking on the phone. (Blue LED will be light up two seconds and a voice prompt “Power ON” will be followed.) 4. Multi-function Buttons Button – Power / Play / Pairing Turning Off Button – Volume Up / Next Song When turning off the PURDIO MX840 by pressing and holding the button for about 2 seconds. Button – Volume Down / Previous Song (Red LED will be light up two seconds and a voice prompt “Power OFF” will be followed.) 5. Indication LED • Flashing red or blue light to indicate the power communication status of... -
Page 5: Charging The Battery
CHARGING THE BATTERY CHARGING THE BATTERY CHARGING CHECKING BATTERY LEVEL PURDIO MX840 contains a lithium-ion rechargeable battery. Charge it 1. If PURDIO MX840 battery level is lower than 5% when you are listening music, there will be a voice prompt announces using the supplied Micro-USB cable. “Battery Low” and the Red LED indicator will be flashing twice in each minute to notify you to charge it. For more information, please see “LED INDICATIONS” section Connect the small end of the USB cable into the Micro-USB Charging Port, and then connect the other end to USB wall charger or a booted computer. 2. PURDIO MX840 will be turned off automatically when the battery level is 0%. Make sure that the LED indicator lights up in Red while charging. 3. The remaining battery level is shown only on the screen of an iPhone, iPad, or iPod touch (iOS 5.0 or later) that supports HFP (Hands-free Profile). Charging is completed in about 2 hours (*) and the LED indicator will be 4. Make sure that the iPhone, iPad or iPod touch is connected with the PURDIO MX840 cable. Otherwise, the remaining changed to Blue light automatically when charge is completed. battery level will not be displayed correctly. *Time required for charging the empty battery to its full capacity. -
Page 6: Connecting With Your In-Ear Monitors
Use the provided clip to anchor the cable to a comfortable length with not flopping around as much. 2. Match the cable to the appropriate in-ear monitors 3. Plug the cable into the in-ear monitors by shoving the tip of the cable into the MMCX socket. Left Right TO DISCONNECT THE PURDIO MX840 FROM YOUR IN-EAR MONITORS Grasping the in-ear monitors and the tips of the cable firmly with each hand and pulling out at a straight direction from the socket. NOTE: DO NOT HOLD ON THE BODY OF CABLE OR HAVE AN ANGLE WHEN UNPLUGGING THE PURDIO MX840 FROM YOUR IN-EAR MONITORS. -
Page 7: Led Indications
PAIRING YOUR BLUETOOTH DEVICE ® ® First Time Pairing BLUETOOTH INDICATOR ( ® 1. If PURDIO MX840 is turned off, pressing and holding button for about 5 seconds until hear a voice prompt INDICATOR ACTIVITY SYSTEM STATUS “Power on” first and a voice prompt of “Looking for device”. The LED Indicator will light up in Blue and switching Alternate Flashing Red LED and Blue LED Ready to Pair Blue light and Red light consecutively. 2. On your Bluetooth device, turn on the Bluetooth feature. - Page 8 Switching to a New Bluetooth Device ® your device list. Turn off PURDIO MX840 and follow the instructions of First Time Pairing. Note: The devices must be within range and powered on. Clearing the PURDIO MX840 Pairing List History Connecting with Two Bluetooth Devices ® • Power on the PURDIO MX840. PURDIO MX840 can be actively connected two devices at a time.
-
Page 9: Purdio Mx840 Control
PURDIO MX840 CONTROL PURDIO MX840 CONTROL MEDIA PLAYBACK AND VOLUME FUNCTIONS CALL FUNCTIONS The PURDIO MX840 controls are located on the inline remote below the right earbud. FUNCTION WHAT TO DO FUNCTION WHAT TO DO Answer a call Press button Play / Pause Press button End a call Press button Skip Forward Press and hold button 2 sec Re-dial last number called Press button twice quickly Skip Backward Press Three Times Quickly Press and hold button 2 sec Decline an incoming call Press and hold button 2 sec Volume Up Press Press... -
Page 10: Care And Maintenance
CHARGING TIME 2‒3 hrs WEIGHT * Volume was set to 50%. Testing consisted of full PURDIO MX840 battery discharge while playing audio until the first CUSTOMER SERVICE PURDIO MX840 stopped playback. Battery life depends on device settings, usage, and many other factors. -
Page 11: Important Safety Instructions
• Focus on your safety and being alert if you use the PURDIO MX840 while engaging in any activity, e.g., while riding a the interference by one or more of the following measures: bicycle or walking in or near traffic, a construction site or railroad, etc. Remove the PURDIO MX840 or adjust your • Reorient or relocate the receiving antenna. volume to ensure you can hear surrounding sounds, including alarms and warning signals. • Increase the separation between the equipment and receiver. • Do NOT use the PURDIO MX840 if they emit any loud unusual noise. If this happens, turn the PURDIO MX840 off and contact ODOYO customer service. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Do NOT sink or expose the PURDIO MX840 for extended period to water, or wear while participating in water sports, • Consult the dealer or an experienced technician for help. e.g., swimming, waterskiing, surfing, etc. Changes or modifications not expressly approved by ODOYO International Limited could void the user’s authority to • Do not use Alcohol, paint thinners, detergent, shampoo, or other solvents for cleaning purpose. -
Page 12: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING PROBLEM WHAT TO DO PROBLEM WHAT TO DO PURDIO MX840 don’t • Power on the PURDIO MX840 (see “Powering ON / OFF” section). PURDIO MX840 don’t pair • On your Bluetooth device: ® turn on with Bluetooth device ® • Charge the battery. • Turn the Bluetooth feature on and then off. -
Page 13: Limited Warranty
• If two Bluetooth devices are connected, move the devices within (30ft. or 10m) ® range of the PURDIO MX840. Except as set forth above, ODOYO makes no express or implied warranties and ODOYO expressly disclaims any and all warranties including any warranty of quality, merchantability, or fitness for a particular purpose. Some jurisdictions do not Distorted Sound • Keep the PURDIO MX840 away from a microwave oven, Wi-Fi device, etc. allow the exclusion of implied warranties or limitation on how long an implied warranty may last, so the above limitations No voice from callers • Check that both the PURDIO MX840 and the connected device are turned on. or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from different states (or by country or province). • Turn up the volume of the PURDIO MX840 and the connected device. Notwithstanding the foregoing, gradual deterioration in battery performance due to being left in a discharged state, left in cold conditions for long periods of time, or worn out through heavy use is not covered. • Check that output of the Bluetooth device is set for the PURDIO MX840. ® For consumers who are covered by consumer protection laws or regulations in their country of purchase or, if different, • If you are listening to music using the PURDIO MX840, end the call and stop the music on your Bluetooth device, and call back the caller and talk. - Page 14 LIMITED WARRANTY LIMITED WARRANTY their country of residence, the benefits conferred by this warranty are in addition to all rights and remedies conveyed by such (5) Whether to be replace / repaired or not upon if you are entitled under the scope of the Limited Warranty (Please consumer protection laws and regulations. refer to the warranty on (http:/ /www.odoyo.com/warranty/). After the returned item(s) has been diagnosed, we will send The Company reserves all rights not expressly granted here. To view the complete warranty, please visit out an email to notify the result whether your RMA claim has been granted or not. The courier fees of sending back the www.odoyo.com/warranty. replacement / repaired of RMA item(s) to your appointed address will not be charged if the RMA claim has been granted with diagnosed of “defective in materials and craftsmanship under normal use”. If the diagnosis result of the returned HOW TO MAKE A CLAIM item(s) is either “No Problem Found”, “Problem Caused by Misused or Worn-out” or “Breach of Warranty” by ODOYO 1. Purchased through Authorized Re-sellers / Retailer technicians, such RMA applicant will be charged a USD 50.00 handling fees. This fee must be paid within 12 working In the event of the original retail purchaser through authorized ODOYO re-sellers/authorized ODOYO retailer, generally days after the notification issued. If fail to settle the handling fees, such returned item(s) will be discarded without prior purchaser must contact the authorized ODOYO re-sellers / authorized ODOYO retailer or their local Authorized Distributor further notification. (6)The replacement / repaired parcel will be sent out within 5 working days if the RMA claim has been for the eligible defective claims. granted. The tracking number will be informed via email once the parcel has been sent out. 2. Purchased direct from ODOYO website In the event of a Product possible Defect that bought from ODOYO official website (www.odoyo.com), please read the following instructions carefully. (1) Contact ODOYO Online Support at support@odoyo.com within 30 days after you discovered a Product Defect (or should have discovered it, if such Product Defect was obvious); (2) Complete the RMA form on http:/ /www.odoyo.com/ customer-support/ and give a detailed explanation of how the damage occurred and make sure the Address and contact on...
-
Page 15: Fcc Statement
FCC STATEMENT Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been evaluated to meet general RF exposure requirement. The device can be used in Portable exposure condition without restriction. - Page 16 MX840_UG-EN_201703/01...
