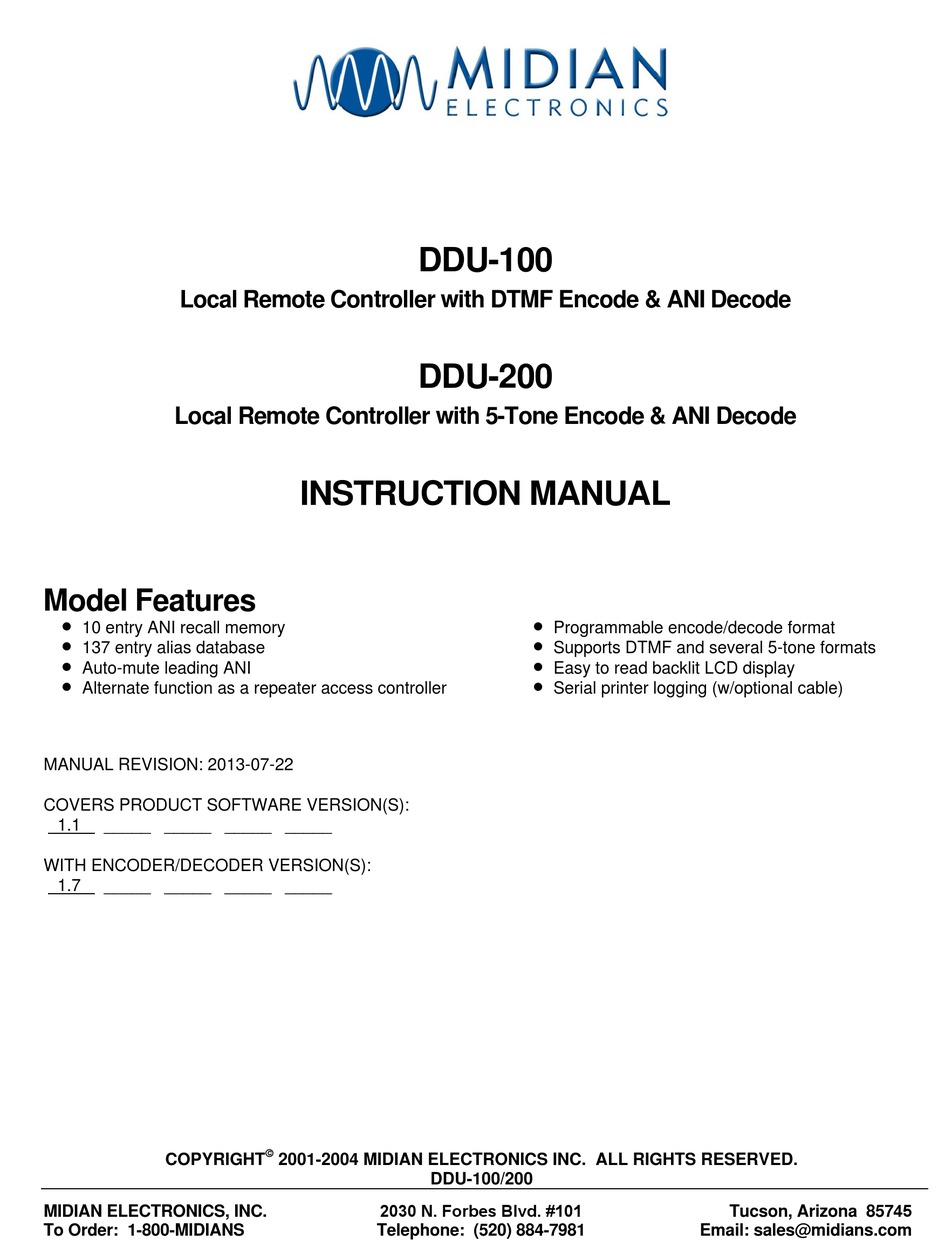

Local Remote Controller with DTMF Encode & ANI Decode
Local Remote Controller with 5-Tone Encode & ANI Decode
Model Features
10 entry ANI recall memory
137 entry alias database
Auto-mute leading ANI
Alternate function as a repeater access controller
MANUAL REVISION: 2013-07-22
COVERS PRODUCT SOFTWARE VERSION(S):
1.1
_____ _____ _____ _____
WITH ENCODER/DECODER VERSION(S):
1.7
_____ _____ _____ _____
COPYRIGHT
MIDIAN ELECTRONICS, INC.
To Order: 1-800-MIDIANS
DDU-100
DDU-200
INSTRUCTION MANUAL
2001-2004 MIDIAN ELECTRONICS INC. ALL RIGHTS RESERVED.
DDU-100/200
2030 N. Forbes Blvd. #101
Telephone: (520) 884-7981
Programmable encode/decode format
Supports DTMF and several 5-tone formats
Easy to read backlit LCD display
Serial printer logging (w/optional cable)
Email: sales@midians.com
Tucson, Arizona 85745
Advertisement
Table of Contents
Summary of Contents for Midian DDU-100
- Page 1 COVERS PRODUCT SOFTWARE VERSION(S): _____ _____ _____ _____ WITH ENCODER/DECODER VERSION(S): _____ _____ _____ _____ COPYRIGHT 2001-2004 MIDIAN ELECTRONICS INC. ALL RIGHTS RESERVED. DDU-100/200 2030 N. Forbes Blvd. #101 MIDIAN ELECTRONICS, INC. Tucson, Arizona 85745 To Order: 1-800-MIDIANS Telephone: (520) 884-7981...
-
Page 2: Specifications
Max ANI Length ............8 digits Outputs ANI Recall Stack Size ...........10 Output Level (TX, unloaded) ....150-2500 mV p-p Alias Database Size ........... .137 Output Impedance (TX) ......27k with JU4 cut Speaker Audio Output ........1 W into 8 DDU-100/200 Manual... -
Page 3: Table Of Contents
TATUS ISPLAY EATURE MENU SYSTEM .......................... 8 CALL ........................... 8 COMMAND LOCK UNLOCK ......................8 COMMAND ACTIONS ........................... 8 MENU USERS ............................8 MENU SETUP ............................9 MENU SYSTEM ERROR MESSAGES ....................14 MENU SYSTEM MAP ....................... 15 DDU-100/200 Manual... -
Page 4: Electronics Incorporated
Connect to a point in the radio squelch or CTCSS 3 INSTALLATION INSTRUCTIONS circuit that changes logic level when carrier (or Installation Note: Midian products utilize CMOS integrated CTCSS) is detected. A radio whose circuitry provides a circuits, which are susceptible to damage from high static logic-low or logic-high can readily turn Q1 on and off. -
Page 5: Jumper Settings
Format (if using encode feature). Refer to ENC/DEC other ANI’s previously logged. Press left SETUP menu item. Pay close attention to Encode <SCROLL> button to view the previously logged items. Time 1 & 2 and Decode Time as well. DDU-100/200 Manual... -
Page 6: Menu Mode
As numbers To select the displayed item, press the <SEND> button are entered, they appear on the bottom-left of the (the <SEND> button acts like an ENTER key when in DDU-100/200 Manual... -
Page 7: User Database
<0> key followed by the desired digit. be to use the password. If you do forget the password, Punctuation characters such as comma <,> and <-> do contact Midian for the reset procedure. not appear on the keypad. Special codes have been 4.2.8 Repeater Access Control assigned to allow entry of those characters. -
Page 8: Status Display Feature
Allows you to remotely key up and listen to a unit. This 12345 EN ROUTE En-route to pickup fare feature is designed to work with Midian’s UED-1 series encoder/decoders. The code for spying on a unit must 12346 NO FARE Nobody at pickup location be in the user database to use this function. -
Page 9: Setup Menu
Determines if numeric entry or alphanumeric data entry Do not beep when ANI comes in. is the default mode when placing a call. The mode of entry can be toggled by pressing the <*> key during Beep when ANI comes in. DDU-100/200 Manual... - Page 10 Radio is squelched when the Squelch system when the Security is turned on. Must be 4 Output is not at GND (floating). numeric digits. 5.5.5.5 Auto Mute Time setting Range: 4 digits Specifies the amount of time after the COR Input DDU-100/200 Manual...
- Page 11 ID’s in the database. See allowing for faster encode. REPEATER SETUP for more information. When using DTMF format: This is the tone ON time Display ID’s not in database. for DTMF format. DDU-100/200 Manual...
- Page 12 0 through 9. Each status message COR+ANI Require both COR and an ANI (or may be up to 10 alphanumeric characters. valid User ID) to reset the hang timer before expiration. Range: 0-10 characters Default: blank DDU-100/200 Manual...
- Page 13 See Status 0 Msg setting above. This is used by the factory for product testing. Do not Range: 0-10 characters select this function unless directed to do so by Midian Technical Support. Damage to the unit may Default: blank result. 5.5.8.6 Status 3 Msg setting See Status 0 Msg setting above.
-
Page 14: System Error Messages
Solution: Remove any old user names that are no Reason: The DDU expects a call to be completed longer in service. If this is not possible, contact Midian within 4.5 seconds and this time has been exceeded. to learn about our Computer Aided Dispatch (CAD) -
Page 15: Menu System Map
IDIAN LECTRONICS NCORPORATED MENU SYSTEM MAP DDU-100/200 Manual... - Page 16 SPECIFIC PROD DATES OF U9 SENSE SHDN C54A 560p +5VLCD MIC2951 VTAP R40A CONNECTS FDBK TO U1:43 SHDN DOCUMENT NAME 5.1V MIDIAN ELECTRONICS, INC. DDU-100/DDU-200 SENSE U6:3 C48A .01u C52A LM324 7.5K FDBK 4.7u 2012-05-11 SCHEMATIC DATE: APPR DWN BY:...
-
Page 19: Page
This page intentionally left blank... - Page 20 ALARM[BLU] ALARM[BLU] R54A R54B P6:1 LED2:1 BUSY[GRN] BUSY[GRN] P6:3 LED2:2 R77A SEND[BRN] SEND[BRN] GREEN R77B MIDIAN ELECTRONICS, INC. DOCUMENT NAME DDU KEYBOARD 2000-05-01 APPR DATE: DWN BY: SCHEMATIC PROJECT NUMBER SHEET 7318A 2013-06-17 2013 1 of 1 REV: COPYRIGHT ©...
