1.
Product Description

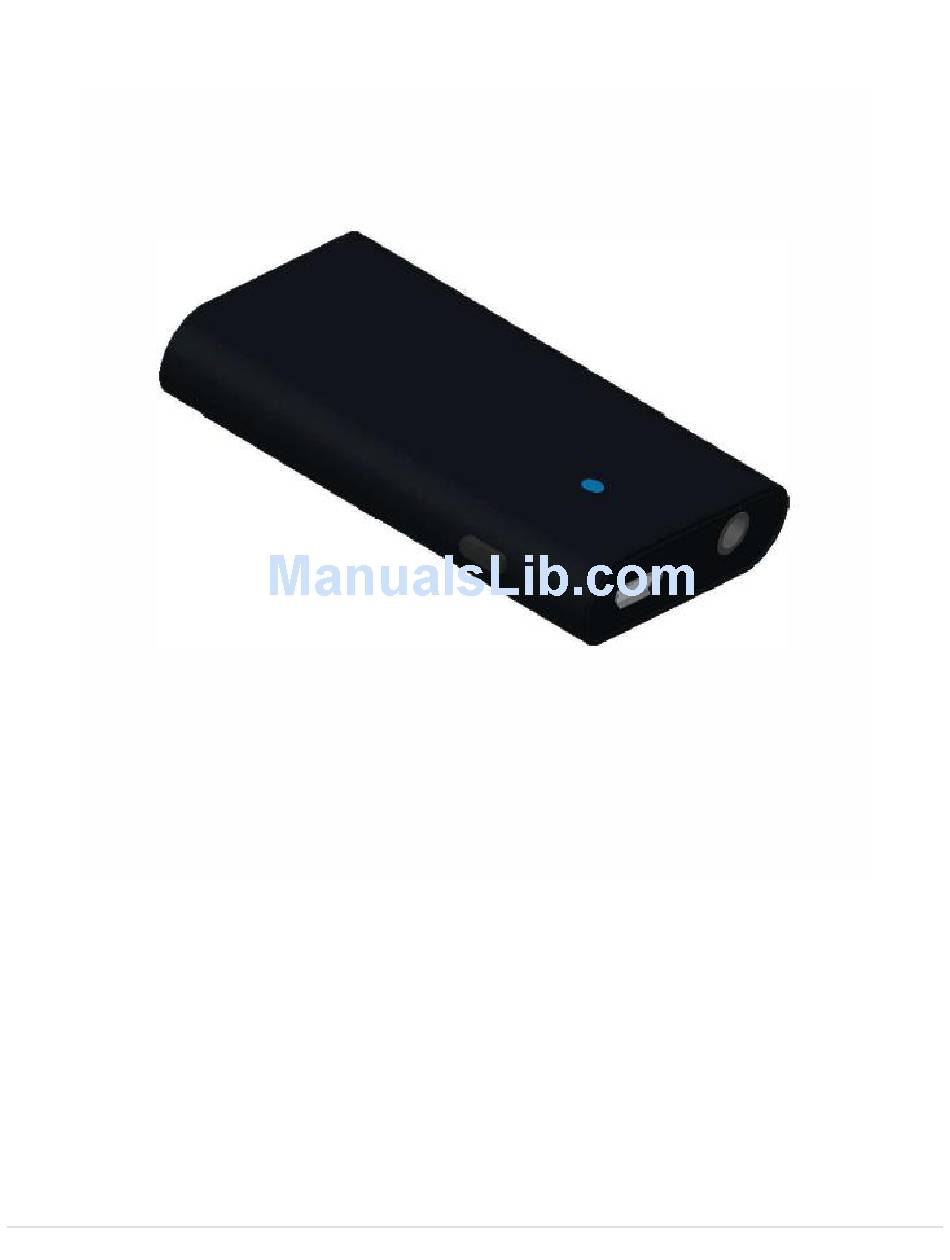

This product streams a stereo audio input via Bluetooth to another Bluetooth enable device such as the HLT
Relay. The device is powered by a rechargeable lithium polymer battery (260mAh) and charged by a 5V USB
Micro connector. It has a 3.5mm 3-pin audio input jack. It has one Button and LED for Bluetooth pairing and
status.
本产品通过 1 个蓝牙到另外 1 个可用蓝牙设备立体声音频输入例如 HLT 转换器，该设备通过 5V Micro
USB 连接器由可充电锂聚合的电池(容量需达到 260mAh，实物丝印为 240mAh)供电. 带 1 个 3.5mm
3PIN 音频输入插座，1 个按钮和 1 个状态 LED 灯用于蓝牙配对.
2.
User Interface
产品描述
用户界面
User manual
BT TV Adapter
Advertisement
Table of Contents
Summary of Contents for Sound Quest SQC9B00
-
Page 1: Product Description
User manual BT TV Adapter Product Description 产品描述 This product streams a stereo audio input via Bluetooth to another Bluetooth enable device such as the HLT Relay. The device is powered by a rechargeable lithium polymer battery (260mAh) and charged by a 5V USB Micro connector. - Page 2 Functions & Features 功能 Power 电源 When the unit is receiving 5V power from USB connector, the unit is always in a NON-Sleep mode. 当机子从 USB 连接器接受到 5V 电源时，机子一直处于非睡眠模式 When the unit is not receiving 5V and the unit is in Sleep Mode, a press and hold for 2 seconds will wake the unit.
- Page 3 LED 在蓝色和红色之间交替闪灯(1 秒闪蓝色，1 秒闪红色) If the unit pairs with a device, it will enter Paired Mode. 如果机子与设备配对，将进入配对模式 If the unit doesn’t pair with a device and it is not powered by USB, it will enter Sleep Mode after 1 min. 如果机子没有与设备配对且没有通过...
- Page 4 Audio Input 音频输入 机子有 1 个 3.5mm 音频座用于立体声音频输入 The unit will have a 3.5mm jack for stereo audio input. Electrical 电子 The device is powered by a rechargeable lithium polymer battery (260mAh) and charged by a 5V USB Micro connector. 设备通过...
-
Page 5: Specifications
Mechanical 结构 Specifications 规格 Colors & Decoration 颜色&装饰 Packaging 包装 Box and Tray Design 彩盒和吸塑盘设计 4 色印刷+光面 4C Printing + Varnish o Approx. Dimensions: 7.5 x 9.5 x 3.5 inches (190 x 240 x 91 mm) 尺寸约 7.5 x 9.5 x 3.5 英寸 (190 x 240 x 91 mm) o See Appendix C: Box and Tray Design and Appendix D: Cardboard Templates 见附录... - Page 6 o FCC ? o IC ? o CE ? o BLUETOOTH SIG ? o WEEE /ROHS ? Appendix 附录 A: Engraving 雕刻 B: Screen Printing 丝印 C: Package Design 包装设计...
-
Page 7: Fcc Statement
D: Package Templates 包装模板 FCC Statement： 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
