Summary of Contents for VelectriX Urban Mens 2.0

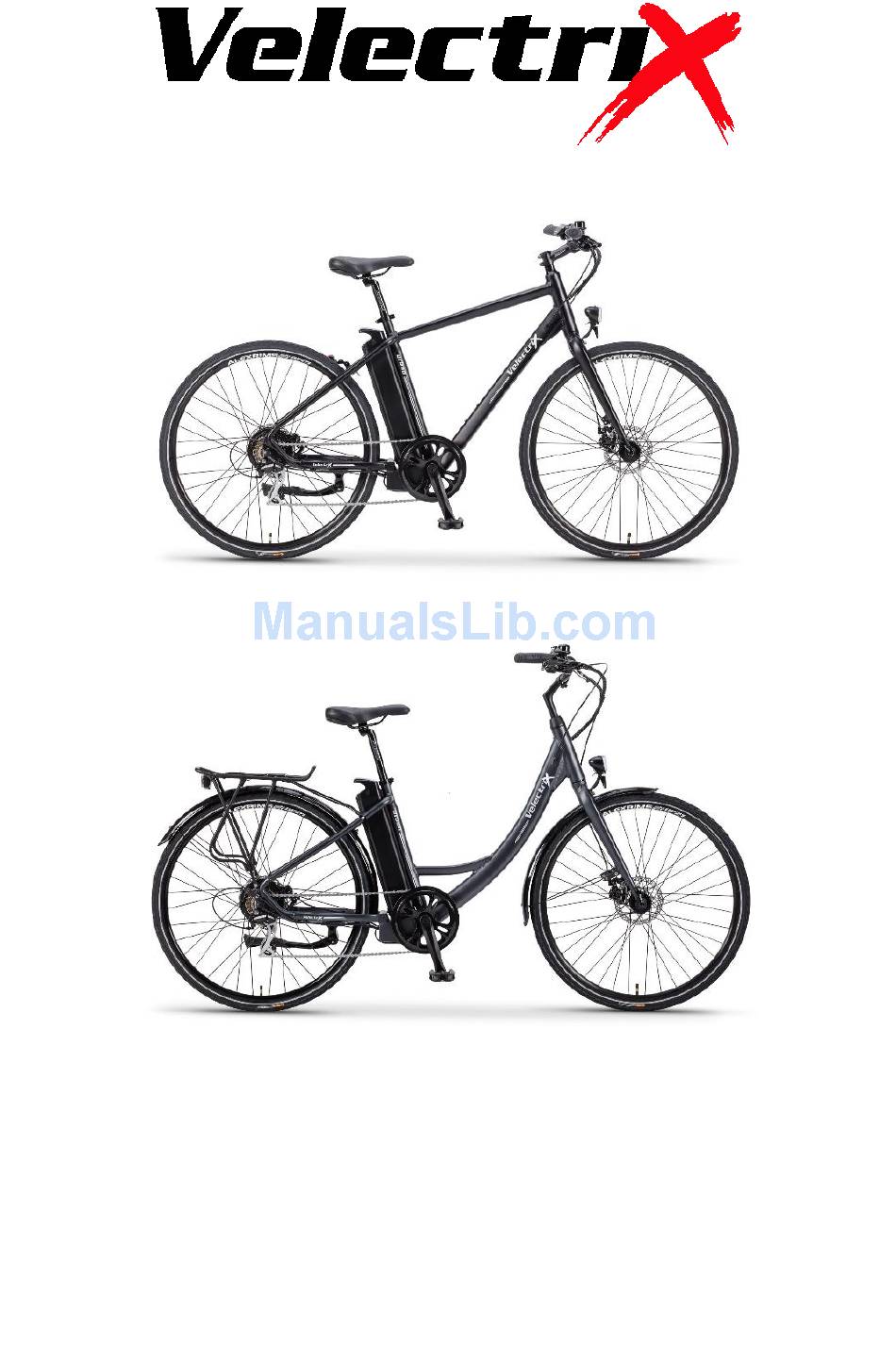

  • Page 1 Instruction Manual: VelectriX Urban 2.0...
  • Page 2: Table Of Contents

    CONTENTS Safe Riding Recommendations Page 2 Pre-Ride Checklist Page 3 Display and Controls Page 4 Maintenance Page 8 Warranty Page 9 Contact Details Page 10 Service Log Page 11 Model Specification Page 12 Page 1...
  • Page 3: Safe Riding Recommendations

    Your VelectriX bike must be returned to your servicing dealer after 250kms or 6 weeks from date of purchase, whichever comes first, to re-tension the spokes. Spokes should then be re-tensioned every 1500kms.
  • Page 4: Pre-Ride Checklist

    Pre-Ride Checklist Check your bike for any loose nuts, bolts or fixings. Check tyre pressures on your bike are correct. Please always refer to the tyre manufactures suggested levels on the side of the tyre. The following can be used as a guide only: Urban 2.0 (40-80psi).
  • Page 5: Display And Controls

    LED Display and Controls Your electric bike is equipped with a LED display, mounted on the left side of the handlebar, and is controlled with the use of 2 buttons (MODE) and (POWER) Turning the Battery On/Off To ride the bike with assisted power, you must first switch the battery on. This is done by simply pressing the power button located on the top of the battery.
  • Page 6 Pedal With Assisted Power With the battery now turned on, you can turn on the LED display, by pushing and holding the red POWER button on the LED display for 2 seconds. The battery capacity red lights will appear on the top of the LED display and the number 1 indicator light will turn red.
  • Page 7: Battery Instructions

    Battery Instructions Lock/Unlock Battery This bike is supplied with a set of keys, which are needed to lock/unlock the battery from the bike. The lock is located at the base of the battery on the left hand side of the bike. Simply turn left or right to lock/unlock. Removing The Battery From The Bike To remove the battery, unlock the battery (make sure to remove the key before removing battery), remove the seat post and slide the battery...
  • Page 8 Charging The Battery You can charge the battery on or off the bike, but first make sure that the battery is turned off (hold the button on top of the battery until you hear a short beep and the LED lights disappear). Now plug the battery charger (supplied with this bike) into the charging port, which is positioned towards the top of the battery on the right side.
  • Page 9: Maintenance

    9 months or 1500kms, whichever comes first. Excluding the electronics, motor, battery and wiring, your VelectriX bike is a normal bike, with normal components. Your dealer will be able to explain to you the general care and maintenance required for the components of your bike.
  • Page 10: Warranty

    Warranty All VelectriX bikes are covered by the following warranty and conditions of use: Battery 2 years Motor 2 years Frame 5 years Other Components 1 year (excluding consumables: cables, tyres, tubes, hand grips).  The warranty is only valid for the first owner and is not transferrable.
  • Page 11: Contact Details

    Contact Details If you have any questions, concerns or technical issues with any VelectriX product please contact your VelectriX dealer immediately. Dealer Name: Dealer Contact Number Address Sales Person Sales Date VelectriX Australian Service Centre Contact Details: VelectriX Pty Ltd...
  • Page 12: Service Log

    Service Log Date Notes Next Service Due Date: Date Notes Next Service Due Date: Date Notes Next Service Due Date: Date Notes Next Service Due Date: Date Notes Next Service Due Date: Page 11...
  • Page 13: Model Specification

    Model Specification VelectriX Urban Mens 2.0 Frame: Aluminium VelectriX Urban Mens Size: 50cm Fork: Aluminium fixed front fork Colour: Satin black Tyres: Kenda K Shield 700c x 38c Brakes: Shimano mechanical discs/Tektro levers Gears: Shimano Acera 7 speed Motor: 36 volt 250 watt rear hub motor Battery: 36 volt Panasonic 11.6ah lithium ion...
  • Page 14 Model Specification VelectriX Urban Unisex 2.0 Frame: Aluminium VelectriX Urban Unisex Size: 46cm Fork: Aluminium fixed front fork Colour: Anthracite grey Tyres: Kenda K Shield 700c x 38c Brakes: Shimano mechanical discs/Tektro levers Gears: Shimano Acera 7 speed Motor: 36 volt 250 watt rear hub motor Battery: 36 volt Panasonic 11.6ah lithium ion...

This manual is also suitable for:

Urban unisex 2.0Urban 2.0+ unisexUrban 2.0+ mens
