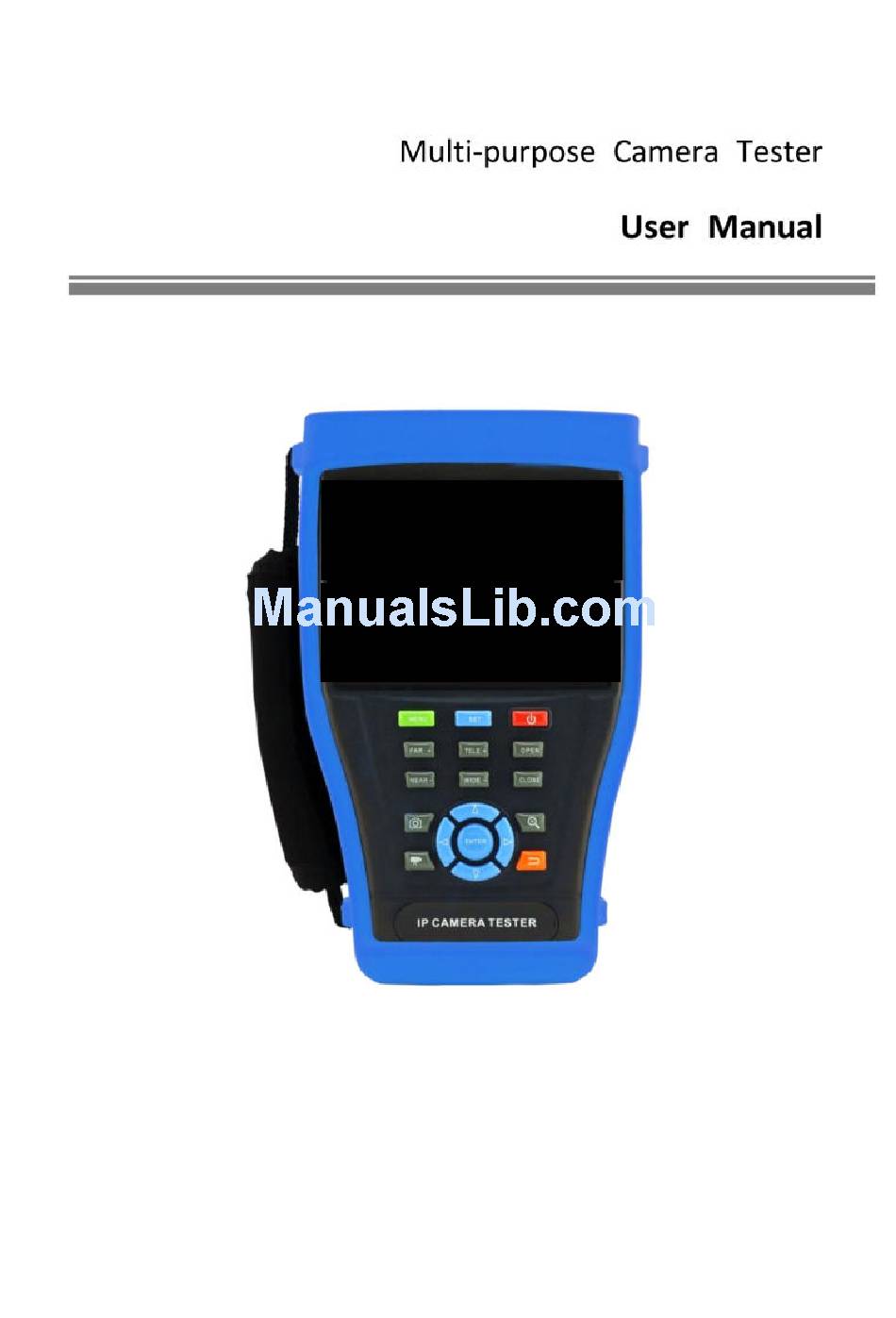

Summary of Contents for NST HK-HDTESTER2
-
Page 3: Table Of Contents
Table of Content 1. Safety information ----------------------------------------------------------------------------------------------------------- 3 2. Multi-purpose Camera Tester Introduction --------------------------------------------------------------------------- 4 2.1 General --------------------------------------------------------------------------------------------------------------- 4 2.2 Features -------------------------------------------------------------------------------------------------------------- 4 2.3 Function-------------------------------------------------------------------------------------------------------------- 7 2.4 Packing list -------------------------------------------------------------------------------------------------------- 12 2.5 Function interface ----------------------------------------------------------------------------------------------- 13 3. Operation -------------------------------------------------------------------------------------------------------------------- 18 3.1 Installing the Battery ------------------------------------------------------------------------------------------- 18 3.2 Instrument connection ----------------------------------------------------------------------------------------- 19 3.2.1 IP camera connection ------------------------------------------------------------------------------- 19... - Page 4 3.3.15 Audio player ----------------------------------------------------------------------------------------- 59 3.3.16 LED Flashlight ---------------------------------------------------------------------------------------- 60 3.3.17 PoE/PSE Voltage test ------------------------------------------------------------------------------ 60 3.3.18 Calculator --------------------------------------------------------------------------------------------- 61 3.3.19 Browser ----------------------------------------------------------------------------------------------- 61 3.3.20 VMS ---------------------------------------------------------------------------------------------------- 62 3.3.21 PoE power / DC12V 2A and DC 5V 2A USB power output -------------------------------- 64 3.3.22 Application tools ------------------------------------------------------------------------------------ 65 3.3.23 APPS Tools Folder ---------------------------------------------------------------------------------- 81 3.3.24 System Setting--------------------------------------------------------------------------------------- 82...
-
Page 5: Safety Information
1. Safety information The tester is intended to use in compliance with the local rules of the electrical usage and avoid to apply at the places which are inapplicable for the use of electrics such as hospital, gas station etc. ◆... -
Page 6: Multi-Purpose Camera Tester Introduction
2. Multi-purpose Camera Tester Introduction 2.1 General The 4.3 inch touch screen multi-purpose camera monitor and tester is designed for maintenance and installation of IP camera and analog camera as well as other security equipments , 800x480 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. - Page 7 Built in Wi-Fi, can receive image from wireless camera, as well as ONVIF and customized IP cameras. HD CVI camera image display, zoom ,video record and playback ,coaxial PTZ control and call camera OSD menu HD TVI camera image display, zoom ,video record and playback ,coaxial PTZ control and call camera OSD menu ...
- Page 8 wires will be displayed Support RS232/RS485,Rate 600 ～ 115200bps adjustable PTZ protocol analysis, control protocol command displays to check RS485 transmission whether is normal, easy to find the fault device PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets and the preset position ...
-
Page 9: Function
2.3 Function 2.3.1 Touch screen and OSD menu The multi-purpose camera tester combines touch screen control and physical buttons. This combination makes the tester very user friendly. The test meter allows you to move the function icons from the tester’s main menu to the APPS folder or move them back to customize the main menu 2.3.2 IP discovery IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address 2.3.3 Rapid ONVIF... -
Page 10: Ip Camera Test
connect to a Wireless network. 2.3.8 IP camera test The device is designed for ONVIF IP camera testing. It can display the image from an 4M IP camera and change the IP address. 4.3 inch 800×480 screen display allows the user to view the image with a sufficient screen size. - Page 11 2.3.13 Analog camera test Display analog camera image ,4.3 inch 800×480 LCD screen display , supports PAL & NTSC formats. The LCD screen's back light brightness, video image brightness, contrast and color saturation are all adjustable. 2.3.14 PTZ controller Displays and allows for analysis of analog video and controls Pan/tilt/zoom function of PTZ analog cameras.
- Page 12 PELCO-P:A0 00（Add） xx xxxxxx AF xx PELCO-D:FF 01（Add）xx xxxxxxxx 2.3.20 Digital Image zooms on the monitor Set image zoom up to 4X to get a closer look at all the image detail. Supports analog and many IP cameras 2.3.21 Video screenshot Capture the video image displayed , and save as JPEG file in the SD card.
-
Page 13: Ip Address Scan
2.3.28 IP address scan The IP address scan can quickly search for connected IP cameras or another network device IP address. 2.3.29 PING Test PING is the most conventional network debugging tools; It is used for testing if the connected IP camera or other network equipment’s Ethernet port is working normally and the IP address is correct. - Page 14 2.4 Packing list 1). Tester 2). Adaptor DC12V 2A 3) Network cable tester 4) Polymer lithium ion battery (7.4V DC 5000mAh) 5). BNC cable 6). RS485 cable 9). Output Power cable 10). Audio cable 12). Safety cord 13). Tool bag 14).
-
Page 91: Specifications
4. Specifications 4.1 General Specifications Model HK-HDTESTER2 Display 4.3 inch capacitive touch screen , resolution 800（RGB）x 480 Network port 10/100M auto adapt,RJ45 Built in WIFI,speeds150M, allows you to connect to a wireless network and WIFI view IP cameras IP discovery... -
Page 92: Data Monitor
record and playback playback video HDMI output 1 channel HDMI output, supports up to 1080p PoE power output 48V PoE power output, Max power 24W 12V/2Apower output Output DC12V/2A power for camera USB 5V power output 5V 2A power output only ,no data 1 channel audio signal input and 1 channel audio signal output to connect Audio test headphones... - Page 93 Working -10℃---+50℃ Temperature Working Humidity 30%-90% Dimension/Weight 215mm x 127mm x 53mm / 0.82kg The data above is only for reference and any change of them will not be informed in advance. For more detailed technical inquiries, please feel free to call the Technical Department of our company.
