General Information
PLEASE READ THROUGH BEFORE BEGINNING ASSEMBLY.
IMPORTANT: Check boxes for Contents Listed
Check inside of parts as some parts are packaged
inside of others
In the event of missing, damaged or defective parts
please call our customer service dept. at 1-877-258-6020
or e-mail sales@dura-trel.com
When assembling components, place on a clean, flat
non-abrasive surface to avoid scratches
Tools Required
... Battery or Electric Drill
... Tape Measure
... Hammer or Rubber Mallet
... Shovel or Post Hole Digger
... PVC, Super, or Crazy Glue
with #2 phillips bit
(recommended)
(recommended)

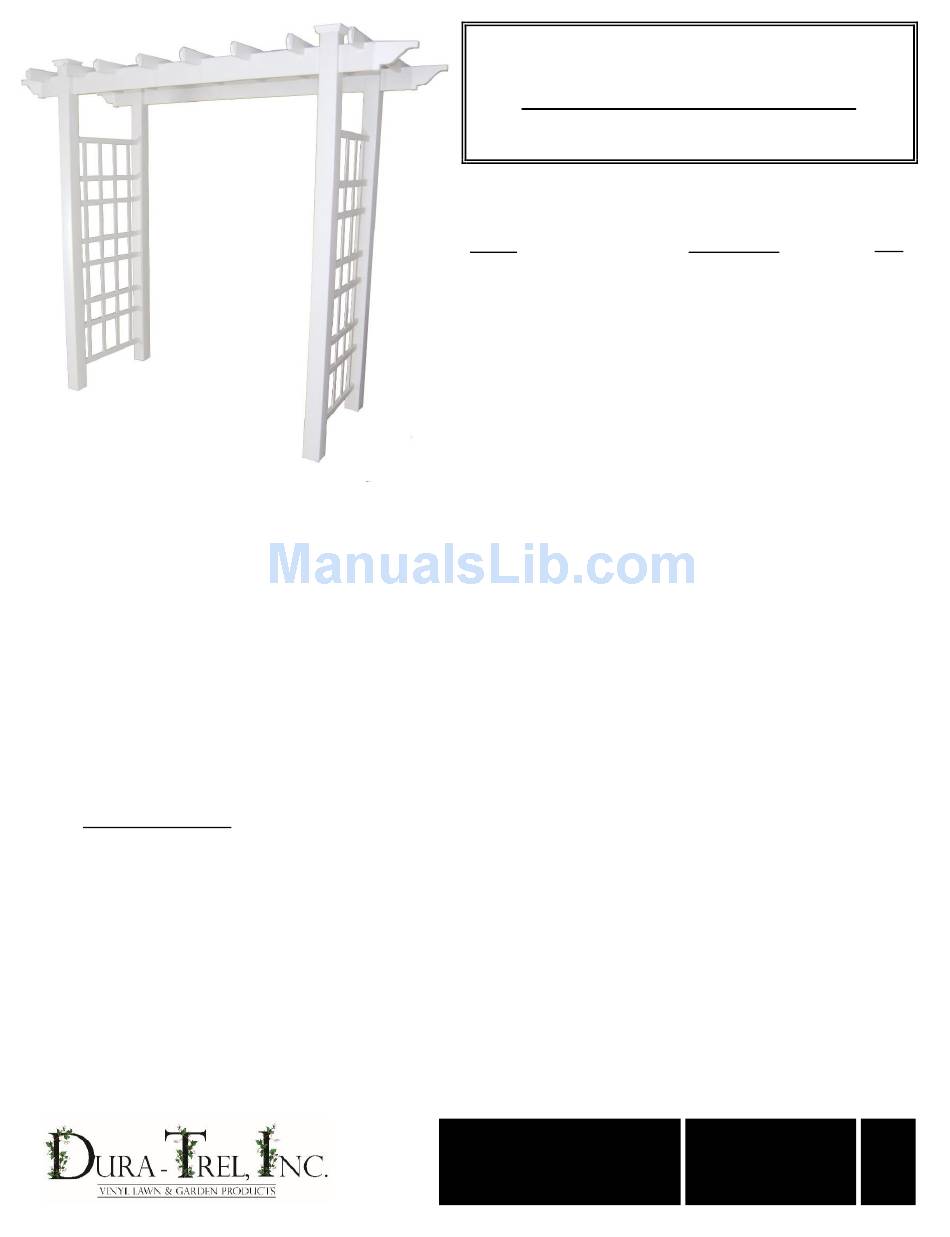

Newcastle Arbor
11196
Model#
Part #
1
4" sq. x 93" Left Post
2
4" sq. x 93" Right Post
3
⅞ x 1½ x 35" Top/Bottom Cross Rail
4
⅞ x 1½ x 35" Center Cross Rail
5
¼ x 1½ x 66" Vertical Slat
6
1½ x 5½ x 96" Arbor Top Rail
7
⅞ x 3 x 46½" Arbor Top Cross Rail
8
4" sq. New England Post Cap
9
1½ x 5½" Arbor Top End Cap
10
24" Steel Ground Anchor (U-shaped)
11
Hardware Bag
⅞ x 3"Arbor Top Cross Cap
2" Painted Screw
#8 - 1" Painted Self Tapping Screw
Super Glue Tube
150 Birch Road
P.O. Box 122
Sheboygan Falls, WI 53085
Assembly Instructions
Description
1
1
1
1
1
1
1
2
2
1
2
1-877-258-6020
www.dura-trel.com
sales@dura-trel.com
Qty
2
2
4
12
8
2
8
4
4
4
1
16
40
8
2
1
Advertisement
Table of Contents
Related Manuals for Dura Trel 11196
Summary of Contents for Dura Trel 11196
-
Page 1: General Information
Newcastle Arbor 11196 Model# Assembly Instructions Part # Description 4" sq. x 93" Left Post 4" sq. x 93" Right Post ⅞ x 1½ x 35" Top/Bottom Cross Rail ⅞ x 1½ x 35" Center Cross Rail ¼ x 1½ x 66" Vertical Slat 1½... - Page 2 Warranty Statement 20 Year Guarantee Please call manufacturer direct with questions concerning missing or defective parts at Toll Free: 877-258-6020. Dura-trel, Inc. products are warranted to be free from manufacturing defects resulting in delaminating, peeling, flaking, corroding, cracking, crazing, or extreme amounts of fading or bleaching causing the PVC to change to its natural color for a period of 20 years from the date of purchase.
- Page 3 sales@dura-trel.com Sheboygan Falls, WI 53085...
- Page 4 Lay out one right post (part 2). Starting at the bottom, insert one top/bottom rail (part 3) and six center rails (part 4). Insert four vertical slats (part 5 ) through the center rails and into the bottom rail. Insert second top/bottom rail (part 3) into the post and slide vertical slats into top rail.
- Page 5 Slide left post (part 1) over corresponding cross rails. Using 2" screws, screw together the arbor panel. Be sure all parts are fully inserted into posts before securing. REPEAT steps 1-5 to complete the other side panel. Instruction Text Newcastle Arbor 4...
- Page 6 Insert ends of arbor top rails (part 6) through holes at top of each post of arbor panels. Using 2" screws, screw arbor top cross rails (part 7) to arbor top rails using small pilot holes as guides. Newcastle Arbor 5...
- Page 7 Using 2" screws, finish screwing arbor top to arbor panels. Be sure that all parts are fully inserted before screwing Using super glue tubes, glue four arbor top end caps (part 9) onto ends of arbor top rails. Glue 4" sq. post caps (part 8) onto posts.
