Summary of Contents for BURWELL Elcometer 106
-

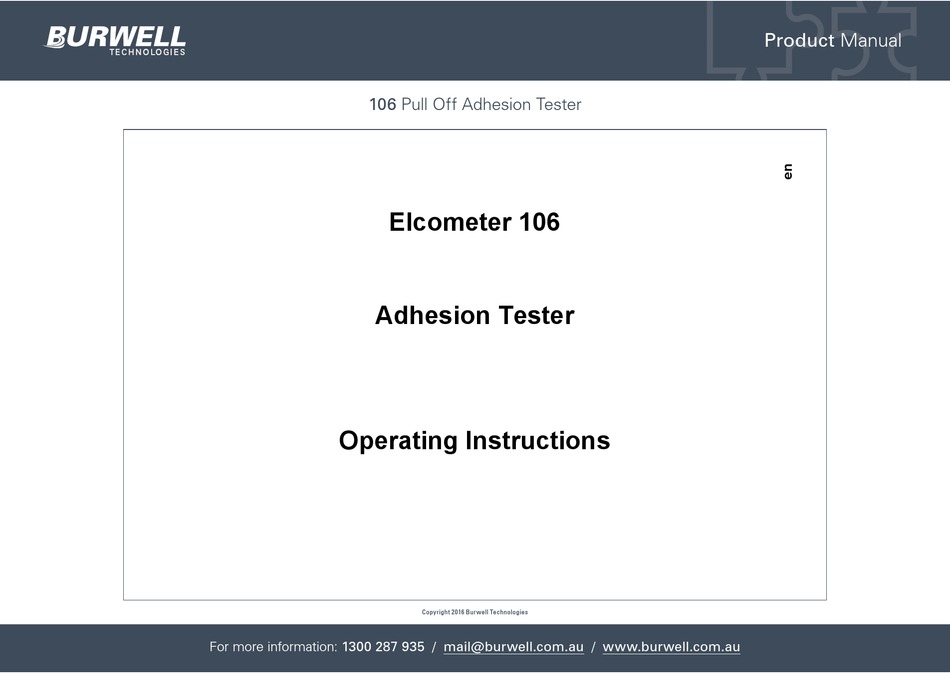

Page 1: Operating Instructions
Product Manual 106 Pull Off Adhesion Tester 106_TMA_0003_00_09.fm Page -1 Tuesday, July 31, 2012 2:08 PM Elcometer 106 Adhesion Tester Operating Instructions Copyright 2016 Burwell Technologies For more information: 1300 287 935 / mail@burwell.com.au / www.burwell.com.au... - Page 2 106_TMA_0003_00_09.fm Page 0 Tuesday, July 31, 2012 2:08 PM is a registered trademark of Elcometer Limited. All other trademarks acknowledged. A Material Safety Data Sheet for the araldite epoxy adhesive supplied with the Elcometer 106 and available as an accessory is available to download via our website: www.elcometer.com/images/MSDS/araldite_epoxy_adhesive.pdf ©...
-
Page 3: Table Of Contents
Related equipment ............. . 12 1300 287 935 3 of 12 mail@burwell.com.au www.burwell.com.au For more information... -
Page 4: About Your Tester
Our products cover all aspects of coating inspection, from development through application to post application inspection. The Elcometer 106 Pull Off Adhesion Tester is a world beating product. With the purchase of this product you now have access to the worldwide service and support network of Elcometer. For more information visit our website at www.elcometer.com... - Page 5 106_TMA_0003_00_09.fm Page 3 Tuesday, July 31, 2012 2:08 PM 1.1 STANDARDS Your Elcometer 106 Pull Off Adhesion Tester can be used in accordance with the following National and International Standards ASTM D 4541, AS/NZS 1580.408.5, EN 13144, ISO 4624 supersedes EN 24624 &...
-
Page 6: Using Your Tester
2.2 SECURING THE DOLLY - VERTICAL SURFACES A magnetic dolly clamp is included with your Elcometer 106 kit of parts. Follow the instructions given in section 2.1 above, but use the magnetic dolly clamp to hold the dolly in place while the adhesive cures. - Page 7 The wrench should be rotated without The support ring need only be used with substrates which may distort due to the force applied during adhesion testing and typically is not required for structural steel. 1300 287 935 7 of 12 mail@burwell.com.au www.burwell.com.au For more information...
- Page 8 Calculate the time the stress should be increased over and practice before testing. The table shows how many seconds each turn should take - see Table 1. Some Standards allow a slower rate (more seconds) up to a maximum time. Table 1: Elcometer 106 Stress Rate, s/turn (see Standard) Scale Max MPa...
-
Page 9: Adhesives
Rapid Araldite is a fast setting two pack epoxy paste. It should be mixed for 30 seconds and used within 2 minutes. Curing Times: • 8 hours at 25°C • 4 hours at 10°C • 2 hours at 23°C • 1.5 hours at 40°C 1300 287 935 9 of 12 mail@burwell.com.au www.burwell.com.au For more information... -
Page 10: Dollies
This has twice the diameter and so 4 times the area of the standard dolly. The scale readings of the Elcometer 106 must be divided by 4 to compensate. The large dolly is taller than the standard dolly. A special base ring is used to support the instrument to enable correct operation. -
Page 11: Maintenance
106_TMA_0003_00_09.fm Page 9 Tuesday, July 31, 2012 2:08 PM 5 MAINTENANCE The Elcometer 106 Pull Off Adhesion Tester is designed to give many years service under normal operating and storage conditions. Lubricate the screw threads with light machine oil on a regular basis. -
Page 12: Technical Specification
Fax: +32 (0)4 374 06 03 Fax: +49(0)7361 52806 77 Fax: +31 (0)30 210.6666 Fax: +33 (0)2 38 91 37 66 e-mail: be_info@elcometer.com e-mail: de_info@elcometer.de email: nl_info@elcometer.com e-mail: fr_info@elcometer.com www.elcometer.be www.elcometer.de www.elcometer.com www.elcometer.fr 1300 287 935 12 of 12 mail@burwell.com.au www.burwell.com.au For more information...
