DIAMO ONE

USER MANUAL

™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ONE and is the answer not in the manual?

Questions and answers

Summary of Contents for DIAMO ONE

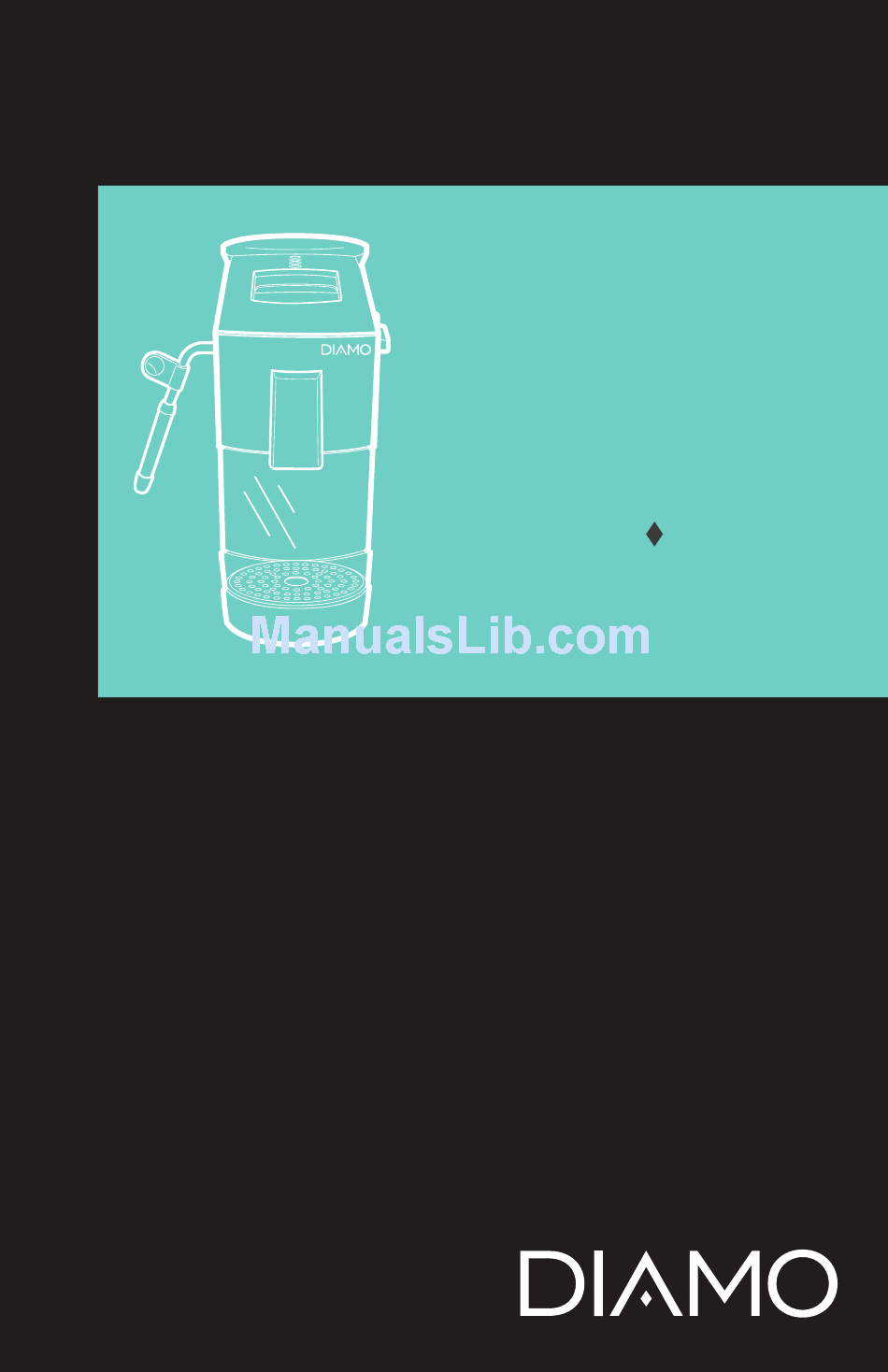

  • Page 1: User Manual

    DIAMO ONE USER MANUAL ™...
  • Page 2 Warning: The steam tube will get extremely hot! Handle with care during and after use.

  • Page 3: Table Of Contents

    Table of Contents Diamo One Overview Preparation Brewing Coffee Frothing Milk Heating Hot Water Turning Off Changing the Amount Brewed Per Cup Adjusting for Hard Water Cleaning the Steam Tube Descaling Your Diamo One Descaling: How Often? Troubleshooting Contacting Support Warranty Information...

  • Page 4: Diamo One Overview

    Diamo One Overview Single (Espresso) Double (Lungo) Steam Water Tank Lid ESE Pod Slot Cover Power ESE Pod Slot Steam Tube Water Tank Coffee/Steam Knob Coffee Strength Dial Spout Drip Tray Power Cord Recycle Box Lifting Flat Warning: Product accepts only Easy...

  • Page 5: Preparation

    Wash the Water Tank with warm soapy water. Fill the tank with water. (Maximum capacity: 37 oz. / 1.1L) Place the full tank on the back of the Diamo One. You must have the tank lid OPEN in order to slide it fully into place.
  • Page 6 Recycle Box. Be sure to wait until the second shot is fully finished before removing your cup. When finished, power off your Diamo One. To power off your Diamo One, press the Power button, then release. The Power button should go dark.

  • Page 7: Frothing Milk

    Steam button will light up a steady blue and the Power button will flash red while the Diamo One heats up. When the Power button turns green, are ready to continue. DO NOT TOUCH THE STEAM TUBE while foaming or for three minutes afterwards.

  • Page 8: Heating Hot Water

    Helpful Tips • If your frothing cup is too tall, position the Diamo One so that the steam tube is off the edge of the counter. • Any milk or milk alternative will froth with practice. Lower-fat milk is easier to froth without burning.

  • Page 9: Turning Off

    Changing the Amount Brewed per Cup You can adjust the amount of water provided by each of the Diamo One’s buttons if your cups are larger or smaller than the default setting. See the table below for default, minimum, and maximum amounts. Continue reading to learn how to change those settings.
  • Page 10 If the amount dispensed is different, repeat step 6. The amount should now match what you set. Changing the amount for Double (Lungo): Power on the Diamo One and wait for it to pre-heat as normal. When pre-heating is finished (Power LED is green), press and HOLD the Double (Lungo) button.
  • Page 11 Reset the Settings: To set all amounts back to their default setting: Power on the Diamo One. Once it has pre-heated (Power LED is green), you must hold down three buttons—Steam, Single, and Double. Doing so can inadvertently start the “Americano”...

  • Page 12: Adjusting For Hard Water

    (see Turning Off instructions) IMPORTANT: Do not go to the next step until the Diamo One is off and the Power button LED is dark. If you try to set the HARD option below with the power ON, you will start the descaling process instead.

  • Page 13: Cleaning The Steam Tube

    Cleaning the Steam Tube To avoid contamination and maintain a clean machine, we recommend that you thoroughly clean the Steam Tube regularly after use. WARNING: Ensure that your Steam Tube has had sufficient time to cool before attempting to clean. Remove the Steam Tube Assembly from the Steam Tube Arm by holding the...

  • Page 14: Descaling Your Diamo One

    See diagram at left. Descaling your Diamo One Your Diamo One will let you know when it’s time to descale when the Power button’s LED flashes green Place a bowl or other container underneath the spout. Make sure the container is large enough to hold one (1) L of water.

  • Page 15: Descaling: How Often

    Power and Steam button LEDs will both flash during the process. When it’s done, the Power button LED will flash red rapidly. Press the Power button to turn the Diamo One off. Refill the Water Tank with clean water, empty the bowl/container and replace under the Spout, then start at Step 5 and run the descaling process again.

  • Page 16: Troubleshooting

    Unplug and check the Cord Power Cord for damage. • Faulty power outlet If OK, continue. Leave unplugged for at least one minute, then try again. Power button LED flashes • Not enough water in Fill the Water Tank red quickly...

  • Page 17: Contacting Support

    Contact Support We want to help solve whatever issues you may encounter when using your Diamo One. If at any time you are not satisfied or have questions, please call or e-mail our dedicated customer support specialists and they will be more than happy to assist you.

  • Page 18: Warranty Information

    ED ABOVE, CUSTOMER’S SOLE REMEDY FOR BREACH OF WARRANTY SHALL BE REPLACEMENT OR REPAIR OF THE PRODUCT OR PART OR REFUND OF THE PURCHASE PRICE PAID, AT DIAMO. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES (OR CONDITIONS), EXPRESSED OR IMPLIED, INCLUDING (WITHOUT LIMITATION), ANY WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT, OR FITNESS FOR A PAR- TICULAR PURPOSE.
  • Page 19 ™ Love latte art? Curious about crafting cappuccinos? Visit www.diamocoffee.com for easy video tutorials and delicious recipes! Plus, find accessories and more!
  • Page 20 www.diamocoffee.com...
