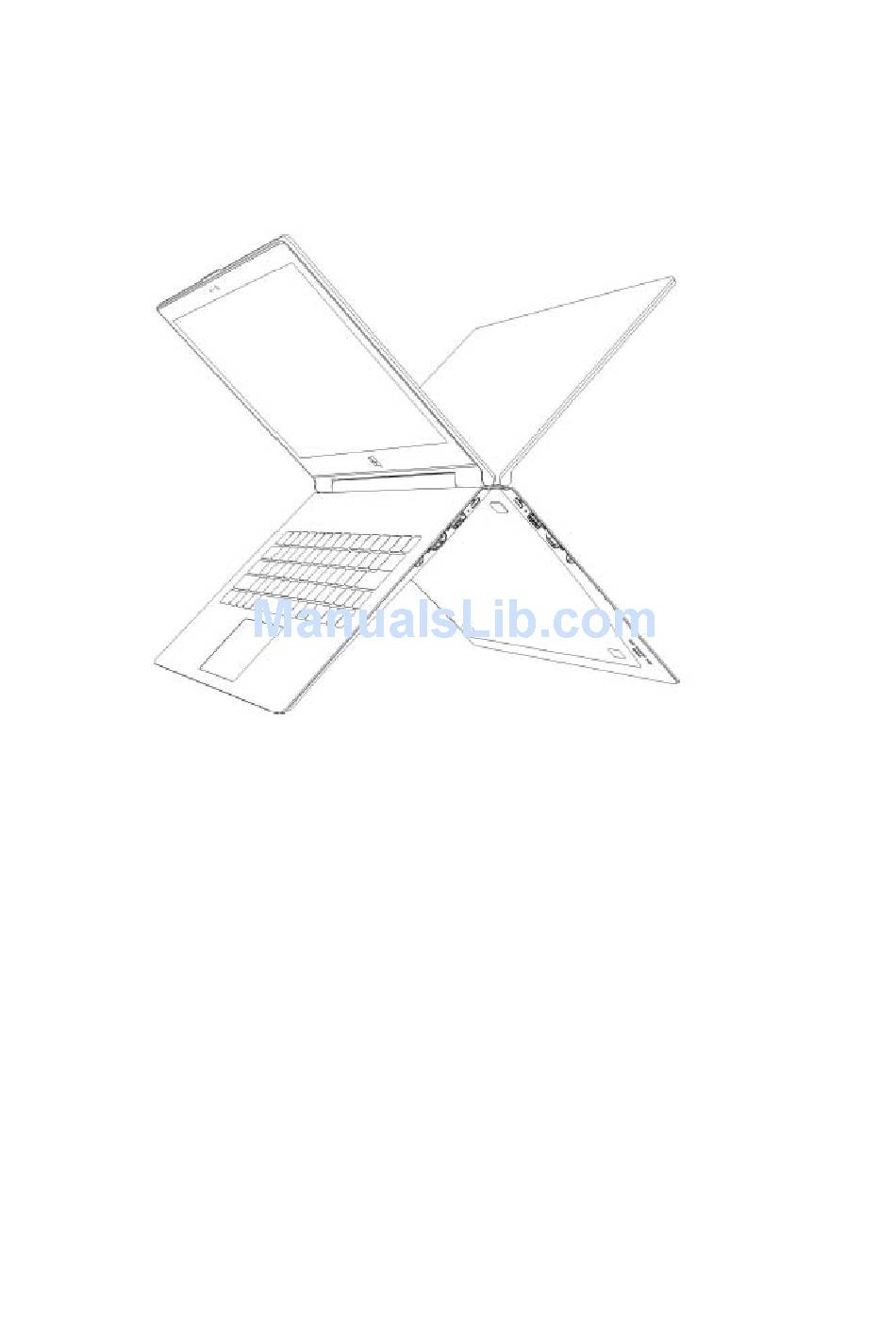

- Page 1 Awood X1 Series Laptop User Manual Awood A-QW-070X110...
- Page 2 This manual applies to all X1 series models. Tips: ● Welcome to log in Awood’s official website to obtain the latest product information and quick and convenient support services. ● It is strongly recommended to purchase Awood products via its official website to obtain complete warranty services.
- Page 3 Icons in this manual: Tips: tips or additional instructions to complete operations. Important information: important instructions to be followed in operation or use. Warning: important instructions to be followed in particular work to maintain the user safety and prevent the laptop data from loss or components from damage.
-
Page 4: Table Of Contents
Contents Chapter I Host and Part Check ......................5 1-1 Packing list ..........................5 1-2 Appearance check ........................5 1-3 Product serial number check ...................... 5 Chapter II Laptop Structure ......................... 6 2-1 Top view ............................ 6 2-2 Bottom view ..........................8 2-3 Right view .......................... -
Page 5: Chapter I Host And Part Check
Chapter I Host and Part Check 1-1 Packing list The packing box of Awood X1 series laptop product should include the following items: ① X1 series laptop host × 1 ② Dedicated power adapter with USB3.1 type C interface × 1 ③... -
Page 6: Chapter Ii Laptop Structure
Chapter II Laptop Structure 2-1 Top view... - Page 7 ① Light sensor It can sense the intensity of ambient light. When the ambient light is dark, the keyboard backlight will be ON automatically. When the ambient light is bright, the keyboard backlight will be OFF automatically. This function is not part of standard configuration, and may not be applied in certain models.
-
Page 8: Bottom View
2-2 Bottom view ① Reset hole The reset button is set in the reset hole. When you press this button, one-key power-off can be realized for the laptop in the ON state. This function is used to cut off the power supply of hardware in a forced manner and restart the system by the ON/OFF key under unexpected conditions. -
Page 9: Right View
This is a new general USB interface. Compared with the common rectangular USB interface, it is smaller and not directional. USB can be freely inserted into the interface. The X1 series laptop is designed to be charged through this interface and perform data communication with Type-C storage devices. -
Page 10: Left View
2.4 Left view ① USB 2.0 interface It has downward compatibility with USB 1.1 devices, such as keyboards, pointing devices, cameras, hard drivers, printers, scanners, etc. Several devices can run at the same time with one computer. In addition, this interface supports hot-plugging. Most of peripherals can be connected or removed without laptop restart. -
Page 11: Keyboard
2-5 Keyboard Function keys of the laptop keyboard can be combined to enable the starting screen and various functions in the Windows desktop mode. To enable or disable the built-in wireless network function. To enable or disable the built-in Bluetooth function. To switch the display equipment. - Page 12 To move the cursor to the starting point of an object. To move the cursor to the end of an object. To enable or disable the Caps Lock state. To enable or disable the numeric keypad.
- Page 13 Enabling of the numeric keypad: When the numeric keypad is enabled, the functions of these keys are as follows: Number 7 Number 8 Number 9 Number 4 Number 5 Number 6 Multiply (meaning that the calculation function is “to multiply”) Number 1...
- Page 14 Number 2 Number 3 Divide (meaning that the calculation function is “to divide”) Number 0 Deduct (meaning that the calculation function is “to deduct”) Decimal point (meaning a separator between the integer and decimal part of a figure) Add (meaning that the calculation function is “to add”) Windows 8.1 function keys The laptop has two groups of special Windows function keys, as shown below: Press it to return to the starting screen.
-
Page 15: Chapter Iii Operation
Chapter III Operation 3-1 Charging before use The built-in battery module of the host may not be fully charged. It is recommended to charge the battery before start-up to ensure the normal operation. Insert the three-hole plug of the power cord to the AC jack of the power adapter, the international plug of the power cord to the 100V-240V power socket and the USB type C plug of the power adapter into the USB type C jack of the laptop to charge the battery. -
Page 16: Start-Up
3-2 Start-up Open the display. Press the power ON/OFF key The laptop may not be started normally as a result of insufficient power of the battery module if charging is not performed before start-up. The heat produced normally by the system may be dissipated to the surface when the laptop is working or charged. -
Page 17: Bios Test And Setting
3-3 BIOS test and setting When the power supply of the laptop is turned on, a series of diagnostic tests controlled by software will be performed at first on the screen, generally known as POST (power-on self-test). POST is operated at first every time the laptop is started. If no error appears in POST, the operating system will be enabled;... - Page 18 The sub-options of [Boot Option #1] appear. Move up and down to select the priority boot disc and press for confirmation. 3-3-2 Menu label [Security] The [Security] can help you to set the administrator and user passwords and control the permission for use of the hard disc drive.
- Page 19 ② The password dialog box appears. Input the password and press ③ The password dialog box appears again. Input the password again and press Refer to the following steps to clear the password: ① Move right and left in the menu label and select [Security]. Move up and down and select [Administrator Password] or [User Password].
-
Page 20: Touch Screen Operations
Move right and left in the menu label and select [Save & Exit]. Move up and down and select [Save Changes and Exit]. The confirmation dialog box appears. Select [Yes] and press . Then the settings will be saved. Exit BIOS. Restart the laptop to apply new settings. - Page 21 Touch and press ● Touch and press the application program tile to drag it into a new position. ● Touch and press the top of the operating application program and drag it to the screen bottom to close it. Touch/touch twice and press ●...
-
Page 22: Touch Pad Operation
3-5 Touch pad operation The gestures of the touch pad are similar to those of the touch screen. However, the touch pad has the general operating characteristics of the mouse, which can help you run programs and read/write laptop settings. Refer to the following graphical instructions for the gestures of touch pad operation. - Page 23 application program. This function is the same as that of [Left-to-right sliding] of the touch screen. Slide to the left Slide from the right to left of the touch pad to enable the Charms bar. This function is the same as that of [Right-to-left sliding] of the touch screen.
-
Page 24: Product Registration
The product registration is greatly associated with warranty services and free of charge. Once the product is registered on the official website of Awood, the warranty will take effect immediately and you will immediately enjoy membership services and rights for future activities or promotions. -
Page 25: Chapter Iv Daily Basic Maintenance
Chapter IV Daily Basic Maintenance 4-1 LCD maintenance ● When the laptop is not used in a long time, temporarily turn off the power supply of LCD via the function key on the keyboard. The display principle of the LCD is different from that of the conventional display (CRT), the laptop requires no screen protection program to prevent screen aging. -
Page 26: Keyboard Maintenance
4-3 Keyboard maintenance ● It is recommended not to wear a watch or bracelet during laptop operation to prevent the keyboard or shell from being worn during operation. ● If dust is accumulated in the keyboard, clean seams with a small brush, or blow dust out with a high-pressure nozzle used for cleaning the camera lens, or clean dust and debris in keyboard seams with a hand-held vacuum cleaner. -
Page 27: Recommended Schedule Of Routine Maintenance
4-8 Recommended schedule of routine maintenance Shell cleaning Screen cleaning Keyboard Touch cleaning cleaning Weekly √ √ √ maintenance Monthly √ maintenance Wipe the shell with non-corrosive neutral detergent. All the electronic components such as the battery and display must be disposed properly. -
Page 28: Chapter V Simple Troubleshooting
Why the charging indicators indicates that the laptop is not charged when the displayed residual power is 95% and the power supply is connected? This is normal. The battery of Awood laptop is designed to be charged only when the capacity is less than 95%. This aims to prevent frequent... - Page 29 4. Dry the laptop and its parts with cold air blown by a fan. Immediately send the laptop to the service center or professional engineer authorized by Awood to minimize the damage. How to solve the problem of failure in access of the laptop with built-in...
- Page 30 User Manual. In addition, Awood shall not be liable for the accuracy or reliability of results obtained by using this User Manual or information obtained through the User Manual.
- Page 31 Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Any change or modification of the product without authorization of Awood may result in invalidity of EMC and radio specifications and loss of warranty rights and interests.
- Page 32 RF Exposure Information (SAR) This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. WARNING!! Read this information before using your Notebook Computer.
- Page 33 2. The warranty period shall three years from the date of purchase. 3. If you are registered as a member of Awood official website, you will enjoy additional preferential warranty. 4. In case of any doubt or suggestion, contact us anytime: http://www.awood.com...
