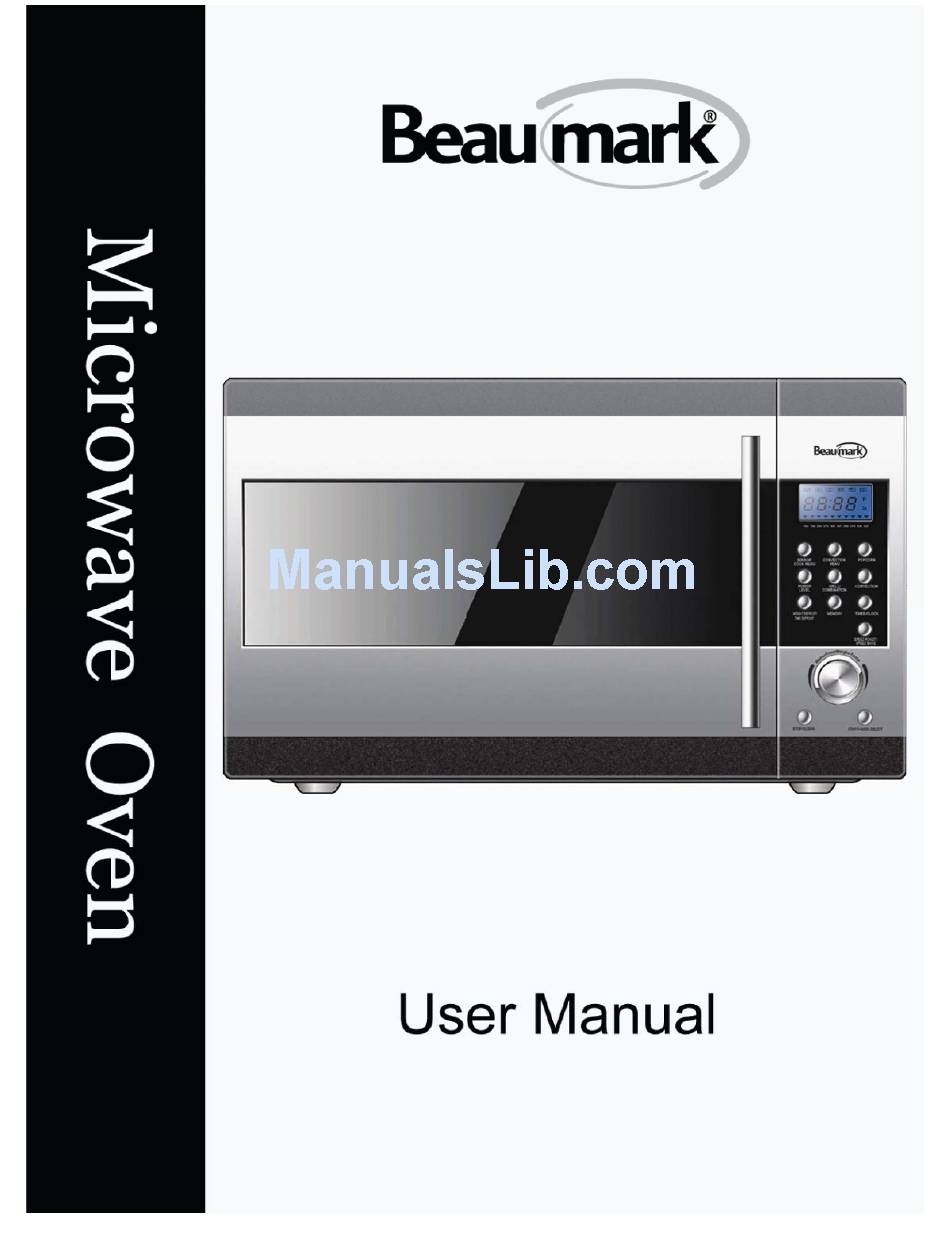

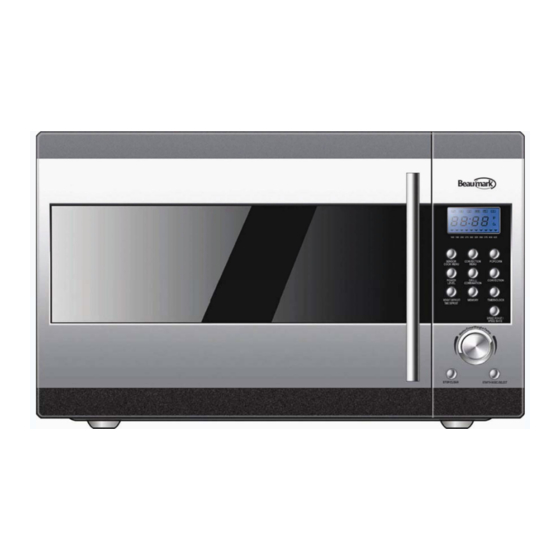

Summary of Contents for Beau mark BM-7990-SS
-
Page 2: Table Of Contents
Turntable installation……………………………………………………………8 Countertop Installation………………………………………………………….8 Operation…………………………………………………………………………………...9 - 19 Control Panel and Features……………………………………………………………….9 Oven Features……………………………………………………………………………...10 - 19 Troubleshooting…………………………………………………………………………..20 Warranty Information……………………………………………………………………21 SPECIFICATIONS Model: BM-7990-SS Rated Voltage: 120V~ 60Hz Rated Input Power (Microwave): 1500W Rated Output Power (Microwave): 1000W Oven Capacity: 0.9 Cu.ft. Turntable Diameter: 12.4 inch... -
Page 3: Safety
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. -
Page 4: Important Safety Instructions
Important Safety Instructions 14. Do not use the oven cavity for storage Oven Safety 1. The oven must be on a level surface purposes. Do not store combustible items such as bread, cookies, paper products, etc. 2. The turntable and turntable roller must be in the inside the oven. -
Page 5: Food Safety
1. Liquids, such as water, coffee, or tea are able Food Safety to be overheated beyond the boiling point without appearing boiling. Visible 2. Use only the specified bag size for direct bubbling or boiling when the container is access popcorn. removed from the microwave oven is not always present. -
Page 6: Utensils
UTENSILS CAUTION - Personal injury hazard Tightly-closed utensils could explode. Closed containers should be opened and plastic pouches should be pierced before cooking. See the instructions on “materials you can use in microwave oven or to be avoided in microwave oven.” There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below. -
Page 7: Materials To Be Avoided In A Microwave Oven
MATERIALS TO BE AVOIDED IN MICROWAVE OVEN Utensils Remarks Aluminum Tray May cause arcing. Transfer food into microwave-safe dish. Food carton with metal May cause arcing. Transfer food into microwave-safe dish. handle Metal or Metal-trimmed Metal shields the food from microwave energy. Metal trim may cause utensils arcing. -
Page 8: Turntable Installation
Turntable Installation Hub (Underside) a) Never place the glass turntable upside down. The glass turntable should never be restricted b) Both glass turntable and turntable support Glass Turntable must always be used during cooking c) All food and containers of food are always placed on the glass turntable for cooking. -
Page 9: Operation
OPERATION Control Panel Operations 1. Power Level Pg.10 2. Grill Pg.10 3. Convection Pg.10 4. Combination Pg.11 5. Sensor Cook Pg. 11 6. -
Page 10: Oven Features
1. Clock setting When the microwave oven is plugged in, the oven will display “0.00” and hour will flash. 1) Turn the dial to set hour; 2) Press the “SELECT” button to enter, and the minutes will flash. 3) Turn the dial to set minutes. 4) Press the “START”... -
Page 11: Sensor Cook Chart
Press the "START" key to start cooking. 5. Combination 1) Press the “COMBINATION” button separately to select "C-1" or "C-2", see below instruction chart. 2) Turn the dial to adjust the cooking time; 3) Press the "START" to start cooking. Note: Combination instructions Microwave Grill... - Page 12 1) In waiting states, press "SENSOR REHEAT". And put the food into the microwave oven. "SA-1" is displayed. 2) Press "START/+30SEC" to start sensor reheat function. 3) The buzzer will sound twice when the sensor induce the steam. The time will count down and display the surplus cooking time will appear in the display window.
- Page 13 Defrosting Tips and Tricks Manual Defrost After Defrosting Food During Defrost Time at P3 Stand Rinse (min/kg) (min/lb) Time Fish and Seafood (up to 1.4 kg [3lbs]) Break apart/Rearrange Crabmeat Fish Steaks 8 to 12 4 to 6 Turn Over 5 min.
- Page 14 3) Press "POWER LEVEL", "P100" displays. Press “SELECT” to input your selected power level. 5) Turn the dial to adjust the cooking time of 7 minutes; 6) Press “GRILL” 7) Turn the dial to adjust the cooking time of 3 minutes. 8) Press "START"...
- Page 15 Cooking Guide Chart 2 Foods Microwave Combination-1 Convection (Microwave+Convection) Appetizers Dips and Spreads Pastry Snacks Beverages Sauces and Toppings Soups and Stews Meats Defrosting Roasting Poultry Defrosting Roasting Fish and Seafood Defrosting Cooking Casseroles Eggs and Cheese Scrambled, Omelets Quiche, souffle Vegetables, (fresh) Breads Quick...
-
Page 16: Troubleshooting
TROUBLESHOOTING Before you call for service… You can often correct operating problems yourself. If your microwave oven fails to work properly, locate the operating problem in the list below and try the solutions listed for each problem. Problem Possible Causes What to do •... -
Page 17: Limited Warranty
electrical circuit, Move the radio or TV as far away from the microwave as possible or check the position and signal of the Radio or TV antenna LIMITED WARRANTY This product is warranted by Hudson’s Bay Company, Zellers Inc. and Home Outfitters (together, “Hbc”) against defects in materials or workmanship for one year from the date of original purchase at retail.
