YippieYo CROSSBUGGY Instructions For Use Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTIONS FOR USE
FOR YOUR CROSSBUGGY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CROSSBUGGY and is the answer not in the manual?

Questions and answers

Summary of Contents for YippieYo CROSSBUGGY

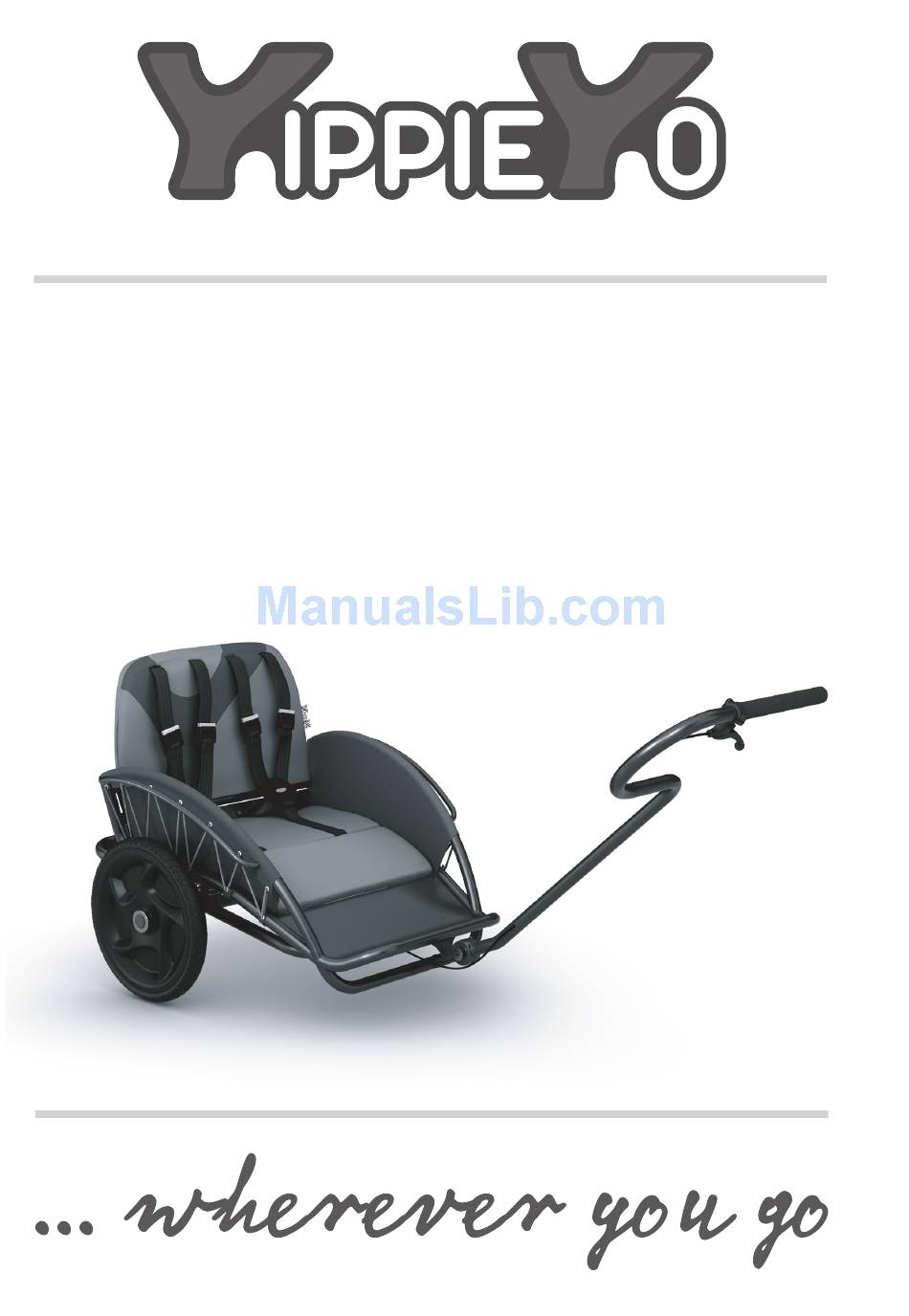

  • Page 1 INSTRUCTIONS FOR USE FOR YOUR CROSSBUGGY...
  • Page 2 European Stan- dard for Pushchairs and Prams. In order to obtain the GS Certification for tested safety the YippieYo was put through its paces in a tough endurance test and rigorously examined for harmful substances. Every Crossbuggy is handcrafted to the highest standard in Switzerland and Germany.
  • Page 3 Crossbuggy. Please read the instructions carefully and pay special attention to the safety information. Should you lend your Crossbuggy to another person, please ensure that you also pass on this instruction booklet. Important: Keep this instruction booklet for later reference!

  • Page 4: Table Of Contents

    List of contents: Safety information ___________________________________ S. 1 Intended use _______________________________________ S. 3 Assembly __________________________________________ S. 4 Attaching and removing the wheels ________________ S. 4 Collapsing and pulling out the backrest _____________ S. 6 Collapsing and pulling out the pull-bar ______________ S. 7 Putting on and removing the seat covers ____________ S.

  • Page 5: Safety Information

    1. Safety information WARNING! GENERAL SAFETY INFORMATION: • Never leave your child unattended! • Please only use the buggy with children over the age of 12 months who can already sit alone without support. • Use the restraint system at all times. •...
  • Page 6 BEFORE YOU SET OFF: • Before using the product, ensure that all the locking mechanisms are closed: - Ensure that the backrest is locked in place and that the two clips around the back crossbar are closed. - Ensure that the hinge joint on the pull-bar is locked in place and secured with the cam lever.

  • Page 7: Intended Use

    • When on sloping terrain, always brake the buggy with the hand brake. • Always take your children out of the Crossbuggy on extremely steep or sloping terrain. • When carrying the buggy lift it by the armrests and/or the seat frame only.

  • Page 8: Assembly

    3. Assembly In order for you to be able to take your Crossbuggy wherever you go, we have reduced the amount of space it requires as far as possible. Simply re- move the wheels, collapse the backrest and fold in the pull-bar – and your Crossbuggy is ready to transport.
  • Page 9 3. Lift the buggy up slightly with one hand and, using the other hand, position the wheel so that the disc brake is located be- tween the two black brake pads and the QR axle can be pushed into the axle tube. (Fig. 2) Please note that each wheel is designed specifically to be fitted in either the right or the left hand...

  • Page 10: Collapsing And Pulling Out The Backrest

    Removing the wheels: 1. Firstly, release the brake then push the black button on the QR axle. Pull the QR axle out of the axle tube as far as the wheel so that only a small part of the axle with the two balls is visible on the inner side of the wheel.

  • Page 11: Collapsing And Pulling Out The Pull-Bar

    3.3 Collapsing and pulling out the pull-bar The pull-bar can be quickly and simply collapsed for transport purposes. 1. When the buggy is to be used, pull out the pull-bar until the small pin with the red button locks into place in the hinge joint.

  • Page 12: Putting On And Removing The Seat Covers

    Putting on and removing the seat covers When you order your YippieYo from us, then it generally comes assembled and ready for use, i.e. the seat covers are already on. If you want to re- move the seat covers for purposes of cleaning or in order to put on a new set of seat covers, then please note the following information: 1.
  • Page 13 Removing and putting on the side bolsters Removing the side bolsters: 1. Untie the knots on both ends of the cord and remove the cord stoppers. 2. Pull the cord through the eyelets of the side bolsters. 3. Pull the side bolster flaps out of the slits between the seat shell and the tubular frame.

  • Page 14: Adjusting, Fitting And Removing The Safety Harnesses

    3.5 Adjusting, fitting and removing the safety harnesses The ends of all five harness straps (two shoulder straps, two pelvic straps, one crotch strap) are attached to the buggy by means of end brackets. You can release all five strap ends by turning the end brackets and passing them with the shorter side through the slits in the buggy then through...

  • Page 15: Adjusting The Disc Brakes

    4. Adjusting the disc brakes Your Crossbuggy comes, as standard, with a high-quality brake system. Using the brake lever on the pull-bar you can brake while on the move and activate the parking brake when at a standstill. The braking power is distri- buted over both disc brakes by means of a brake distribution device which is directly connected to the wheels.

  • Page 16: Care Instructions

    6. Disposal information Packaging materials are raw materials. Please recycle them! Should the time come when you want to dispose of the Crossbuggy, please bring it to a waste metal collection point. For addresses and opening times of such collection points contact your local authorities.
  • Page 17 Edition: February 2016...
  • Page 19 Edition: February 2016...
  • Page 20 YippieYo AG Kobiboden 63 CH-8840 Einsiedeln Switzerland...
