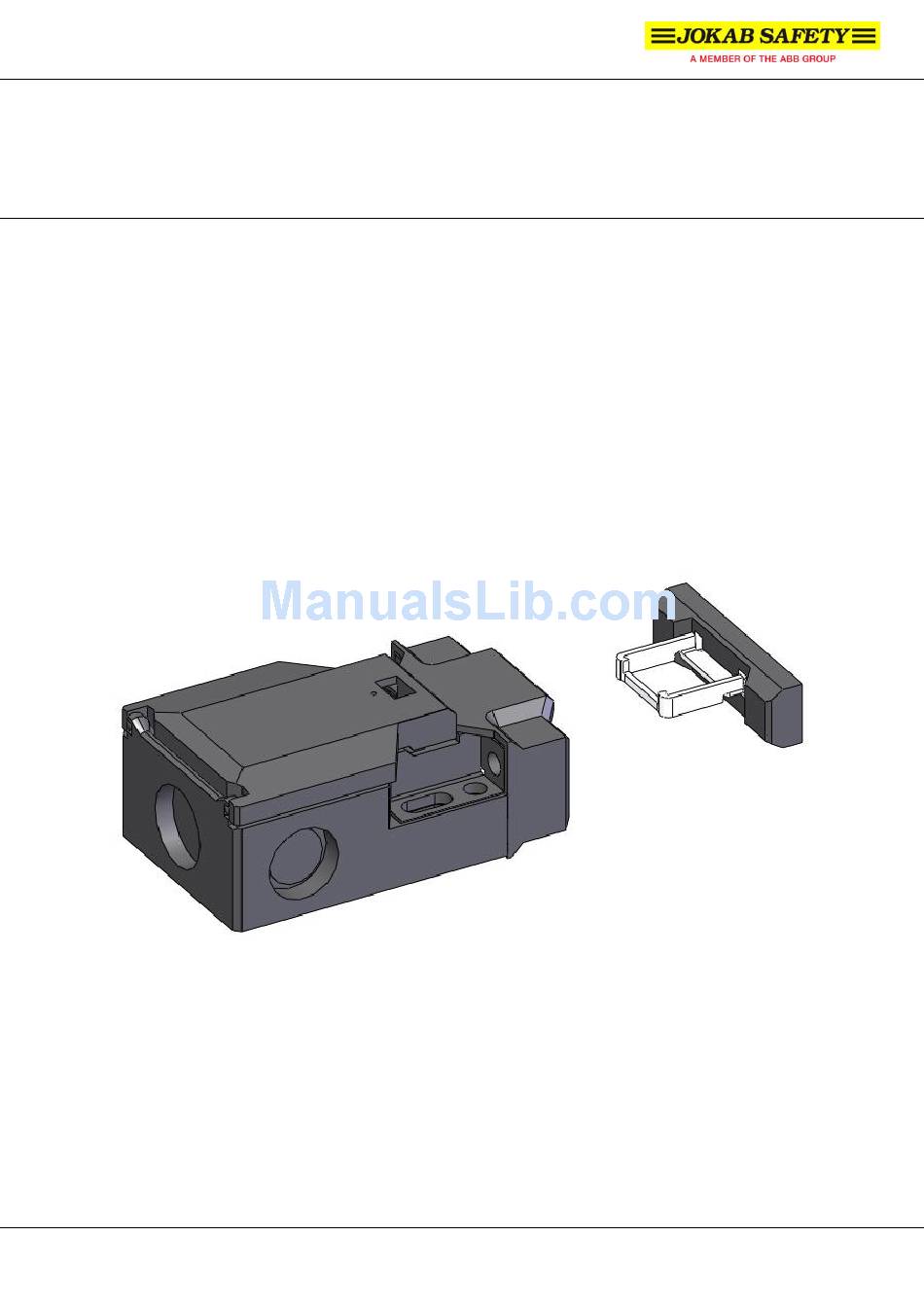

- Page 1 Original instructions JSNY5 Safety interlock switch ABB AB / Jokab Safety Varlabergsvägen 11, SE-434 39 Kungsbacka, Sweden www.jokabsafety.com...
- Page 2 DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. In no event shall responsibility of ABB/JOKAB SAFETY for any act exceed the individual price of the product on which liability asserted.
-
Page 3: Table Of Contents
Table of Contents Introduction ............................4 Scope ..................................4 Audience ................................... 4 Prerequisites ................................4 Special notes ................................4 Overview .............................. 5 General description ..............................5 Safety regulations ..............................5 Function description ..............................6 Connections ............................7 Installation and maintenance ......................8 Installation ................................. -
Page 4: Introduction
Introduction Scope The purpose of these instructions is to describe the safety interlock switch JSNY5 and to provide the necessary information required for assembly, installation, checks and adjustments after installation, and maintenance. The instructions also include information necessary to connect JSNY5 to a safety circuit. -
Page 5: Overview
General description JSNY5 offers three contacts which give both the two contacts needed for high safety level as well as a contact for indication of operating status. The advanced design offers the choice of four operating positions from only two actuator entries by simply rotating the head through 180°. -
Page 6: Function Description
The positive forced disconnect contacts gives a high safety level. By combining the JSNY5 with one of our suitable safety relays like the RT-series, the safety PLC Pluto or Vital (Tina) the requirements for both hatch and gate switch supervision can be fulfilled. -
Page 7: Connections
Connections JSNY5 electrical connections Actuator withdrawn Contact open Contact closed Actuator inserted Traction travel Positive forced disconnect contacts 11 – 12, 21 – 22 The two contacts 11 – 12 and 21 – 22 are positive forced disconnected, and should therefore be used for the safety function. -
Page 8: Installation And Maintenance
Installation and maintenance Installation Use a screwdriver to release the snap-on cover. If the snap-on cover does not provide adequate security during operation, a retaining screw can be used to seal the cover. The snap-on cover opens to an angle of 135°. A transparent cover protects the contact block from external elements during the installation and wiring process. - Page 9 Turning the cap Mounting M20/M16 cable gland Connection type: 6 screw connectors M3 Conductor cross section: Single core 0.5-1.5 mm / Litz wire with connector sleeve 0.5-1.5 mm 1 ) Remove the actuator 2 ) Open cover 3 ) Snap off cover 4 ) Remove cap 5 ) Turn cap 6 ) Latch cap...
-
Page 10: Installation Precautions
In case of breakdown or damage to the product, contact the nearest ABB/Jokab Safety Service Office or reseller. Do not try to repair the product yourself since it may accidentally cause permanent damage to the product, impairing the safety of the device which in turn could lead to serious injury to personnel. -
Page 11: Operation
Operation The N.C. contacts are closed when the actuator is inserted into the switch head, and opened as soon as the actuator is withdrawn. The force required to insert the actuator into or extract the actuator out of the switch head depend on the model. -
Page 12: Model Overview
JSNY5A. Holding force 10 N. JSNY5B 2TLJ020022R0100 JSNY5B. Holding force 30 N. Accessories Note that all brackets come with nuts and screws for use with ABB/Jokab Safety Quick-Guard fencing system. For further information, contact your local ABB/Jokab Safety sales office. Type Article number Description... -
Page 13: Technical Data
: 2,000,000 Certifications NB: A single JSNY5 can achieve performance level PL c according to EN ISO 13849 if used correctly with an ABB/Jokab Safety safety relay, Pluto safety-PLC or Vital safety module. If two JSNY5-switches are used for the same safety function, a performance level up to PL e can be achieved. -
Page 14: Dimensions
Dimensions JSNY5 dimensions NB: All measurements in millimetres. 2TLC172075M0201, rev. A www.jokabsafety.com 2012-09-27... -
Page 15: Ec Declaration Of Conformity
EC Declaration of conformity ABB AB / JOKAB SAFETY Varlabergsvägen 11, SE-434 39 Kungsbacka, Sweden www.jokabsafety.com 2TLC172075M0201, rev. A www.jokabsafety.com 2012-09-27...
