Summary of Contents for 4B Shade 2

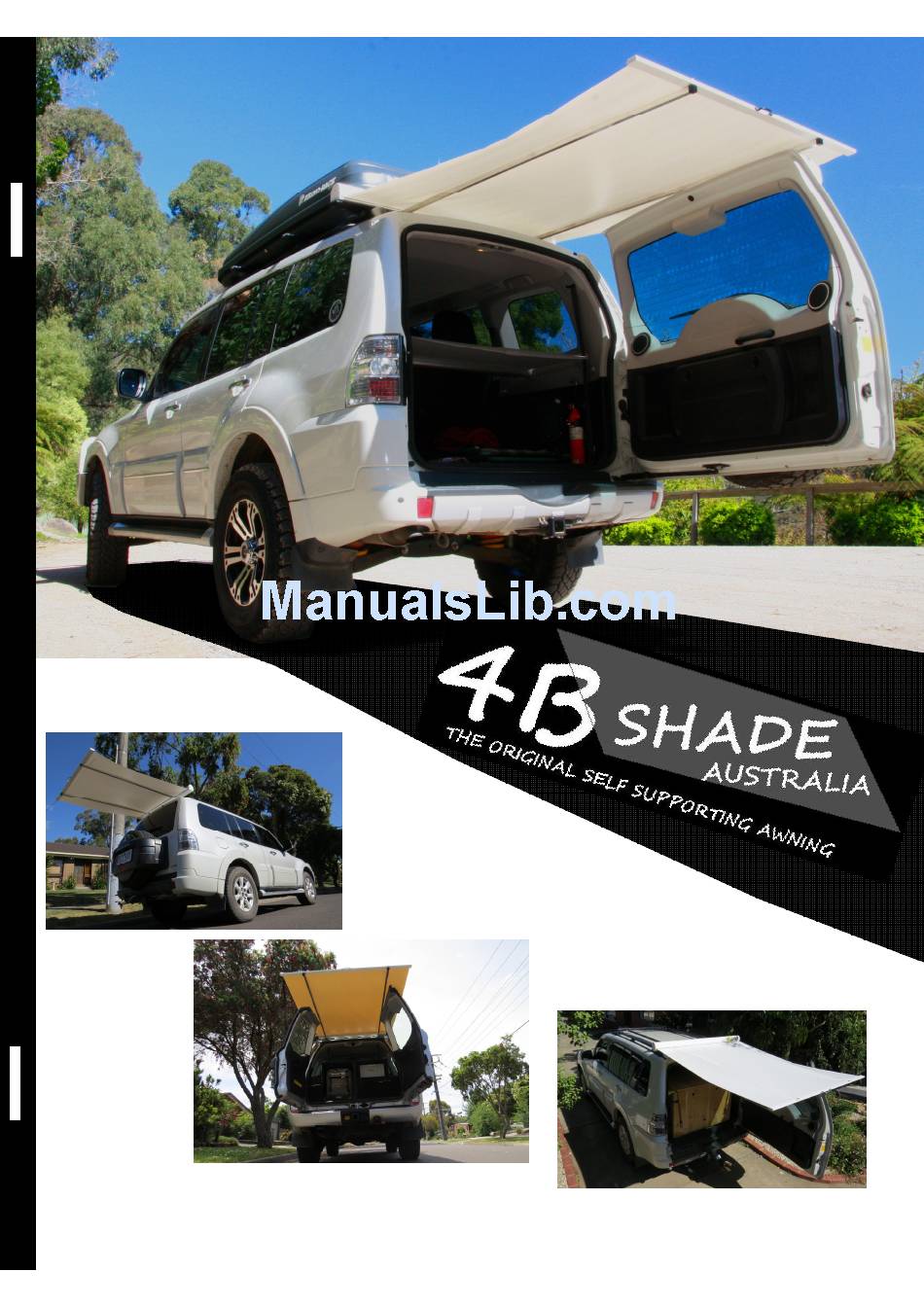

- Page 1 INSTALLATION GUIDE 4B SHADE II greatshade@4Bshade.com.au FEB 2015...
- Page 2 If fitting Cassette (1) direct onto Outer Tubes (7) 4B SHADE AUSTRALIA takes no responsibility for any damage to property or personal injury caused through incorrect installation by the purchaser. Please ensure that you read all installation instructions prior to installation.
-
Page 3: Installation Tools
4B SHADE II 4B SHADE II INSTALLATION TOOLS Socket set with extensions 10mm for U brackets (6) to roof bars / rack 13mm for Bottom Rail (3) connection. 10mm & 13mm spanner will be of assistance! Cordless Drill 6mm metal drill bit... -
Page 4: Cassette Installation
Disassemble cassette by first removing the 2 micro screws then ‘Carefully’ lifting each end of the Cassette front section. (A) NOTE: The Cassette front section is held by 2 internal plastic lugs which can break if too much force is used. Push down gently as you lift each side upwards. - Page 5 4B SHADE II Roof Bar and Roof Rack Installation POSITIONING OUTER TUBE BARS WIDTH OF OUTER TUBES MUST ‘ ’ BE EQUAL – FRONT TO BACK FRONT ROOF BAR RECOMMENDED Approx. 800mm BETWEEN BARS 4B Cassette FRONT BAR REMEMBER OUTER TUBE MUST...
- Page 6 4B SHADE II OH&S – The following step requires tensioning the fabric spring and can cause injury. The Winding Tool may dislodge from the spring. Safety Glasses must be worn and keep area clear of other persons. Re-installing the Fabric and Cassette Hood.
- Page 7 Gripping the handle – pull the 4B Shade outwards keeping the both bars level and even. One Long Motion 4B Shade extends 1.8 Mtrs comfortably and can be secured (if required) at this extension using 2 pins In the pre-drilled holes.
-
Page 8: Maintenance
• Clean car roof of wear shavings after use. • Always check fixtures are tight on a regular basis. • Check bar and fabric alignment if the 4B Shade is hard to pull out or does not retract smoothly. Date of purchase Purchased from - 4B Shade Serial No.
