1. Introduction
●TX2N-4AD4DA analog special function block has four input channels, four output
channels. The input channels receive analog signals and convert them into a digital value.
This is called an A/D conversion. The output channels take a digital value and output an
equivalent analog signal. This is known as a D/A conversion. TX2N-4AD4DA has a
maximum resolution of 12 bits.
●TX2N-4AD2DA analog special function block has four input channels, two output
channels. There's no CH3, CH4 compared with TX2N-4AD4DA. The function and
performance of CH1, CH2 is same to the ones in TX2N-4AD4DA.
●In AD block, the selection of voltage or current based on input/output is by user wiring.
Analog ranges of -10 to 10V DC (resolution: 5mV), and/or 4 to 20mA, -20 to 20mA
(resolution: 20 µA) may be selected.
●In DA block, the selection of voltage or current based on input/ output is by user wiring.
Analog ranges of -10 to 10V DC (resolution: 5mV), and/ or 0 mA to 20 mA, 4 to 20mA
(resolution: 20 µA) may be selected.
●Data transfer between TX2N-4AD4DA（TX2N-4AD2DA）and main units is completed by
buffer memory exchange. There are altogether 64 buffer memories, 32 in 4AD, 32 in
4DA(each of 16 bits).
●The TX2N-4AD4DA draws 30mA from the 5V rail of the main unit or powered extension
unit.

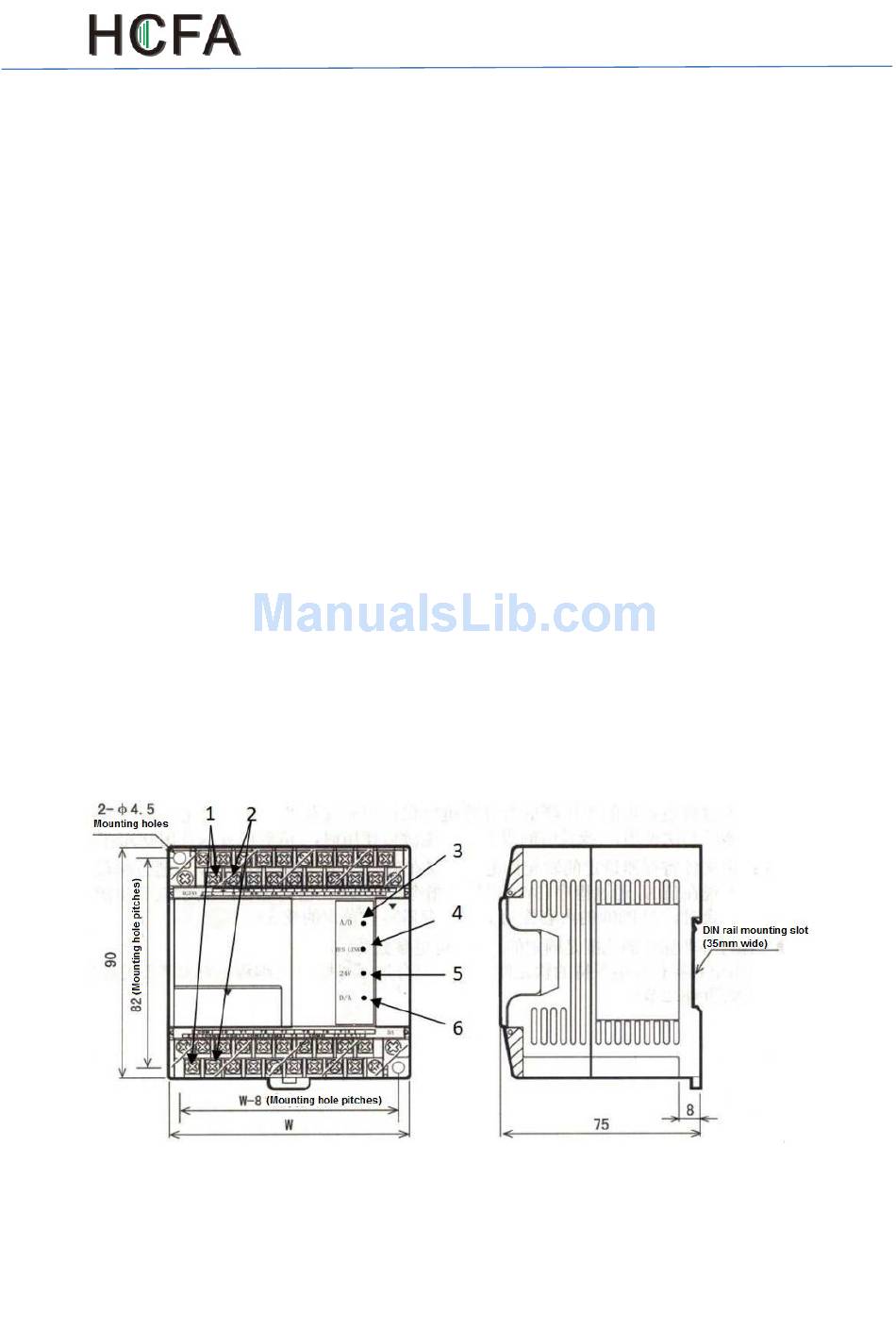

1.1 External Dimensions
1. 24V power supply terminal
3. A/D conversion indicator lamp
5. 24V Power indicator lamp
TX2N-4AD4DA Special Function Block
TX2N-4AD2DA Special Function Block
User's Guide
2. 0V power supply terminal
4. Bus power indicator lamp (LED)
6. D/A conversion indicator lamp
