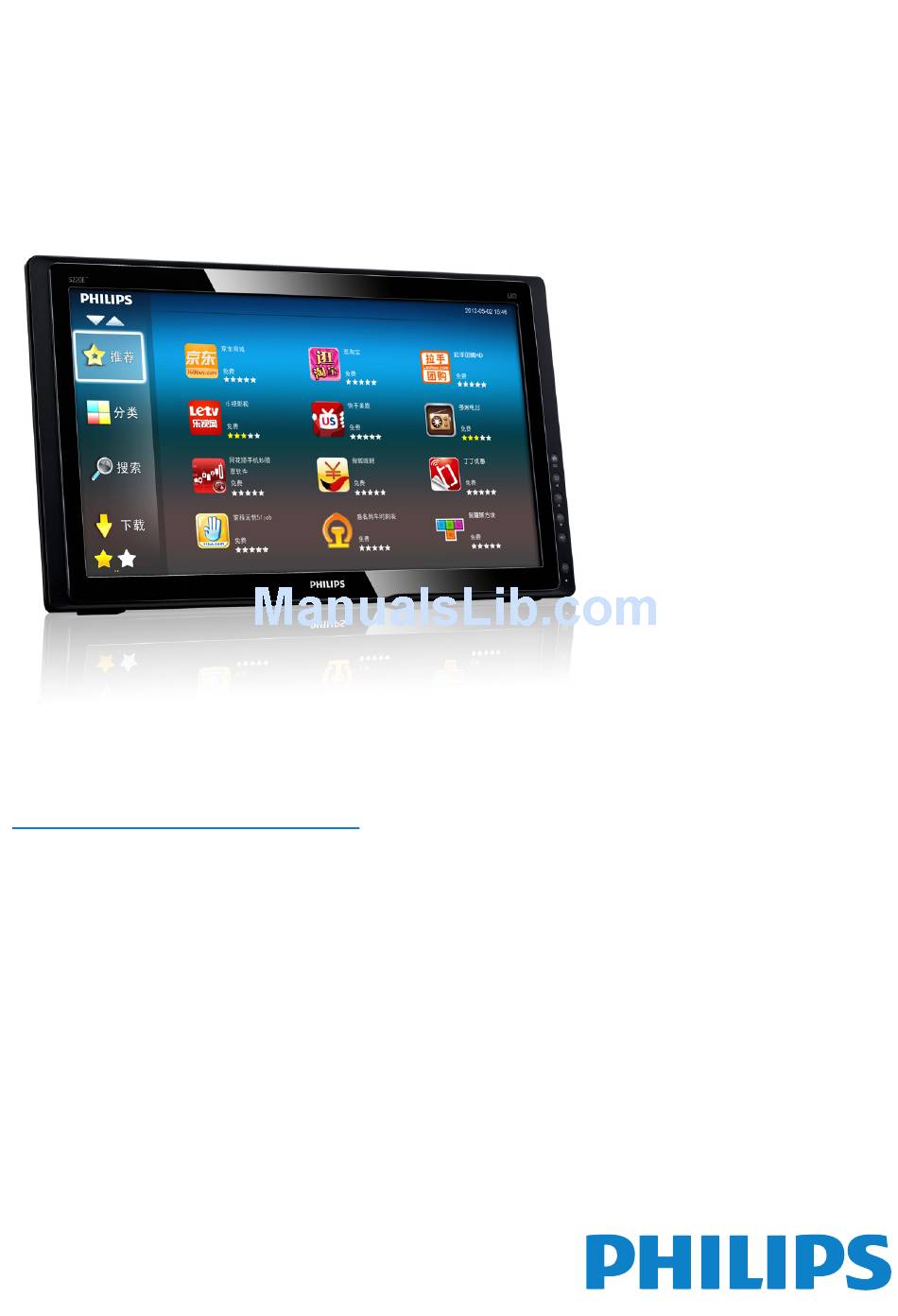

  • Page 1 S220E1A www.philips.com/welcome EN User manual Customer care and warranty Troubleshooting & FAQs...

  • Page 2: Table Of Contents

    3.2 SmartSound............9 4. Technical Specifications ......10 4.1 Resolution & Preset PC Modes ..12 5. Power Management ......13 6. Regulatory Information ......14 7. Customer care and warranty ...16 7.1 Philips’ Flat Panel Monitors Pixel Defect Policy ..........16 7.2 Customer Care & Warranty ....18 8. Troubleshooting & FAQs ....21 8.1 Troubleshooting ...........21 8.2 General FAQs ..........22...

  • Page 3: For Your Safety

    1. For your safety by unauthorized modification to this 1. For your safety equipment. It is the responsibilities of the user to correct such interference. Before operating the monitor, please read this manual thoroughly. This manual should be WARNING: retained for future reference. To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerously FCC Class B Radio Frequency Interference high voltages are present inside the monitor. Statement Do not open the cabinet. Refer servicing to WARNING: (FOR FCC CERTIFIED MODELS) qualified personnel only.

  • Page 4: Cleaning

    1. For your safety ground the appliance safely. Do not defeat 1.3 Special notes on LCD monitors the safety purpose of the grounded plug. The following symptoms are normal with LCD • Unplug the unit during a lightening storm monitor and do not indicate a problem. or when it will not be used for long period of time. This will protect the monitor from Note damage due to power surges. • Due to the nature of the fluorescent light, • Do not overload power strips and the screen may flicker during initial use. Turn extension cords. Overloading can result in off the Power Switch and then turn it on fire or electric shock. again to make sure the flicker disappears. • Never push any object into the slot on the • You may find slightly uneven brightness monitor cabinet.

  • Page 5: Setting Up The Monitor

    Connection AC/DC Adapter A C/DC Power Input SD Card WiFi Dongle H DMI Input Note V GA Input • Use only the AC/DC adapter provided by A udio Output Philips. A udio Input • Do not install the monitor in a location R J-45 near heat sources such as radiators or U SB Uptream air ducts, or in a place subject to direct U SB Downstream sunlight, or excessive dust or mechanical S DHC Card Slot vibration or shock.

  • Page 6: Operating The Monitor

    2. Setting up the monitor Connect to either WiFi or Ethernet for 2.2 Operating the monitor SmartMonitor input SmartMonitor allows you to either use it as 1. Connect your WiFi through WiFi dongle a stand-alone SmartMonitor under Android bundled or connect RJ-45 LAN cable to system without any PC connection required, or your LAN port. as a normal PC monitor connecting with PC. 2. Connect power cord to SmartMonitor By selecting the buttons on the front bezel, you firmly and press the power on. can choose the mode you want to use. 3. The SmartMonitor turns on and enters the previous source input.

  • Page 7: The Osd Menu

    2. Setting up the monitor Description of the On Screen Display Resolution notification This monitor is designed for optimal What is On-Screen Display (OSD)? performance at its native resolution, On-Screen Display (OSD) is a feature in all 1920×1080@60Hz. When the monitor is Philips LCD monitors. It allows user to adjust powered on at a different resolution, an alert is screen performance or select functions of displayed on screen: Use 1920×1080@60Hz for the monitors directly through an on-screen best results. instruction window. A user-friendly on screen display interface is shown below:...

  • Page 8: Smartmonitor Operation

    2. Setting up the monitor 2.3 SmartMonitor Operation Philips SmartMonitor bundles with Android system which applies touch panel technology for users to use it as a stand-along PC. It does not require any PC connections and can be controlled with figures – touching the panel for selection and confirmation. 1. Press the input source button to select the operating mode for SmartMonitor, VGA, or HDMI. 2. Press or button to select SmartMonitor, and then press button to confirm. 3. Then you may adjust the setting and enjoy a variety of applications by touching and controlling the panel of SmartMonitor. The desktop of Android system is shown below: A. The shortcut for Google Search: D.

  • Page 9: Smartmonitor Setting Adjustments

    2. Setting up the monitor Internet connection 2.4 SmartMonitor Setting The Android application programs require an Adjustments Internet connection. SmartMonitor provides When the SmartMonitor function is used, all three most common options to link your the system settings can be adjusted by system Internet connections. setting icon. The main adjustment items are as 1. Wireless Internet: below: Plug the USB WiFi dongle to one of Main Menu Sub Menu Item Description the USB ports at the side IO of the Wireless Wi-Fi Switch On/Off Wi-Fi SmartMonitor. Setup the Wireless Internet internet Wi-Fi Setting Scan and connect to the...

  • Page 10: Image Optimization

    3.1 SmartImage 3. Image Optimization What is it? SmartImage provides presets that optimize display for different types of content, dynamically adjusting brightness, contrast, color and sharpness in real time. Whether you're working with text applications, displaying images or watching a video, Philips SmartImage delivers great optimized monitor performance. 1. Press hotkey to launch the SmartImage OSD. Why do I need it? 2. Keep pressing to select SmartImage.

  • Page 11: Smartsound

    3. Image Optimization • Office: Enhances text and dampens 3.2 SmartSound brightness to increase readability and 1. Press hotkey to launch the reduce eye strain. This mode significantly SmartPicture OSD. enhances readability and productivity when you’re working with spreadsheets, PDF files, 2. Keep pressing to select SmartSound. scanned articles or other general office applications.  • Photo: This profile combines color  saturation, dynamic contrast and sharpness enhancement to display photos and other  images with outstanding clarity in vibrant colors - all without artifacts and faded colors. 3.

  • Page 12: Technical Specifications

    4. Technical Specifications 4. Technical Specifications Picture/Display LCD panel type TFT-LCD Backlight type W-LED system Panel Size 21.5 inch / 54.6 cm Multi-touch optical panel 2 points Effective viewing area (mm) 495.6 (H) x 292.2 (V) Aspect ratio 16:9 Optimum resolution Android: 1280 x 720, PC: 1920 x 1080 @ 60 Hz Response time (typical) 5 ms Brightness 250 cd/m² Viewing angle 170º (H) / 160º (V), @ C/R > 10 Picture enhancement SmartImage Display colors 16.7 M Sound Built-in Audio 2.0W x 2 Sound Enhancement...
  • Page 13 4. Technical Specifications Dimensions Product with stand (mm) 551 x 330 x 54 mm Packaging in mm (WxHxD) 602 x 408 x 130 mm Weight Product with stand (kg) 4.17 kg Product with packaging (kg) 5.39 kg Operating conditions Temperature range 0°C to 40°C (operation) Temperature Range -20°C to 60°C (storage) Relative humidity 20% - 80% MTBF 30,000 hour(s) Sustainability Environmental and energy EPEAT Silver, RoHS, Lead-free, Mercury Free Recyclable packaging 100 % material Compliance and standards Regulatory Approvals CCC, CECP, CEL Cabinet Color Black...

  • Page 14: Resolution & Preset Pc Modes

    4. Technical Specifications 4.1 Resolution & Preset PC Modes Maximum Resolution 1920x1080@60Hz (analog input) 1920x1080@60Hz (digital input) Recommended Resolution 1920x1080@60Hz (digital input) H. freq (kHz) Resolution V. freq (Hz) 31.47 720x400 70.09 31.47 640x480 59.94 35.00 640x480 66.67 37.86 640x480 72.81 37.50 640x480 75.00 37.88 800x600 60.32 46.88 800x600...

  • Page 15: Power Management

    5. Power Management 5. Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature: Power Management Definition VESA Video H-sync V-sync Power Used LED Color Mode 24.1 W (typ.) Active White 42.67 W(max.) White Sleep 0.5 W (typ.) (blink) Switch Off 0.5 W (typ.) The following setup is used to measure power consumption on this monitor.

  • Page 16: Regulatory Information

    6. Regulatory Infomation Changes or modifications not expressly 6. Regulatory Information approved by the party responsible for compliance could void the user's authority Energy Star Declaration to operate the equipment. (www.energystar.gov) Use only RF shielded cable that was supplied ® As an ENERGY STAR Partner, we with the monitor when connecting this monitor have determined that this product to a computer device. ® meets the ENERGY STAR To prevent damage which may result in fire or guidelines for energy efficiency. shock hazard, do not expose this appliance to rain or excessive moisture. Note THIS CLASS B DIGITAL APPARATUS MEETS We recommend you switch off the monitor ALL REQUIREMENTS OF THE CANADIAN when it is not in use for a long time. INTERFERENCE-CAUSING EQUIPMENT Federal Communications Commission (FCC) REGULATIONS.
  • Page 17 6. Regulatory Infomation China RoHS Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une The People's Republic of China released a installation particulière. Si cet appareil est regulation called "Management Methods for la cause d'interférences nuisibles pour Controlling Pollution by Electronic Information la réception des signaux de radio ou de Products" or commonly referred to as China télévision, ce qui peut être décelé en RoHS. All products produced and sold for China fermant l'équipement, puis en le remettant market have to meet China RoHS request. en fonction, l'utilisateur pourrait essayer de 中国电子信息产品污染控制标识要求(中国 corriger la situation en prenant les mesures RoHS法规标示要求)产品中有毒有害物质或 suivantes: 元素的名称及含量 • Réorienter ou déplacer l’antenne de réception. 有毒有害物质或元素 部件名称...

  • Page 18: Customer Care And Warranty

    7. Customer care and warranty black pixel. Other combinations of lit and dark 7. Customer care and sub pixels appear as single pixels of other colors. warranty Types of Pixel Defects Pixel and sub pixel defects appear on the screen 7.1 Philips’ Flat Panel Monitors Pixel in different ways. There are two categories of Defect Policy pixel defects and several types of sub pixel defects within each category. Philips strives to deliver the highest quality products. We use some of the industry's most Bright Dot Defects advanced manufacturing processes and practice Bright dot defects appear as pixels or sub pixels stringent quality control.
  • Page 19 7. Customer care and warranty Proximity of Pixel Defects Note A red or blue bright dot must be more than 50 Because pixel and sub pixels defects of the same type that are near to one another may be percent brighter than neighboring dots while a green bright dot is 30 percent brighter than more noticeable, Philips also specifies tolerances for the proximity of pixel defects. neighboring dots. Black Dot Defects Black dot defects appear as pixels or sub pixels that are always dark or 'off'. That is, a dark dot is a sub-pixel that stands out on the screen when the monitor displays a light pattern. These are the types of black dot defects. Pixel Defect Tolerances In order to qualify for repair or replacement due to pixel defects during the warranty period,...

  • Page 20: Customer Care & Warranty

    7. Customer care and warranty 7.2 Customer Care & Warranty For warranty coverage information and additional support requirement valid for your region, please visit www.philips.com/support website for details. You may also contact your local Philips Customer Care Center number listed below. Contact Information for WESTERN EUROPE region: Country Consumer care number Price Germany Siemens I&S +49 01803 386 853 € 0.09 United Kingdom Invec Scotland +44 0207 949 0069 Local call tariff Ireland Invec Scotland +353 01 601 1161 Local call tariff...
  • Page 21 7. Customer care and warranty Contact Information for CENTRAL AND EASTERN EUROPE region: Country Call center Consumer care number Belarus +375 17 217 3386 Bulgaria LAN Service +359 2 960 2360 Croatia Renoprom +385 1 333 0974 Estonia FUJITSU +372 6519900 Latvia “ServiceNet LV” Ltd. +371 7460399 Lithuania UAB "Servicenet" +370 7400088 Romania Blue Ridge Intl. +40 21 2101969 Serbia & Kim Tec d.o.o.
  • Page 22 AGOS NETWORK PTY LTD 1300 360 386 New Zealand Visual Group Ltd. 0800 657447 Hong Kong / Hong Kong:Tel: +852 2619 9639 Smart Pixels Technology Ltd. Macau Macau:Tel: (853)-0800-987 Tel: 1 800 425 6396 India REDINGTON INDIA LTD SMS: PHILIPS to 56677 Tel: 62 21 75909053, 75909056, Indonesia PT. Gadingsari elektronika Prima 7511530 South Korea PCS One Korea Ltd. 080-600-6600 After Market Solutions (CE) Malaysia 603 7953 3370 Sdn Bhd Pakistan...

  • Page 23: Troubleshooting & Faqs

    If the problem still persists Visible signs of smoke or sparks after you have tried these solutions, contact • Do not perform any troubleshooting steps Philips customer service representative. • Disconnect the monitor from mains power source immediately for safety Common Problems • Contact with Philips customer service No Picture (Power LED not lit) representative immediately. • Make sure the power cord is plugged into Imaging Problems the power outlet and into the back of the monitor. Image is not centered • First, ensure that the power button on the • Adjust the image position using the “Auto”...

  • Page 24: General Faqs

    Clock of Setup in OSD Main Controls. It is valid only in VGA mode. • You can adjust “power on” light using the power LED Setup in OSD main Controls. Image appears blurred, indistinct or too dark For further assistance, refer to the Consumer • Adjust the contrast and brightness on Information Centers list and contact Philips On-Screen Display. customer service representative. An "after-image", "burn-in" or "ghost image" remains after the power has been turned off. 8.2 General FAQs • Uninterrupted display of still or static...
  • Page 25 make sure that there is Can I connect my LCD monitor to any no pressure or force applied to the PC, workstation or Mac? panel surface side. This may affect your Ans.: Y es. All Philips LCD monitors are fully warranty conditions. compatible with standard PCs, Macs and workstations. You may need a cable How should I clean the LCD surface? adapter to connect the monitor to Ans.: F or normal cleaning, use a clean, soft...
  • Page 26 8. Troubleshooting & FAQs Q10: Are Philips LCD monitors Plug-and- monitors is 60 Hz, In case of any Play? disturbance on screen, you can set it up to 75 Hz to see if that removes the Ans.: Y es, the monitors are Plug-and-Play disturbance. compatible with Windows 7/Vista/XP/ NT, Mac OSX, Linux Q11: What is Image Sticking, or Image Burn- in, or After Image, or Ghost Image in LCD panels? Ans.: U ninterrupted display of still or static...
  • Page 27 © 2012 Koninklijke Philips Electronics N.V. All rights reserved. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips Electronics N.V. and are used under license from Koninklijke Philips Electronics N.V. Specifications are subject to change without notice.
