Peachtree M24 User Manual

Peachtree M24 User Manual

Active monitors
Hide thumbs Also See for M24:

Advertisement

Bluetooth Speaker
M24
ACTIVE MONITORS
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M24 and is the answer not in the manual?

Questions and answers

Summary of Contents for Peachtree M24

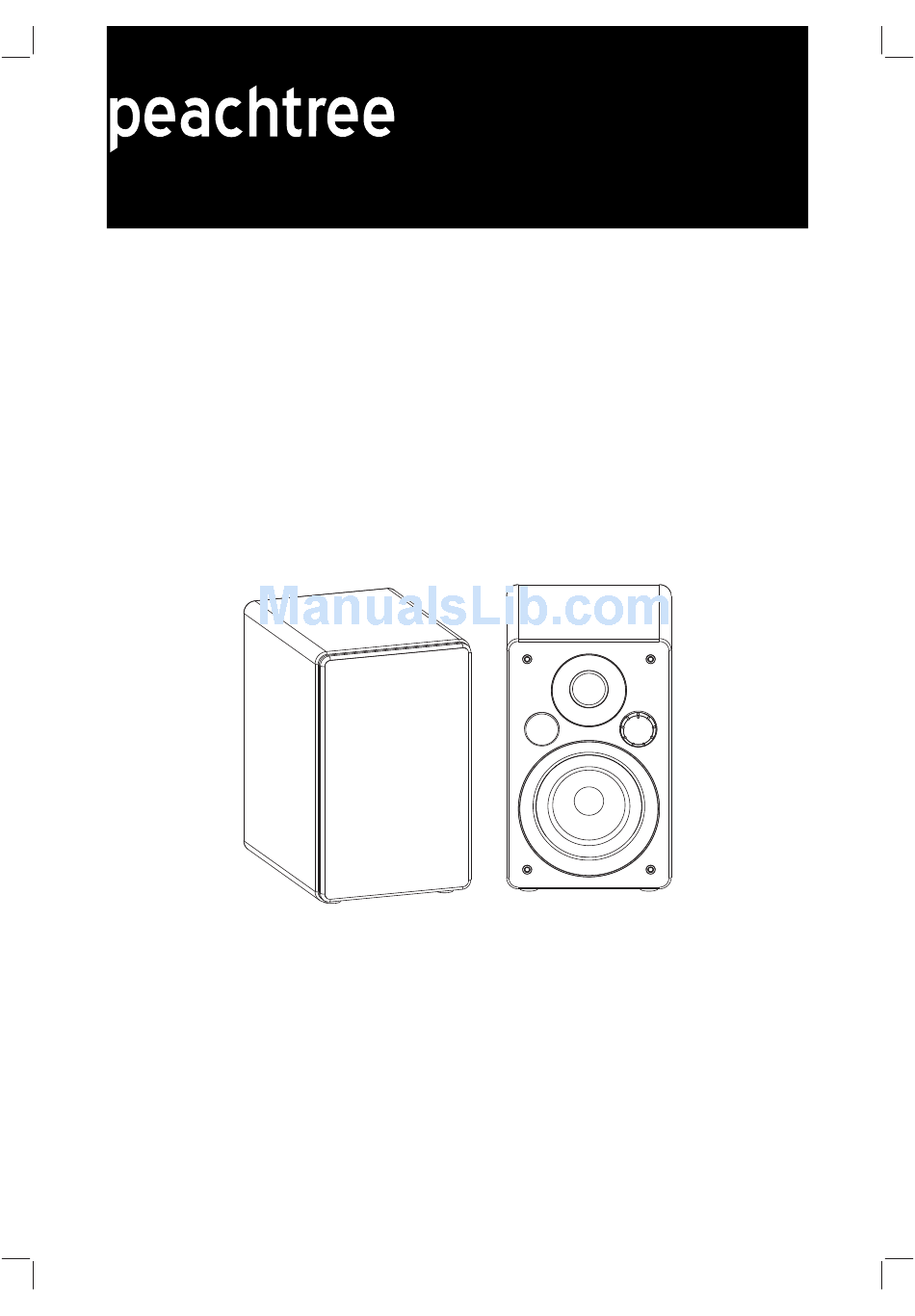

  • Page 1 Bluetooth Speaker ACTIVE MONITORS USER MANUAL...
  • Page 2: Table Of Contents

    ACTIVE MONITORS Contents 02 CONTENTS 03 SAFETY 04 INFORMATION 05 FRONT AND REARPANEL 06 REMOTE CONTROL 07 CONNECTING YOUR SPEAKERS BLUETOOTH FUNCTION 08 USB charge 09 PHONO 10 CONNECT TV,DVD,CONSOLE,PC 11 LIMITED WARRANTY 12 SPECIFICATIONS...
  • Page 3: Safety

    ACTIVE MONITORS Congratulations on your new M24 ACTIVE MONITORS. Please take a moment to read this manual. Enjoy Safety Safety Instructions Please store this instruction manual for ●Servicing is required when the product future reference. has been damaged.Do not attempt to service this product yourself.Opening...
  • Page 4: Information

    ACTIVE MONITORS Information Unpacking These speakers were carefully tested and inspected during production and before packaging and shipping.After unpacking please check for any damage.It is rare that a unit is damaged during shipping but if this does happen contact your retailer immediately.
  • Page 5: Front - And Rearpanel

    ACTIVE MONITORS Front and rearpanel 1. REMOTE RECEIVE WINDOW Power On / Off >Red: standby or Auto-Standby (after 30 minutes without playing) Optical audio in >Blinking RED: mute >White:ON USB Audio In (for PC connection only) >Blue: Bluetooth source is connected >Blinking Blue: Bluetooth source is disconnected Ground Screw Terminal Increase / Decrease Volume / input select...
  • Page 6: Remote Control

    ACTIVE MONITORS Remote control Bass Flat Treble Standby 9. Mute button Next track 2. Bluetooth input 3. Volume button Play/pause Press"+", then volume will increase; USB(PC Use) 4. Prev track Digital in 5. Volume button Optical in Press"-", then volume will decrease; Treble button 6.
  • Page 7: Connecting Your Speakers

    Waiting for a few seconds, let devices go into working condition. 2, Select Bluetooth input option by remote control ,white indicator light will turn on and flash . Or please make sure if Bluetooth connect with M24. And shut off other Bluetooth device.
  • Page 8: Usb Charge

    “1234” or “0000”. 4,If pairing successfully, white light “always on”, pairing finished . 5,The same Bluetooth device work again ,no need pairing one more time, M24 will auto connect with the device pairing last time .
  • Page 9: Phono

    ACTIVE MONITORS PHONO Peachtree M24. Peachtree M24. Peachtree M24 remote.
  • Page 10: Connect Tv,Dvd,Console,Pc

    R to your TV DVD etc and the RCA L R to the Stereo Input on rear M24. panel of the Note that most newer TV remotes can control the active speaker volume if connected to variable TV audio out...
  • Page 11: Limited Warranty

    ACTIVE MONITORS Limited Warranty Dear Customer This product has been designed and manufac- Other damages due to conditions beyond the su- tured to the highest quality standards,however pplier's control such as fire,rain,strode of lightn- if something goes wrong with this product,and ing,war and other force majeure events the country distributor warrants free replacement parts or repair by the official distributor.
  • Page 12: Specifications

    ACTIVE MONITORS Specifications Tweeter: 1 inch soft-dome Woofer: 4 inch Aluminium cone Nominal impedance: 4 Ohm Sensitivity 2.83V(1W/1M): 85dB Power Output: 40W x 2 Frequency Response: 60Hz-20KHz Crossover System: 2-way Amplifier Type: Class D Inputs: 1 x RCA&Phono, 1x Optical, 1xUSB, 1x Bluetooth Outputs: 1xUSB(charge),1xSub Woofer Amplifier Input Sensitivity: 480mV(Line RCA)
