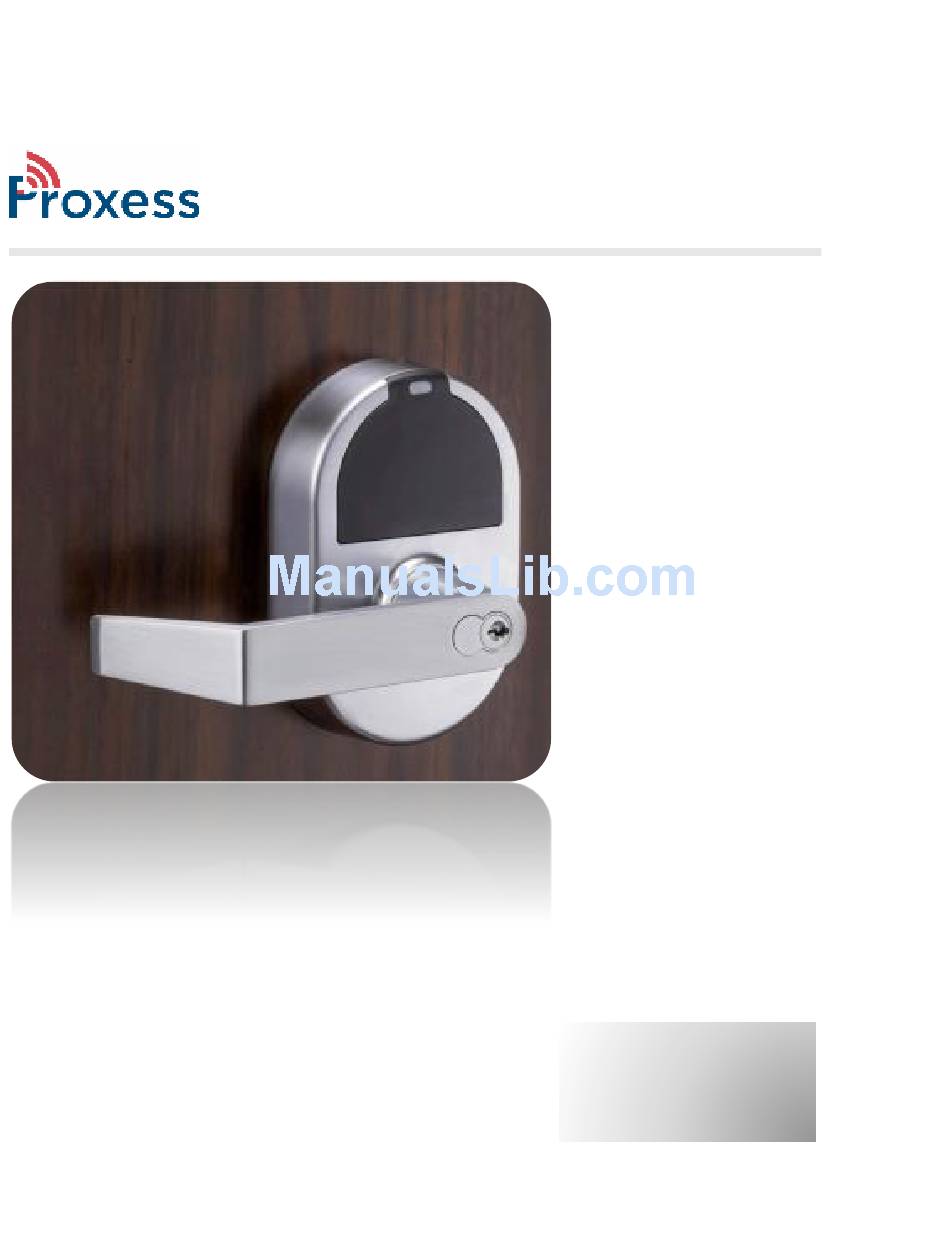

  • Page 1 C-Series Service manual...
  • Page 2: Table Of Contents

    Documentation package Technical support FUNCTIONS AND PARTS Lock functions Function descriptions Lock parts Exploded view of parts Parts list Trim parts MAINTENANCE Maintenance tools Replacing levers TROUBLESHOOTING Troubleshooting hardware Troubleshooting software INSTALLATION MANUAL Cylindrical installation instructions Proxess C-Series Service Manual...
  • Page 3: Introduction

    INTRODUCTION The Proxess C-Series Service Manual contains important information to assist you in maintaining your C-Series Lock. CERTIFICATIONS AND STANDARDS ANSI/BHMA A156.25 (Indoor/Outdoor) ANSI/BHMA A156.2 Grade 1 UL 294 ULC S319 PDR UL10C Positive Pressure Rated UL10B Neutral Pressure Rated...
  • Page 4: Documentation Package

    • Your first source for technical answers is this C Series Service Manual. • If you are not able to find an answer to your question in this manual, contact your local Proxess Representative. • If you do not know your local Proxess Representative, contact the Customer Service Department at Proxess –...
  • Page 5: Functions And Parts

    ST – Standard: Lock is normally in the locked state. Upon presentation of a valid credential, lock will momentarily unlock to allow entry then revert to the normally locked state. Inside lever is always unlocked for single action egress. Proxess C-Series Service Manual...
  • Page 6 100 feet directly from the fob. An emergency override credential allows designated administrators or emergency personnel access when exterior lever is in locked position. Inside lever is always unlocked for single action egress. Proxess C-Series Service Manual...
  • Page 7: Parts List

    PART AND PARTS LISTS ST FUNCTION CHASSIS - STANDARD Item Part No. Item Part.No PX10110001 PX10120005 PX10110003 PX10110010 PX10110004 PX10110011 PX10110005 PX10110013 PX10110006 PX10110014 PX10110007 PX10120001 PX10110002 PX10100002 PX10110008 PX10100003 PX10110016 PX10100004 PX10110012 PX10100001 PX10120002 Proxess C-Series Service Manual...
  • Page 8 XC FUNCTION CHASSIS - EMERGENCY CLASSROOM Item Part No. Item Part.No PX10110001 PX10120005 PX10110003 PX10110010 PX10110004 PX10110011 PX10110005 PX10110013 PX10110006 PX10110014 PX10110007 PX10120001 PX10110002 PX10100002 PX10110008 PX10100003 PX10110016 PX10100004 PX10110012 PX10100001 PX10120002 PX10110015 viii Proxess C-Series Service Manual...
  • Page 9: Trim Parts

    Description PX10120006 Standard 2 ¾" PX10120007 2 ⅜" LATCHES Optional latch extensions 2¾" (70mm) latch + 57mm extension tube for 5" (127mm) requirement 61.1 2⅜" (60mm) latch + 35mm extension tube for 3¾" (95mm) requirement 32.4 Proxess C-Series Service Manual...
  • Page 10 STRIKE PLATES Item Part. No. Description PX10120002 Standard 2 ¾" strike PX10120003 ANSI 4 ⅞" strike LEVERS Item Part. No. Description PX10120005A Angled Return; (most common lever) PX10120005C Curved Return PX10120005N Curved No Return; (no lever return) Proxess C-Series Service Manual...
  • Page 11: Maintenance

    2. Insert the pin of the lever release tool into the small hole at the base of the shaft on the lever. 3. Push in and then slide the lever off the sleeve of the lever shaft. Lever shaft Lever release tool Proxess C-Series Service Manual...
  • Page 12 Turn the control key 15 degrees counterclockwise and remove the key. 4. Turn both levers to make sure they retract the latch if the door is unlocked. Proxess C-Series Service Manual...
  • Page 13: Troubleshooting

    MPD “Set Door Closed” was select “Set Door Closed”, try Lock not selected. Down again. The 4 pin connector FFC cable Remove the interior trim and was not connected completely ensure that cable is seated correctly xiii Proxess C-Series Service Manual...
  • Page 14: Installation Instructions

    INSTALLATION INSTRUCTIONS The following pages contain the Installation Manual for the C-series Cylindrical Lock. Proxess C-Series Service Manual...
  • Page 15 A. CHECKLIST (4 each AA Batteries Included) FOR DOOR AND FRAME PREPARATION INSTRUCTIONS, SEE APPENDIX A OR GO TO PROXESS.COM Parts List: Each Proxess C-Series lockset includes • Exterior lock assembly (include housing, lever and cylinder drive unit) (SB2) (SB1) •...
  • Page 16 Lever Release Tool C. LOCK HANDING 1. Determine the hand of your door. The product is set up for Right Hand by default. Left Hand Right Hand Right Hand Door Left Hand Door Reverse Door Reverse Door Proxess C-Series Service Manual...
  • Page 17 Replace the lock chassis and reroute the FFC cable into the cable slot. Screw on the backplate and replace the rubber gasket. Re-handed lock chassis to accommodate left handed door xvii Proxess C-Series Service Manual...
  • Page 18 Then insert the cable with the wires facing away from you and push until you hear a click. Push the black cowl back down to secure the connector. To disconnect the connectors, push up on the black cowl and pull out the cable. xviii Proxess C-Series Service Manual...
  • Page 19 Install the four AA batteries, beginning with the outer two. Handle switch connector FFC connector Insert first Latch connector Insert last After the batteries are properly installed, the lock should beep once and the motor should run. The lock is then locked. Proxess C-Series Service Manual...
  • Page 20 15 degrees to retract the catch, then insert the core into the lever. Turn the control key back counterclockwise 15 degrees to engage the core and remove the key. Proxess C-Series Service Manual...
  • Page 21 Doors: Steel or Wood Door thickness range: 1-3⁄8" (35mm) ~ 2" (51mm). Match the Backset of your Proxess C-Series lockset to the corresponding installation (either 2-3⁄8" [60 mm] or 2-3⁄4" [70 mm] Backset). Place the installation template onto door and mark holes. Drill the Ø2 1⁄8" (54 mm) first, then drill the two Ø5/16" (8mm) holes for lock chassis mounting followed by two Ø3/8"...
  • Page 22 FFC cable through the cable slot. Slide out the Then screw back on the through bolt backplate and replace the posts rubber gasket. Remove the backplate Pull out the lock chassis xxii Proxess C-Series Service Manual...
  • Page 23 • Unit shall not interfere with the operation of Panic Hardware. • Wireless communications, Wi-Fi, Bluetooth, Door Position, and Request to Exit features are not part of UL Listed product. • Tested to compliance with UL 294 5th Edition Class I. xxiii Proxess C-Series Service Manual...
