Mitron Duplus DUP-35 User Manual

Mitron Duplus DUP-35 is a hardware solution that allows a user to switch between two bootable drives with ease. With
the Duplus DUP-35, a user can use multiple drives to achieve a multi-O/S system or multi-user with the added safety of
isolating the O/S from each other. Sophisticated user can make their PC a true multi-boot system by having one bootable
drive installed with Windows O/S while another drive installed with another O/S, Linux for example. Duplus DUP-35 also
allows two users sharing a same PC to boot from their own hard drive completely isolates from each other so if a drive is
infected with virus, another drive will still boot.

Three Modes Operation

Ø Separate two bootable drives isolating HDD from each other prevents virus infection from one HDD to another
Ø Easy installation and straight forward operation

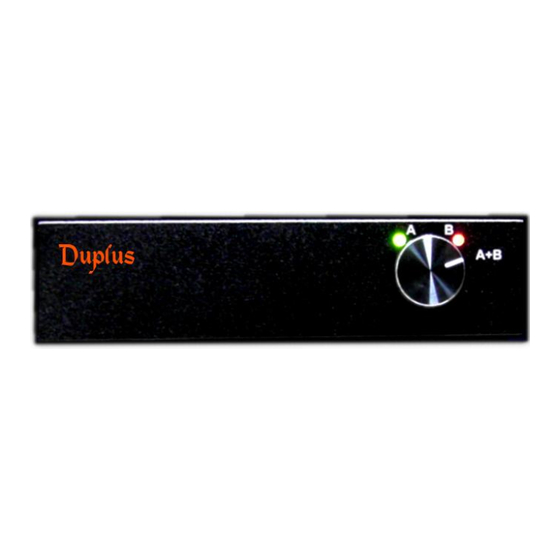

Ø Three modes operation with LEDs indication – boot from A, boot from B, user selectable boot A+B
Ø The A+B mode allows two HDD to be power on making file sharing possible between two HDD
Ø MCU controlled preventing a user to accidentally shut down the hard drive in use while the system is power on. To
select another bootable HDD, the system needs to be powered off for the change to take effect.
Ø Convert 4 pin Molex 12V & 5V input from PSU to 12V, 5V & 3.3V output for SATA HDDs
Parts list:
1 x 3.5" front bay HDD selector
2 x custom 5 pin housing to Molex 4 pin and SATA power HDD cable
4 x mounting screw
1 x installation instruction (this document)
Mitron Interlink, Inc.
15F, #78 Section 2 Chong Shin Rd.
San Chong City, Taipei Hsien 241, Taiwan
Fit 3.5" front bay
Website: www.mitron.com.tw
email: info@mitron.com.tw
Tel: +886 2 29743416
