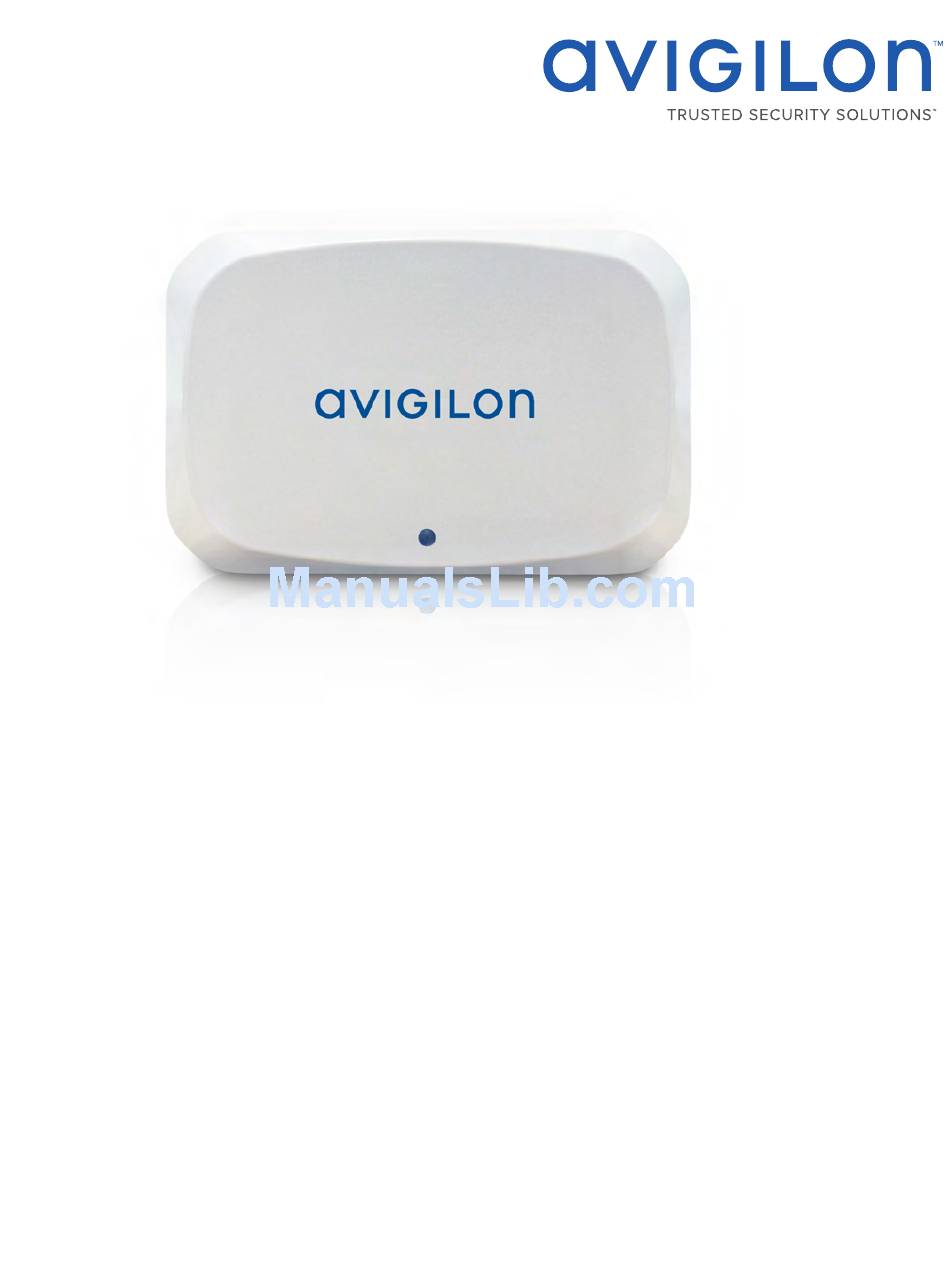

- Page 1 Installation Guide Avigilon Presence Detector (APD) Sensor with Ceiling or Wall Mount Adapters APD-S1-D and APD-MT-WALL1 (optional)
-
Page 2: Important Safety Information
(such as from a liquid spill or fallen objects), has been exposed to rain or moisture, does not operate normally, or has been dropped. Do not use strong or abrasive detergents when cleaning the device body. Use only accessories recommended by Avigilon. This product should be installed in restricted access locations. Regulatory Notices ... - Page 3 FCC/ISED Notices FCC ID: 2ANC5-APDS1D This equipment may only be operated indoors. Operation outdoors is in violation of 47 U.S.C. 301 and could subject the operator to serious legal penalties. This equipment complies with the FCC and ISED Canada radiation exposure limits. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body.
-
Page 4: Legal Notices
CENTER, ACC, AVIGILON PRESENCE DETECTOR, APD, and TRUSTED SECURITY SOLUTIONS are trademarks of Avigilon Corporation. ONVIF is a trademark of Onvif, Inc. Other names or logos mentioned herein may be the trademarks of their respective owners. The absence of the symbols ™ and ® in proximity to each trademark in this document or at all is not a disclaimer of ownership of the related trademark. -
Page 5: Table Of Contents
Table of Contents Overview Device Attached to the Ceiling Bracket Device Attached to Wall or Corner Bracket LED Indicators Back of Device Positioning the APD™ Device Installation Required Tools and Materials Device Package Contents Installation Steps Mounting the APD Sensor With the Surface Mount Adapter Installing the Device in the Mounting Adapter Assigning an IP Address Configuring the APD Device... -
Page 6: Overview
WebUI or the ACC Client Software. For more information, see the Web Interface User Guide for the APD device and Avigilon Control Center Client User Guide. The device requires two minutes to learn the environment that is in range any time that it is powered on, or after the range is reset. -
Page 7: Device Attached To The Ceiling Bracket
Device Attached to the Ceiling Bracket 1. APD device body The main body of the APD device. 2. Ceiling Bracket Used to mount the APD device to the ceiling, with the device pointing directly downwards. The ceiling bracket is included in the package with the APD device. Device Attached to Wall or Corner Bracket 1. -
Page 8: Led Indicators
LED Indicators 1. Connection status LED indicator Provides information about device operation. For more information, see Connection Status LED Indicator on page 14. 2. Presence detection LED indicator A blue LED indicator displays the status of the device. The blue LED blinks while the device is initializing. After initialization, the status LED is lit when presence is detected. -
Page 9: Positioning The Apd™ Device
Positioning the APD™ Device The APD device is extremely sensitive to motion and needs to be mounted on a stable surface. It is designed to be mounted with either a ceiling or wall mount adapter. It is packaged with a ceiling mount adapter. A wall or corner mount adapter is also available as an optional accessory. - Page 10 Figure 1: Top-down View of Ceiling Mount Figure 2: Side View of Ceiling Mount Positioning the APD™ Device...
- Page 11 Figure 3: Top-down View of Wall Mount Positioning the APD™ Device...
- Page 12 Figure 4: Side View of Wall Mount Positioning the APD™ Device...
-
Page 13: Installation
Mounting the APD Sensor With the Surface Mount Adapter The Avigilon Presence Detector™ device is provided with a surface mount adapter that can be mounted to a ceiling. If the APD device needs to be installed on a wall or in a corner, use the wall or corner mounting adapter, which are optional accessories. -
Page 14: Installing The Device In The Mounting Adapter
Perform the following steps to mount the appropriate adapter to a ceiling or wall: 1. Use the mounting adapter as a template to mark the position of the four mounting screws into the mounting surface. 2. Drill the holes for the screws into the mounting surface. 3. -
Page 15: Assigning An Ip Address
The IP address settings can be changed using one of the following methods: Device's web browser interface: http://<camera IP address>/. Network Video Management software application (for example, the Avigilon Control Center™ software). ARP/Ping method. For more information, see Setting the IP Address Using the ARP/Ping Method on page 17. -
Page 16: Configuring The Apd Device
See the APD Web Interface User Guide for more information. If the device is connected to the Avigilon Control Center system, you can use the client software to configure the device. See the Avigilon Control Center Client User Guide for more information. -
Page 17: Initializing The Apd Device And Setting The Range
Initializing the APD Device and Setting the Range The APD device takes two minutes to learn the background and initialize after it is powered on or the detection range is reset. It is strongly recommended that no people are in range of the device during the initialization as this may affect sensitivity. - Page 18 7. When the results of your walk-test show detection where you want it, click the Exit button to disable Range Test Mode. 8. As a final check, walk-test the room checking the detection range in normal mode. In normal mode you will get feedback in 2-3 seconds as to whether you are being detected but you will need to wait 1 minute to get feedback on non-presence.
-
Page 19: Connection Status Led Indicator
Connection Status LED Indicator Once connected to the network, the Connection Status LED indicator will display the progress in connecting to the Network Video Management software. The following table describes what the LED indicator shows: Connection Status Connection State Description LED Indicator One short flash every Obtaining IP Address... -
Page 20: Removing The Apd Device From The Mounting Adapter
Removing the APD Device from the Mounting Adapter 1. Apply force to slightly open the plastic tab on one side of the mounting adapter to release the APD device from the adapter. Pull the APD device from the mounting adapter. You may want to use a tool with a flat edge such as a small screwdriver or a letter opener. -
Page 21: Resetting To Factory Default Settings
Resetting to Factory Default Settings If the APD device no longer functions as expected, you can choose to reset the device to its factory default settings. Use the firmware revert button to reset the device. The firmware revert button is shown in the following diagram: 1. -
Page 22: Setting The Ip Address Using The Arp/Ping Method
For more information, see the Web User Interface Guide - Avigilon High Definition H.264 IP Camera Models. 1. Locate and copy down the MAC Address (MAC) listed on the Serial Number Tag for reference. -
Page 23: Specifications
Specifications Radar Ultra Wide Band Pulsed Radar Frequency Band 6.0 – 8.5 GHz with 7.2GHz center frequency Network Network 100Base-TX Cabling Type CAT5 Connector RJ-45 ONVIF® compatible (www.onvif.org) Device Management SNMP v2c Protocols SNMP v3 Password protection, HTTPS encryption, digest authentication, WS authentication, user Security access log, 802.1x port based authentication IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP,... - Page 24 Certifications UL, FCC, CE Safety UL 62368-1, CSA 62368-1, IEC/EN 62368-1, IEC 62471 Electromagnetic FCC Part 15 Subpart B Class B, IC ICES-003 Class B, EN 55032 Class B, EN 61000-6-3, Emissions EN 61000-3-2, EN 61000-3-3 Electromagnetic EN 55024, EN 61000-6-1, EN 50130-4 Immunity Specifications...
-
Page 25: For More Information
Additional information about setting up and using the device is available in the following guides: Avigilon Control Center Client User Guide Web Interface User Guide - Avigilon Presence Detector™ Device Avigilon Camera Configuration Tool User Guide These guides are available on the Avigilon website: avigilon.com/support-and-downloads. -
Page 26: Limited Warranty And Technical Support
Limited Warranty and Technical Support Avigilon warranty terms for this product are provided at avigilon.com/warranty. Warranty service and technical support can be obtained by contacting Avigilon Technical Support: avigilon.com/contact-us/. Limited Warranty and Technical Support...
