RIM 801D Integrator Manual

Oem radio modem
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Integrator's
Guide
RIM 801D
OEM Radio Modem
version 1.0

Advertisement

Table of Contents
loading

Related Manuals for RIM 801D

Summary of Contents for RIM 801D

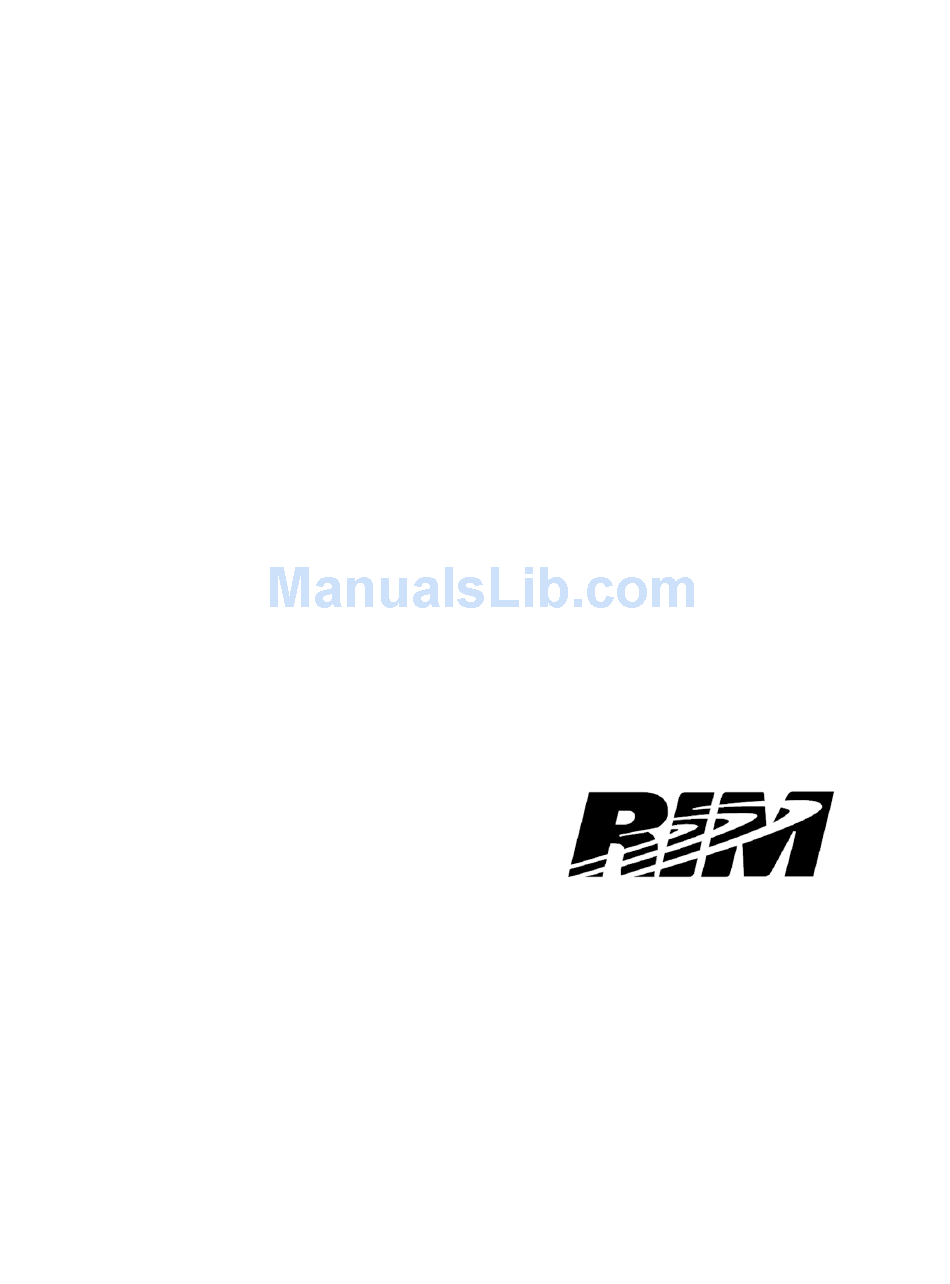

  • Page 1 Integrator’s Guide RIM 801D OEM Radio Modem version 1.0...
  • Page 2 Part Number: MAT-01769-002 Rev. 001 © 1998, RESEARCH IN MOTION LIMITED Research In Motion and RIM are registered trademarks of Research In Motion Limited. DataTAC and RD-LAP are trademarks of Motorola. MS-DOS is a registered trademark, and Windows is a trademark, of Microsoft Corporation.

  • Page 3: Fcc Compliance Statement (Usa

    FCC Compliance Statement (USA) FCC Class B Part 15 This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Table Of Contents

    Introduction ..............1 Radio modem features..............1 DataTAC network technology............3 Mechanical specifications and mounting needs..5 Environmental properties ..............5 Physical properties ................6 Mounting the RIM 801D ..............8 Power requirements ..........11 Load specifications................11 Automotive supplies..............13 Rechargeable batteries..............13 Single use batteries................14 Plug-in supplies ................15 Connecting the power source ............16...
  • Page 6 Service Data Units (SDUs)............34 NCL Protocol ................35 Radio Access Protocol (RAP) ............35 Summary..................41 Interfacing and controlling the RIM 801D ..... 43 Interfacing to an RS232 device............. 43 Controlling the RIM 801D ............44 Serial port interface ..............44 Specifications .................

  • Page 7: Figures, Tables And Equations

    Figures, tables and equations Figure 1: Top view of RIM 801D Figure 2: Side view of RIM 801D Figure 3: Battery Transmit Power Comparison Figure 4: Sample plug-in supply Figure 5: FPC cable and connectors Figure 6: Controlled Shutdown Using a Low-Power Battery Supply 24...

  • Page 9: About This Guide

    This symbol represents a hint or a suggestion. Although the ideas presented are not necessary to the integration of the RIM 801D, they are useful to many applications, and they may save integrators time.

  • Page 11: Introduction

    Introduction Topics covered in this introduction include the RIM 801D OEM radio modem features and an introduction to DataTAC network technology. Radio modem features The RIM 801D OEM radio modem is specifically designed to integrate easily into a computer or other embedded system, such as PDAs, vending machines, and point-of-sale terminals.
  • Page 12 Using a single board design, the RIM 801D is very thin, only 0.3” to 0.38” (7.5 to 9.6 mm). The RIM 801D is about the size of a credit card, with a footprint of 3.5” by 2.6” (87.5 by 66.3 mm). This tiny size makes the RIM 801D very lightweight (only 2.3oz or 64g, including case) and allows the...

  • Page 13: Datatac Network Technology

    It manages user device authorization, roaming control and base site control. It also collects all system usage/traffic information for accounting/billing purposes and detailed analysis of usage patterns. RIM 801D OEM Radio Modem – Integrator’s Guide...
  • Page 14 They also allow device roaming between base site coverage areas in a seamless manner completely transparent to the end user. Integrator’s Guide – RIM 801D OEM Radio Modem...

  • Page 15: Mechanical Specifications And Mounting Needs

    Mechanical specifications and mounting needs This chapter provides information about the RIM 801D that will be useful in determining the physical positioning of the radio modem within an application. Environmental properties, case dimensions, cabling, connectors, and mounting suggestions are presented.

  • Page 16: Physical Properties

    Physical properties Dimensions The RIM 801D has been designed to meet the most stringent space requirements. In most cases, there will be sufficient room in an existing enclosure to house the radio modem. Within the case of the modem, the smaller components are mounted on one side, and the larger components on the other.

  • Page 17: Figure 1: Top View Of Rim 801D

    Mechanical specifications and mounting needs: Physical properties Figure 1: Top view of RIM 801D Figure 2: Side view of RIM 801D RIM 801D OEM Radio Modem – Integrator’s Guide...

  • Page 18: Mounting The Rim 801D

    The designer should select an adhesive based on its suitability to the mounting surface of the radio modem as well as the casing. The outer casing of the RIM 801D is pre-tinned steel or stainless steel, with a thickness of 0.010” (0.25 mm).
  • Page 19 Appendix II for complete contact information. Reclosable Fasteners A reclosable fastener may be used to affix the RIM 801D to a surface. The use of such fasteners is useful if the radio modem might be removed at some point during the product’s life. For example, the RIM 801D can be installed in a housing with no need for the end user to remove the radio modem, but the product manufacturer might later wish to do so.
  • Page 20 10 pounds/inch (17.5 N/cm). This solution offers the highest possible long-term holding strength, but it limits the number of times the RIM 801D could be removed to between 20 and 50. Please be aware that the radio modem may tend to “wiggle”...

  • Page 21: Power Requirements

    Power requirements The RIM 801D OEM Radio Modem must be provided with a clean, high current power source. This can be provided by a plug-in power supply unit, a rechargeable battery pack, or single use batteries. RIM has conducted extensive research and has developed guidelines for integrators to follow when designing the power supply system for the RIM 801D OEM Radio Modem.

  • Page 22: Power Design

    21 ms (RD-LAP@19200) maximum 1.1 seconds (MDC) Ramp up time 1 ms (from Continuous to Transmitting) Ramp down time 1 ms (from Transmitting to Continuous) ≤ 100 µA Off current consumption (typical) Integrator’s Guide – RIM 801D OEM Radio Modem...

  • Page 23: Automotive Supplies

    Power requirements: Automotive supplies Automotive supplies If you plan to power the RIM 801D from an automotive supply, extra protection must be included to protect the radio modem from the intense power fluctuations experienced when the automobile is started. A circuit comprising inductors, transorbs and voltage regulators should be used to ensure the radio modem is protected from these power fluctuations.

  • Page 24: Single Use Batteries

    Power requirements: Single use batteries Single use batteries When using single use cells, RIM has found that only Alkaline cells provide the high current necessary for transmission. AA, AAA, and even square 9 Volt batteries provide an excellent power source. The following graph was generated by a simulator, not an actual radio modem;...

  • Page 25: Plug-In Supplies

    8 volts DC to operate the RIM 801D, as well as 5 volts for the embedded system VCC. Please note that it is not necessary to supply the RIM 801D with a 5 volt VCC — there is only one power source to the radio modem, and that is the 8 volt supply.

  • Page 26: Connecting The Power Source

    Power requirements: Connecting the power source Transient voltage protection zener diodes, or other spike arrestor circuits, should also be added to keep the inputs within the limits given in the RIM 801D load specifications. These should have a value of 20 volts and be placed on the supply side of the regulator circuit.

  • Page 27: Serial Interface Specification

    Serial interface specification The serial interface on the RIM 801D operates at HCMOS electrical levels. This interface can be connected directly to a micro-controller, or through a UART to a microprocessor data bus. Signal specifications (Standard 5V interface) Outputs 4.5 Volts Min.

  • Page 28: Connecting The Serial Cable

    The RIM 801D can also be customized for 3.3 volts. Connecting the serial cable The RIM 801D serial communication and power on/off signals are carried on a flat 14-conductor flexible printed circuit (FPC) cable, which can plug into a matching connector.

  • Page 29: Detailed Pin Description

    DNC1 and DNC2 These are “Do Not Connect” pins. They are used for internal testing of the Radio hardware by RIM. Connecting these pins to VCC or Ground can damage the radio. Simply leave these pins disconnected when integrating the radio modem into your device.
  • Page 30 Signal Ground should be tied to the system ground of the host unit. The radio must also be grounded with the main power cable to assure proper operation . Integrator’s Guide – RIM 801D OEM Radio Modem...
  • Page 31 Transmit Indicator is an output from the radio that is asserted high whenever the Radio is transmitting a packet. This line can be used as feedback to the host to ensure the radio is transmitting packets, or it can RIM 801D OEM Radio Modem – Integrator’s Guide...
  • Page 32 Due to the higher current requirements of this pin, a direct drive CMOS or TTL output must be used. An open-collector output could also be used, provided it is pulled up by a 10 kΩ resistor or smaller. Integrator’s Guide – RIM 801D OEM Radio Modem...

  • Page 33: Turning The Radio On

    Serial interface specification: Turning the radio ON Turning the radio ON To turn on the RIM 801D, the software should first check the ONI pin. If ONI is high, but TURNON is being held low, then the radio is currently performing shutdown operations and should not be disturbed.

  • Page 34: Figure 6: Controlled Shutdown Using A Low-Power Battery Supply

    Turnoff are not connected to the RIM 801D radio modem, but to the processor of the embedded system. If no processor is present, the Turnoff line can be tied to the RIM 801D’s Turnon, and the Shutdown signal can be tied to the RIM 801D’s ONI line.

  • Page 35: Antenna Integration

    Antenna integration The choice of antenna is important to maximizing the coverage area of the RIM 801D radio modem. It is important to choose an antenna that will best compliment the needs of a specific project. There are many different antenna options that will meet both your gain and directivity requirements and remain within budget constraints.

  • Page 36: Equation 1: Vswr

    Equation 2: Return Loss The antenna match for “best performance” is a VSWR ≤ 1.5 or a RL < -14 The antenna match which is the minimum acceptable for the RIM 801D is a VSWR ≤ 2.0 or a RL < -10 dB.

  • Page 37: Positioning The Antenna

    Interfacing and Controlling the RIM 801D Antenna integration: Positioning the antenna 27 Antenna efficiency The optimal antenna radiation efficiency is produced by a monopole. The best antenna length is the length of the wavelength, λ. Where f is the radio frequency being used, λ= c/f ≈...

  • Page 38: Antenna Cabling

    50 Ω. Connecting directly to the RIM 801D On one corner of the RIM 801D is an MMCX connector, to which an antenna cable is attached. On one end of this cable is an MMCX connector, and on the other end is an SMA connector.

  • Page 39: Figure 8: Different Mmcx Connector Orientations

    (see Figure 8), or an antenna cable with a right-angle MMCX connector can be fixed to the RIM 801D to allow the cable to rotate 360º along the face, long, or short side of the RIM 801D.

  • Page 40: Shielding

    The RIM 801D is designed to provide high immunity to RF noise; consequently, it will not be necessary to provide special shielding. In fact, it is more important that the power supply to the RIM 801D be free of high- Integrator’s Guide – RIM 801D OEM Radio Modem...
  • Page 41 RF shielding between other computing devices and the RIM 801D case. The RIM 801D case provides shielding to prevent it from being affected by RF interference from the computing device to which it is attached. The case also prevents the RIM 801D from emitting RF energy into the computing device and disrupting the computing device’s operation.

  • Page 43: Protocol Support

    RAP offers several advantages over NCL when used with the RIM 801D, or other applications where the radio modem is physically located close to the host device. RAP is a scaleable protocol that is easy to implement, it uses only 1 to 3 K of program storage.

  • Page 44: Service Data Units (Sdus)

    Length User header data The first two bytes define the user header length and are referred to as the UHO length. This is a 16-bit binary value in big-cadian format (MSB, LSB). Integrator’s Guide – RIM 801D OEM Radio Modem...

  • Page 45: Ncl Protocol

    RIM 801D over an asynchronous serial port, using RAP’s framed link protocol. The RAP program is not concerned with the transfer of data between the RIM 801D and a DataTAC network base station, as the RIM 801D completely handles transmission and reception.
  • Page 46 Kbytes. This increases the memory available for applications. The RIM 801D OEM radio modem includes on-board support for both NCL and RAP. Even when in RAP mode, the RIM 801D can detect certain NCL frames arriving on the serial port. This will cause the radio to automatically switch to NCL mode.
  • Page 47 The header consists of a unique sequence of values (0x9D, 0xAE, 0xBF). This signals the beginning of a RAP frame to the RIM 801D radio modem. The frame type indicates which one of the 18 different RAP frame types is being used.

  • Page 48: Figure 11: Sending Data From The Host To The Wireless Network

    SDU, the RAP protocol is network- independent. The term SDU can be freely replaced with data packet, the structure of which would depend on the network in use. Integrator’s Guide – RIM 801D OEM Radio Modem...
  • Page 49 Interfacing and Controlling the RIM 801D Protocol support: Radio Access Protocol (RAP) 39 RAP frame types Description Transmit SDU This indicates to the radio that the data is intended for transmission to the DataTAC network. Receive SDU The radio will send the host system the SDU that was received over the wireless network.
  • Page 50 Current network name This is the radio’s reply to Request network name. Set battery charge rate This command has no effect on the RIM 801D except to set or clear the battery charging flag in the Radio status frame. Turn radio receiver on...

  • Page 51: Summary

    LLI is an access number used to identify a radio modem. Each radio modem on a wireless network is assigned a unique LLI. SDU is a packet of data that is exchanged between the RIM 801D OEM radio modem. and the DataTAC wireless network.

  • Page 53: Interfacing And Controlling The Rim 801D

    Interfacing and controlling the RIM 801D The RIM 801D OEM radio modem is designed to be used easily in an embedded system. This chapter presents schematics for an RS232 interface, a micro-controller, and a serial port interface. The following schematics can be used as starting points for more complex designs.

  • Page 54: Controlling The Rim 801D

    There are different approaches to integrating the radio modem, and these depend on the design of the embedded system. We have provided an example of a RIM 801D OEM integration using an 8051 micro-controller in Figure 13. The 8051 is configured with: •...

  • Page 55: Figure 12: Simple Pc Rs232 Interface

    Interfacing and controlling the RIM 801D: Serial port interface RIM 801D Figure 12: Simple PC RS232 Interface RIM 801D OEM Radio Modem – Integrator’s Guide...

  • Page 56: Figure 13: Simple 8051 Interface

    Interfacing and controlling the RIM 801D: Serial port interface (RD) 3.7 (WR) 3.6 (T1) 3.5 (T0) 3.4 ALE* TURNON (INT1) 3.3 (INT0) 3.2 (TX) 3.1 (RX) 3.0 5 RESET RESET DS1232 (Dallas Semi.) All these lines can or MAXIM Equiv.

  • Page 57: Figure 14: 8250 Serial Port Interface

    : Serial port interface RIM 801D Figure 14: 8250 Serial Port Interface RIM 801D OEM Radio Modem – Integrator’s Guide...

  • Page 59: Specifications

    Specifications The following is a summary of the RIM 801D OEM radio modem specifications. Power supply & typical current usage • Single power supply; operating range: 6.0 to 9.5 VDC (7.2 V nominal) • Single TTL-level logic line to turn on/off •...
  • Page 60 • Antenna cable connector: MMCX • Tested to IEC 68-2-6 Part 2 for vibration • Operating temperature tested to: -30°C — +75°C (at 5-95% relative humidity, non-condensing) • Storage temperature: -40°C to +85°C Integrator’s Guide – RIM 801D OEM Radio Modem...

  • Page 61: Glossary Of Terms

    A computer without the normal display, keyboard, and disk drives of a PC. Flexible Printed Circuit. The serial communication cable on the RIM 801D is made using this type of flat multi- conductor wiring. Gain In this document, gain refers to increase/decrease in radiated power.
  • Page 62 Original Equipment Manufacturer. Usually implies that the “OEM product” is re-labelled with another manufacturer’s name. The RIM 801D is designed to be embedded in OEM terminals, PCs and data gathering equipment, and as such the equipment it is embedded in will not normally carry RIM’s name.

  • Page 63: Appendices

    Appendices Appendix I - Parts Company Name Part Description & Part Number 3M - Industrial Tape & VHB technical data sheet Specialties Division [USA] Part #: 70-0702-0266-1(104.5)R1 Reclosable Fasteners Part #: 70-0704-5609-3(833)JR Antenna Technology, Inc. DataTAC Antennas [Taiwan] Austin Antenna [USA] DataTAC Antennas Huber &...
  • Page 64 4” 14-pin-FPC cable Part #: 88-00-8025 Wire-to-board housing, 2.00 mm (0.079”) Part #: 51005-0200 Wire-to-board 3/32” crimp terminal Part #: 50011-8100 AMP 1.0 [0.039] FPC connector (surface mount) Part #: 1-487951-4 - end - Integrator’s Guide – RIM 801D OEM Radio Modem...
