VERSION: 23-FY17-V03
MODEL : GW-6078TBT

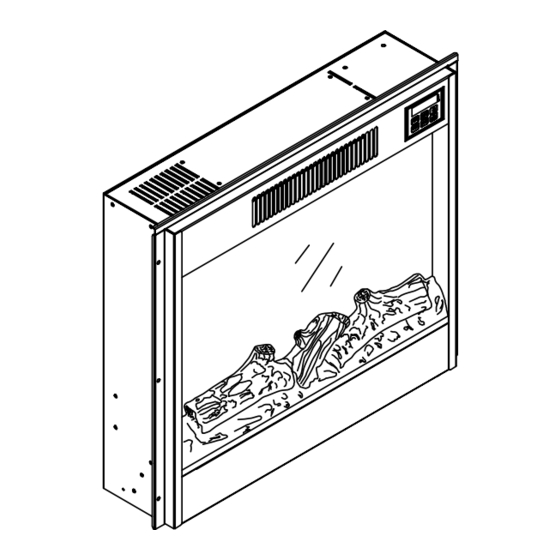

Electric Heater
Note: This fireplace can be controlled via Bluetooth using your Apple or
Android device. Visit the APP Store or Google Play and enter "S.W. Link"
in the search bar to download the APP.
OPERATING MANUAL
CUSTOMER SERVICE NO
1-888-878-8820
IMPORTANT
OPERATING INSTRUCTIONS
When using this or any electrical device, precautions should always be
taken to reduce the risk of fire, electric shock, injury to persons, and/or
damage to property. Please study the following instructions carefully
PRIOR to using this device.
1. Read ALL instructions contained in this Operating Manual BEFORE
using this electric fireplace insert.
2. This electric fireplace insert is hot when in use. To avoid burns, never
allow bare skin to touch hot surfaces. Use handles (if provided) when
moving this electric fireplace insert. Keep all flammable / combustible
materials, including (but not limited to) furniture, pillows, bedding, papers,
clothes, and curtains a minimum of 3 feet (0.9m) from this electric fireplace
insert at all times.
3. Proper ventilation is required when operating this electric fireplace insert.
NEVER cover this device with anything which could restrict air circulation
to or from the unit.
4. To prevent a possible fire, DO NOT install or use this electric fireplace
insert directly on carpet, beds, or similar soft surfaces as this may block air
intakes, exhaust outlets or otherwise restrict air circulation beneath the
heater.
5. Extreme caution is necessary when this electric fireplace insert is used
by or near children or individuals with restricted mobility.
6. NEVER leave this electric fireplace insert unattended when in use.
7. Always unplug this electric fireplace insert when not in use. Turn off all
controls prior to removing the plug from the power source.
8. This electric fireplace insert is designed for indoor use only. NEVER use
this device outdoors.
9. Connect this electric fireplace insert only to properly grounded outlets.
10. Use caution and do not strike the glass on this electric fireplace insert.
11. NEVER use this device in bathrooms, laundry areas, or similar
locations where it may come into contact with water.
12. Avoid placing the power cord in high traffic areas where it could
become damaged or be a trip hazard.
13. DO NOT run the power cord under carpeting, furniture, or appliances.
14. NEVER cover the power cord with throw rugs, runners, or similar
coverings.
15. DO NOT operate this device with a damaged power cord or plug.
16. DO NOT operate this device if the cord becomes damaged,
Advertisement
Table of Contents
Summary of Contents for Great World GW-6078TBT
- Page 1 VERSION: 23-FY17-V03 IMPORTANT MODEL : GW-6078TBT OPERATING INSTRUCTIONS Electric Heater When using this or any electrical device, precautions should always be taken to reduce the risk of fire, electric shock, injury to persons, and/or Note: This fireplace can be controlled via Bluetooth using your Apple or damage to property.
- Page 2 after the units malfunctions in any way, has been dropped, o r becomes OPERATION DETAILS damaged in any manner. If this happens, discard the unit or return to an authorized service facility to inspection and/or repair. 17. DO NOT insert or allow foreign objects to enter any ventilation or Reminders exhaust opening as this may cause an electric shock, fire, or damage to 1.
- Page 3 Remote Control Battery Installation is at the high level, H and L indicator will both light up; press again, the heat is at the low level, L indicator will light up; then press again, heat stops, and heating element is turned off, both H and L indicator are off.
- Page 4 Under the use of electric fireplace, touch [UP] or [DOWN], if the temperature shown set. When the desired time is determined, the digital display will blink for a on digital display is greater than the environmental temperature, heater will be turned few seconds, then the time is automatically set.
- Page 5 INSTALLATION Metal Screw ADAPTER Reminders 1. The dimension of the electric fireplace insert is 23.38" wide (59.2cm) x Cover of Grounded Ground Means Outlet Box 20.63" high(52.4cm) x 5.31" deep(13.5cm). You may want to leave a Grounding Pin Grounding Pin clearance around the insert of 1/4"(0.6cm) for easy installation.
- Page 6 4. To replace LED lights: CAUTION : ALWAYS UNPLUG THE ELECTRIC FIREPLACE INSERT BEFORE Changes or modifications not expressly approved by the party responsible PERFORMING ANY MAINTENANCE. for compliance could void the user's authority to operate the equipment. For the strip of LED lights in the front of the unit: a.
- Page 7 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Need help?
Do you have a question about the GW-6078TBT and is the answer not in the manual?
Questions and answers
Works for about 5 min. then shuts down
The Great World GW-6078TBT electric heater may shut down after about 5 minutes due to the thermostat function. If the environment temperature reaches the set temperature, the heater will shut off automatically while the indicator remains on to show that the heater mode is still active. Additionally, if ventilation is restricted or the unit overheats, it may shut down as a safety precaution. Ensure proper ventilation and check the temperature settings.
This answer is automatically generated
I can't get the heater function to work on my fireplace
To fix the heater function on your Great World GW-6078TBT fireplace, follow these steps:
1. Check Temperature Settings: Ensure the set temperature is higher than the environmental temperature. If the displayed temperature is lower, the heater will not turn on, but the fan may blow cold air briefly before stopping.
2. Adjust Temperature: Press the [UP] or [DOWN] buttons to increase or decrease the temperature. The adjustable range is 60-97℉, and each press changes the temperature by 1℉.
3. Verify Power Supply: Ensure the fireplace is plugged into a 120V / 60Hz / 15A outlet.
4. Remove Obstructions: Ensure there are no objects blocking the vent, as proper ventilation is required.
5. Check for Overheating: If the environmental temperature exceeds 97℉, the heater will automatically stop.
6. First Use Odor: A slight odor during initial use is normal and will disappear after a few uses.
7. Timer Settings: Make sure the timer is not set to turn the heater off. Press [UP] or [DOWN] until the display shows "0.0H" to cancel the timer.
If the heater still does not function properly, check the installation and power connection, and ensure all settings are correctly adjusted.
This answer is automatically generated
It’s not giving out heat. Every thing else works.
The Great World GW-6078TBT electric heater will not produce heat if the environmental temperature is greater than 77℉ because the default desired temperature is set to 77℉. If the environmental temperature is higher, the heater will only blow cold air. Additionally, if the environmental temperature exceeds 97℉, the heater will stop immediately for safety reasons. To make the heater produce heat, set the desired temperature higher than the current environmental temperature.
This answer is automatically generated
do you carry Replacement light strip for fireplace, 15' long by 1' wide for Model # GW 2068
I need replecement light strip 15' long by 1' wide for electric fireplce # GW2068
