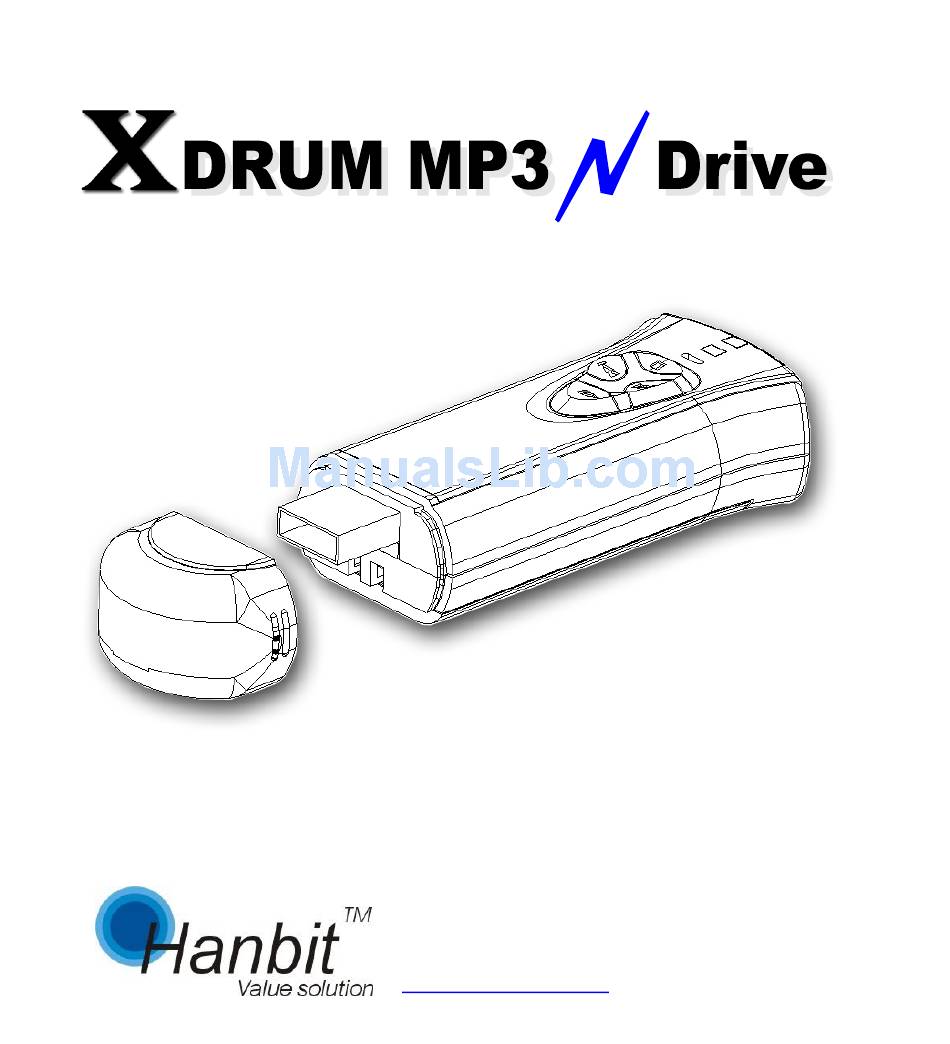

HANBiT Electronics MP3N306 User Manual

Xdrum mp3 n drive
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User's Manual
Model : MP3N306
HANBiT Electronics Co., Ltd.
http://www.hbe.co.kr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP3N306 and is the answer not in the manual?

Questions and answers

Related Manuals for HANBiT Electronics MP3N306

Summary of Contents for HANBiT Electronics MP3N306

  • Page 1 User’s Manual Model : MP3N306 HANBiT Electronics Co., Ltd. http://www.hbe.co.kr...
  • Page 2 ♣ Safety Precautions When using the device, avoid the following places ▶ Places with too much humidity and dirt / places with direct sunlight / near fire or heating appliances/places with too much vibration / near things with magnetic properties / too cold or hot places Do not put metals or flammable foreign materials inside the player.
  • Page 3 ♣ Components -------------------------------------- Manual Earphone USB Extention Cable CD Driver Neck Strap Extra Cap ♣ Option ----------------------------------------- 걸 이 AAA Battery Lithium ion Battery Audio Cable ♣ Accessories subject to change without notice and may vary from image shown.

  • Page 4: Table Of Contents

    Safety Precautions ········································ ▶ Components / Option ········································ ▶ Table of Contents ········································ ▶ Introduction 1.1 What is MP3 ·········································· 1.2 What is an MP3 Player? ·········································· 1.3 Names and Composition ·········································· 1.4 Functions and Details ·········································· How to Use MP3 Player 9~14 2.1 Installing the Driver for MP3 Player ·······················...

  • Page 5: Introduction

    Introduction What Is MP3? MP3, a short for ‘MPEG Audio Layer-3’ , is one of file extensions such as *.HWP, *.TXT. With MP3 technologies, a minimum of 150 songs can be saved on one blank CD of 650M. What Is an MP3 Player With an MP3 player, you can save music you like from your computer and listen to it whenever you want;...

  • Page 6: Names And Composition

    Names and Composition Earphone Jack Line in Jack STOP PLAY USB Connector Protect Cab...
  • Page 7 Neck Strap Hole Rechargeable Battery Protect Cap Write Protection Switch USB Connector Protect Cap...

  • Page 8: Functions And Details

    1.4 Functions and Details Music File : *.MP3, *.WMA, *.ASF file compatible ▶ Capacity Range : 16Mbyte ~ 512Mbyte ▶ Portable Data Storage : Music file and Data Storage and Transporting ▶ Equalizer Function : CLASSIC / JAZZ / POP / ROCK / NORMAL ▶...

  • Page 9: How To Use Mp3 Player

    How to Use an MP3 Player (on Windows98) 2.1 Installing the Driver for MP3 Player A. If your computer’ s OS is Windows 98, you have to install this driver for your PC to read MP3. (For Windows2000 and Windows XP, no need to install the driver) For PCs with the USB memory, you do not have to install the driver.
  • Page 10 D. If you execute ‘730inst.bat’ file, the following instruction will be executed, starting the installation. E. When the installation is completed after the instruction is executed, reboot the computer to end the installation. F. When the MP3 player is connected to the PC’ s USB port, ‘My Computer’ - >’...
  • Page 11 this folder, you can save music files and listen to them. You can use the player as a portable data storage device. H. Even if think you followed the instructions exactly, the driver (S/W), in some cases, may not be installed in a right way. This may happen when you did not follow the exact order or wrongly understood the instructions.
  • Page 12 USB port, and you will see the following window. Click [Next] button. J. The window like the one below will appear. Click [Next] button. K. The window like the one below will appear. Select the location you want to search as seen below and select Win98_driver through <Browse...>.
  • Page 13 ROM drive>. If downloaded from the Internet, you can specify the directory through < Browse...>] After selecting the location, click [Next] button. L. The window like the one below will appear. M. When you see the window like the one above, click [Next]. If you see the message reading ‘the driver is not found’...
  • Page 14 button to go back to the previous step. Specify the accurate location of the driver once again to proceed to the next. N. When the window like the one above pops up, the driver is successfully installed. Click the [Finish] button to complete the installation.
  • Page 15 2.2 File transmission between the PC and the player It is very simple to transmit files between the PC and the player. PCs read a MP3 player as a mass storage. Therefore, you only need to save a file you want or open it, after finding out this portable storage in Windows Context menu.
  • Page 16 The following is a brief explanation of how to move MP3 files in the PC to the ▶ portable disks.

  • Page 17: Changing The Mode Of Mp3 Player

    2.3 Changing the Mode of MP3 Player MP3 player features the following three modes. PLAY Mode ▶ LANGUAGE Mode ▶ RECORD Mode ▶ PLAY Mode RECORD Mode LANGUAGE Mode Changing the Mode · Changing the Mode - Press PLAY 2 Sec. when Player Stop You can change the mode in STOP mode.

  • Page 18: Listening To Music With Mp3 Player

    2.4 Listening to Music with the MP3 Player Connect the earphone to the player as seen below. Shift the hold switch to (...
  • Page 19 Turn the power on STOP / Power Off Button PLAY / Power On Button Press the PLAY button for long to turn the power on with the LED flickering. Press the STOP button for three seconds or so in STOP mode, and the LED will be off as the power is turned off.
  • Page 20 Adjusting the Volume FF Light Press : Volume Up REW Light Press : Volume Down You can either increase or decrease the volume while in PLAY mode by lightly pressing FF(“ >>” ) button or REW(“ <<” ). Note: For Hanbit MP3 player, how to press the four buttons determines functions. Please, keep in mind that the length of button-pressing determines the function while using our product.
  • Page 21 Selecting EQ STOP(EQ Select) PLAY Press 2 Sec. – Change Mode To select the EQ, you have to change the mode to EQ, first. Under EQ mode, you can change the mode in PLAY mode. To shift to EQ mode, press PLAY button for two seconds or so while in PLAY.

  • Page 22: Learning Languages With Mp3 Player

    2.5 Learning Languages with MP3 Player Shifting to Language Mode PLAY(Mode Change) Refer to clause 2 and 3 of page 17, regarding language mode selection. Save language files on the player in RECORD mode, and press the PLAY button for two seconds or so in PLAY mode to shift to LANGUAGE mode. [Refer to 2.10 of page 33] Play / Pause / Stop in LANGUAGE mode.
  • Page 23 Selecting Files in LANGUAGE Mode FF – Next File REW – Previous File Instructions for selection in LANGUAGE mode are the same as in PLAY mode: Press “ >>” or” <<” for two seconds or so to select a file. If pressing FF or REW button while in PLAY mode, the previous or the next files will be selected and played.
  • Page 24 Speed Control in LANGUAGE Mode · Speed Control – Press REW lightly on Play You can control play speed in LANGUAGE mode by pressing the REW button. There are five speed levels; one press each increases the speed (first press- the lowest, forth press-the highest, and fifth press-back to normal) Volume Control in LANGUAGE Mode FF –...

  • Page 25: Recording With Mp3 Player

    Recording Switching to Record Mode PLAY – Mode Change How to switch Record mode is explained in sections 2.3 of page 17 Press Play for a couple of seconds while stopped in Language mode to switch to Record mode. You can see whether the device is in Record mode by looking at the LED light.
  • Page 26 Recording in Record Mode STOP Start/Pause Record Start recording by pressing the Play button. Pressing Play while recording will pause the recording. Press Play once again to resume recording. To end recording, press Stop. Switching from Record to Play Mode PLAY –...
  • Page 27 Reviewing Recorded Files Data recorded following the instructions above is saved as “ *.mp3” to the built-in memory and the names of files are automatically saved as “ REC_xxx.mp3” . Connecting LINE IN While in Recording...

  • Page 28: Write Protection Function And Hold Switch

    2.7 The MP3 Player’s Data Write-Protect and Hold Key Write Protect Switch Our MP3 Players feature write-protect as do floppy disks. With the write-protection, users can only read data and cannot save, alter, or re-format the data. This function is to protect important files. The Hold button is used for the write-protect function.

  • Page 29: Recharge Mp3 Player

    Recharging the MP3 Player The MP3 player offers the convenience of having built-in batteries. The batteries are recharged through the USB port. It is very simple to recharge the batteries. You simply need to connect the player to the USB port. You can check the status of recharging through the LED light.

  • Page 30: Depart Mp3 Player From Pc

    2.9 Disconnecting the MP3 Player from the COMPUTER When disconnecting the player from the COMPUTER after downloading data or music files, you need to safely disconnect the device as seen in the picture below with Win 2000/ XP but not with Win 98. A.
  • Page 31 2.10 LED Display Our MP3 players have two 3-color LEDs, which display the status of the player. One LED is located on top and the other is on front of the player. They work as follows. Mode LED(Top) LED(Front) Play Green Green Stop...
  • Page 32 LED Display in Play mode ▶ In MP3 Play mode, the front LED light is green. Stop LED FF LED REW LED Play LED Mode LED(Top) LED(Front) Play Green Green Stop Green Play Mode Pause Yellow Green The top LED indicates the current status (play, stop, and pause) of the player and the front LED indicates the mode [MP3 Play, Language, and Record].
  • Page 33 LED Display in Language Mode ▶ In Language mode, the front LED light is yellow. Stop LED FF LED REW LED Play LED Mode LED(Top) LED(Front) Play Green Yellow Stop Yellow Language Pause Yellow Yellow Study Mode Repetition(A – B) Green Lighting Yellow Speed Control...

  • Page 34: Led Reference

    LED Display in Record Mode ▶ In Record mode, the front LED light is red. LED (Top) LED (Front) FF LED REW LED Mode LED(Top) LED(Front) Recording Green Record Mode Record Stop Record Pause Yellow Record Source Choose REW LED FF LED Record MIC (VOICE)
  • Page 35 LED Display while recharging (Connected to the USB port of the computer) ▶ While recharging, the LED (top) and LED (front) are all Red. LED (Top) LED (Front) Mode status LED(Top) LED(Front) Recharging Recharge Finish Green Green...

  • Page 36: Customer Support And Firmware Upgrade

    Upgrading Firmware ▶ You can download new versions of firmware and learn how to download them by visiting us at http://www.hbe.co.kr Hanbit Electronics Co., Ltd. http://www.hbe.co.kr Address : 414-5 Woncheon-Dong, Paldal-Gu, Suwon-City, Kyoungki-Do, Korea (Zip 442-823) Telephone : +82 31 218 1900 Fax : +82 31 217 1926 e-mail : support@hbe.co.kr...

  • Page 37: Troubleshooting

    Troubleshooting Symptom Checklist Check if batteries are in the battery compartment ▶ Power does not turn on. and if they are recharged Check if the power is on. ▶ Music files Check if there are music files on the built-in ▶...

  • Page 38: Cautions

    If you feel a buzzing sensation in the ears, lower the volume or discontinue listening to music. ¨ Disclaimer Hanbit Electronics Co., Ltd. is not responsible for data loss or damage. ▶ Please back-up important data since this product uses a flash memory chip, capable of being written 300,000 times.

  • Page 39: Regulatory Information

    Regulatory Information FCC Compliance Statement Caution : Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 40 Applicable Directives Ÿ Electromagnetic Compatibility Directive 89/336/EEC Applicable Standards Ÿ EN 55022:1998, Limits and Methods of Measurement of Radio Interference Characteristics of Information technology Equipment Ÿ EN 55024:1998; Information technology equipment-Immunity characteristics Limits and methods of measurement.
  • Page 41 C. Product Exchange : Occurrence defects until 3 times as the same reason within 1 month. 2) Compensation Service Charge Service Hanbit Electronics Co., Ltd can charge a customer the cost to ask for repairs and can refuse the repairs in the reason as below.
  • Page 43 HANBIT Electronics Co., Ltd. Address : 414-5 Woncheon-Dong, Paldal-Gu, Suwon-City, Kyoungki-Do, Korea (Zip 442-823) Telephone : +82 31 218 1900 / Fax : +82 31 217 1926 Home Page : www.hbe.co.kr / E-mail : support@hbe.co.kr...
