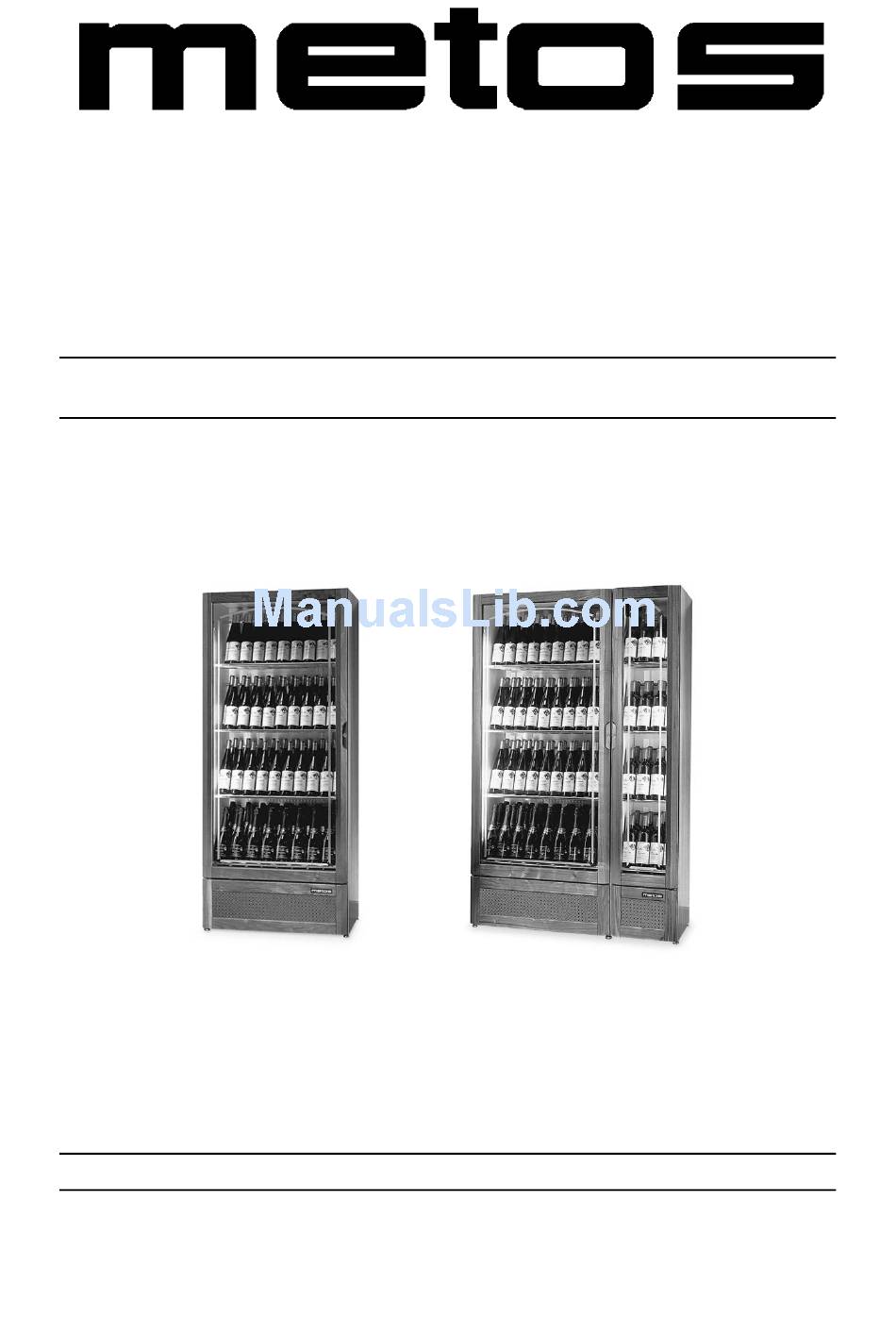

- Page 1 WINE CABINET DIONISIO BACCO Installation and Operation Manual S/N: Valid from: 20.03.2003 Rev.: 2.0 2025330, 2025331, 2025335, 2025336...
- Page 3 Dear Customer, Congratulations on deciding to choose a Metos appliance for your kitchen activities. You made an excellent choice. We will do our best to make you a satisfied Metos customer like thousands of customers we have around the world.
- Page 4 20.3.2003 Rev. 2.0...
-
Page 5: Table Of Contents
20.3.2003 Rev. 1. General ......................1 1.1 Symbols used in the manual ..................1 1.2 Symbols used on the appliance ..................1 1.3 Checking the relationship of the appliance and the manual .......... 1 2. Safety ......................2 2.1 Safe use of the appliance ....................2 2.2 Disposal of the appliance .................... - Page 6 20.3.2003 Rev.
-
Page 7: General
20.3.2003 Rev. 2.0 General 1. General Carefully read the instructions in this manual as they contain important information re- garding proper, efficient and safe installation, use and maintenance of the appliance. Keep this manual in a safe place for eventual use by other operators of the appliance. The installation of this appliance must be carried out in accordance with the manufactur- er’s instructions and following local regulations. -
Page 8: Safety
20.3.2003 Rev. 2.0 Safety 2. Safety 2.1 Safe use of the appliance Before connecting the appliance to the mains check that the voltage and frequency are as indicated on the rating plate. It is recommended to connect the appliance to a specifically provided high sensitivity (30 mA) differential security breaker. -
Page 9: Functional Description
20.3.2003 Rev. 2.0 Functional description 3. Functional description 3.1 Intended use of the appliance The appliance is designed for the storage and display of wine bottles. 3.2 Construction The cabinet has a wooden frame and it is equipped with glass doors. The inside wall ma- terial is white melamine. -
Page 10: Alarms And Warnings
20.3.2003 Rev. 2.0 Functional description Setting the temperature Press the SET button (1) for one second to display the temperature set in the factory. After a while the setting value will start blinking. Now a new temperature setting can be made by using the buttons (3) (INCREASE) and (4) (DECREASE). -
Page 11: Operating Instructions
20.3.2003 Rev. 2.0 Operating instructions 4. Operating instructions 4.1 Before using the appliance Wash the inside of the cabinet and the accessories by wiping with a damp cloth and using neutral detergent. Check that the condensate pan has been correctly positioned in the compressor compart- ment. -
Page 12: After Use
20.3.2003 Rev. 2.0 Operating instructions 4.3 After use 4.3.1 Cleaning Regular cleaning and maintenance procedures must be carried out to obtain high perform- ance out of the appliance. Before cleaning, disconnect the appliance from the power supply by detaching the plug from the socket. -
Page 13: Installation
20.3.2003 Rev. 2.0 Installation 5. Installation 5.1 Transporting and handling the appliance The appliance contains glass components, so it must be handled with great care. Store the appliance in its package in a dry place. Exposing the appliance to the rain is for- bidden. -
Page 14: Troubleshooting
20.3.2003 Rev. 2.0 Troubleshooting 6. Troubleshooting Malfunctions are very often caused by simple problems which the user can solve by him- self. Before contacting your after-sales service, make the following checks: PROBLEM ACTION The appliance stops operating Check that the plug is fitted into the socket correctly. The temperature inside the appliance is Check that the temperature is not affected by a near- not low enough... -
Page 15: Spare Parts
20.3.2003 Rev. 2.0 Technical specifications 8. Technical specifications Wiring diagram Dionisio Wiring diagram Bacco Installation drawing Dionisio Installation drawing Bacco... - Page 16 20.3.2003 Rev. 2.0 Technical specifications Wiring diagram Dionisio Description Thermostat Indicator light Power indicator light Main switch Switch (lighting) Line Compressor Condenser fan Neutral Earth point Starter Ballast Fluorescent lamp...
-
Page 17: Voltage Codes
20.3.2003 Rev. 2.0 Technical specifications Wiring diagram Bacco Description Thermostat Thermostat Indicator light Power indicator light Main switch Switch (lighting) Line Compressor Condenser fan Neutral Earth point Starter Ballast Fluorescent lamp... - Page 18 20.3.2003 Rev. 2.0 Technical specifications Installation drawing Dionisio...
- Page 19 20.3.2003 Rev. 2.0 Technical specifications Installation drawing Bacco...
- Page 20 20.3.2003 Rev. 2.0 Technical specifications Item Model Specification Dimensions WxDxH 830x480x1900 mm Dimensions WxDxH 1200x480x1900 mm Capacity 120 bottles Capacity 120+48 bottles Climatic classification Operating temperature +6...+12°C Operating temperature, red wine compartment +6...+12°C Operating temperature, white wine compartment BA +15...+20°C Refrigeration capacity 733 W Refrigerant...
