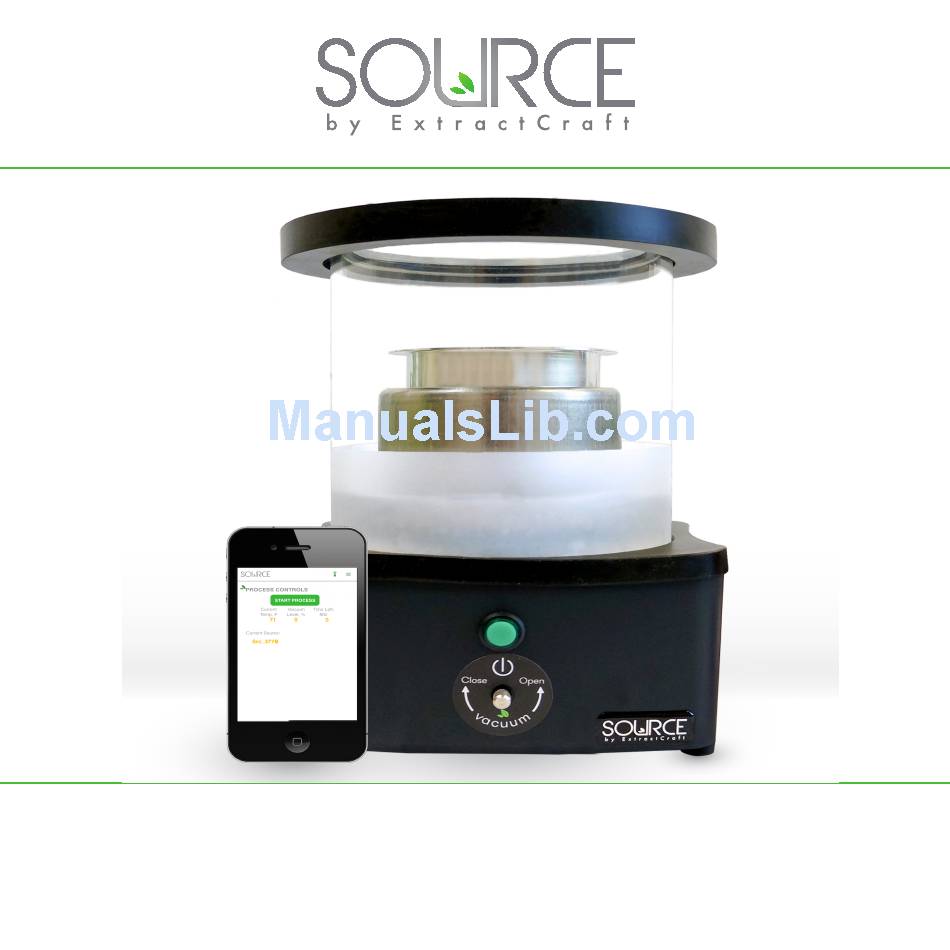

- Page 1 Turbo Mode User Manual...
- Page 2 TURBO MODE USER MANUAL Version 07 September 14, 2017 Part # 1007-1051 ExtractCraft 105 South Sunset Street, Unit M, Longmont, CO, 80501 United States Phone: 720-307-8628 info@extractcraft.com customer support:...
-
Page 3: Table Of Contents
The Source User Manual Contents iii CONTENTS Safety..........1 Safety & Plant extract warning The Source: Main Function....2 Appliance for Plant Extractions Alcohol Solvent Source Operation & Making a Plant Extract....3 Care & Cleaning......9 Mobile Application......10 Installing the Mobile App Setting up Bluetooth Launch the Source App Using the Menu Understanding the Control Screen... -
Page 4: Safety
The alcohol is contained in a vacuum where no air for its ExtractCraft makes no claims about essential combustion is present. Always use oils and their uses. This is simply a device for caution when handling alcohol and keep it extracting them. -
Page 5: The Source Main Function
See www.extractcraft.com for more information, recipes threaded post and links and share your own results. The second step is to simply use the Source to lower seal separate the plant essence from the tincture. -
Page 6: Making A Plant Extract
Divide large pieces into similar smaller lengths for good fit. Cover with 190-proof grain alcohol to about 1/4” above the plant volume. Allow the plant matter to soak for 5-20 minutes or more. www.extractcraft.com for recipes Make the tincture. specific to your botanicals. - Page 7 The Source User Manual Source Operation & Making A Plant Extract STRAIN THE TINCTURE Strain the tincture into the reservoir cup. Use a strainer, coffee filter, or reservoir cup Buchner funnel to remove particles. The repeated and thorough filtering Strain the tincture into results in a more clear end product.
- Page 8 5 The Source User Manual Source Operation & Making A Plant Extract PLUG IN THE SOURCE Plug the Source into a 120 VAC outlet. The indicator button on the base glows steady green when the Source has power and is ready for use. If the button is not lit, then the Source is not getting power.
- Page 9 The Source User Manual Source Operation & Making A Plant Ext r CHECK THE VACUUM When the Source is first started, the vacuum pump will run for a few minutes until it reaches full vacuum. When the vacuum pump start, press down firmly If the vacuum isn't on the lid for 5-10 seconds.
- Page 10 7 The Source User Manual Source Operation & Making A Plant Extract MONITOR EXTRACTION PROGRESS View heat input temperature, Monitor the extraction by watching for alcohol vacuum level, and run time condensing on the lid and listening to the pump. for the extraction. The liquid in the reservoir cup will begin boiling and the alcohol will condense into the outer Monitor the extraction...
- Page 11 The Source User Manual Source Operation & Making A Plant Extract RELEASE THE VACUUM Turn the vacuum relief screw to the left Loosen 4-full turns (8-half turns) to relieve the screw to the pressure so you can remove the lid in the left to relieve next step —...
-
Page 12: Care & Cleaning
4 full turns to the left and wait for the pressure to equalize. Removing the screw can result in cross threading and will make creating a vacuum impossible. If this happens send the unit back to ExtractCraft for repairs, but it's not covered under the manufacture defects warranty. -
Page 13: Mobile Application
Once the Source app is downloaded tap the your app store. icon to launch the app. For the Google Play store, tap the search bar and enter Extractcraft. The Source by Extractcraft app, then tap INSTALL. Tap ACCEPT to allow the app to use Bluetooth. - Page 14 11 The Source User Manual Mobile App 1.Tap red comm icon at the 3. The refresh will display all 2. If no device appears tap top to open the "Select current available units. Tap the refresh icon. Appliance" Dialog box. the unit you want to use so it is grayed-out with a check mark next to it.
- Page 15 Altitude Tuning directions on page 13 to set accordingly. Current Source: This area lists the ExtractCraft Source unit that is connected. CAUTIONS ABOUT USING THE APP AND CONNECTIVITY Only one device can be paired to the Source at any time. If the unit is still paired to a different device from a previous session it will not appear in the "Select Appliance Screen".
-
Page 16: Altitude Tuning
13 The Source User Manual ALTITUDE TUNING ALTITUDE TUNING In order for your Source to perform at its full potential it’s very important to program the elevation where it will be used to the closest 1,000 feet of elevation. Once you program an elevation it will remain as the default until it’s manually changed to a different elevation. -
Page 17: Botanical Recipies
The Source User Manual Botanical Recipes 14 BOTANICAL RECIPES ROSE EXTRACT LAVENDER, CAYENNE, LEMON TOPICAL RUB Ingredients: 100 grams dried rose petals, 12 oz. Ingredients: 28 grams lavender, 2 dried cayenne food-grade, grain alcohol of 190-proof (95%) alcohol peppers, 1/4 cup dried lemon peel, 5-7 oz. chilled food- grade, grain alcohol of 190-proof (95%) from freezer. -
Page 18: Troubleshooting
15 The Source User Manual Troubleshooting TROUBLESHOOTING Problem Possible cause Solution Vacuum Outer collector is not Check the lower seal and collector are securely in place and clear of pump runs sealing. any debris. Try pressing down on the lid gently while the vacuum pump continually is running. -
Page 19: Technical Specifications
The Source stands 10-inches tall. The base is 7-inches long by 7-inches wide. WARRANTY Our goal is to have you enjoy the Source. ExtractCraft If needed, we will send instructions and a Return shall repair or replace the Source, at its sole discretion,... - Page 20 ExtractCraft.com | 720-307-8628 | info@ExtractCraft.com | Like us on Facebook...
