Summary of Contents for Sensor Partners Thermoview P-64

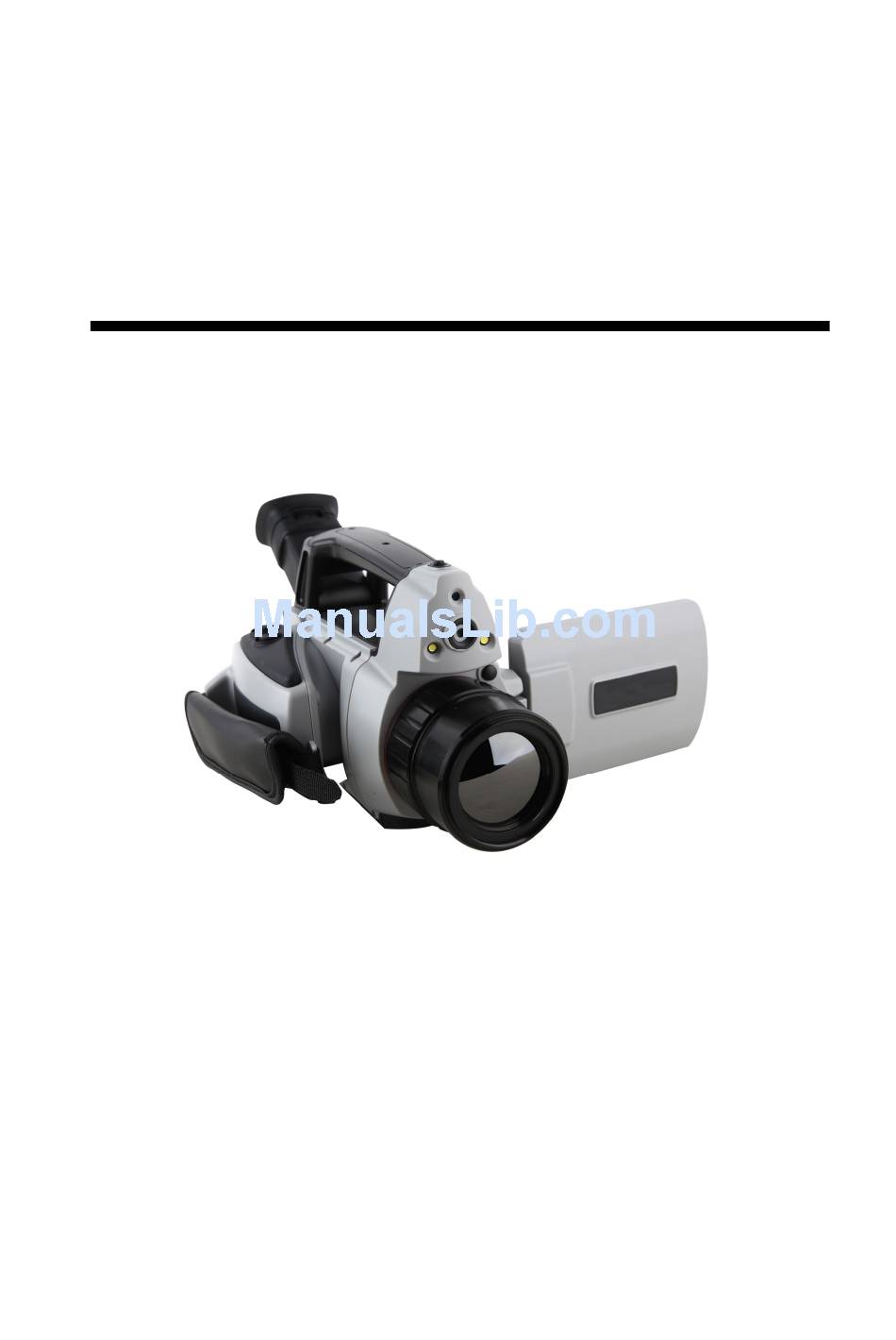

  • Page 1 Thermoview P-64 Thermal Image Camera User Manual Sensor Partners BV © 2016 Sensor Partners...

  • Page 2: Warnings, Cautions And Notes

    ! Warnings, Cautions and Notes Definitions ! ! ! ! WARNING Could cause body injury or death. ! ! ! ! CAUTION Could cause damage to equipment or permanent loss of data. ! ! ! ! NOTE provides useful information to the operator. ! ! ! ! Important Information –...
  • Page 3 camera to stabilize after initial power up. ! ! ! ! NOTE - Each camera is factory calibrated. It is recommended that calibration be performed every 12 months. ! ! ! ! CAUTION - Do not open case. Unit does not contain any user serviceable parts.

  • Page 4: Table Of Contents

    Contents ! Warnings, Cautions and Notes ............2 Introduction ..................6 Standard accessories ......................9 Optional accessories ....................9 Camera overview ............... 10 Function keys ......................10 Interface........................14 Basic operation ................15 Battery Installation and Replacement .............. 15 3.1.1 Inserting or removing battery ..............
  • Page 5 4.6.7 Capture setting ....................38 4.6.8 System settings ....................39 File management ......................42 4 . 7 4.7.1 Playback ....................... 42 4.7.2 Delete ........................44 Specification ................46 Troubleshooting ................. 48 6 6 6 6 Appendix A ..................49 Common material emissivity F YI （...

  • Page 6: Introduction

    Introduction Thank you for choosing Sensor Partners “Thermoview P-64” hand-held infrared thermal imager. Features The Thermoview P-64 includes the following features: 11 user selectable color palettes 11 user selectable languages 1- 8 X digital zoom 10 removable spot measurements 5 areas measurements...
  • Page 7 Alarm video Isotherm Temperature measurement settings Built in Emissivity Table list of common materials CMOS visible image and storage Thermal image and CCD image fusion High/low temperature fusion Upgrades and Options The P-64 is factory upgradeable for Wide Angle or Telephoto Lenses. Applications: Preventive maintenance Power industry: Power line and power facility thermal state checking;...
  • Page 8 Fire fighting: Forest fire prevention and detection of latent ignition source. Preventive detection on specific materials of auto-ignition. Detection of potential spark ignition sources. Medical: Human body surface temperature detection and screening. ! ! ! ! Petro/chemical: Oil pipeline status inspection; material surface temperature detection;...

  • Page 9: Standard Accessories

    1.1 Standard accessories Infrared thermal image camera (with wrist strap and lens) Shoulder strap Carrying case Video out cable Lithium ion batteries （ ） Charging dock Lithium battery charger Lens cap User manual, Infrared report and analysis software system CD SD card SD card reader Network cable (Mini-USB to RJ45)

  • Page 10: Camera Overview

    2 Camera overview 2.1 Function keys...
  • Page 11 [1] Power key Press and hold the Power Key for > 3 seconds to power on/off the camera ! Note: After powering off, please wait ten seconds before powering the camera on again [2] Menu/Confirm key Includes Up, Down, Left, Right and Menu/Confirm (center) keys. Function varies with operation mode.
  • Page 12 • Pressing and releasing the C key cancels the present operation when in Menu mode. • Pressing and releasing the C key when an image is frozen or being viewed from memory, will return to real-time measurement status. • When a parameter is selected, such as a measurement cursor, pressing the C key will delete the highlighted measurement.
  • Page 13 The standard configuration is to save the image [7] Laser switch Short press to turn on the laser, press again to turn off. In menu there is auto turn off laser option ,the standard configuration is 60s. [8] F2 Key Short press to switch thermal image /CCD image/fusion mode.

  • Page 14: Interface

    2.2 Interface [11] Video output It is a video output interface [12] Network interface Use network cable (Minu-USB to RJ45) to connect Internet [13] SD card slot Accepting standard size SD card such as supplied 8GB capacity card, for device upgrade or image storage [14] Power interface External power input interface.

  • Page 15: Basic Operation

    3 Basic operation 3.1 Battery Installation and Replacement 3.1.1 Inserting or removing battery Battery compartment is located at the end of the camera, below the view finder. Insert the battery (the battery contacts must face into the battery compartment),promote it until the battery lock is locked. Triangle mark up When inserting the battery, note the triangle mark direction should upwards,...

  • Page 16: Replacing Battery

    Prevent stay slot Lock button ! CAUTION: Use only original manufacturer replacement battery. Use of incorrect battery may result in physical or electrical damage to the instrument due to incorrect voltage or physical size difference. 3.1.2 Replacing battery When battery has approximately 5% charge remaining, the warning will be...

  • Page 17: Battery Safety And Usage

    displayed and the instrument will turn off in approximately 10 seconds. 、 Powering off display It’s better to replace batteries now. 3.2 Battery safety and usage Batteries should be stored in an ambient temperature of -4°F (–20°C) to 67.9°F (+20°C). Lithium batteries will self-discharge during storage, so they should be fully charged before storage.

  • Page 18: Quick Access

    ! ! ! ! Always dispose of battery in accordance with local, state and federal regulations 3.3 Quick access 3.3.1 Capture an image After installing the battery, press and hold the power key (≥3 seconds) until the display comes on. After approximately 50 seconds, the power on routine will finish and the camera will start its measurements.
  • Page 19 the camera, it will display <XXX or >XXX° with XXX being the min or ° max temperature of the selected range. • To modify the measurements attributes, select the measurement parameter, and then press the Confirm key. The screen will display the settings dialog box.

  • Page 20: Freeze And Save Image

    measurement. Area attributes dialog box Area attributes amend emissivity, distance, highest temperature, lowest temperature, average temperature, temperature difference and reference temperature. Left and right key for choice, press A key for up and down switch. When Set Ref is set as Yes, the displayed values of other measurements will be their delta from this measurement.

  • Page 21: Export Saved Images

    then select the submenu (via the arrow keys to select) Click the "Preview" option in the floating panel to open the selected file 、 (via the left and right keys to switch selection) After you open the image, you could use upper and lower sections of the playback control panel keys to playback the current store images.

  • Page 22: Operation Guide

    Switch button, by the left and right keys to modify the switch settings 4 Operation guide 4.1 Graphic interface description 4.1.1 Screen graphic interface Screen graphic interface [1] Company logo [2] Emissivity ： ： ： ： the current emissivity setting [3] Reference Temperature ：...
  • Page 23 yellow denotes the temperature value of the selected object. [5] Spot temperature measurement ： ： ： ： w hite crosshair [6] System time ： ： ： ： the current system time [7] Battery status: Indicates the current battery status. [8] Manual/auto enhancement mode: choose manual or auto mode [9] Min temperature ：...

  • Page 24: Floating Bar Interface

    4.1.2 Floating bar interface Floating bar interface Floating bar interface from left to right, up to down is adding spot, adding ： line, adding area, delete, taking photo, record, playback and main menu 4.1.3 Main menu Main Menu The main menu items: display the main menu item, namely the document management, temperature settings, image settings, camera settings, general...

  • Page 25: Sub-Menu Interface

    4.1.4 Sub-menu interface Sub-menu interface [1] Figure name: Displays the name of the dialog box. The name of the dialog box as shown in the example is "temperature measurement setting. [2] Item title: A dialog box may contain more than one item. As shown in the above figure [3] Item Content: each item corresponds to the content of a project, the left and right keys to make changes, ">"...

  • Page 26: Recording

    If select t hen press OK key t hen the all the objects will be “ ” ， ， cleared. ! NOTE: When you delete a single temperature measurement object, direclty press “A” key and choose the object, then press the "C" key to delete. 4.3 Recording This function is used to save the video, save format to MP4.

  • Page 27: Preview

    Voice record note for photo Continuous photos mark will appears in the status column if set the continuous photo 4.5 Preview This item is for the preview files of backup. Press confirming key. Pop up the floating items s elect preview and press confirming key will appears as ，...

  • Page 28: Settings

    4.6 Settings File management Temperature measurement setting Imaging setting Image setting General setting Photo&video capturing SD card management System setting Main OSD 4.6.1 General setting General setting OSD Press confirming key will pop up the panel and select the SETTING to open the main menu.
  • Page 29 Time of Auto calibration S et time interval of auto calibration to get ： ： ： ： better thermal image and improve the precision. The unit is second Auto calibration OSD Shortcut key U sers could set the Functions of shortcut key. System ：...
  • Page 30 Shortcut key setting Power saving S creen off and power off ： ： ： ： Time of screen off I f without any operation t hermal imaging camera ： ， will screen off to save power P ress any key except the 。...
  • Page 31 Auto off time OSD LCD brightness adjustment I t is valid when changing the brightness ： ： ： ： LCD brightness adjust OSD...

  • Page 32: Temperature Measurement Setting

    4.6.2 Temperature measurement setting Temperature measurement setting menu Press OK button to call out the Setting Menu. Select “Measuring Setting”, then press “OK” again call setting interface. this interface ,level ,magnification, Environment Temp, Ref Temp, adjustment, object temperature can be set. Use UP & Down button to select ,” >” means there is sub menu, press Right Button to enter the sub menu.

  • Page 33: Adjustment

    Ref Temp Menu Object temperature When turn on object temperature, the temperature ： ： ： ： target display the object temperature in the bottom right corner 4.6.3 Adjustment Adjustment Menu Press OK button to call out the “Adjustment” under menu “Measuring Setting”.

  • Page 34: Image Settings

    4.6.4 Image settings Image Setting Menu Press OK button to call out the Image setting menu under “Setting” . in this menu , Manual/Auto-Enhance Mode, IR transparency , Alarm setting , Isotherm, IR fusion, video output can be set. Use UP &Down button to select ,use LEFT &...
  • Page 35 can be viewed in the image. If Select Manual mode, User can set the pallet value to adjust the image quality. Press “UP” button to increase the level range , press Down to decrease the level range. Press Left button to reduce the upper limit increase the bottom limit;...
  • Page 36 Isotherm Setup Menu Isotherm Activates the Isotherm display by displaying the image in the ： ： ： ： set temperature range by the specified color. Isotherm Color 9 colors available for your choice Setting to Off, disables ： ： ： ： ，...

  • Page 37: Network Settings

    4.6.5 Network settings Network Setup Menu Press the menu button to show up the floating panel and choose the “setup” option to active the main menu. Select “Network function. IP Address ： ： ： ： This IP address must be the only one, can not be conflicted with the other IP address of the same network segment.

  • Page 38: Capture Setting

    SD Card Format Figure Press the Enter key to pop up floating panel, then select "Settings" option to activate the main menu, select the "SD Card Management item in the setup menu. Unload ： ： ： ： U nload SD card. Format ：...

  • Page 39: System Settings

    option Associated Pictures ： ： ： ： This function is to associate the infrared images with digital image, to save the picture together. Image annotation mode ： ： ： ： This option has two kinds of annotations, audio annotations and text annotations. Audio annotations is to add voice when you save the picture;...
  • Page 40 Press the Enter key to pop up "Settings" option to activate the main menu, select "System Settings" item in the setup menu. Users can customize the set system language, time / date formats, time / date, restore the factory value items.
  • Page 41 Customer can via the Time Setting menu to set the thermal imaging camera’s time. After the setting, the data the time will be saved. Users can customize to set the year, month, day, hour, minute entries. Press the left and right key to do the settings. ! Note: When left unused for a long time, due to the limited internal battery power, the thermal imaging camera need to re-adjust the system time.

  • Page 42: File Management

    Display thermal imaging device, device number, software version number and MAC address Import: New SD card the Create DCIM / Import directory on the SD card, import the fixed file name as PicNote.cfg File Name Form ： [Note] Note1 = Note2 = Note3 = Each line is not more than 20 words.
  • Page 43 select "Settings" option to activate the main menu, select the file management menu in the setup menu, press the confirm button to open the infrared image in the storage. The image arrangement format has abalone grid , press the upper, lower, left, and right arrow keys can switched the stored image.

  • Page 44: Delete

    button on the status bar, press the "confirm" key to take effect on the next key to show and hide the playback status bar (press the "on" button is displayed, press the "next" button is hidden) The icon buttons from left to right is as follow: play / pause, stop, rewind, fast-forward, the former one, the next.
  • Page 45 File Delete Figure ! Note ： ： ： ： Before deletion, make sure that the file is no longer needed or have backup, the deleted image can not be recovered...

  • Page 46: Specification

    5 Specification Technical Specification Items P-64 Detector type Un-cooled FPA micro-bolometer Detector characteristics Array size/format 640x480 Field of view/min 24°×18°/0.3m focus distance Spatial resolution 0.65mrad I FOV （ ） 0 .03 @ 30 Thermal sensitivity ≤ ℃ ℃ Image characteristics Frame frequency 50/60Hz Focus...
  • Page 47 CCD image format JPEG M PEG4 、 Input via built-in microphone up to 60 Voice annotation seconds of digital voice clip per image stored with image Text annotation Laser pointer Laser locator Class 2, 1mw/635nm(red), IEC 60 285 Battery type Li-Ion, rechargeable Battery operating 3 hours continuous operation...

  • Page 48: Troubleshooting

    6 6 6 6 Troubleshooting Please follow the table below to diagnose and correct the problem. If problem still exists, please contact our service department. Problem Cause & Solution Battery installed installed incorrectly →Install battery or re-install battery camera does Battery is out of power.

  • Page 49: Common Material Emissivity

    Appendix A Common material emissivity （ （ （ （ FYI） ） ） ） Material Surface Temperature°C Emissivity ε （ （ （ （ ） ） ） ） Non- oxidized 0.20 Aluminum Oxidized 0.55 Burnished to Brown 0.40 Brass Dull luster 0.22 Oxidized 0.61 Copper...

  • Page 50: Factory Default Parameter Setting Table

    Appendix B Factory default parameter setting table Table.1 Measurement temperature setting table Value Parameter -40 ~ 650° C -20 - 180° C Temperature Range Lens Standard ° C Temp Unit Ref Type 30° C Ref Temp Table.2 Measurement temperature correction table Parameter Value 0.96...
